ISUZU Flatbed Truck

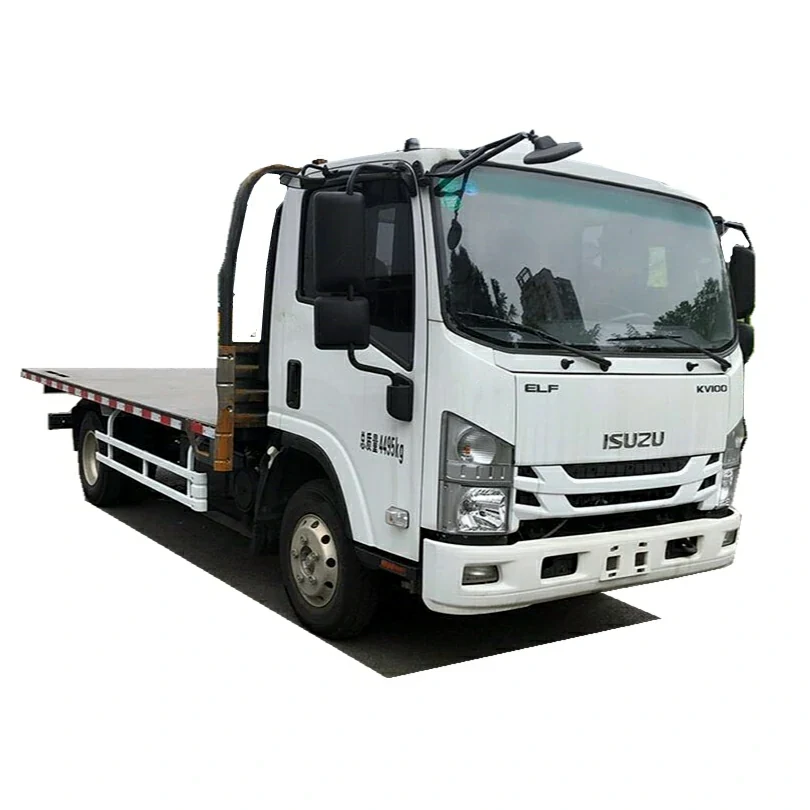

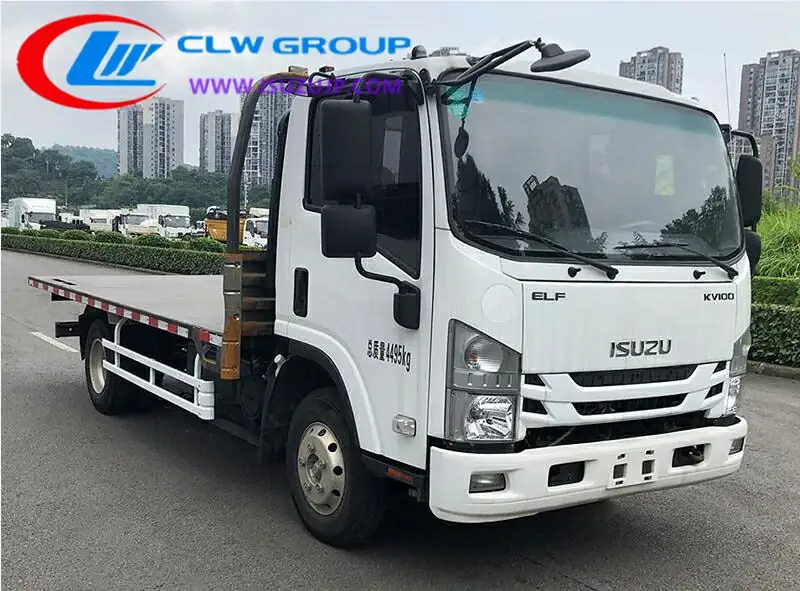

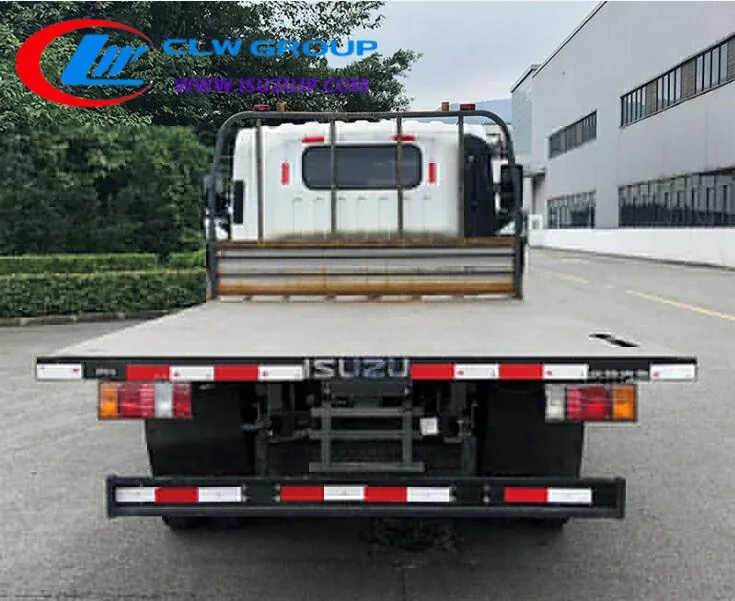

ISUZU NPR 3.5 Ton Flatbed for Sale
6 wheel ISUZU 3.5 ton Excavator carrier flatbed truck, Left Hand Drive model chassis, MSB 6-shift manual gearbox, ISUZU 120 HP diesel engine
- Chassis
- ISUZU NPR
- Engine
- ISUZU
- Power
- 120 HP (88 KW)
- Overall Dimension
- 5995X2300X2400mm
- GVW / Kerb Weight
- 5,800kg / 2,565kg
- Drive Type
- 4X2, (left-hand drive)
- Transmission
- Manual MSB 5 speed levers with 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 23 rows.
ISUZU NPR 3.5 Ton Flatbed for Sale Description
- ISUZU Npr flatbed also called Low flatbed vehicle, excavator carrier truck, machinery transport vehicle, excavator transport truck, lorry carrier truck, excavator dump truck, etc
- is used for transporting machine that is non-removable or machinery that can’t be driven on road, such as excavator, loader, harvester, machine equipment, etc. It’s widely used in the construction, agriculture fields.
- Chengli Company produced excavator carrier trucks that are easy to load machinery, there is a hydraulic ladder at the rear of the platform.
- As for the flatbed carrier trucks, the driving type could be 4×2. 4×4, 6×4, 6×6, 8×4, etc.
Advantage
- 100% custom-made
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- 3 Ton to 40 Tons available
- Short delivery time 7~30 days
- Telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency systems, etc.
- Easy operation & Easy maintenance
Specification
3.5 ton Isuzu flatbed for sale
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU NPR | |
| Overall Dimension | 5995X2300X2400mm | |
| GVW / Kerb Weight | 5,800kg / 2,565kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 120 HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, (left-hand drive) |
| Transmission | Manual MSB 5 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tire Specification | 700R16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Flatbed Loading Capacity | ≤3.5 Tons |
| Flatbed Material | Strengthen checked plate, anti-slip | |
| Flatbed Thickness | 5 mm | |
| All standard accessories: Basic tool kit, English manual | ||
| Optional | Hydraulic ladders at rear of the platform. Width extensible manual or hydraulic. Front hydraulic lifting system. | |
Questions
Questions About The ISUZU NPR 3.5 Ton Flatbed for Sale
What chassis is the ISUZU NPR 3.5 Ton Flatbed for Sale built on?
It is built on ISUZU NPR. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu flatbed truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
