ISUZU Fire Water Tanker

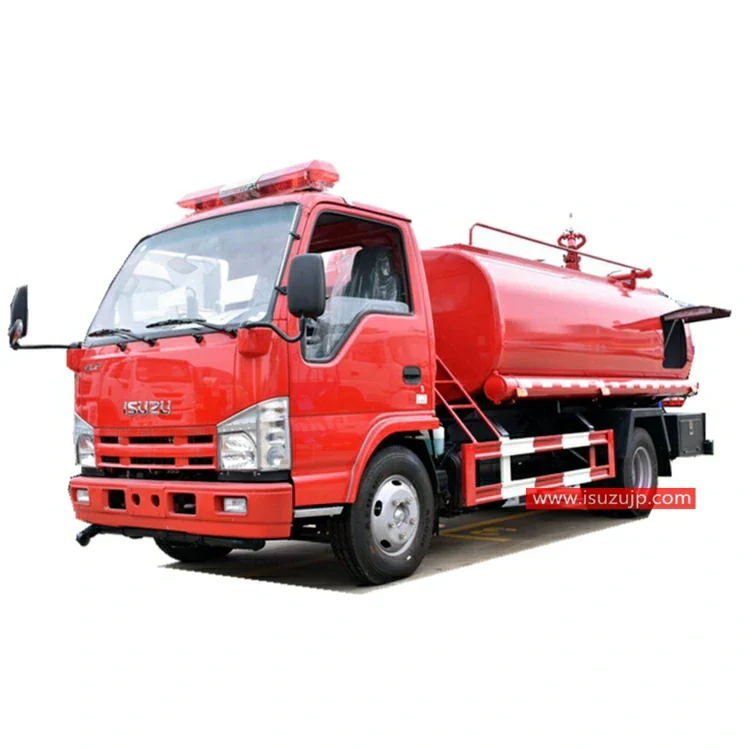

ISUZU NHR 3000liters Water Bowser Fire Engine for Sale
Isuzu NHR 3 ton water firefighter truck, Left Hand Drive model 4X2 chassis, 5 shift manual gearbox, 98 HP diesel engine
- Rated Load (kg)
- 2035 Steering Wheel LHD
- Capacity
- Water tank 3000L
- Fire Pump
- 1. CB10/20, 20L/S,pressure:1.0MPa 2. Suction time≤ 35s (7m suction depth) centrifugal pump
- Hand Lift the Pump
- 1 station
Specification below is the factory table for this model, reproduced without edits. 47 rows.
ISUZU NHR 3000liters Water Bowser Fire Engine Description
- ISUZU water bowser fire engine also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage
- 100% custom-made
- ISUZU NHR light-duty Chassis, Durable & Performance.
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification
ISUZU NHR 3000liters Water Bowser Fire Engine for Sale Specification
| Item | ISUZU NHR 3000liters water bowser fire engine for sale | Chassis Brand Isuzu |
|---|---|---|
| Vehicle parameters | GVW(kg) | 6800 Overall Dimension (mm) 6390×2000×2500 |
| Rated load (kg) | 2035 Steering Wheel LHD | |
| Curb weight (kg) | 4400 Wheelbase (mm) 3360 | |
| Driving Type | 4X2 | |
| Engine parameters | Model | 4JB1CN Emission Standard Diesel, Euro V |
| Horse Power (hp) | 98 Emissions(ml) 2771 | |
| 4 stroke,4-cylinders in line, turbocharged and inter-cooling | ||
| Gearbox | 6 forward and 1 reverse | |
| Performance Parameter | Max Speed (km/h) | 95 Wheel Tread(mm) Front Axle 1504 |
| Cab Seat | 2+3 Rear Axle 1425 | |
| Leaf Spring | 8/6+5 The suspension (mm) Front Suspension 1015 | |
| Tire No. | 6 Rear Suspension 1900 | |
| Tire Specification | 7.00R16 Driving Angle(°) Approach Angle 24 | |
| Axle No. | 2 Departure Angle 13 | |
| Special Function | Capacity | Water tank 3000L |
| Fire Pump | 1. CB10/20, 20L/S,pressure:1.0MPa 2. Suction time≤ 35s (7m suction depth) centrifugal pump | |
| Fire Monitor | 1.PS20, 20L/S, pressure: 1.0Mpa 2. Fire nozzle range: water≥48m | |
| Performance Description | Double row cab(Can be customized); ABS, Air conditioning system. Hidden tank, the material is carbon steel Q235A, with thickness 4 mm; Truck body with aluminum alloy rolling door; PTO control indicator installed in-cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc. Fire equipment is included. | |
Fire Equipment Table
ISUZU NHR 3000liters Water Bowser Fire Engine for Sale Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | straw | 125×4 meters 2 root Threaded |
| 2 | Water filter | FLF125 1 Piece Threaded |
| 3 | Trap | FII80/65×3-1.6 1 Piece Internal button |
| 4 | Water trap | JII125/65×2-1.0 1 Piece Internal button |
| 5 | Hose | 13-65-20 6 plate Low pressure; |
| 6 | Hose | 13-80-20 6 plate Low pressure; |
| 7 | Reducing interface | KJ65/80 2 Piece Internal button |
| 8 | Water-retaining cloth | DT-SB 4 Piece Internal button |
| 9 | Hose hook | 4 Piece |
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 1 Piece |
| 11 | Underground hydrant wrench | Long 860 1 Piece |
| 12 | Suction pipe wrench | FS100 2 Piece |
| 13 | DC switch water gun | QZG3.5/7.5; 65 1 support Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 1 support Low pressure; |
| 15 | Fire extinguisher | 3KG 1 With |
| 16 | Fire waist axe | Length 390; GF-285 1 Piece |
| 17 | Rubber hammer | 1 Piece |
| 18 | Rechargeable portable lighting | 1 Piece |
Optional Fire Equipment
ISUZU NHR 3000liters Water Bowser Fire Engine for Sale Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | Automatic charging device | 12V 1 set |
| 2 | Air backrest | 3 set |
| 3 | Air breathing apparatus | Number of members set |
| 4 | Hose bridge | rubber 2 vice |
| 5 | Telescopic ladder | 1 vice |
| 6 | Hand lift the pump | 1 station |
| 7 | Breaking tools | 1 set |
| 8 | Other fire equipment | |
Questions
Questions About The ISUZU NHR 3000liters Water Bowser Fire Engine for Sale
What chassis is the ISUZU NHR 3000liters Water Bowser Fire Engine for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fire water tanker?
The factory table lists Rated Load (kg) 2035 Steering Wheel LHD. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Fire Water Tanker Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NHR 3000liters Water Bowser Fire Engine for Sale
This build is listed as rated load (kg) 2035 Steering Wheel LHD with capacity Water tank 3000L. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
