- QINGLING ISUZU 100P NHR Light Duty Commercial Truck Chassis
Main photo
N-Series Light-Duty Trucks

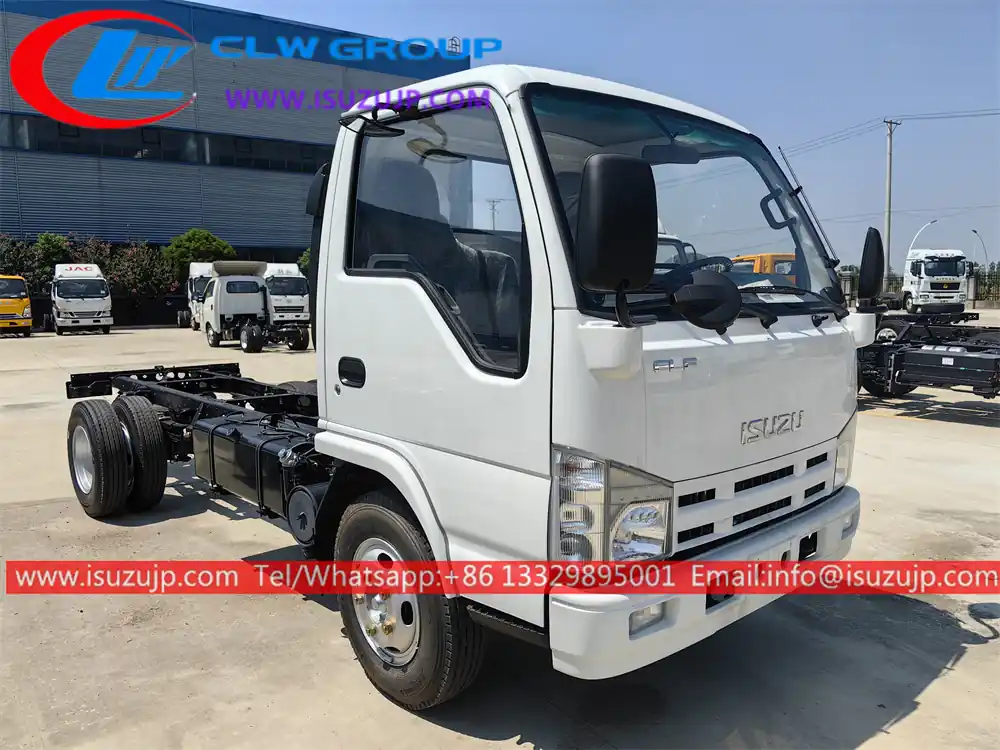

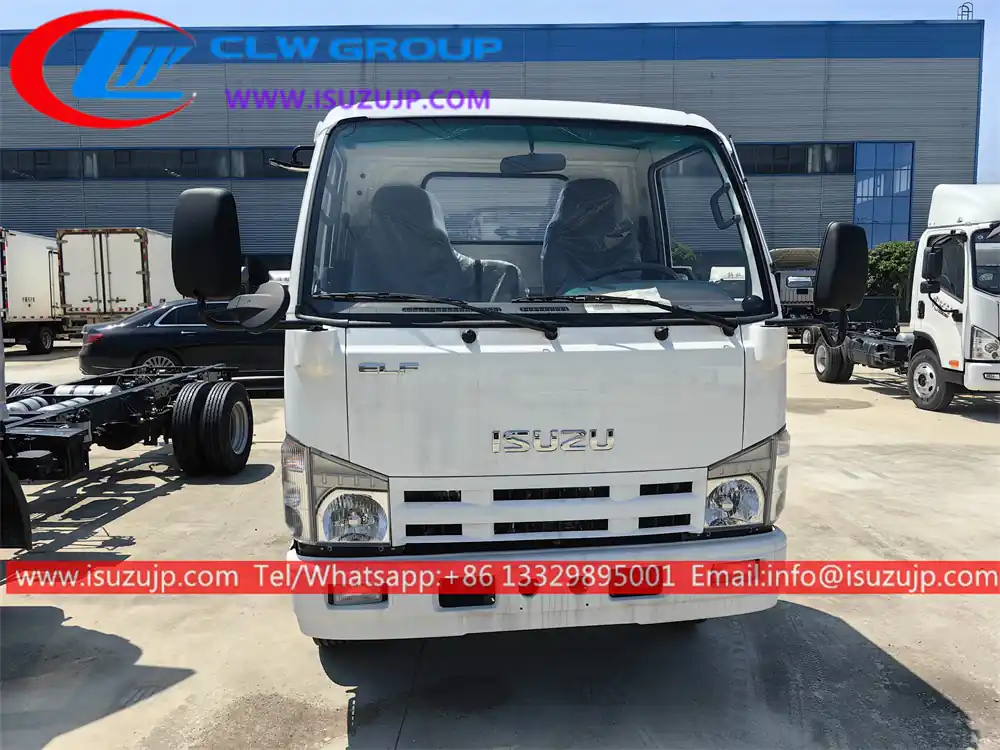

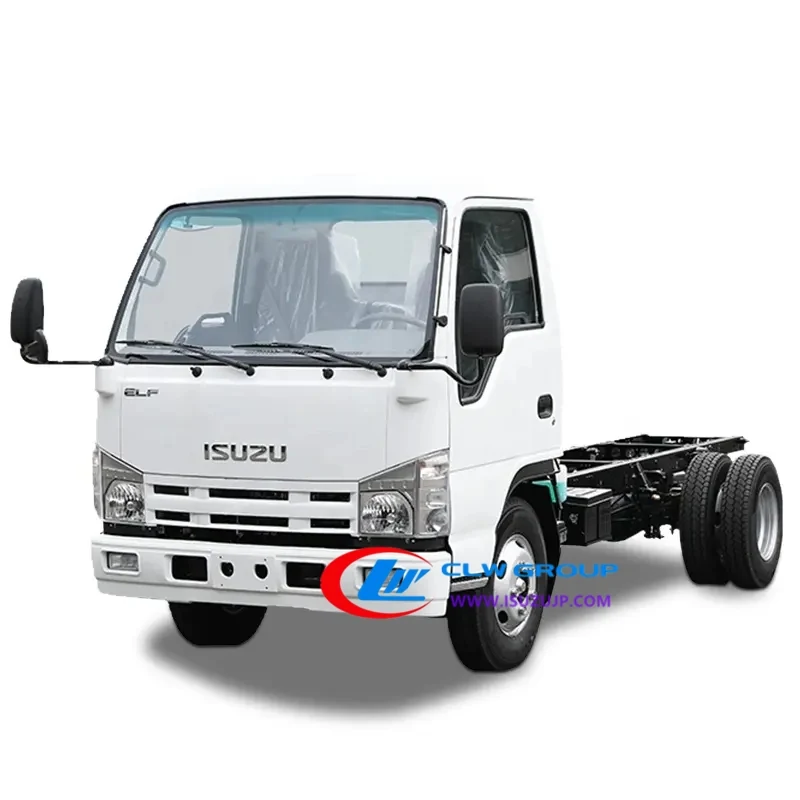

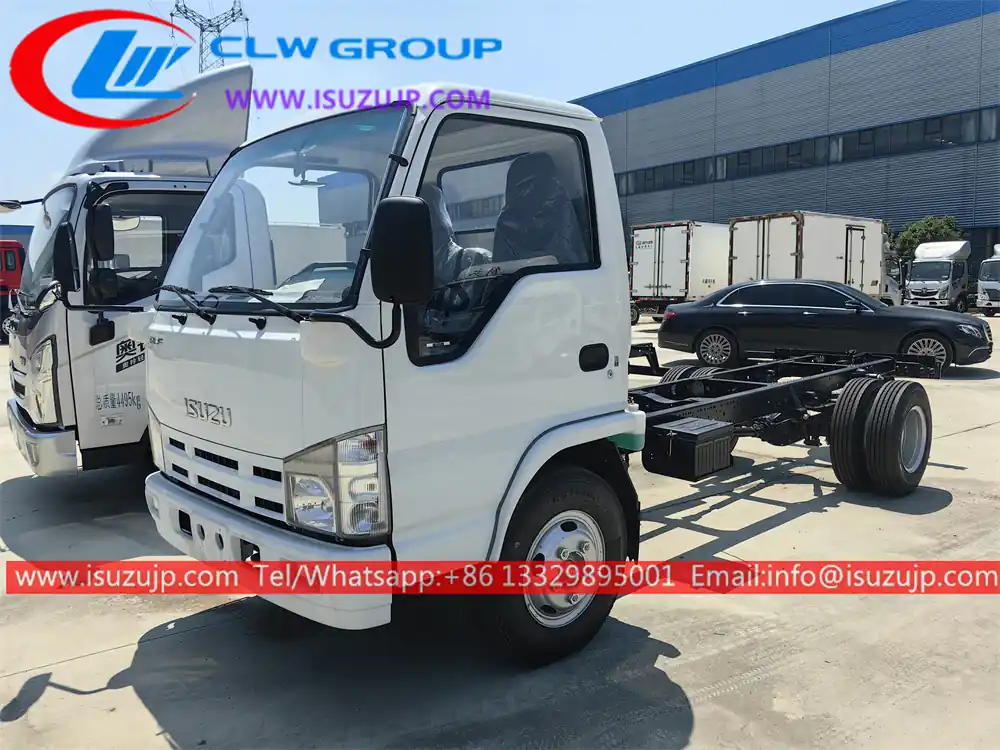

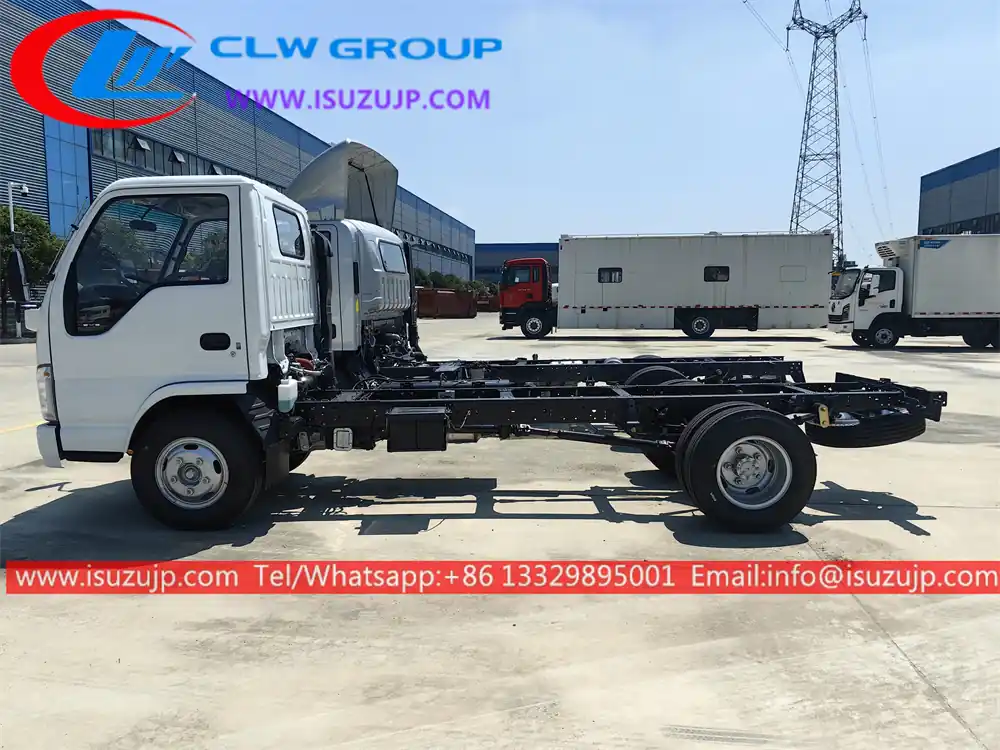

QINGLING ISUZU 100P NHR Light Duty Commercial Truck Chassis
QINGLING ISUZU 100P NHR Light Duty Commercial Truck Chassis adopts ISUZU 98HP diesel engine, Manual MSB 5-shift gearbox
- Payload:
- 2000-5000kg
- Capacity:
- 100L/75L/84L
- Product Origin
- China
- Body Size
- 5995x2100x2200 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 25 rows.
QINGLING ISUZU 100P NHR Light Duty Commercial Truck Chassis Description
QINGLING ISUZU 100P NHR Light Duty Commercial Truck Chassis is from QINGLING, and the engine tech is from Japan which named 100P in China. It can payload 2/3/4/5 tons. The transmission is Manual MSB-5, with 5 froward gear and 1backward gear. Recognized for its outstanding combination of economy, safety, reliability and durability, it is a very popular light truck in many countries.
Advantage
- 100% custom-made
- ISUZU 100P truck chassis, perfect performance
- ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Noise reduction van body.
- Massive, durable, long service life.
- 5Tons available
- Short delivery time 7~30 days
- Easy operation and easy maintenance
- 15 years of spare parts and technical support
Specification
QINGLING ISUZU 100P NHR Light Duty Commercial Truck Chassis Specification
| Truck Brand | QINGLING ISUZU 100P NHR Light Duty Commercial Truck Chassis | |
|---|---|---|
| Vehicle Parameters | Overall Dimension (L x W x H) | 5995×1860×2180(mm) |
| Wheelbase: | 2765/3360/3815mm | |
| Front/ Rear Wheel Distance: | 1385/1425mm | |
| Front/Rear Suspension | 1015/1450mm | |
| Weight | Curb Weight: | 1750-2200kg |
| Payload: | 2000-5000kg | |
| GVW: | 3960-7300kg | |
| Engine | Engine Model: | 4JB1CN/4KH1 |
| Displacement: | 2999ml | |
| Horsepower: | 98hp/115hp/130hp | |
| Exhaust Gas Treatment Technology： | EGR/DPF/SCR | |
| Transmission | Transmission: | Manual MSB-5 |
| Forward Gear: | 5 Speed Gear | |
| Backward Gear: | 1 Speed Gear | |
| Seats | Front Seat: | 2 |
| Chassis | Drive Type: | 4×2 |
| Tires: | 4 /6 wheels | |
| Fuel Tank | Capacity: | 100L/75L/84L |
| Standard Configuration | 1 | Power steering system |
| 2 | Air Conditioning | |
| 3 | Retro-reflective Marking | |
| 4 | Cab Tilting System | |
| 5 | ABS | |
| 6 | Free Maintenance Battery |
100P Advantage
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Factory Advantage:
Questions
Questions About The QINGLING ISUZU 100P NHR Light Duty Commercial Truck Chassis
What chassis is the QINGLING ISUZU 100P NHR Light Duty Commercial Truck Chassis built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this n-series light-duty trucks?
The factory table lists Payload: 2000-5000kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other N-Series Light-Duty Trucks Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The QINGLING ISUZU 100P NHR Light Duty Commercial Truck Chassis
This build is listed as payload: 2000-5000kg with capacity: 100L/75L/84L. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
