N-Series Light-Duty Trucks

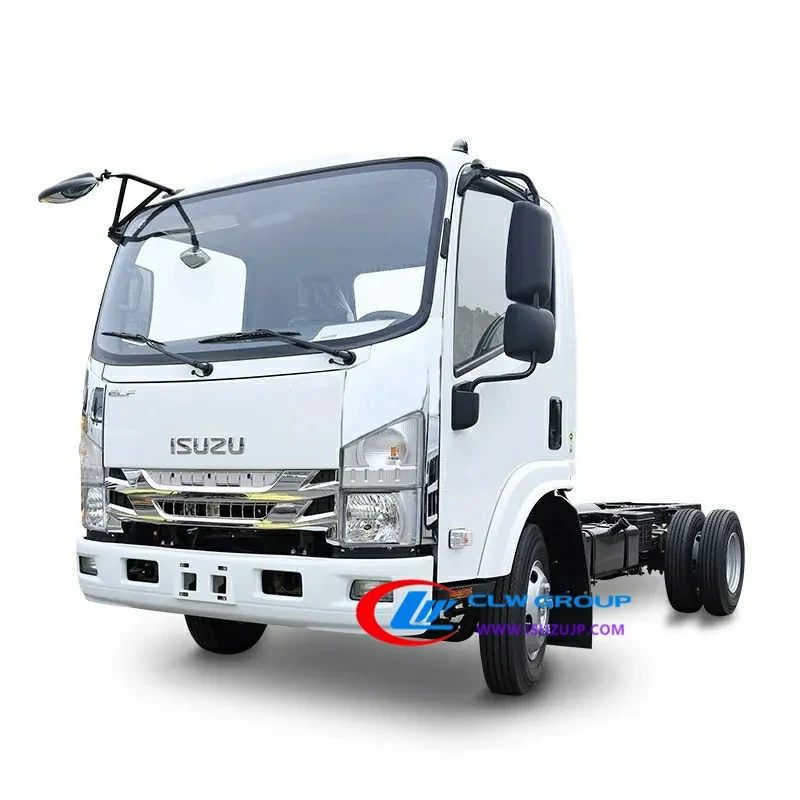

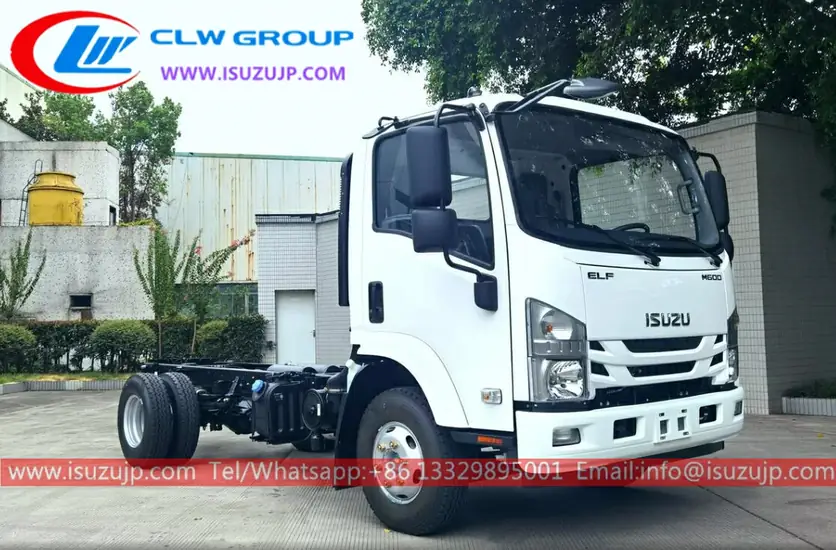

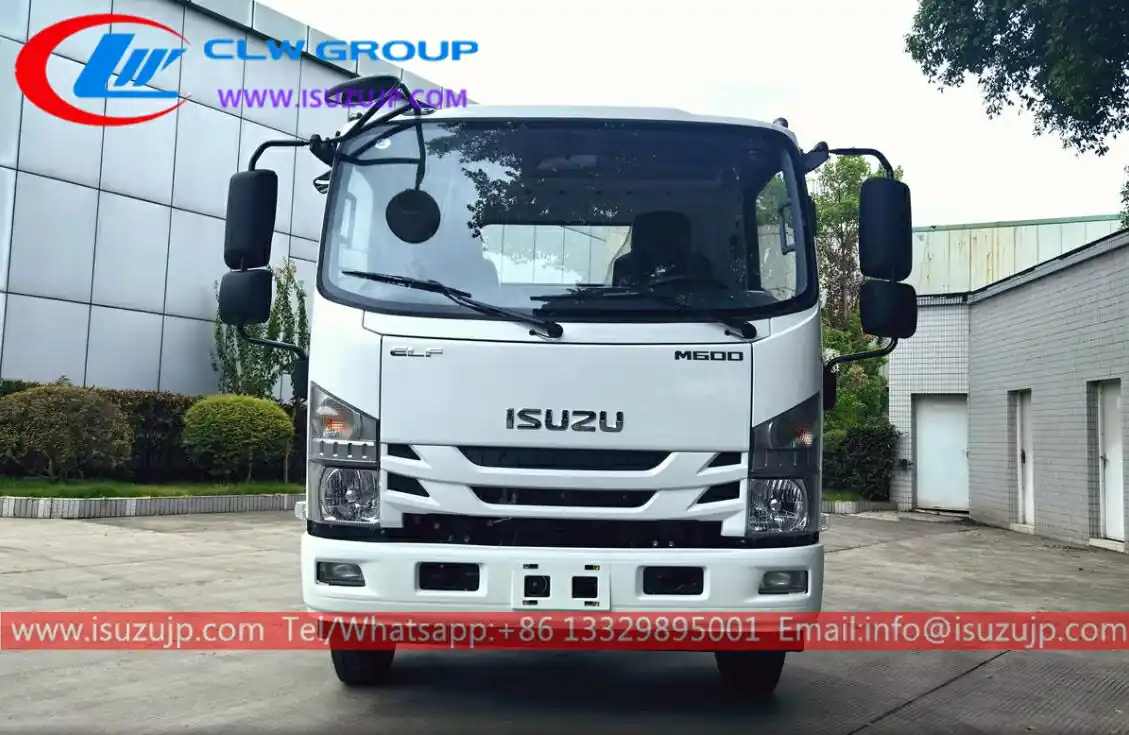

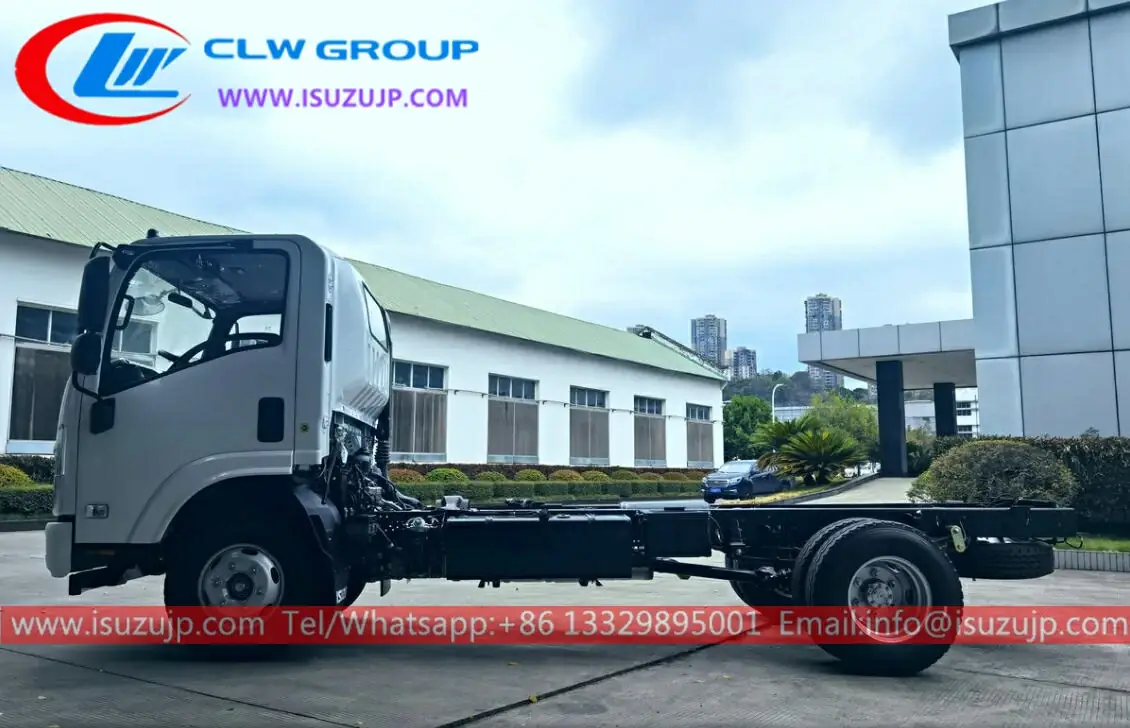

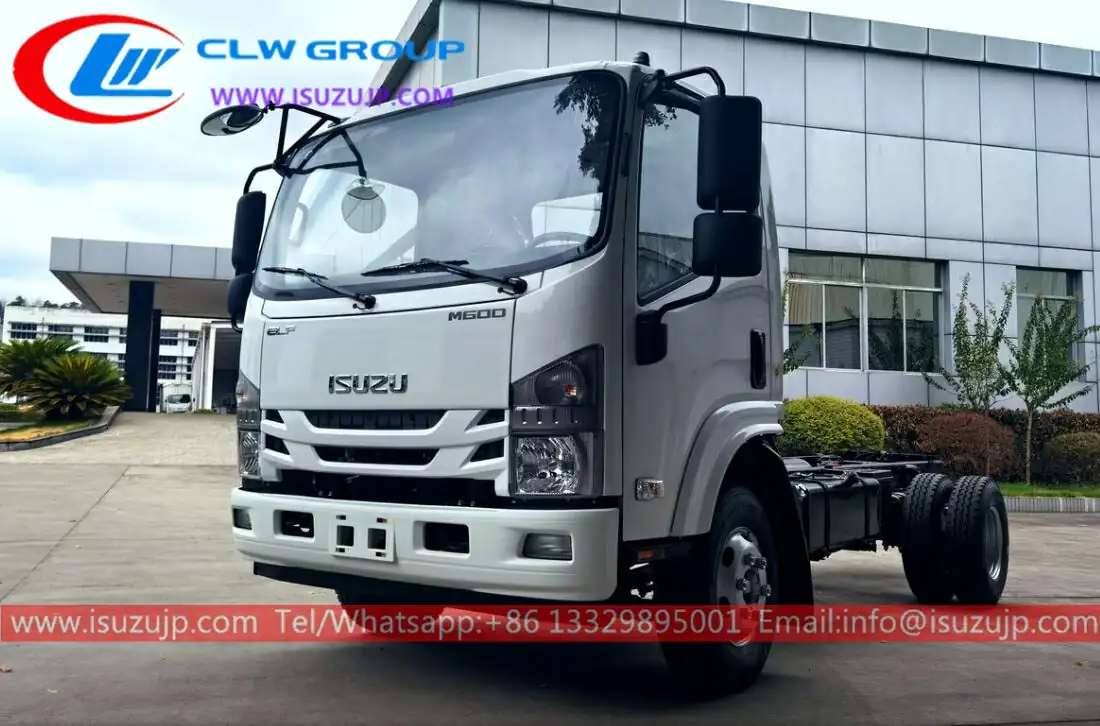

QINGLING ISUZU M600 Truck Chassis
QINGLING ISUZU M600 Truck Chassis adopts ISUZU 132HP diesel engine, Manual MYY 6-shift gearbox
- Payload:
- 5525kg
- Axle Loads:
- 3000/5280kg
- Capacity:
- 100L
- Product Origin
- China
- Body Size
- 5995x2100x2200 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 29 rows.
QINGLING ISUZU M600 Truck Chassis Description
QINGLING ISUZU M600 Truck Chassis newly developed Euro 6 chassis 3 seats, wheelbase 3365mm, GVW 8.2ton, 130hp, 2.1m width; aerodynamic body design, low fuel consumption, low maintenance cost, highly maneuverable, fitting for many vocational modifications. Combining many famous international brand parts make this truck a reliable helper for your business..
Advantage
- 100% custom-made
- ISUZU M600 truck chassis, perfect performance
- ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Noise reduction van body.
- Massive, durable, long service life.
- 5Tons available
- Short delivery time 7~30 days
- Easy operation and easy maintenance
- 15 years of spare parts and technical support
Specification
QINGLING ISUZU M600 Truck Chassis Specification
| QINGLING ISUZU M600 Truck Chassis Vehicle Model: | QL1080BUHAY | |
|---|---|---|
| Dimensions and Parameters | Overall Dimension(L x W x H) | 5875×2130×2315mm |
| Wheelbase: | 3365mm | |
| Front/ Rear Wheel Distance: | 1640/1655mm | |
| Front/Rear Suspension | 1120/1390mm | |
| Approach/Departure angle: | 23/19° | |
| Leaf Spring: | 6/6+6 | |
| Weights and Capacities | Curb Weight: | 2560kg |
| Payload: | 5525kg | |
| GVW: | 8280kg | |
| Axle Loads: | 3000/5280kg | |
| Engine | Model: | 4KH1CN6HB |
| Cylinder | 4 cylinders in line | |
| Torque(N.m/rpm) | 320/1400 | |
| Max output: | 97Kw | |
| Displacement: | 2999ml | |
| Horsepower: | 130hp | |
| Exhaust Technology： | SCR+DPF | |
| Transmission | Forward Gear: | 6 Speed Gear |
| Brake | Air Brake | |
| Cab | Number of Seats: | 3 |
| Chassis | Tires: | 7(Including Spare Tire) |
| Tire Model: | 7.50R16LT 14PR | |
| Fuel Tank | Capacity: | 100L |
| Configurations: | Power Steering System | |
| AC | ||
| Retro-Reflective Marking | ||
| ABS | ||
| Free Maintenance Battery | ||
M600 Advantage
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Factory Advantage:
Questions
Questions About The QINGLING ISUZU M600 Truck Chassis
What chassis is the QINGLING ISUZU M600 Truck Chassis built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this n-series light-duty trucks?
The factory table lists Payload: 5525kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other N-Series Light-Duty Trucks Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The QINGLING ISUZU M600 Truck Chassis
This build is listed as payload: 5525kg with axle loads: 3000/5280kg. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
