N-Series Light-Duty Trucks

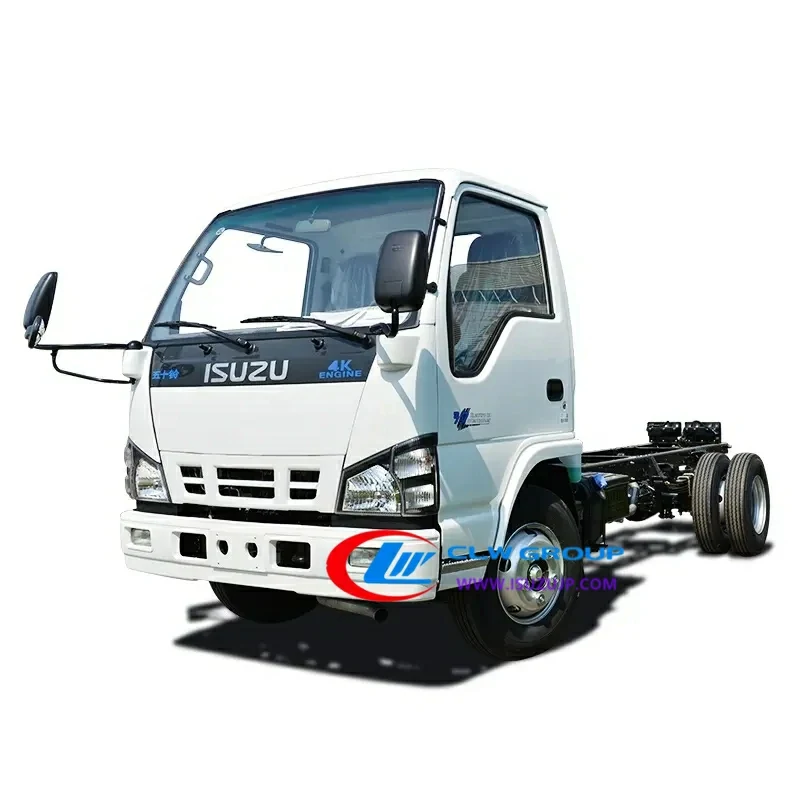

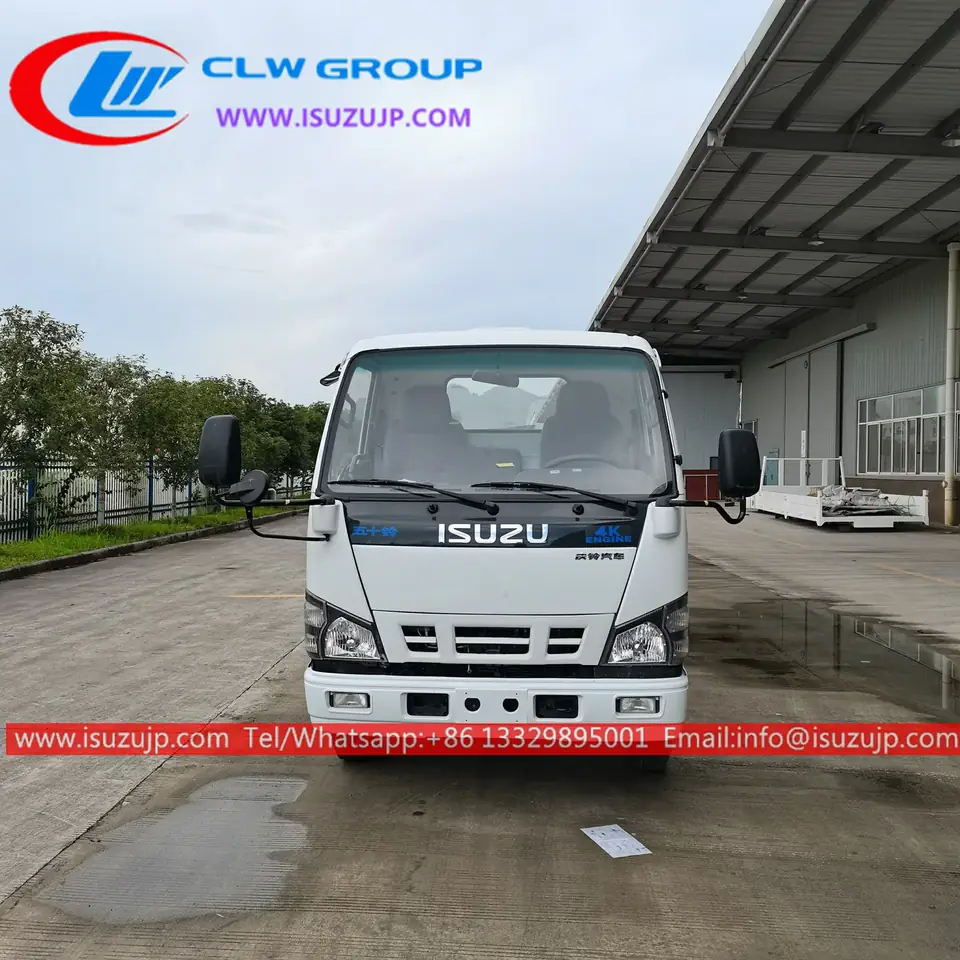

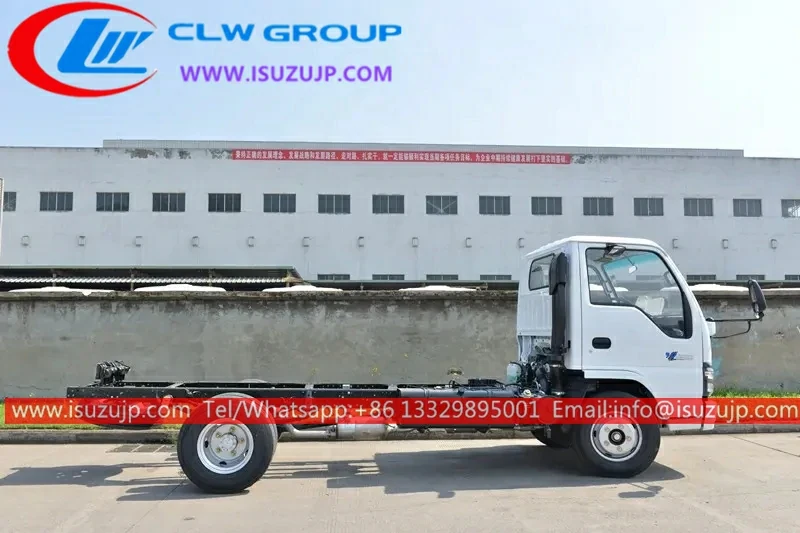

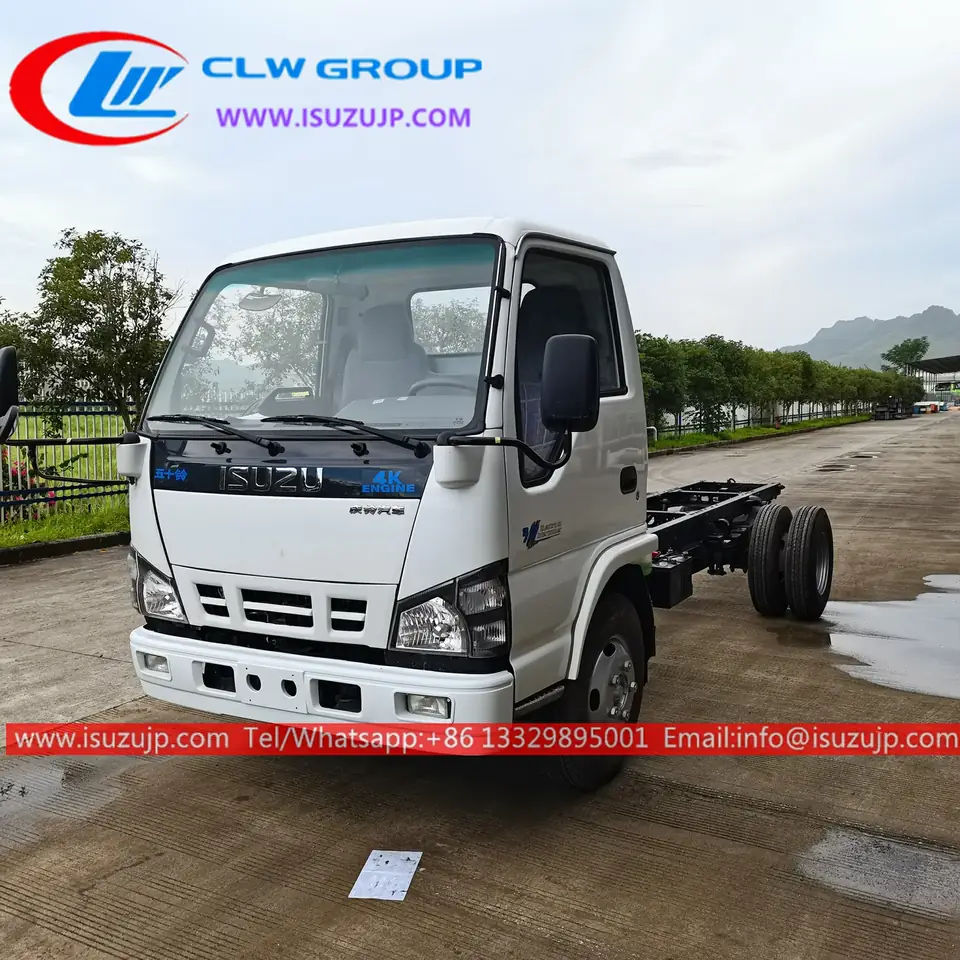

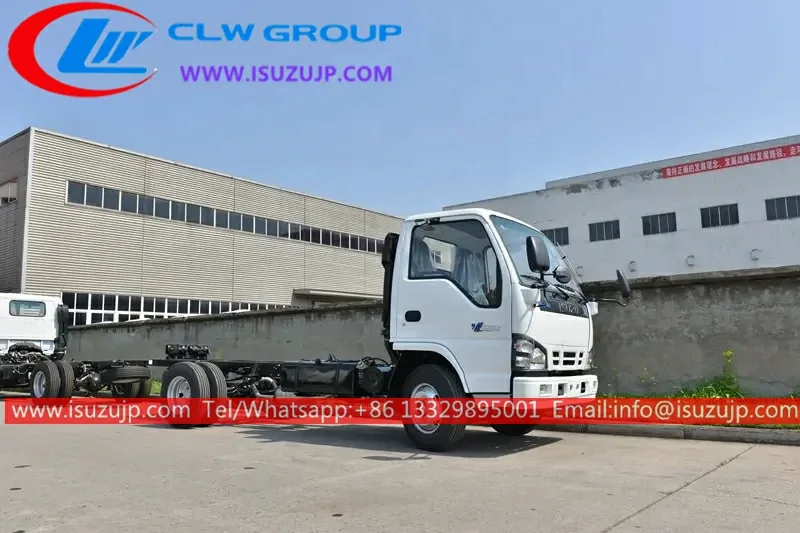

QINGLING ISUZU NKR/600P 6Wheels 5T Commercial Truck Chassis
QINGLING ISUZU NKR/600P 6Wheels 5T Commercial Truck Chassis adopts ISUZU 120HP diesel engine, Manual MSB 5-shift gearbox
- Emission
- Euro V
- Axle Loading:
- 2580/4720
- Product Origin
- China
- Body Size
- 5995x2100x2200 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 39 rows.
QINGLING ISUZU NKR/600P 6Wheels 5T Commercial Truck Chassis Description
QINGLING ISUZU NKR/600P 6Wheels 5T Commercial Truck Chassis is from China ISUZU, and its 4KH1 engine is from Japan which is named 600P in China. Horsepower is 130HP. It can payload 5 tons. The transmission is Manual MSB-5, with 5 forward gear and 1 backward gear. It has 6 wheels. Recognized for its outstanding combination of economy, safety, reliability, and durability, it is a very popular light truck in many countries.
Advantage
- 600P Cabin&Chassis Characteristics:
- Strong power, strong carrying capacity, and fast running speed
- Low fuel consumption, more prominent ultra-low operation cost at the time of high fuel price
- Long service life, reliable durability, and ultra-low maintenance cost
- High safety and unique impact energy-absorption safety system
- Comfortable and service car type riding comfortability
- Environment-friendly and clean emission, harmonious with nature
- Low service life cost, being able to create more value for the customer
- It provides SCR/PF/DPF three kinds of post-processing systems, PF and DPF without the addition of urea. No urea device has better refitting adaptability.
- It has wide cabin space and a big bending rate rearview mirror that can provide a wider field of view. It is provided with a car-type seat, soft steering wheel, curved surface metallization, and high-quality audio system that is refreshing and comfortable so that the driver would not feel fatigued during long-distance driving.
- ISUZU world-leading 4KH1-type brand new diesel engine with fully-electronic precise control and high-pressure common rail with stronger power, lower oil consumption, better oil adaptability, and better low-temperature starting property. The engine has strong power, low fuel consumption, reliable and durable.
Specification
QINGLING ISUZU NKR/600P 6Wheels 5T Commercial Truck Chassis Specification
| Truck Brand | QINGLING ISUZU NKR/600P 6Wheels 5T Commercial Truck Chassis |
|---|---|
| Driving Type | Left-Hand Drive |
| Overall Dimension（L*W*H） | 5900*1880*2200mm |
| GVW | 7300Kg |
| Curb Weight | 2080Kg |
| Axle loading: | 2580/4720 |
| Wheelbase | 3360 |
| F/R Track | 1504/1425 |
| Approaching Angle/Departure Angle(o) | 24/16 |
| Tire No. | 7(Including Spare Tire) |
| Tire | 7.00R16 14PR |
| Color: | Optional |
| Max Speed（Km/h） | 105Km/h |
| Engine | |
| Engine System | 4 Stroke, High-Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Emission Route | SCR/PF |
| Model | 4KH1CN5HS/4KH1-TCG51 |
| Fuel Type | Diesel Engine |
| Max output | 94Kw/87Kw |
| Horsepower： | 130HP/120HP |
| Max Torque | 290N.m/1500rpm |
| Emission Standard | Euro V |
| Displacement: | 2999ml |
| T ransmission: | |
| Model: | MSB-5SM |
| Type | Manual |
| Forward/Reverse | 5F/1R |
| B rake System: | |
| Service Brake | Vacuum Boosting Hydraulic brake |
| Parking Brake | Drive Shaft Drum Brake |
| Auxiliary System | Engine Exhaust Brake |
| E lectrical System | |
| Battery | 2*12V-60Ah |
| Alternator | 14V-60A |
| Starter | 12V/2.5Kw |
| C ab | |
| Single-Row Cab with Air Conditioner（Optional: Double-Row Cab） | |
| O ther Equipment: | |
| Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking | |
100P Advantage
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Factory Advantage:
Questions
Questions About The QINGLING ISUZU NKR/600P 6Wheels 5T Commercial Truck Chassis
What chassis is the QINGLING ISUZU NKR/600P 6Wheels 5T Commercial Truck Chassis built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this n-series light-duty trucks?
The factory table lists Axle Loading: 2580/4720. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
