Isuzu Truck Mounted Crane

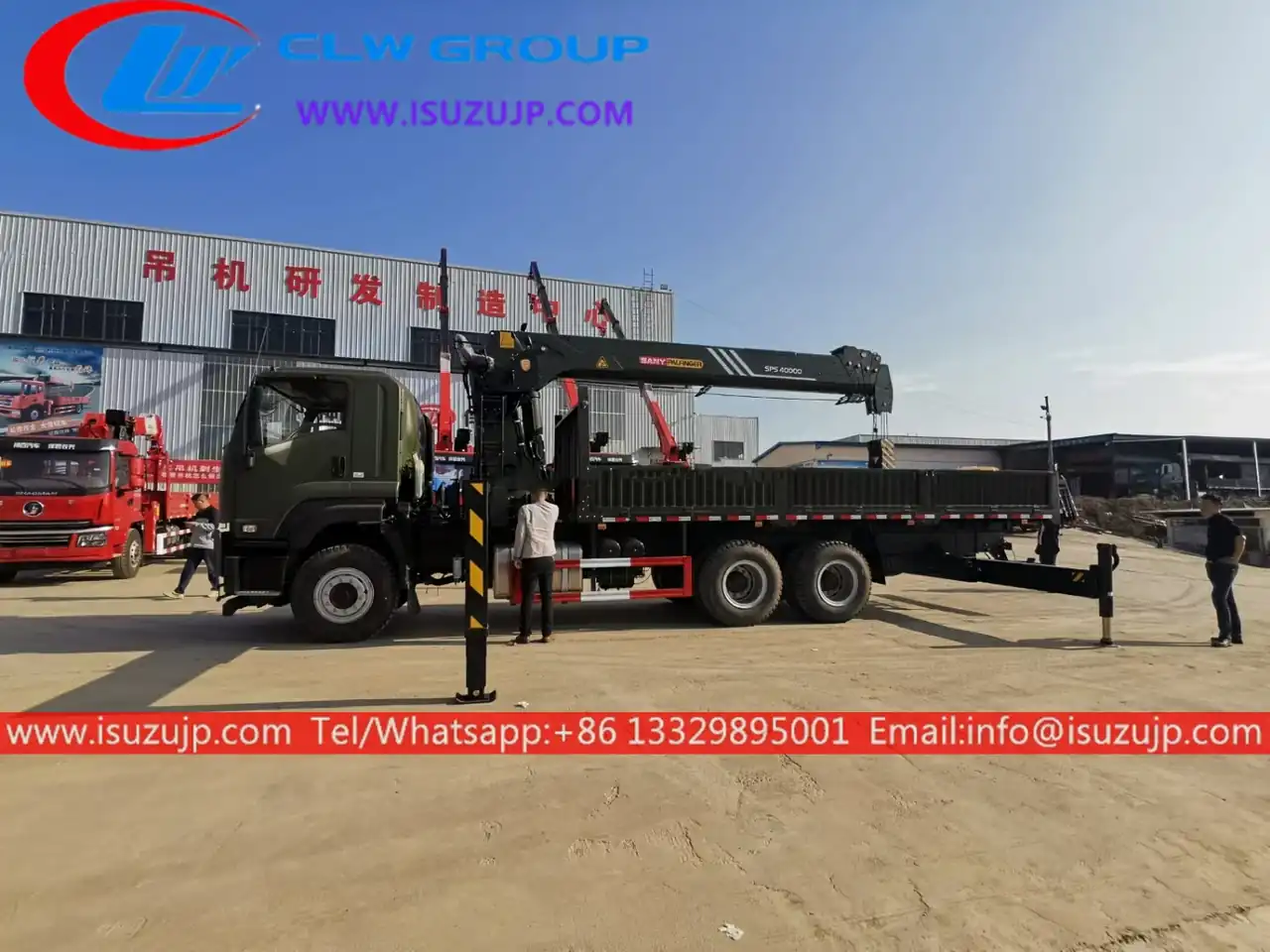

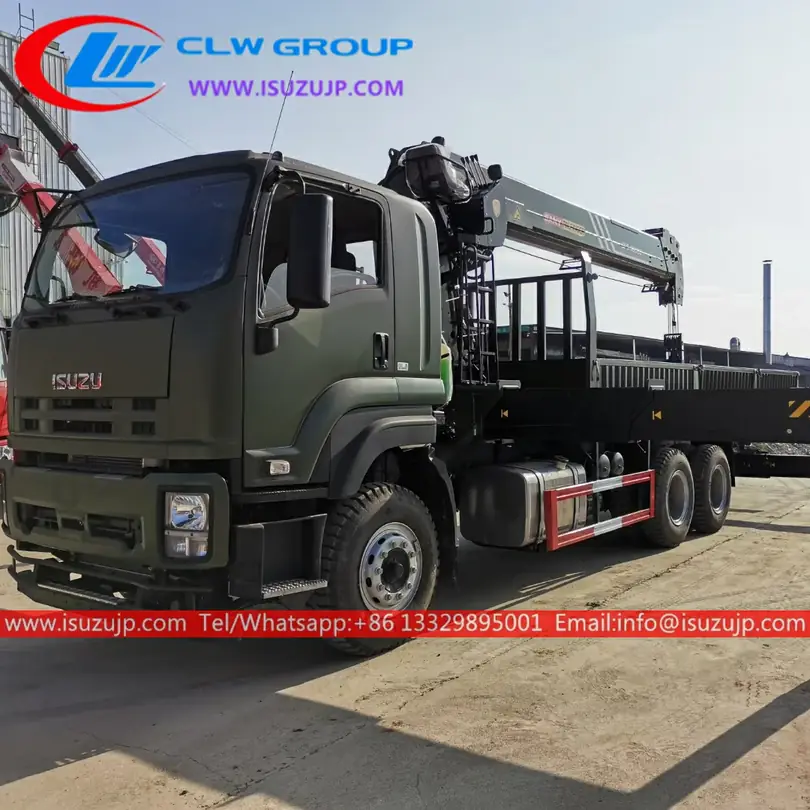

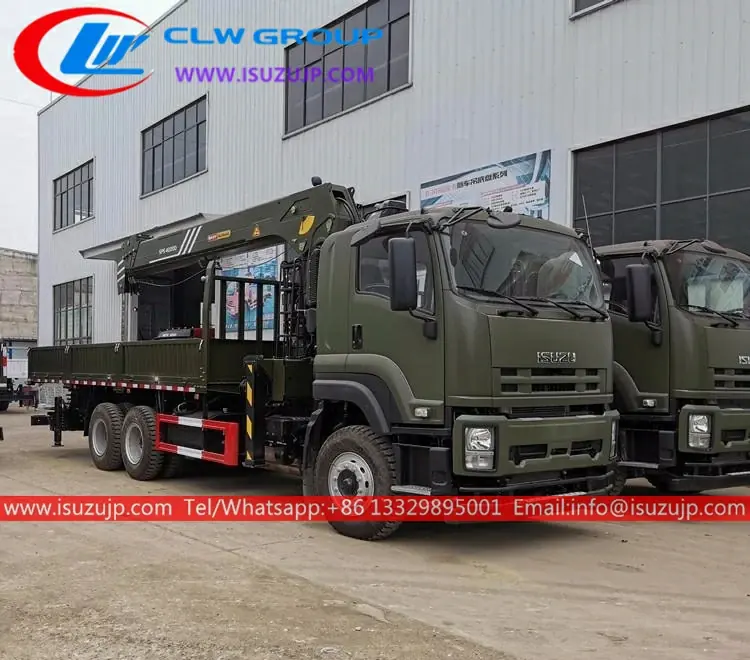

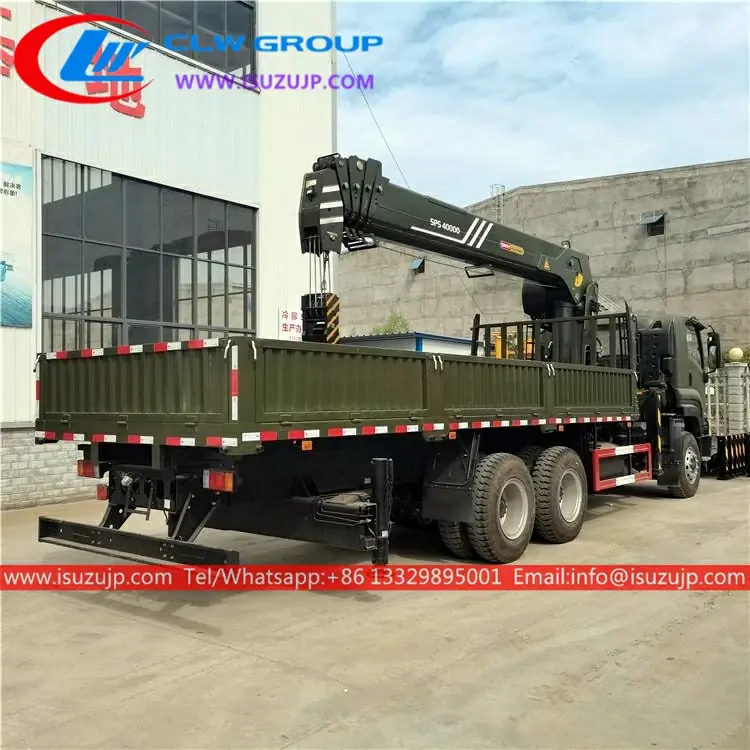

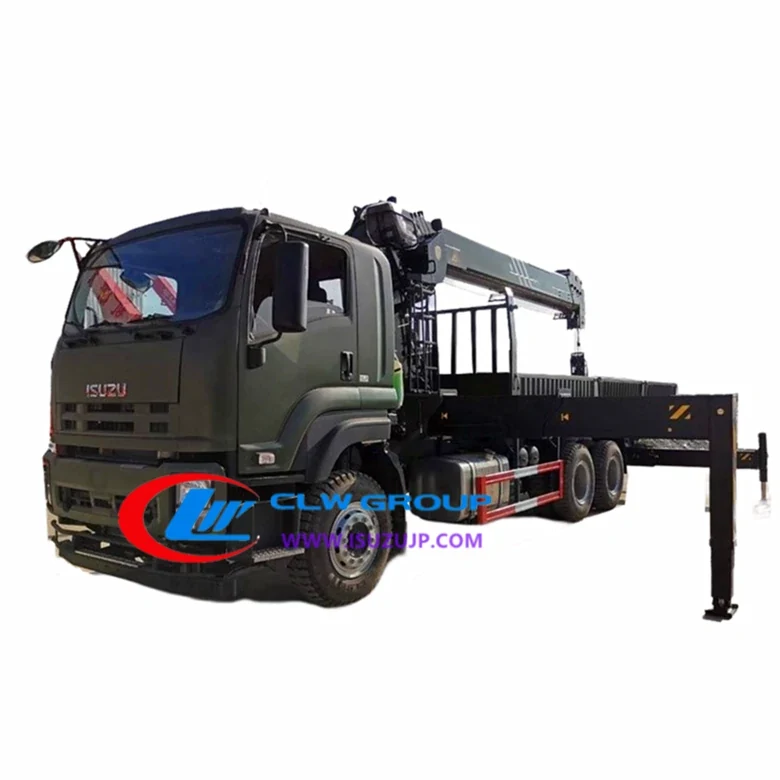

10 Wheel ISUZU 16T Straight Arm Sany Truck Crane
10 WHEEL ISUZU GIGA Left Hand Drive model 6×4 chassis, FAST 9-shift manual gearbox, 350HP diesel engine, painting and logos depend on requirement. cargo box
- Chassis
- ISUZU GIGA
- Engine
- 6UZ1-TCG40
- Power
- 350 HP (257 KW)
- Overall Dimension
- 10700X2500X3900 mm
- GVW / Kerb Weight
- 25,000kg / 12,500kg
- Drive Type
- 6X4, (Left hand drive)
- Transmission
- Manual 9 speed levers with 1 reverse
- Emission
- Euro IV
Specification below is the factory table for this model, reproduced without edits. 27 rows.
10 Wheel ISUZU 16T Straight Arm Sany Truck Crane Description
- ISUZU Sany truck crane also called as construction crane trucks, Isuzu truck loder vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage
- 10 wheel ISUZU GIGA chassis ensures perfect performance on driving
- ISUZU technology engine, super powerful, no overhaul within 500,000 km.
- High strength cargo body, nice shape and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG or Chengli (China top brand),etc.
Crane Features
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means make sure that the design is very reliable.
- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
- Compact hinge point design take up smaller space
- The work is more safety after fitted over-winds alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
- Anti-slewing impulse equipment that make vehicle running safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckled boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)
Specification
10 wheel ISUZU 16T Straight arm Sany truck crane (SPS40000)
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU GIGA | |
| Overall Dimension | 10700X2500X3900 mm | |
| GVW / Kerb Weight | 25,000kg / 12,500kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | 6UZ1-TCG40 | |
| Power | 350 HP (257 KW) | |
| Displacement | 9813 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 6X4, (Left hand drive) |
| Transmission | Manual 9 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4605+1300 mm / 4 | |
| Tire Specification | 11.00-20 | |
| Tire Number | 10 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cargo Box Dimension | 7000X2300X600 mm |
| Crane Type | Telescopic boom crane SPS40000 | |
| Max Lifting Capacity | Palfinger 16000 kg | |
| Slewing Angle | 360° All rotation | |
| Crane Weight | 6544 kg | |
| Installation Space | 1430 mm | |
| Control panel | English or Your language | |
| All standard accessories: Basic tool kit, English manual…… | ||
| Optional | Knuckle boom crane. Hydraulic tipper box. Box thickness according to requirement. Box height could be nominated Remote Control Box optional | |
Questions
Questions About The 10 Wheel ISUZU 16T Straight Arm Sany Truck Crane
What chassis is the 10 Wheel ISUZU 16T Straight Arm Sany Truck Crane built on?
It is built on ISUZU GIGA. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu truck mounted crane?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
