- 10 Wheeler ISUZU GIGA Flammable Tanker Truck
Main photo
Isuzu Fuel Truck

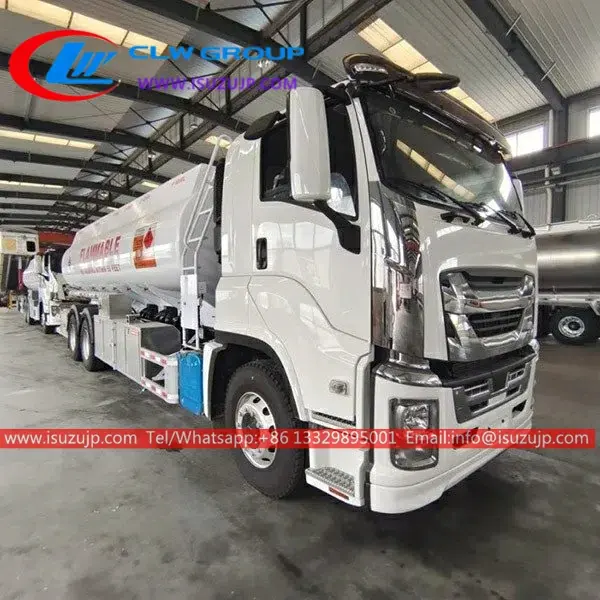

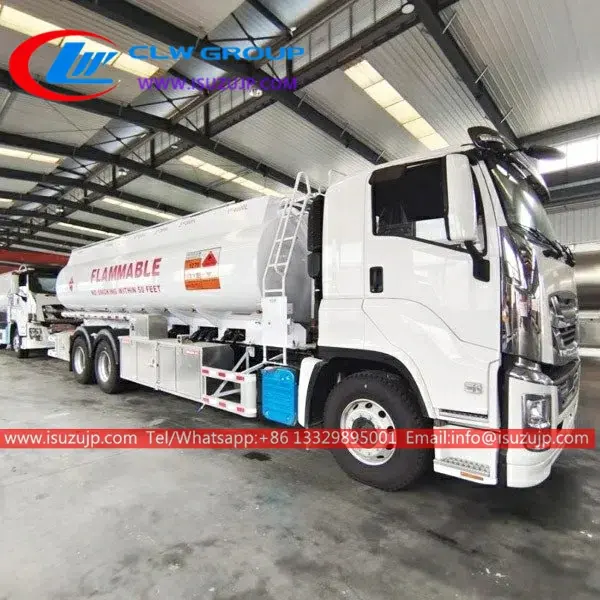

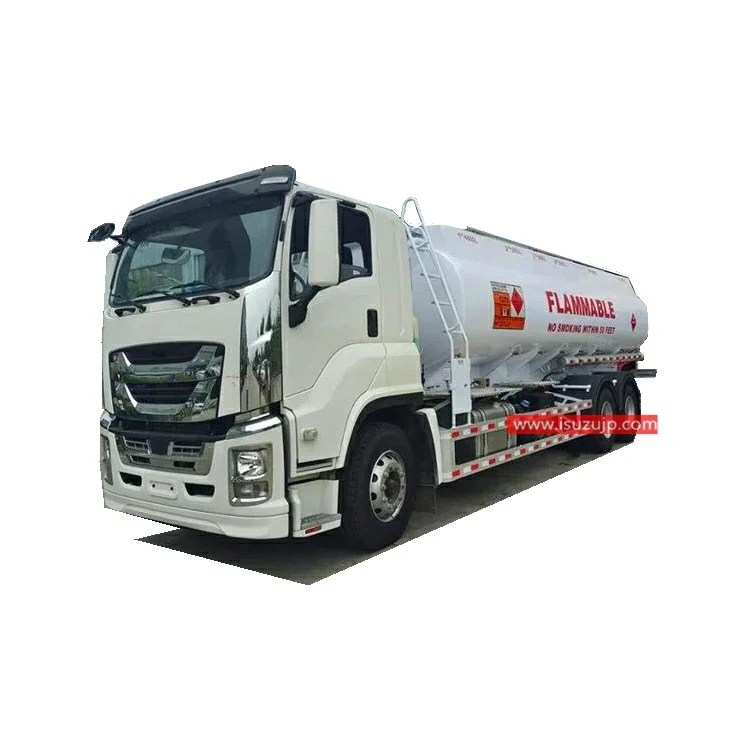

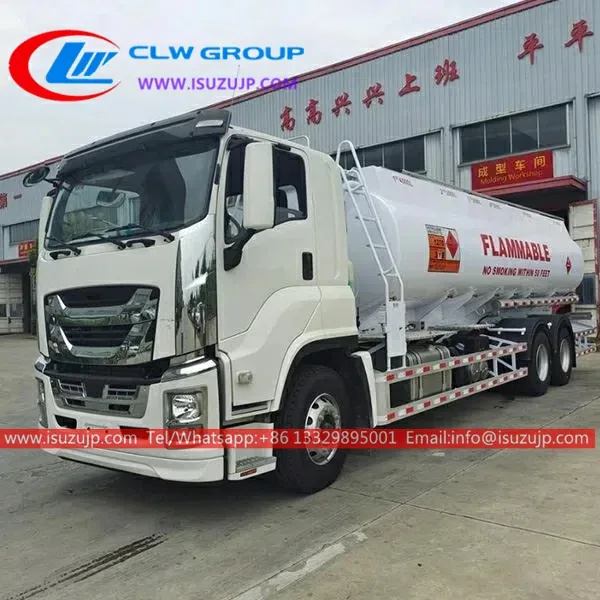

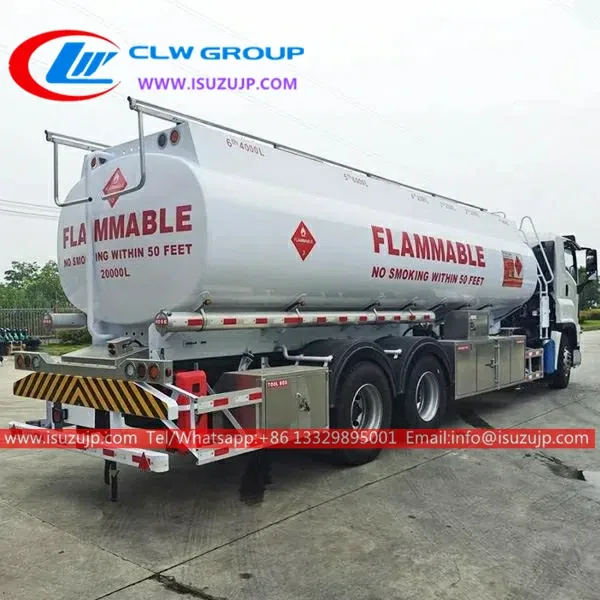

10 Wheeler ISUZU GIGA Flammable Tanker Truck
Available Colors: Customization Logo: Customization
- Axle Loads:
- 7000/26000Kg (Two-axis group)
- Capacity
- 400L
- Body Size
- 11600x2500x3250mm
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 36 rows.
Introduction
ISUZU Giga flammable tanker truck (also called fuel oil bowser, diesel gasoline tanker bowser, fuel oil dispenser truck, petrol tanker truck, refuel bowser vehicle) is used to transport oil, diesel, gasoline, kerosene, etc.
ChengLi company Production fuel bowser can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol…
ISUZU fuel truck can be equipped with an oil pump and refueling machine, flow meters all for easy operation.
Advantage
- ISUZU GIGA chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cubic meters.
- Easy operation and easy maintenance.
- Euro V, Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Specifications
10 Wheeler ISUZU GIGA Flammable Tanker Truck Specification
| Products Name | 10 wheeler Isuzu Giga flammable tanker truck | |
|---|---|---|
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 11600×2500x3250mm |
| Wheelbase: | 5820+1370mm | |
| Front Wheel Distance: | 2065mm | |
| Rear Wheel Distance | 1855/1855mm | |
| Front/Rear Suspension | 1370/2590mm | |
| Weights and Capacities | Curb Weight: | 14580kg |
| GVW: | 33000kg | |
| Axle Loads: | 7000/26000Kg (Two-axis group) | |
| Engine | Engine Model: | 6UZ1-TCG50 |
| Max output: | 278Kw | |
| Displacement: | 9839ml | |
| Horsepower: | 380Ps | |
| Exhaust Gas Treatment Technology: | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin type | Standard Roof One Bed | |
| Chassis | Drive Type: | 6×4 |
| Tires: | 11(Including Spare Tire) | |
| Fuel tank | Capacity | 400L |
| Top Parameters | Product Type: | 20,000L Carbon Steel Fuel Tank |
| Valve | Civacon Valve | |
| Compartment Number: | 6 compartments(4+2+2+2+6+4) | |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tire | |
| 5 | Aluminum Alloy Gas Tank | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | Driving Data Recorder | |
| 10 | Widened Bumper | |
| 11 | Front Chrome Kit | |
| 12 | Air Suspension Cabin | |
| 13 | Air Suspension Seat | |
| 14 | Main Power Switch |
Fuel Tanker Truck Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The 10 Wheeler ISUZU GIGA Flammable Tanker Truck
What chassis is the 10 Wheeler ISUZU GIGA Flammable Tanker Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fuel truck?
The factory table lists Axle Loads: 7000/26000Kg (Two-axis group). Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Fuel Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 10 Wheeler ISUZU GIGA Flammable Tanker Truck
This build is listed as axle loads: 7000/26000Kg (Two-axis group) with capacity 400L. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
