Main photo
Isuzu Fuel Truck

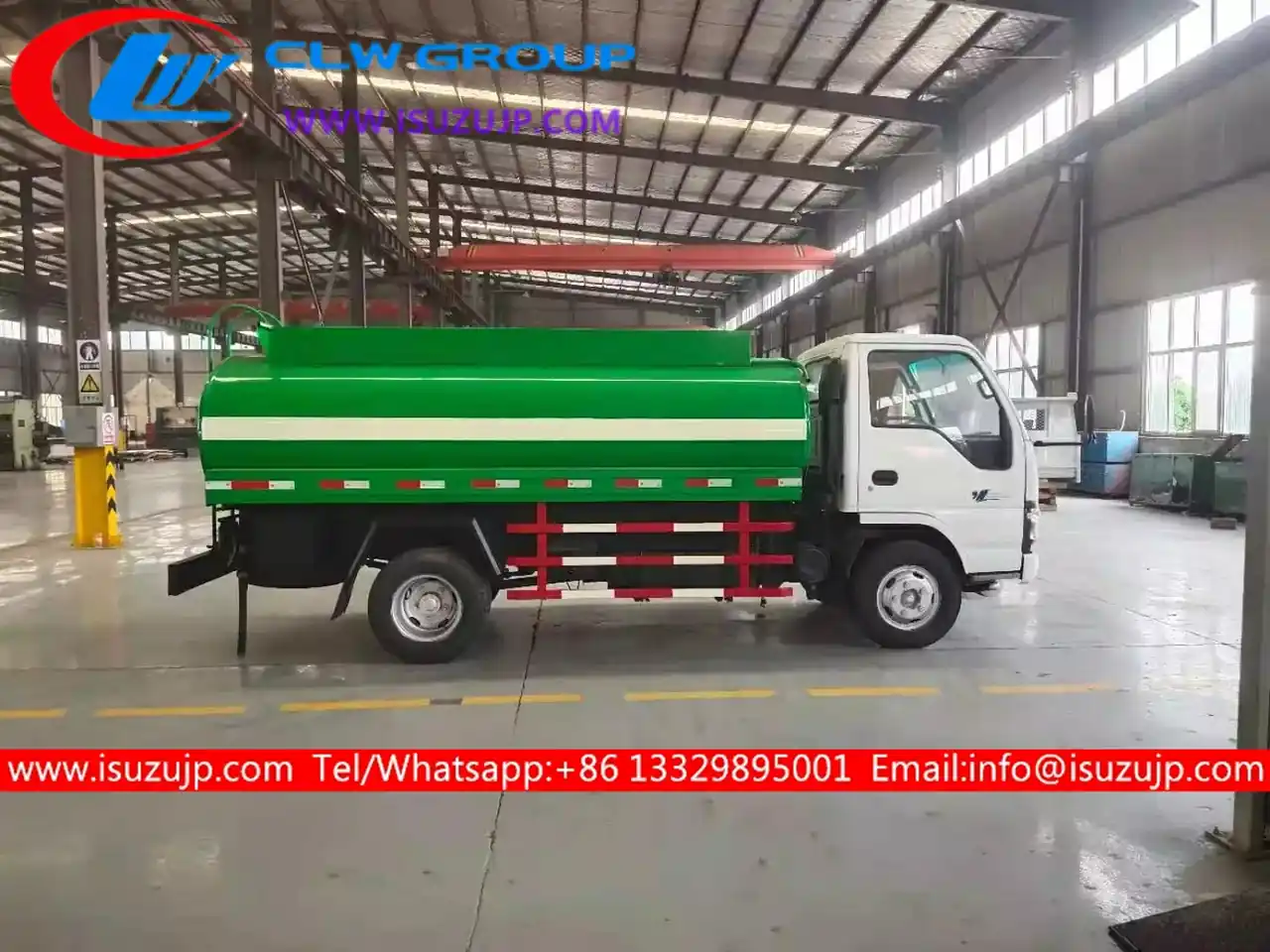

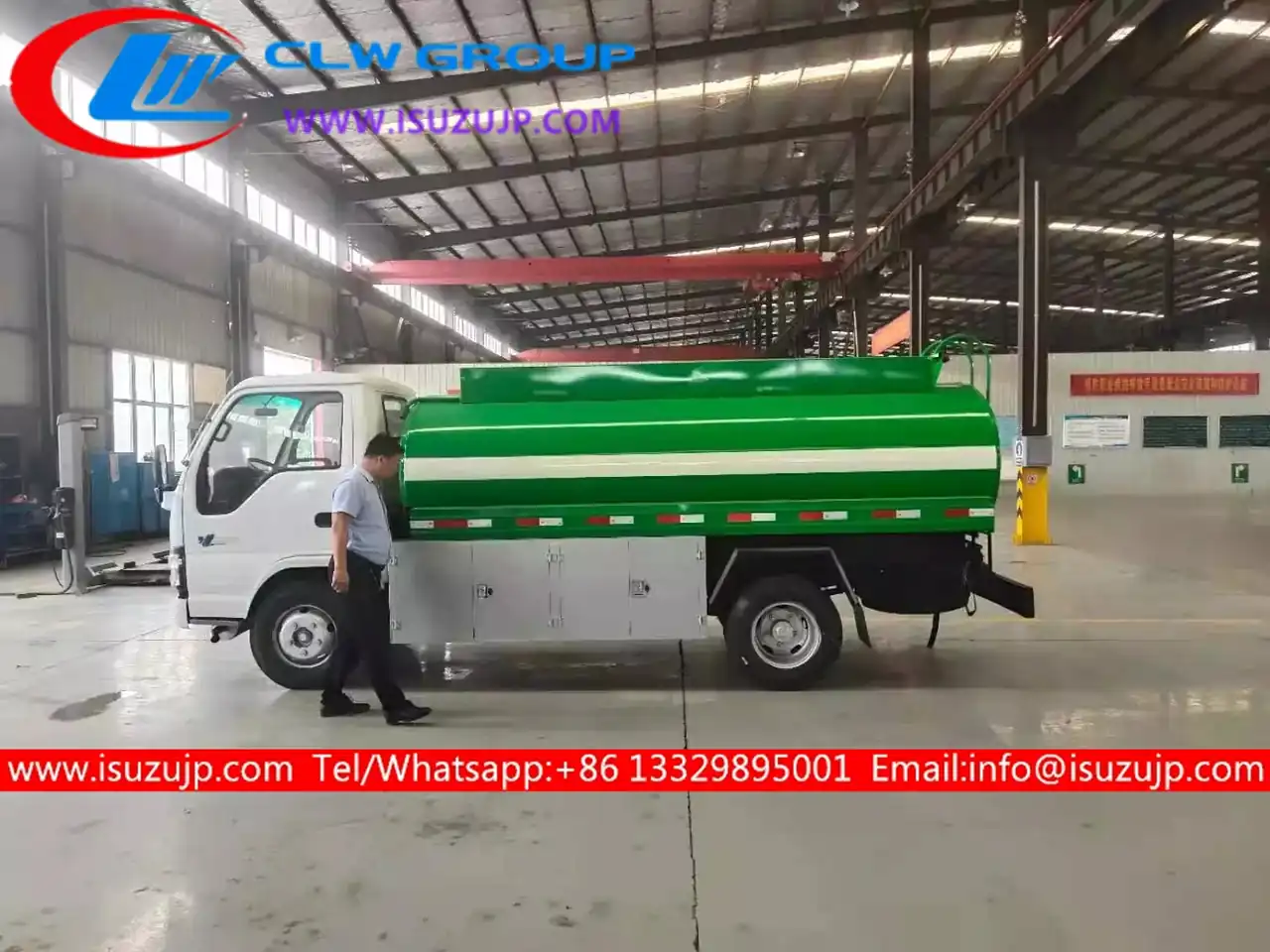

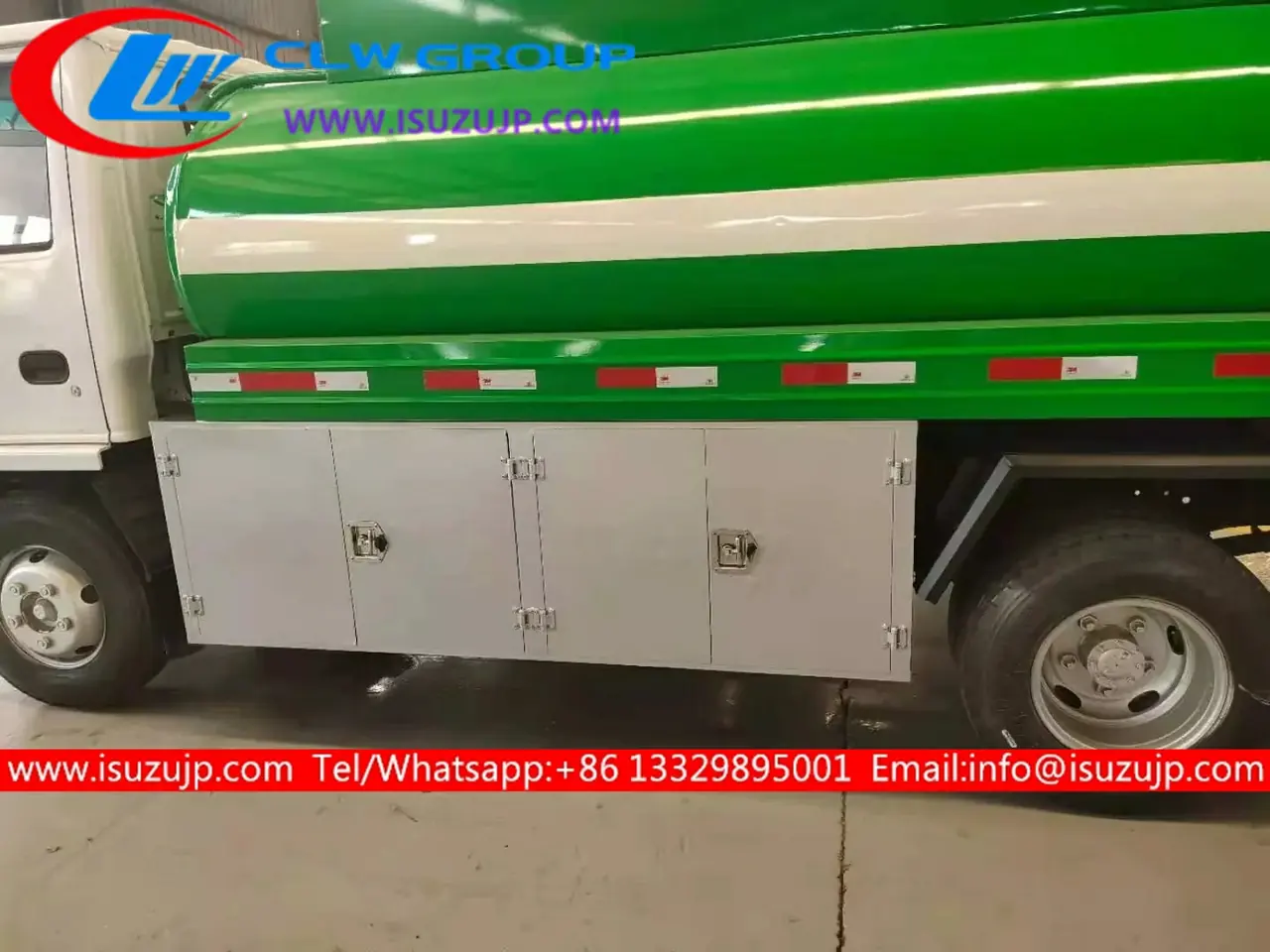

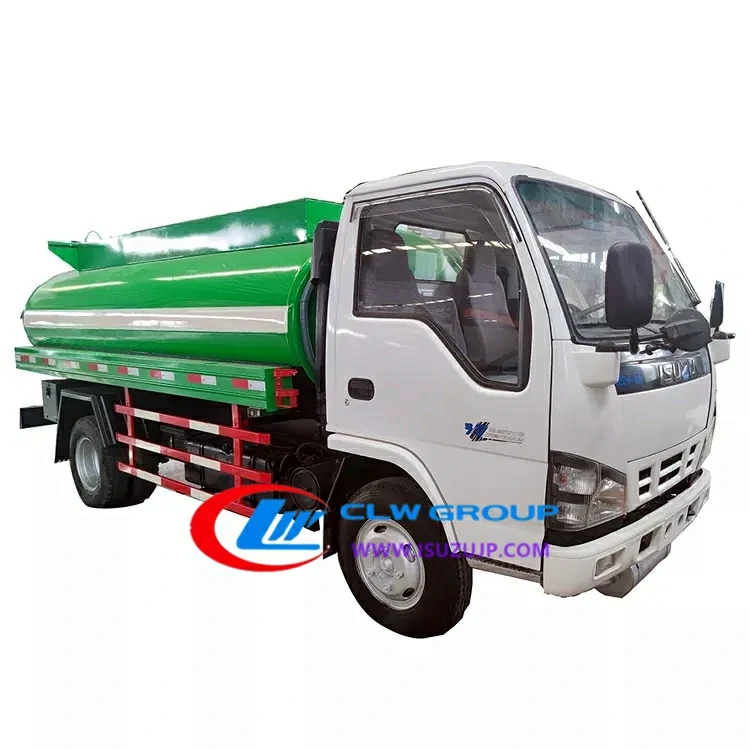

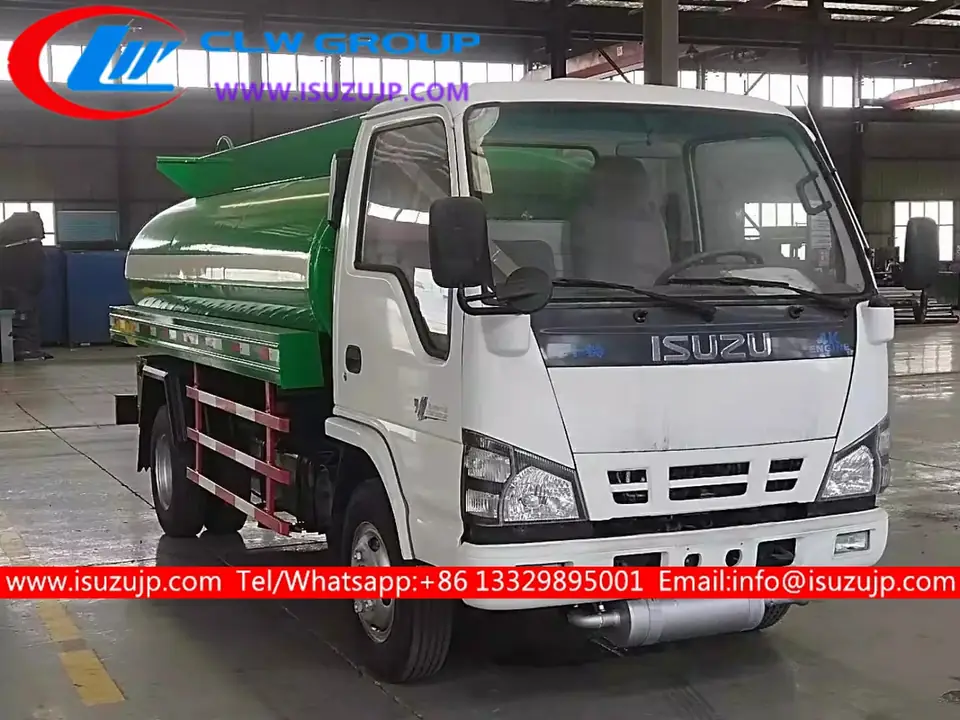

ISUZU 120HP 4tons Mobile Fuel Dispenser Truck
ISUZU 600P chassis, 5-shift manual gearbox, ISUZU 120HP diesel engine,
- Tank Dimensions(mm)
- 4000*1900*1180
- Payload Weight
- 4565
- Front Axle Loading(T)
- 2
- Rear Axle Loading(T)
- 4
Specification below is the factory table for this model, reproduced without edits. 27 rows.
Introduction
ISUZU 120HP 4tons mobile fuel dispenser truck (also called fuel oil bowser, diesel gasoline tanker bowser, fuel oil dispenser truck, petrol tanker truck, refuel bowser vehicle) is used to transport oil, diesel, gasoline, kerosene， etc.
ChengLi company’s Production fuel bowser can be divided into many compartments to transport different types of fuels, lubricants, crude oil, alcohol…
ISUZU fuel truck can be equipped with an oil pump and refueling machine, flow meters all for easy operation.
Advantage
- ISUZU 4K-ENGINE chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cubic meters.
- Easy operation and easy maintenance.
- Euro V and Euro VI engine meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Specifications
ISUZU 120HP 4tons Mobile Fuel Dispenser Truck Specification
| Product model | ISUZU 120HP 4tons mobile fuel dispenser truck | |
|---|---|---|
| Chassis model | QL1070A1HAY | |
| Vehicle spec. | Overall dimensions(mm) | 5995*1995*2650 |
| Tank dimensions(mm) | 4000*1900*1180 | |
| Weight(kg) | GVW 8396 | |
| payload weight | 4565 | |
| curb weight | 3831 | |
| Approach/departure angle(°) | 21/15 | |
| Front/Rear overhang(mm) | 1015/1620 | |
| Fuel type | Diesel | |
| Fuel consumption(100km/L) | 18 | |
| Max speed (km/h) | 95 | |
| Engine spec. | Model | 4KH1-TCG40 |
| Displacement(cc) | 2999 | |
| Horsepower(kW/ps) | 88/120 | |
| Engine type | 4 cylinder,in-line, turbocharger and after cooled | |
| Chassis spec. | Drive style | 4*2 |
| Wheelbase(mm) | 3360 | |
| Front tread(mm) | 1504 | |
| Rear tread(mm) | 1425 | |
| Front axle loading(T) | 2 | |
| Rear axle loading(T) | 4 | |
| Gearbox | 6 speed | |
| Brake | By air, with power assisted, pressure boost | |
| Tyre spec. | 7.50R16 | |
| Tyre nos. | 6+1(spare part) | |
| Equipment | 1. Tank can be separated into several unattached small tanks to fill different fuels 2. Tank material: carbon steel, stainless steel, FRP, etc. optional 3. Tank shape: groundless, quadrate, oval optional 4. Oil pump: self-priming pump, gear pump optional 5. Oil meter: single, double, Fiscal processor optional |
Oil Tanker Bowser Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 120HP 4tons Mobile Fuel Dispenser Truck
What chassis is the ISUZU 120HP 4tons Mobile Fuel Dispenser Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fuel truck?
The factory table lists Tank Dimensions(mm) 4000*1900*1180. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
