- 4×4 ISUZU ELF All Terrain 4000liters Oil Dispenser Truck with Two Compartments

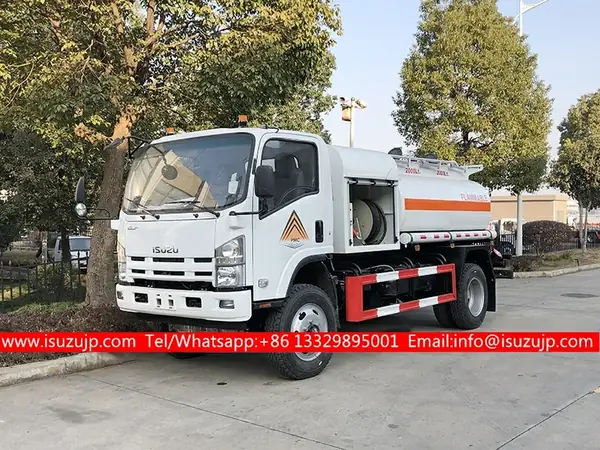

Main photo
Isuzu Fuel Truck
4×4 ISUZU ELF All Terrain 4000liters Oil Dispenser Truck with Two Compartments
Available Colors: Customization Logo: Customization
- Chassis
- ISUZU
- Engine
- ISUZU
- Drive Type
- 4×4, Left hand drive
- Emission
- Euro 5
- Seat Capacity
- 3 seats
- Tank Capacity (L)
- 4,000 Liters
- Tank Material
- Carbon Steel
- Fuel Pump
- Top Chinese brand, highly efficient, pump flow 500-1000 Liter/Min
Specification below is the factory table for this model, reproduced without edits. 28 rows.
Introduction
4×4 Isuzu ELF all terrain 4000liters oil dispenser truck with Two Compartments is used to transport oil, diesel, gasoline, kerosene, etc.
ChengLi company Production fuel bowser can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol…
ISUZU fuel truck can be equipped with an oil pump and refueling machine, and flow meters all for easy operation.
Advantage
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cubic meters.
- Easy operation and easy maintenance.
- Euro V, and Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Specifications
4×4 Isuzu ELF all terrain 4000liters oil dispenser truck with Two Compartments
| Vehicle Parameters | ||
| General | Vehicle Brand | CHENG LI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension (mm) | 7000x2200x2950 mm | |
| Gross Vehicle Weight (kg) | 10,000 kg | |
| Curb/Net Weight (kg) | 5,600 kg | |
| Chassis Parameters | ||
| Cab | Seat Capacity | 3 seats |
| A/C | Yes | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power (HP/KW) | 190 HP 139 KW | |
| Displacement (ml) | 5193 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 4×4, Left hand drive |
| Gear Box | ISUZU MLD gear box, 6 forward speed & 1 reverse, no overhaul within 500,000 km. | |
| Wheelbase (mm) | 3815 mm | |
| Tire Specification | 825R20 Optional off-road tires | |
| Tire No. (pcs) | 6+1 pcs | |
| Max Speed (km/h) | 95 km/h | |
| Fuel Tanker Structure Parameters | ||
| Tank Capacity (L) | 4,000 Liters | |
| Tank Material | Carbon Steel | |
| Fuel Pump | Top Chinese brand, highly efficient, pump flow 500-1000 Liter/Min | |
| Flow Meter | Flow meter equipped to show discharge amount | |
| Hose Reel | Hose reel equipped for refueling to other trucks or machines | |
| Fuel Hose | High quality, wire strengthened fuel hose, with cooper wire for anti-static purpose | |
| Accessories | Euro-manhole, handrail, anti-slip walkway, ladder, anti-static belt, fire extinguisher, inlet, outlet, reflective stickers | |
Fuel Tanker Truck Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The 4×4 ISUZU ELF All Terrain 4000liters Oil Dispenser Truck with Two Compartments
What chassis is the 4×4 ISUZU ELF All Terrain 4000liters Oil Dispenser Truck with Two Compartments built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fuel truck?
The factory table lists Seat Capacity 3 seats. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Fuel Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 4×4 ISUZU ELF All Terrain 4000liters Oil Dispenser Truck with Two Compartments
This build is listed as chassis ISUZU with engine ISUZU. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
