- ISUZU KV600 Small Fuel Tanker Truck for Sale
Main photo
Isuzu Fuel Truck

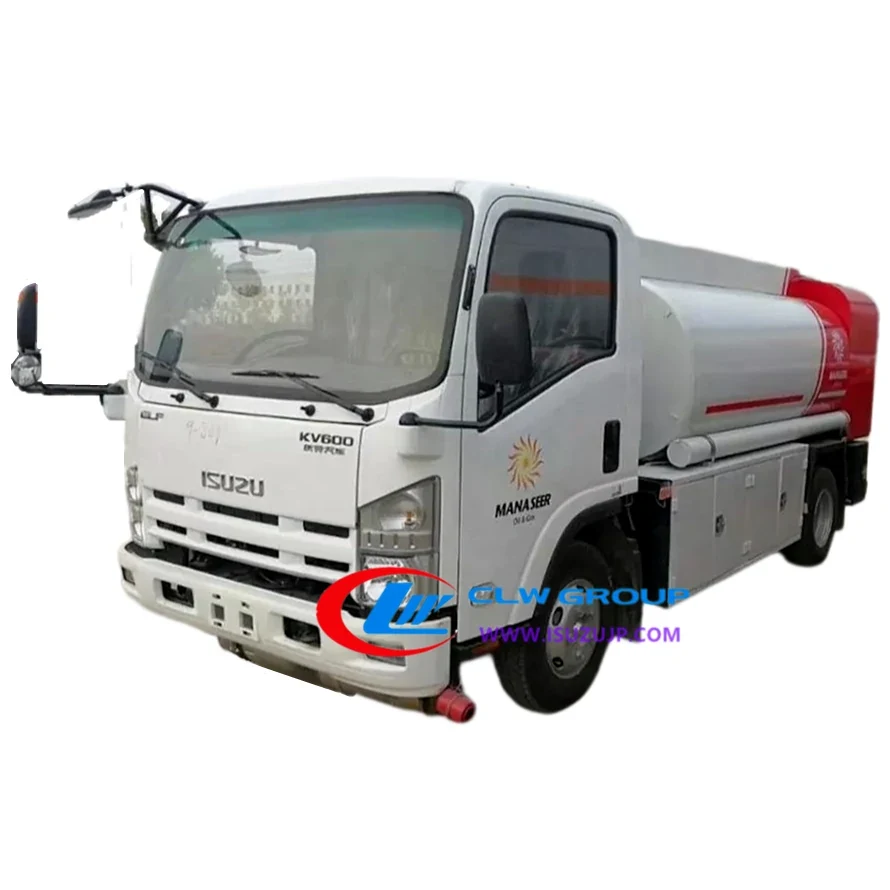

ISUZU KV600 Small Fuel Tanker Truck for Sale
ISUZU KV600 chassis, 5-shift manual gearbox, ISUZU 120HP diesel engine,
- Chassis
- ISUZU KV600 small fuel truck for sale
- Power
- 88KW/120HP
- Overall Dimension
- 5990×2100×2500 (mm)
- Emission
- EURO VI
- Front/Rear Axle Loading
- 2500/4800(Kg)
- Tank Material
- Q235B Carbon Steel (Stainless Steel and Aluminum Alloy for optional)
- Effective Volume
- 5CBM
- Tank Thickness
- 5mm
Specification below is the factory table for this model, reproduced without edits. 32 rows.
Introduction
ISUZU KV600 small fuel tanker truck (also called fuel oil bowser, diesel gasoline tanker bowser, fuel oil dispenser truck, petrol tanker truck, refuel bowser vehicle) is used to transport oil, diesel, gasoline, kerosene， etc.
ChengLi company’s Production fuel bowser can be divided into many compartments to transport different types of fuels, lubricants, crude oil, alcohol…
ISUZU fuel truck can be equipped with an oil pump and refueling machine, flow meters all for easy operation.
Advantage
- ISUZU KV600 chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cubic meters.
- Easy operation and easy maintenance.
- Euro V and Euro VI engine meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Specifications
General Technical Parameters
| Overall Dimension | 5990×2100×2500 (mm) | |
|---|---|---|
| Gross Vehicle Weight | 7300kg | |
| Chassis Specification | ||
| Chassis Brand | ISUZU KV600 small fuel truck for sale | |
| Drive model | 4*2 | |
| Cabin | Single row, Cab reversible, Left-hand Drive, with air conditioning. | |
| Number of Passengers | 2 | |
| Engine | Model | 4HK16BNS/120HP, with ABS. |
| Power | 88KW/120HP | |
| Emission standard | EURO VI | |
| Displacement | 2770(ml) | |
| Fuel type | Diesel | |
| Gearbox | 5Forwards & 1Reverse, manual operation, with power steering. | |
| Brake System | Oil break, with vacuum booster pump. | |
| Wheel Base | 3360mm | |
| Front/Rear Axle Loading | 2500/4800(Kg) | |
| Overhang | Mechanical Suspension, 8/10+6. | |
| Tire | 7.00R16, steel wire tire, 6pc with 1 spare tire. | |
| Max Driving Speed | 80 km/h | |
| Upperstructure Specification | ||
| Fuel Tank | Tank Material | Q235B Carbon Steel (Stainless Steel and Aluminum Alloy for optional) |
| Effective Volume | 5CBM | |
| Medium Type | Fuel(Gasoline, Diesel, etc.) | |
| Tank Thickness | 5mm | |
| Manhole cover | 1 unit. with breath valves. | |
| Emergency cut-off valve | 1 unit. | |
| Discharging valve | 1 unit. | |
| Lifting Ladder | 1 unit. | |
| Color | According to the customer’s requirements. | |
| Dispenser System | 1, Dispenser machine; | |
| 2, Refueling retractable rubber hose reel and filling gun, 2 units; | ||
| 3, Pump. | ||
Oil Tanker Bowser Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU KV600 Small Fuel Tanker Truck for Sale
What chassis is the ISUZU KV600 Small Fuel Tanker Truck for Sale built on?
It is built on ISUZU KV600 small fuel truck for sale. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fuel truck?
The factory table lists Front/Rear Axle Loading 2500/4800(Kg). Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Fuel Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU KV600 Small Fuel Tanker Truck for Sale
This build is listed as chassis ISUZU KV600 small fuel truck for sale with power 88KW/120HP. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
