ISUZU 4×4 Truck

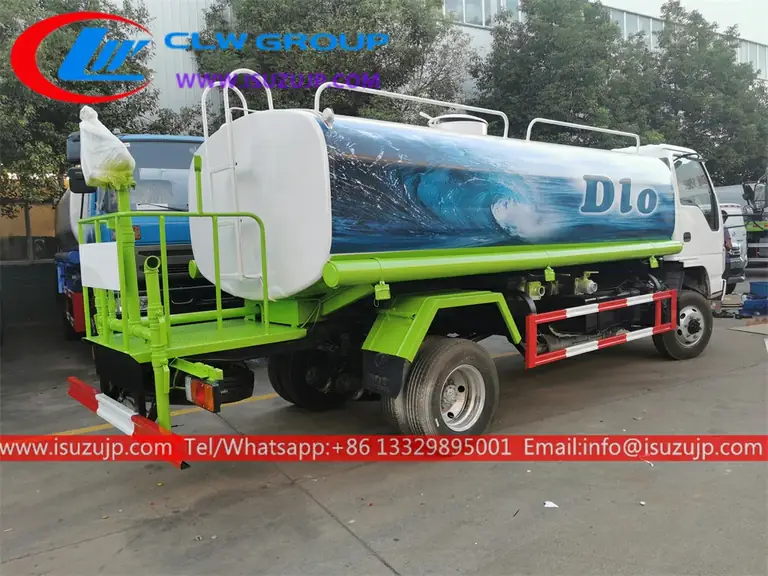

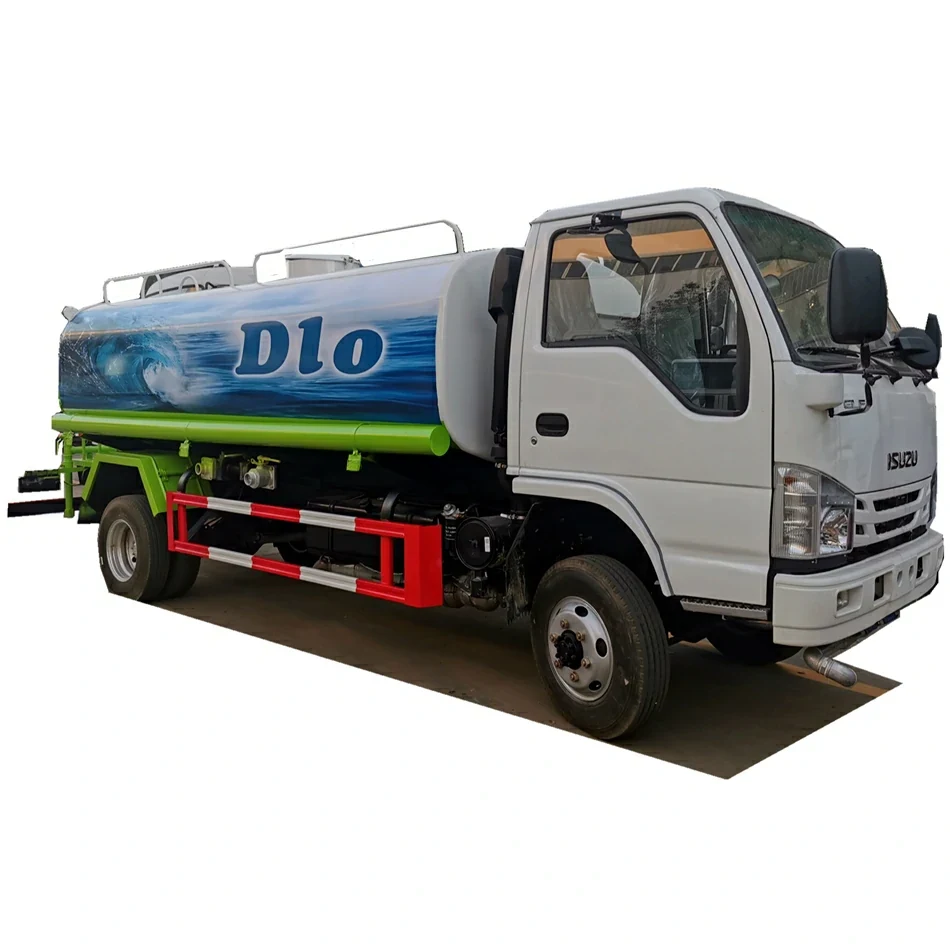

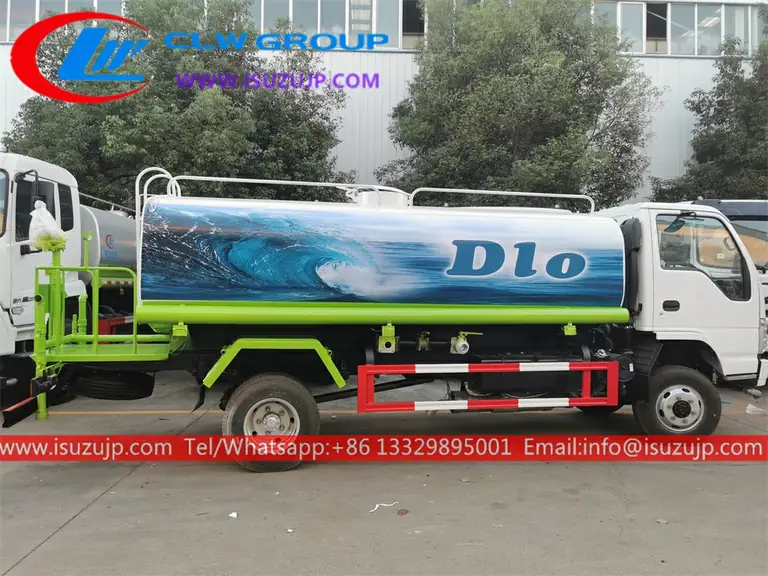

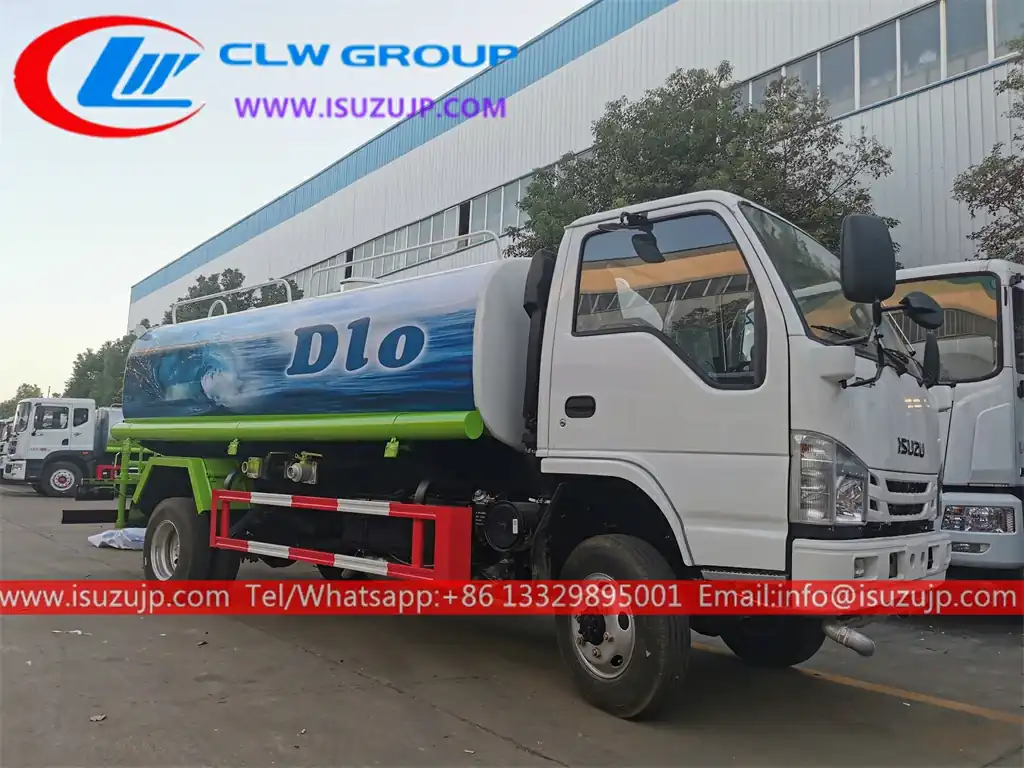

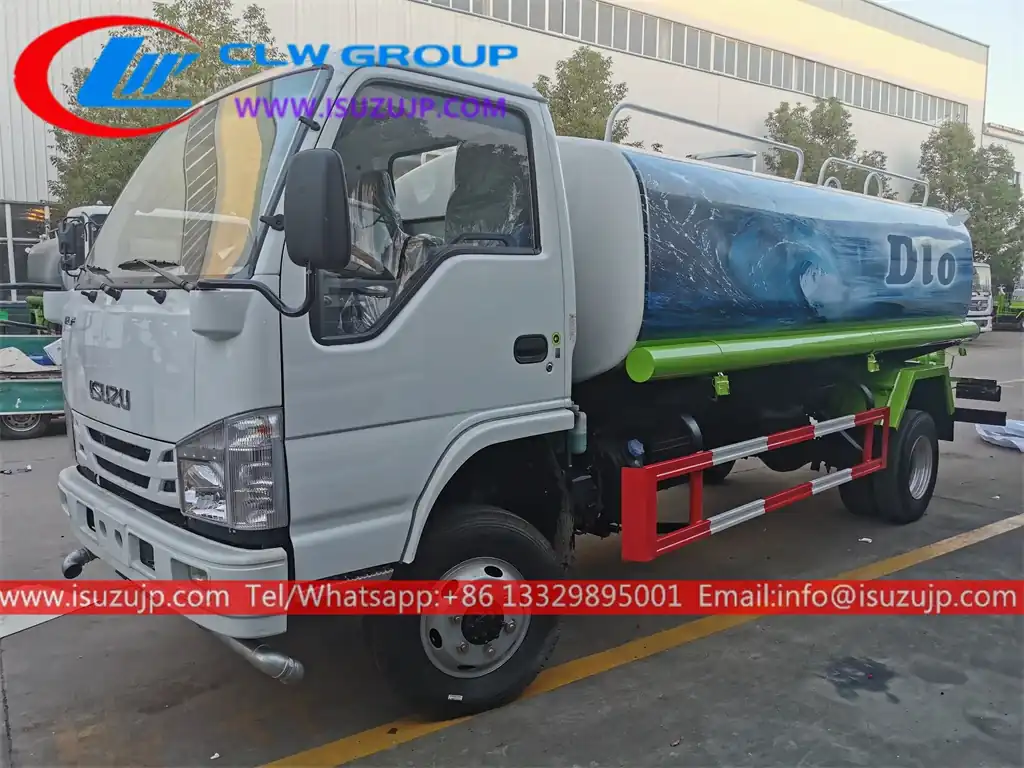

4WD ISUZU NJR 8000liters Water Tank Lorry
Product Origin: China ChengLi tank color and Logo: Free Truck Size: 6800x2300x2600mm Shipping Port: China Main Port Lead Time: 20 Days Payment: T/T Delivery Time : Based on the mode of shipping chosen
- Transmission
- 5 forward,1 reverse, manual operated
- Water Tank Volume (L)
- 8000
- Loading (kg)
- Appro × 8000
- International Well-known Brand Pump
- Water way Self-priming water, fire water injection, tank top water injection
Specification below is the factory table for this model, reproduced without edits. 25 rows.
4WD Isuzu NJR 8000liters Water Tank Lorry Application
- Isuzu water tank lorry (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray to sprinkle and clean the roads, streets for environmental sanitation and protection, called a water sprinkler, water spray truck.
- With a rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called a watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Advantage
- ISUZU NJR chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification
Complete Vehicle Parameter
| Vehicle | 4WD Isuzu NJR 8000liters water tank lorry |
|---|---|
| Overall dimensions (mm) | 6800x 2300 x 2600 |
| Water tank volume (L) | 8000 |
| Gross Vehicle Weight (kg) | Appro × 11800 |
| Net weight (kg) | Appro × 3800 |
| Loading (kg) | Appro × 8000 |
| Wheelbase (mm) | 3815 |
| Max speed (Km/h) | 99 |
| Chassis Parameter | |
| Cabin | Single row cabin, power steering, air conditioner, 2-3 passengers, left-hand drive. |
| Drive form | 4×2 |
| Engine | Brand: ISUZU Model: 4JB1CN Engine power: 120hp Fuel type: diesel. Displacement : 2999ml Emission standard: Euro 6 |
| Transmission | 5 forward,1 reverse, manual operated |
| Tire model | 7.00R16 |
| No.of tires | 6pcs, with a spare tire |
| Superstructure Parameter | |
| Characteristics | 1) Carbon steel material water tank, thickness 5mm. 2) water pump. 3) rear working platform. 4) suction pipe. 5) Fire connector. 6) gravity valve. |
| Special performance | Front and rear spraying water. Left and right side spraying water. The platform has a sprinkler, spraying water. The water column can be adjusted into the mist Width of spraying water : ≥14m. Distance of spraying water : ≥28m. Vertical suction 6-8 m. Drainage time <5min, flow rate 90m3/h. |
| Applicable scope | For a variety of road cleaning City green sanitation Trees, green belt and lawn watering High altitude building rinse |
Working Parameter
4WD ISUZU NJR 8000liters Water Tank Lorry Specification
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material Carbon steel Q345/stainless steel 304 |
|---|---|---|
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device |
Water Bowser Tanker Truck Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The 4WD ISUZU NJR 8000liters Water Tank Lorry
What chassis is the 4WD ISUZU NJR 8000liters Water Tank Lorry built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu 4×4 truck?
The factory table lists Water Tank Volume (L) 8000. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU 4×4 Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 4WD ISUZU NJR 8000liters Water Tank Lorry
This build is listed as transmission 5 forward,1 reverse, manual operated with water tank volume (l) 8000. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
