- 4 Wheel Drive ISUZU NQR 6 Tons Military Dump Truck with Sleeping Cabin for Sale
Main photo
ISUZU Dump Truck

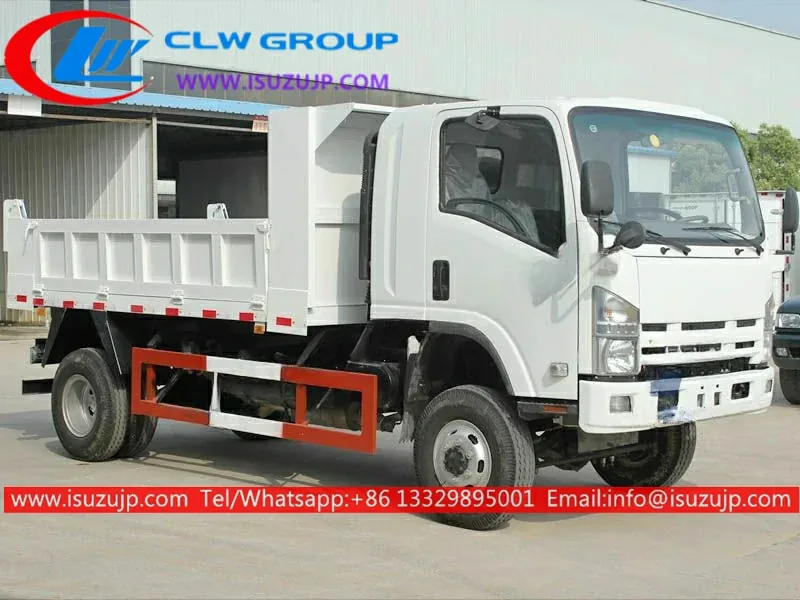

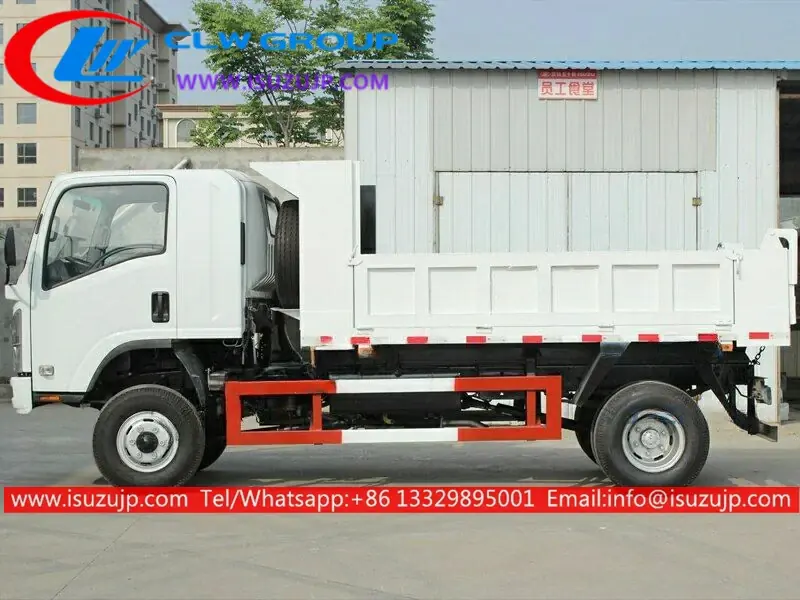

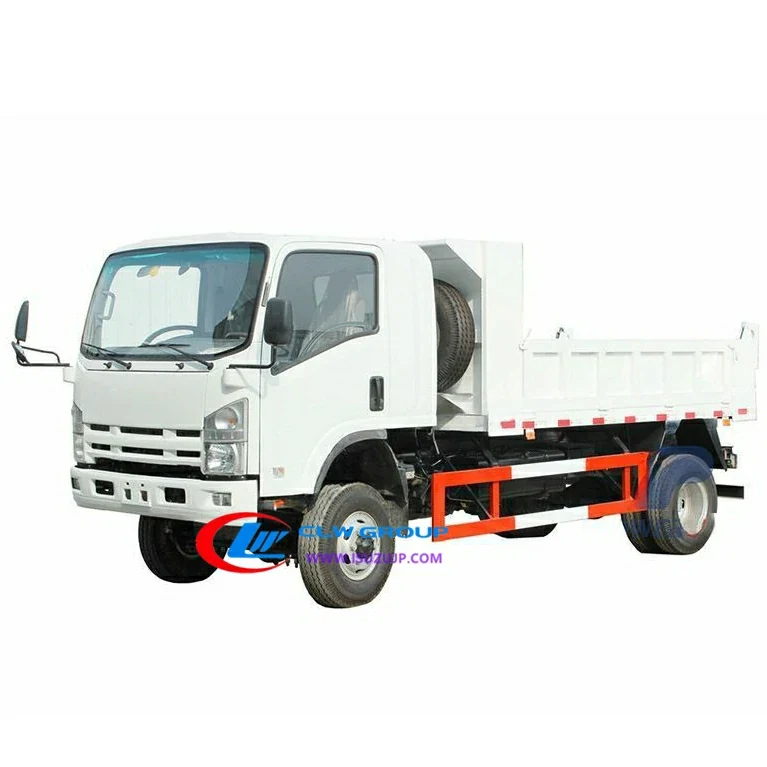

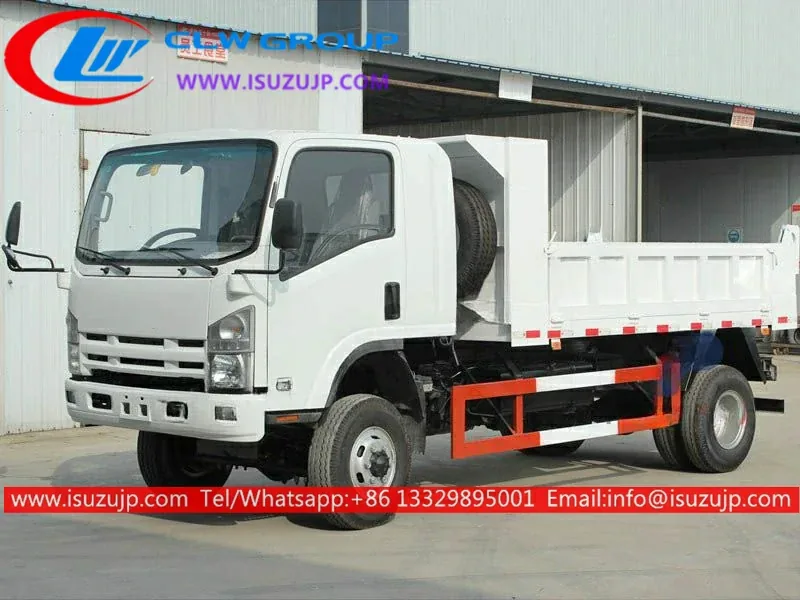

4 Wheel Drive ISUZU NQR 6 Tons Military Dump Truck with Sleeping Cabin for Sale
ISUZU ELF 4×4 LHD chassis, MLD 6-shift manual gearbox, ISUZU 190HP diesel engine, high strength steel tipper body
- Power
- 190 HP
- Product Origin
- China
- Body Size
- 5900X2200X2800 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 32 rows.
4 Wheel Drive ISUZU NQR 6 Tons Military Dump Truck with Sleeping Cabin Description
- 4 wheel drive ISUZU NQR 6 tons military dump truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.

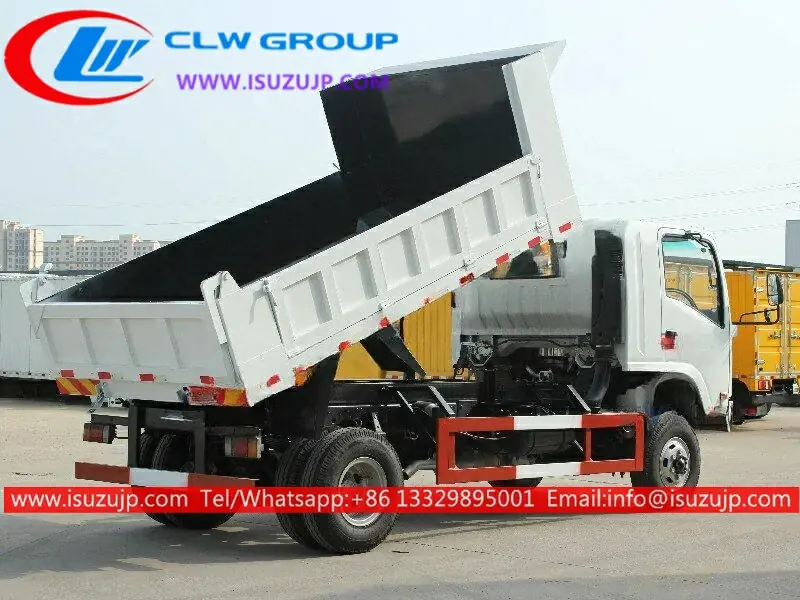

- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage
- ISUZU ELF 700P light duty chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
Specification
4 Wheel Drive ISUZU NQR 6 Tons Military Dump Truck with Sleeping Cabin for Sale Specification
| Manufacturer | ISUZU Trucks | |
|---|---|---|
| Item | 4 wheel drive ISUZU NQR 6 tons military dump truck with sleeping cabin for sale | |
| Brand | ISUZU | |
| Model | CLW1060TSDL | |
| Production Time | 30 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 5900*2200*2550 mm |
| Gross weight | 10,000 kg | |
| Kerb weight | 3,300 kg | |
| Wheelbase | 3,815 mm | |
| Driving type | 4*4 | |
| Chassis model | 700P Medium-duty | |
| Tire size | 8.25-16 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 4HK1-TC51 |
| Type of fuel | Diesel | |
| Power | 190 HP | |
| Gearbox | MLD 6-shift gearbox | |
| Upper Structure | ||
| Tipper Body performance | Body Size | 4,000*2000*550 mm |
| Body Material | Carbon steel, with inside and outside antirust treatment | |
| Body Thickness | Side 4 mm | |
| Floor 5mm | ||
| Hydraulic Cylinder | Double Hydraulic cylinders with balance valve | |
| Body Shape | Square with drop side | |
| Control Panel | English | |
| Spare Tire | One set equipped in front of dump body | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Stainless steel body, Aluminum alloy body 2, Road cleaning device in the front of cabin 3, Towing Winch | |
Questions
Questions About The 4 Wheel Drive ISUZU NQR 6 Tons Military Dump Truck with Sleeping Cabin for Sale
What chassis is the 4 Wheel Drive ISUZU NQR 6 Tons Military Dump Truck with Sleeping Cabin for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Dump Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 4 Wheel Drive ISUZU NQR 6 Tons Military Dump Truck with Sleeping Cabin for Sale
This build is listed as power 190 HP with product origin China. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
