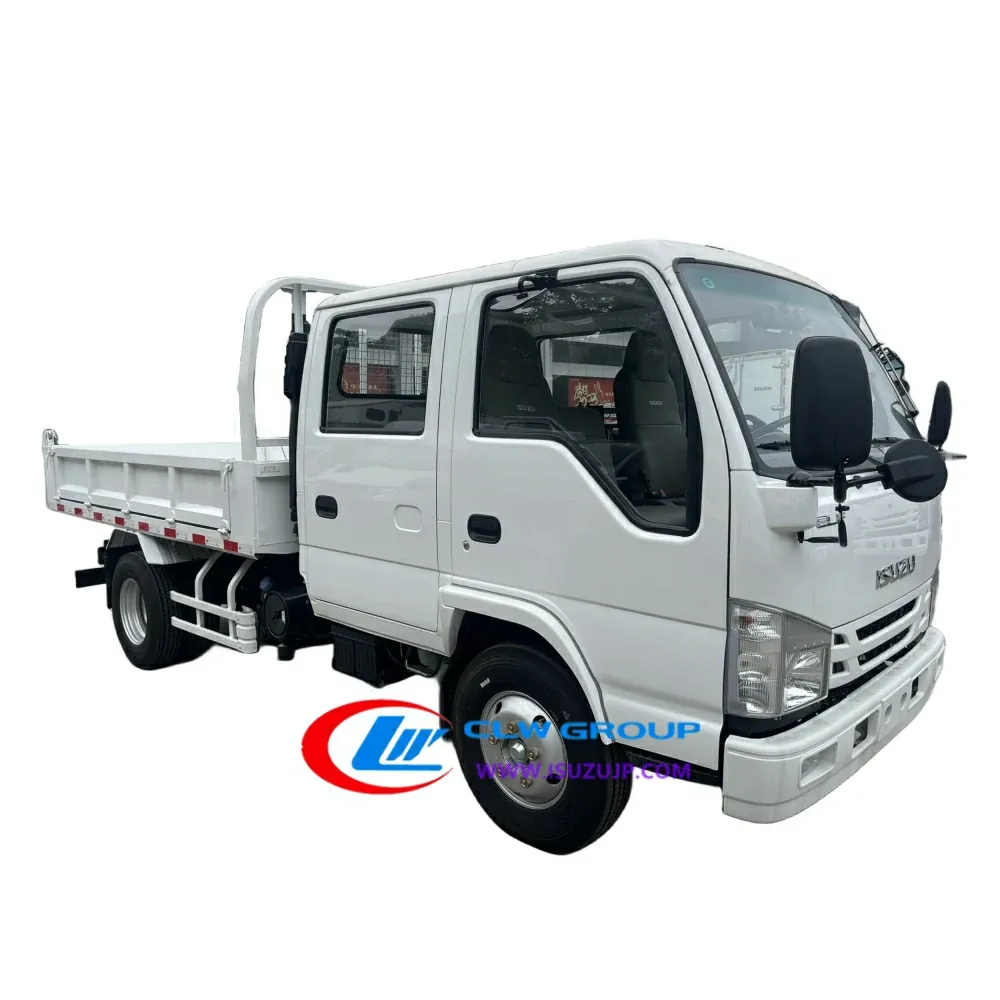

ISUZU 100P Double Cabin Small Mining Dump Truck
ISUZU left-hand drive double cabin chassis 3m3 tipper trucks, Mid-mounted double-top hydraulic cylinder, optional front lifting cylinder. 98HP diesel engine
- Chassis
- ISUZU
- Rated Loading
- 3000 (kg)
- Fuel Tanker
- 100L
- Product Origin
- China
- Body Size
- 5900X2150X2300 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 30 rows.
Isuzu 100P Double Cabin Small Mining Dump Truck Description
- Isuzu 100P double cabin small mining dump truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at the side with hydraulic pistons to lift the side.
Advantage
- ISUZU NHR 100P light chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Payloading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Various types of tipper bodies are available.
- High-strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification
ISUZU 100P Double Cabin Small Mining Dump Truck Specification
| Isuzu 100P double cabin small dump truck Vehicle Description | |
| Overall Dimension: mm (LxWxH). | 5900x2100x2300 |
|---|---|
| GVW | 7,300 (kg) |
| Curb weight (kg). | 2,900 (kg) |
| Rated Loading | 3000 (kg) |
| Front axle | 2,500 (kg) |
| Rear-axle | 4,500 (kg) |
| Dumper body description | |
| Dimension mm (LxWxH) | 11ft, 3200*1900*400(mm) |
| Material | Carbon steel |
| Thickness | Side 3mm, Bottom 4mm |
| Tipping system | System of middle tipping |
ISUZU 100P Double Cabin Small Mining Dump Truck Specification
| Chassis Description | ||
| Chassis brand | ISUZU | |
|---|---|---|
| Condition of the chassis | All brand new | |
| Cab | ELF double cabin | |
| Air conditioning | standard seats | |
| Type of driving | Left hand driving, 4×2-6×6 | |
| Tire | 7.00R16 tyre, 6+1(pcs) | |
| Engine | Brand | ISUZU – 4JB1CN |
| Standard for emission | Euro IV | |
| Displacement | 3L | |
| Horse power | 98hp / 72kW @ 3400rpm | |
| Number of cylinders | 4 | |
| Maximum torque | 220 N.m @ 1700rpm | |
| Gear box | Brand | ISUZU – MSB |
| There are many gears | 5 Forwards gear & 1 reverse gear | |
| With PTO | ||
| Frame | Thickness: 172mm *65mm * single-layer 4mm | |
| Fuel tanker | 100L | |
Questions
Questions About The ISUZU 100P Double Cabin Small Mining Dump Truck
What chassis is the ISUZU 100P Double Cabin Small Mining Dump Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
The factory table lists Rated Loading 3000 (kg). Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
