Main photo
ISUZU Dump Truck

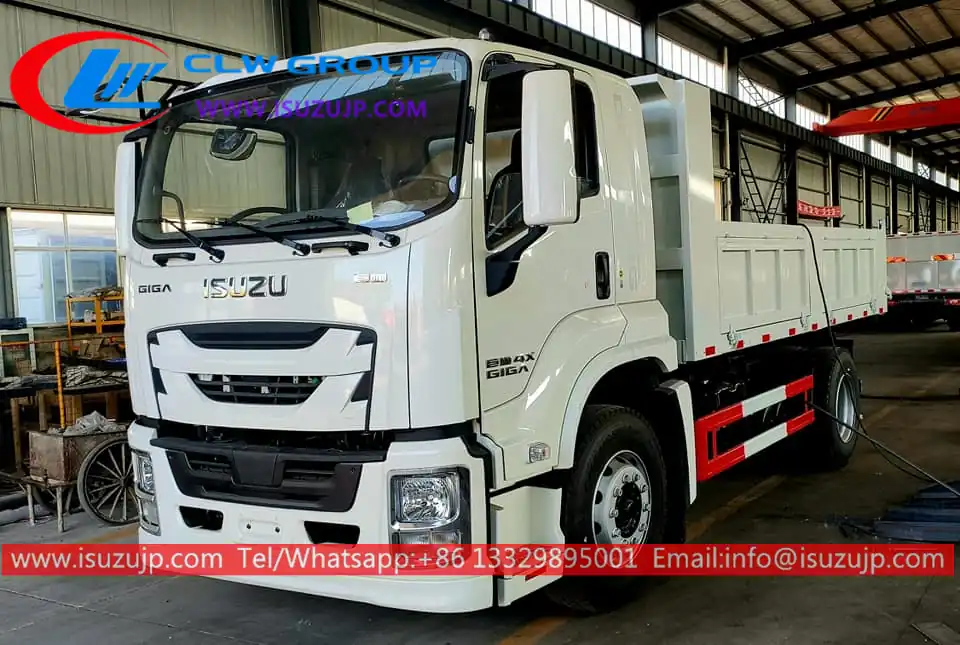

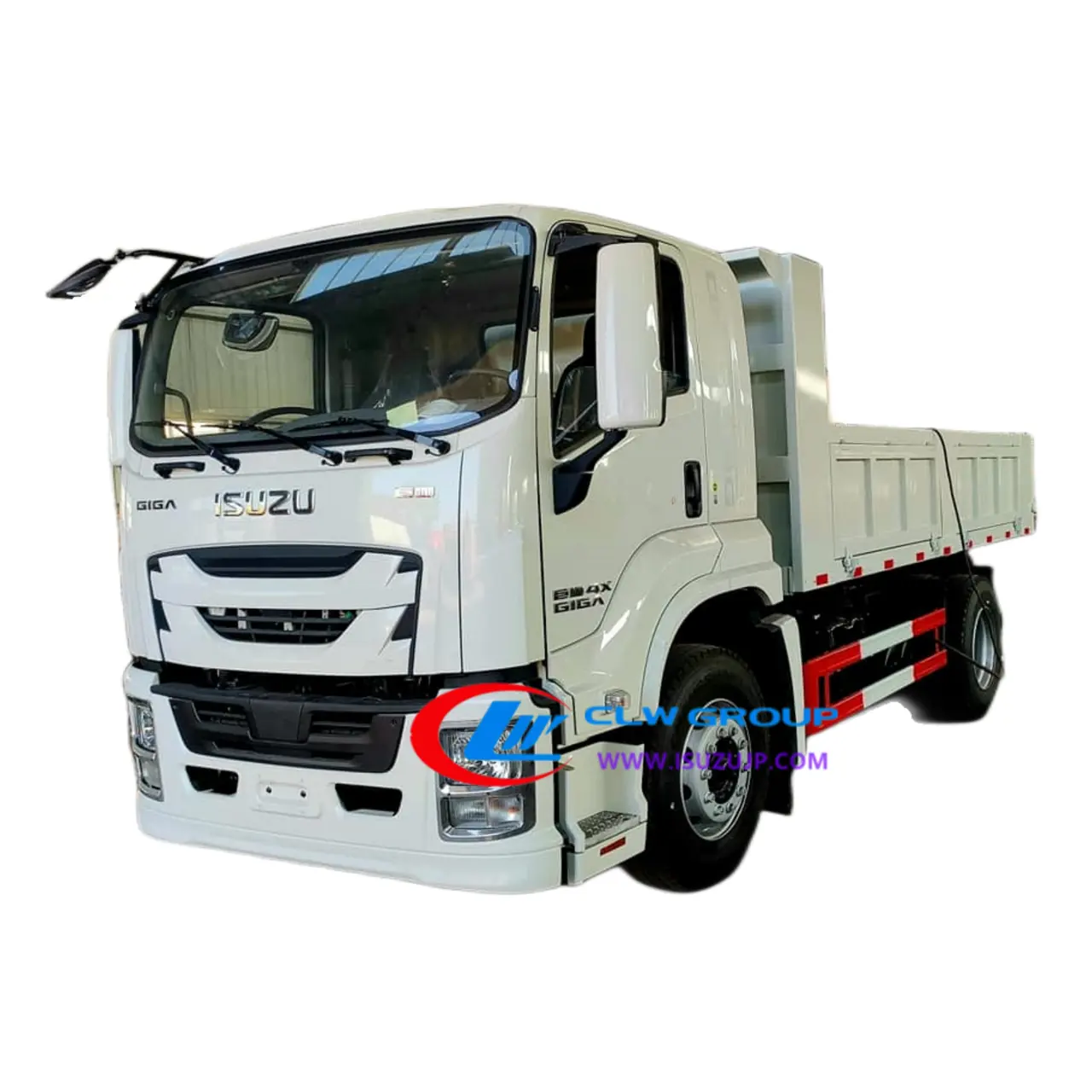

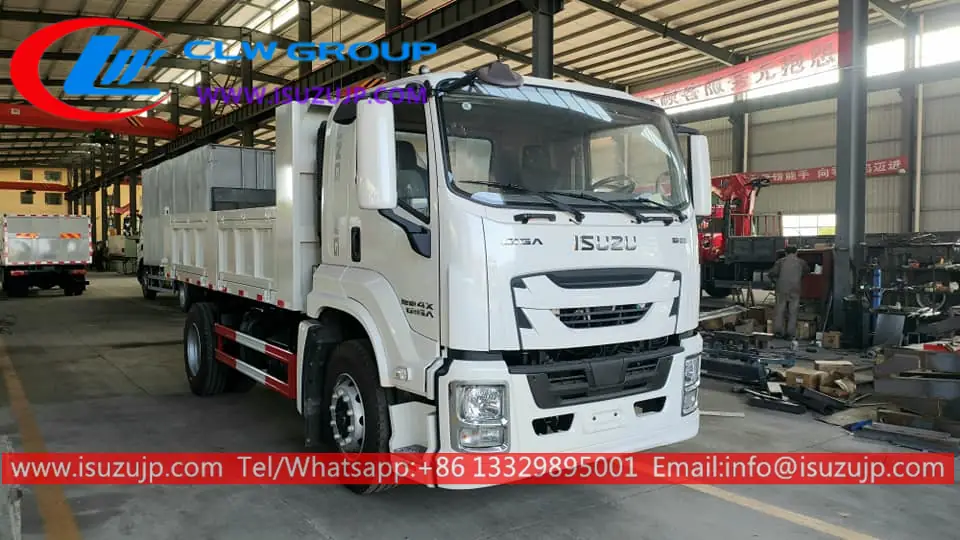

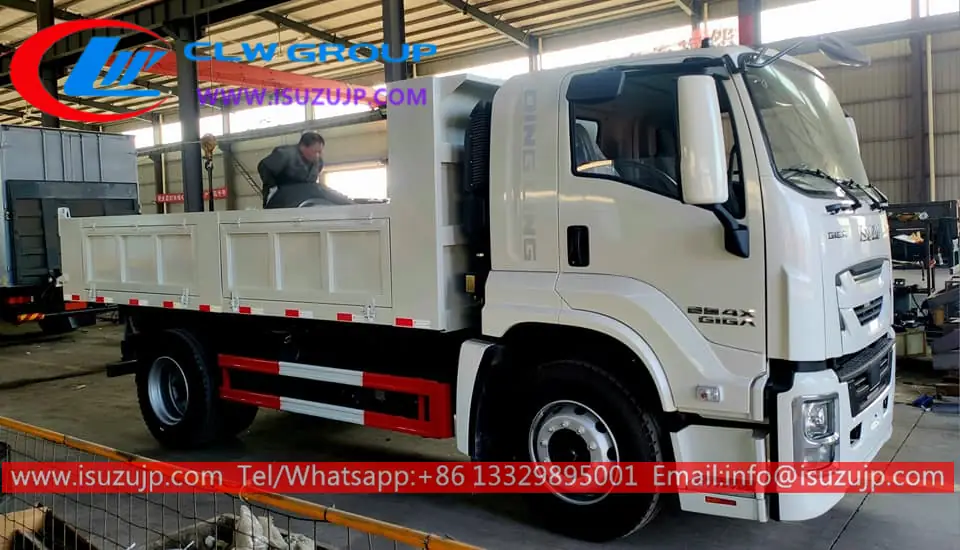

ISUZU GIGA 12mt 3 Way Dump Tipper Truck for Sale the Philippines
ISUZU GIGA left-hand drive chassis 12tons 3 way dump tipper trucks, HYVA lifting as optional. 300HP diesel engine
- Axle Loads:
- 6500/13000kg
- Capacity:
- 200L
- Box Volume:
- 12m³
- Lifting Type:
- Middle Lifting
Specification below is the factory table for this model, reproduced without edits. 38 rows.
ISUZU GIGA 12mt 3 Way Dump Tipper Truck Description
- Isuzu 12mt 3 way dump tipper truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage
- ISUZU GIGA heavy duty chassis, perfect performance
- 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Payloading from 20ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
ISUZU Dump Truck Specification
ISUZU GIGA 12mt 3 Way Dump Tipper Truck for Sale the Philippines Specification
| Chassis Dimensions and Parameters | ITEM | ISUZU GIGA 12mt 3 way dump tipper truck |
|---|---|---|
| Overall Dimension(L x W x H) | 7200×2500x3200mm | |
| Wheelbase: | 4500mm | |
| Front/ Rear Wheel Distance: | 2060/1855mm | |
| Front/Rear Suspension | 1335/1735mm | |
| Rear Axle Ratio: | 5.571 | |
| Approach/Departure angle: | 17/22° | |
| Leaf Spring: | 7+6/8 | |
| Weights and Capacities | Curb Weight: | 7500kg |
| GVW: | 18000kg | |
| Axle Loads: | 6500/13000kg | |
| Engine | Engine Model: | 4HK1 EURO VI |
| Cylinder: | 4 | |
| Max output: | 151Kw | |
| Displacement: | 5193ml | |
| Horsepower: | 205Ps | |
| Exhaust Gas Treatment Technology： | DPF+SCR | |
| With VGT | ||
| Transmission | Transmission: | MLD |
| Forward Gear: | 6 Speed Gear | |
| Backward Gear: | 1 Speed Gear | |
| Brake | Air Brake | |
| Front Drum Back Drum | ||
| With Exhaust Brake | ||
| Cab | Number of Seats: | 2 |
| Chassis | Drive Type: | 4×2 |
| Tires: | 7(Including Spare Tire) | |
| Tire Model: | 295/80R20.5 | |
| Fuel Tank | Number: | 1 |
| Capacity: | 200L | |
| Top Parameters | Box Volume: | 12m³ |
| Box Dimension: | 4500*2300*1200mm | |
| Lifting Type: | Middle Lifting | |
| Thickness: | Bottom 6mm, Side 4mm | |
| Configurations: | Power Steering System | |
| Air Conditioning | ||
| Speed Light & Large Indoor Light | ||
| ABS | ||
Questions
Questions About The ISUZU GIGA 12mt 3 Way Dump Tipper Truck for Sale the Philippines
What chassis is the ISUZU GIGA 12mt 3 Way Dump Tipper Truck for Sale the Philippines built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
The factory table lists Axle Loads: 6500/13000kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Dump Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU GIGA 12mt 3 Way Dump Tipper Truck for Sale the Philippines
This build is listed as axle loads: 6500/13000kg with capacity: 200L. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
