Main photo
ISUZU Dump Truck

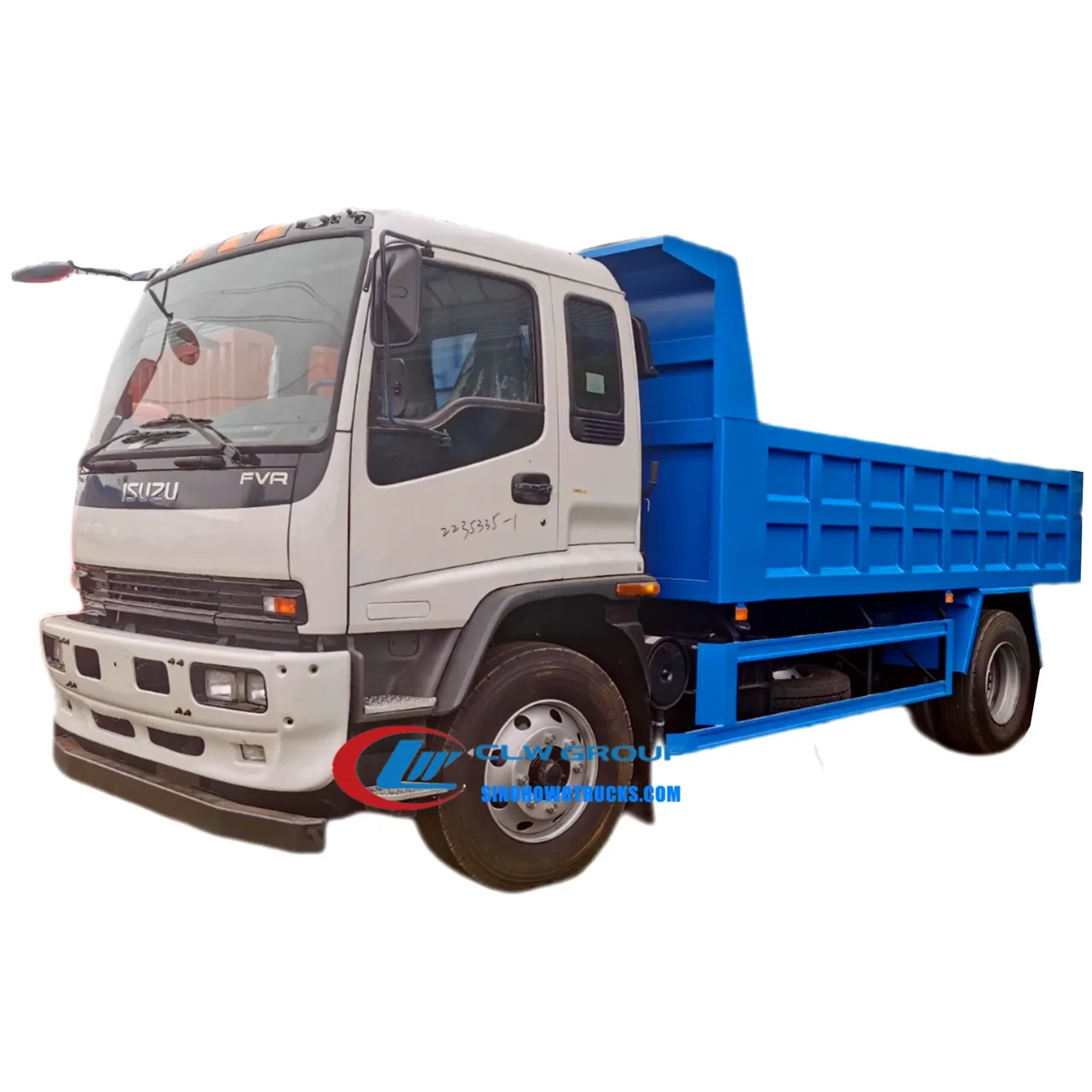

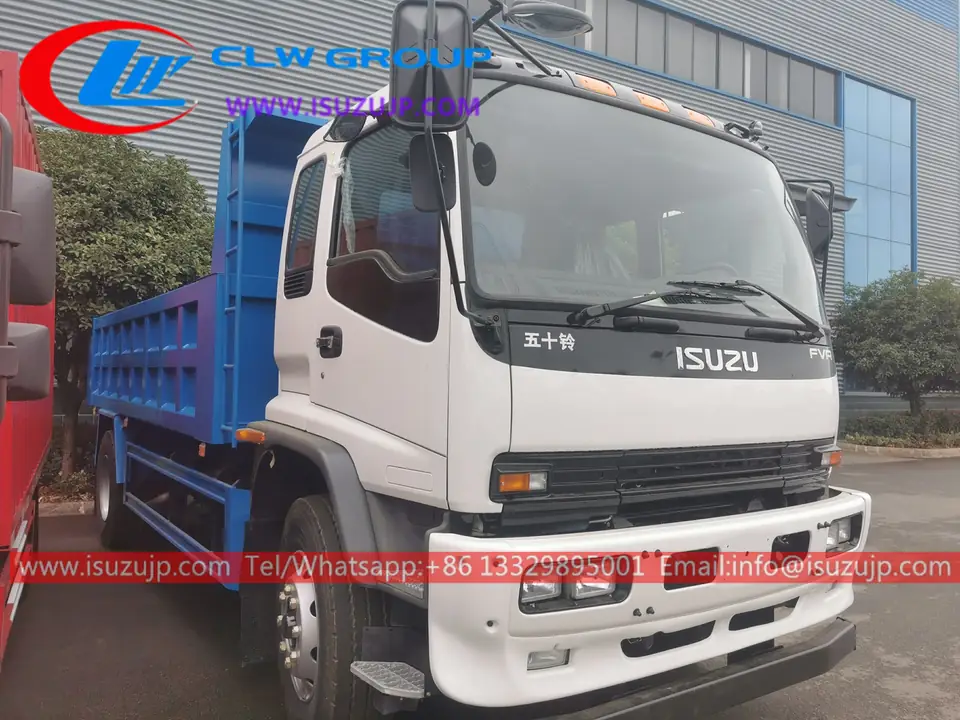

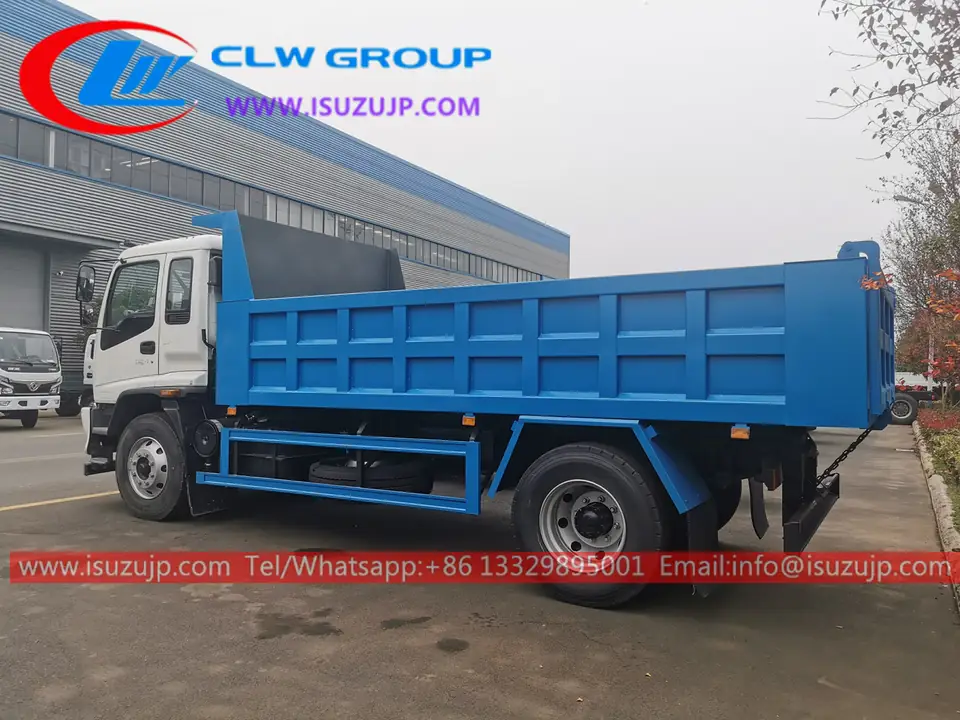

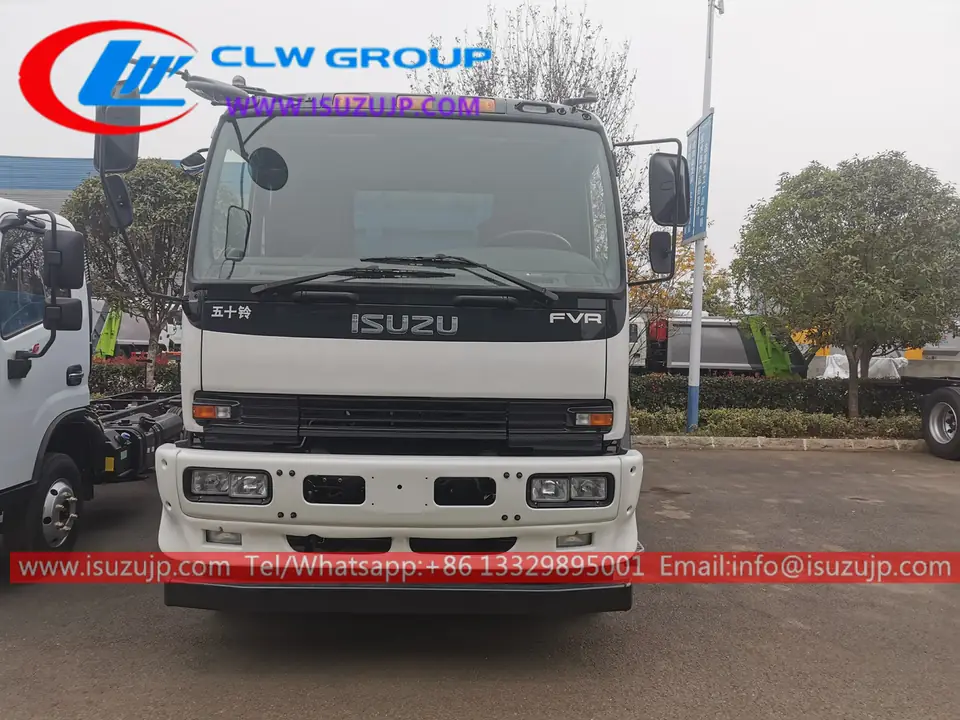

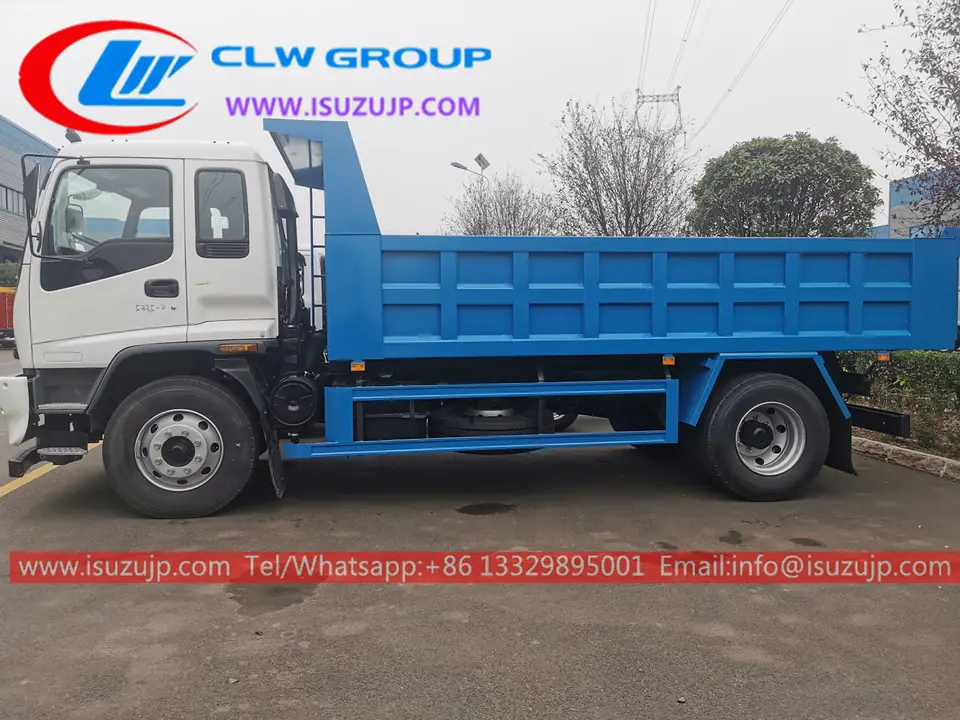

ISUZU FVR Medium Duty Dump Truck for Sale Philippines
ISUZU left-hand drive chassis 12 cube tipper trucks, HYVA lifting as optional. 240HP/300HP diesel engine
- Transmission
- MLD,6 forwards,1 reverse gear,manual operation
- Rated Payload Weight(kg)
- 12000
- Box Lifting Model
- middle lifting
- Product Origin
- China
- Body Size
- 7800X2500X2980 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 34 rows.
ISUZU FVR Medium Duty Dump Truck Description
- ISUZU FVR medium duty dump truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage
- ISUZU FVR heavy-duty chassis, perfect performance
- 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Payload from 20ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper bodies are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification
ISUZU FVR Medium Duty Dump Truck for Sale Philippines Specification
| Model Name | ISUZU FVR medium duty dump truck for sale Philippines |
|---|---|
| Driving Type | 4×2,left hand drive |
| Weights | |
| Rated payload weight(kg) | 12000 |
| Curb weight(kg) | approx.6900 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | apprxo.7800×2500×2700 |
| Box dimension (mm) | 5200×2300×1200 |
| Max speed(km/h) | 95 |
| Engine | |
| Engine model | 4HK1-TC50 |
| Engine type | Inter-cooling,water-cooling,electrical control high-pressure , |
| No. of cylinders | straight-6 cylinders |
| Displacement(L)/power(kw) | 5.193L/151kw |
| Drive Line | |
| Transmission | MLD,6 forwards,1 reverse gear,manual operation |
| Brake | Oil brake with vacuum booster pump |
| Cab | |
| Air container | Have |
| Standard configuration | With power steering,cental lock,air brake.With A/C.electrical window. |
| Axle | |
| Front axle | 6.3 tons |
| Rear axle | 13 tons |
| Tire specification | |
| Tire specification | 9.00-20 standard tire,6 tires+1 spare tire |
| Tipper box | |
| Box valume(mm) | 5200×2300×1200 |
| Box material | reinforced Iron plate |
| box thickness(mm) | Bottom 8 mm,side 6 mm |
| Box lifting model | middle lifting |
| Other | |
| Electric system | 12V |
| Equipment | A tool box |
Questions
Questions About The ISUZU FVR Medium Duty Dump Truck for Sale Philippines
What chassis is the ISUZU FVR Medium Duty Dump Truck for Sale Philippines built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
The factory table lists Rated Payload Weight(kg) 12000. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Dump Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU FVR Medium Duty Dump Truck for Sale Philippines
This build is listed as transmission MLD,6 forwards,1 reverse gear,manual operation with rated payload weight(kg) 12000. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
