- 4WD ISUZU Pickup Mini Water Mist Fire Truck for Sale Philippines
Main photo
ISUZU Fire Truck

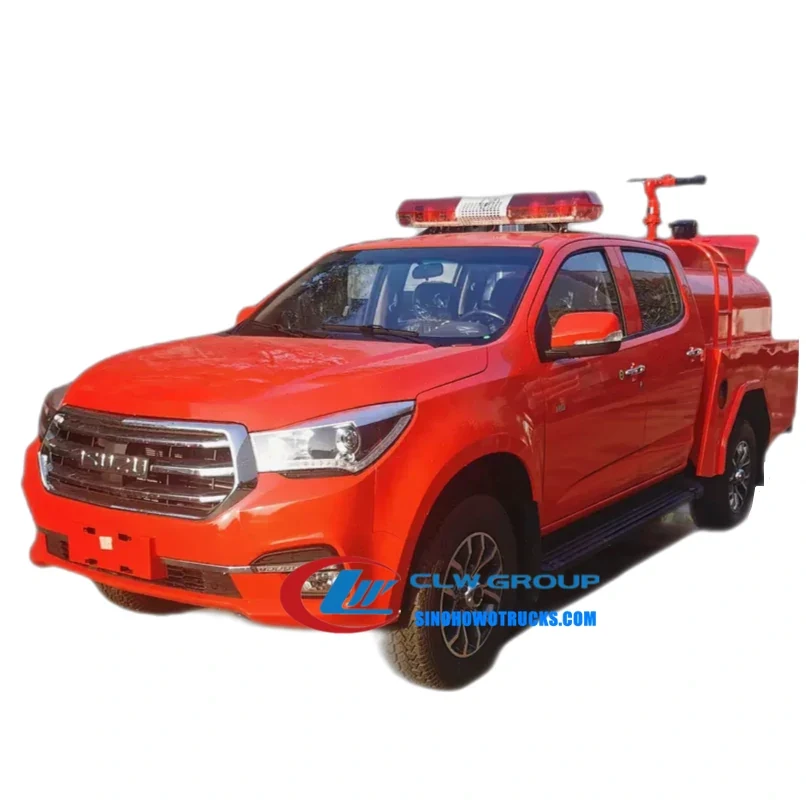

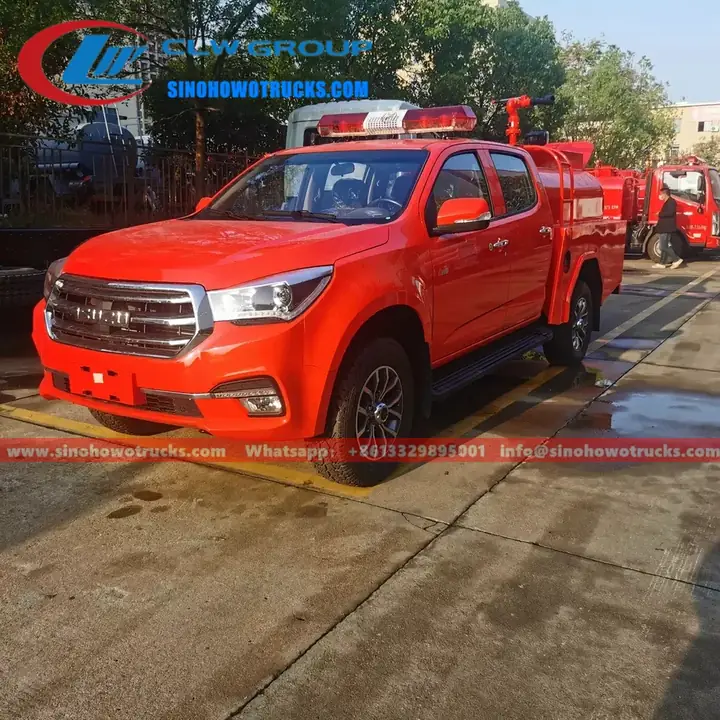

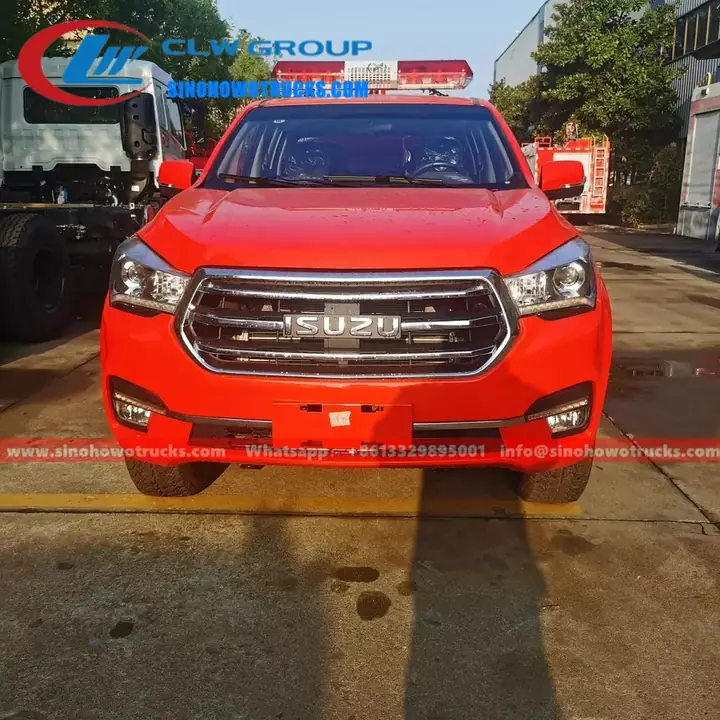

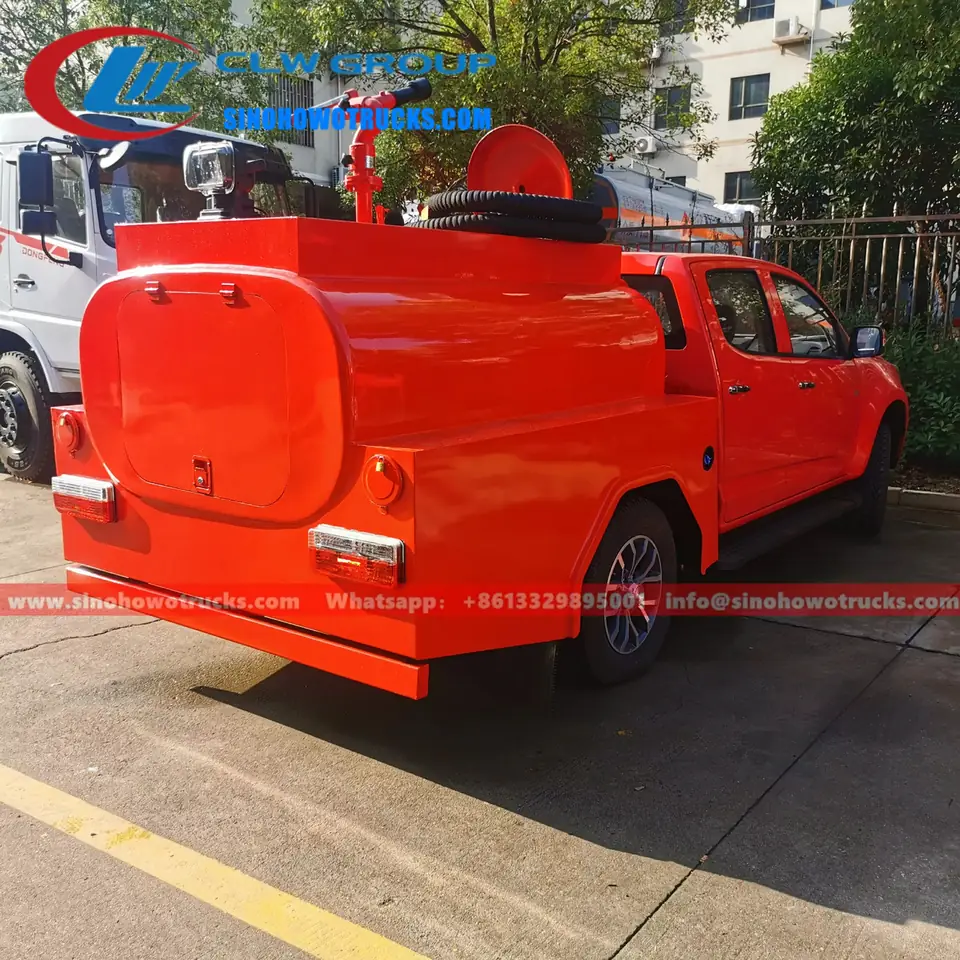

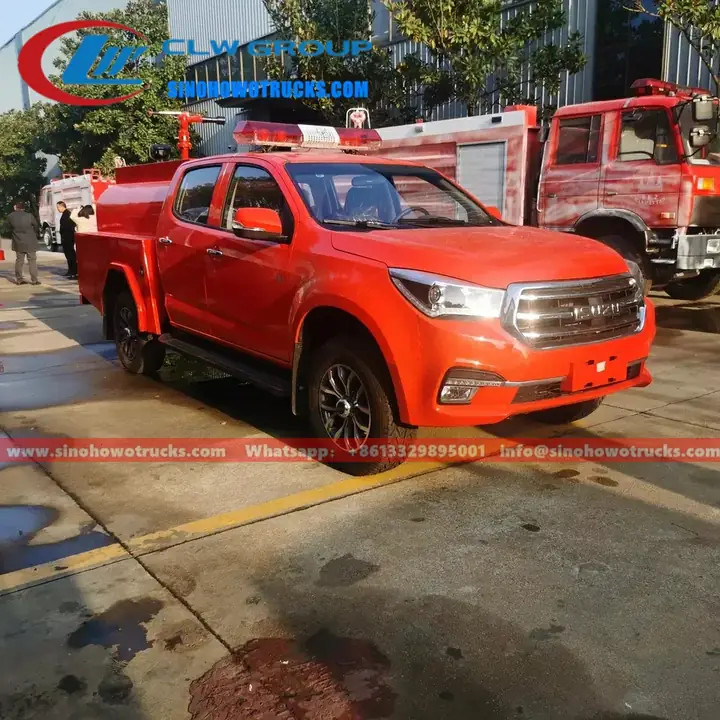

4WD ISUZU Pickup Mini Water Mist Fire Truck for Sale Philippines
4WD Isuzu TAGA pickup firefighter truck, Left Hand Drive model 4X4 chassis, 6 shift manual gearbox, 141 HP diesel engine
- Power
- 80W（LED）
- Load Quality
- 820kg
- Liquid Tank
- Liquid capacity Water 920kg Fire extinguishing agent 80kg
- Fire Pump
- model Italy RTX 70-200 high pressure plunger pump
- Hand Lift the Pump
- 1 station
Specification below is the factory table for this model, reproduced without edits. 75 rows.
4WD Isuzu Pickup Mini Water Mist Fire Truck Description
- 4WD Isuzu pickup mini water mist fire truck also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage
- 100% custom-made
- ISUZU Pickup Chassis, Durable & Performance.
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification
4WD ISUZU Pickup Mini Water Mist Fire Truck for Sale Philippines Specification
| vehicle | vehicle name | 4WD Isuzu pickup mini water mist fire truck for sale Philippines |
|---|---|---|
| Dimensions | 5230×1670×2360(mm) | |
| total mass | 3390 kg | |
| curb weight | 2420kg | |
| Load quality | 820kg | |
| number of passengers | 2 people | |
| approach/departure angle | 21/17 (°) | |
| chassis | brand | ISUZU TAGA |
| Chassis model | QL1035SJ16QC | |
| cab | double cabin | |
| wheelbase | 2600mm | |
| engine | 141 hp | |
| Emission Standards | Euro VI | |
| gearbox | 5th gear with double cone synchronizer | |
| tire | 175R14LT | |
| other | Hydraulic power assist/multi-function steering wheel/LCD instrument panel/electric window/central lock/air conditioner/MP5/Bluetooth phone/fixed belt cruise/LED daytime running lights/rearview mirror electric adjustment + electric heating | |
| special function | liquid tank | Liquid capacity Water 920kg Fire extinguishing agent 80kg |
| material | High-strength high-quality stainless steel | |
| Fire Pump | model Italy RTX 70-200 high pressure plunger pump | |
| installation location | rear | |
| flow | 60L/min | |
| greatest pressure | 20MPa | |
| Rated speed | 1450rpm | |
| power | Chassis Engine Provided | |
| link hose | 75M (fixed) + 25M (portable reel) | |
| Power take-off and transmission system | structure type Sandwich type mechanical transmission | |
| Clutch mode | hand control | |
| Lubrication method | splash lubrication | |
| transmission system | cross shaft universal joint drive shaft | |
| Pipeline system | Inlet pipe DN50 ball valve control | |
| High pressure water outlet pipe | Pressure 20MPa | |
| High pressure return pipe | Pressure 20MPa | |
| water injection line | 1 Φ65mm water injection port | |
| Mobile high pressure reel | 2 | |
| Multifunctional spray gun | model QMX10/60-WTL | |
| jet form | DC, water mist | |
| range | DC state Water mist state | |
| ≥15m | ≥9m | |
| lighting equipment | 360°lift lighting model Wilbur 24-LED | |
| power | 80W（LED） | |
| lift height | 3.5m (off the ground) | |
| Voltage | 12V | |
| control method | remote control | |
| Other lamps | Police lights/Sirens/Marker lights/Position lights | |
| Ladders and Ladder Frames | material aluminum alloy | |
| Extended height | 4 meters | |
| ＊Note: This parameter is the standard configuration of the manufacturer and can be customized according to customer needs. | ||
Fire Equipment Table
4WD ISUZU Pickup Mini Water Mist Fire Truck for Sale Philippines Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | straw | 125×4 meters 2 root Threaded |
| 2 | Water filter | FLF125 1 Piece Threaded |
| 3 | Trap | FII80/65×3-1.6 1 Piece Internal button |
| 4 | Water trap | JII125/65×2-1.0 1 Piece Internal button |
| 5 | Hose | 13-65-20 6 plate Low pressure; |
| 6 | Hose | 13-80-20 6 plate Low pressure; |
| 7 | Reducing interface | KJ65/80 2 Piece Internal button |
| 8 | Water-retaining cloth | DT-SB 4 Piece Internal button |
| 9 | Hose hook | 4 Piece |
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 1 Piece |
| 11 | Underground hydrant wrench | Long 860 1 Piece |
| 12 | Suction pipe wrench | FS100 2 Piece |
| 13 | DC switch water gun | QZG3.5/7.5; 65 1 support Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 1 support Low pressure; |
| 15 | Fire extinguisher | 3KG 1 With |
| 16 | Fire waist axe | Length 390; GF-285 1 Piece |
| 17 | Rubber hammer | 1 Piece |
| 18 | Rechargeable portable lighting | 1 Piece |
Optional Fire Equipment
4WD ISUZU Pickup Mini Water Mist Fire Truck for Sale Philippines Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | Automatic charging device | 12V 1 set |
| 2 | Air backrest | 3 set |
| 3 | Air breathing apparatus | Number of members set |
| 4 | Hose bridge | rubber 2 vice |
| 5 | Telescopic ladder | 1 vice |
| 6 | Hand lift the pump | 1 station |
| 7 | Breaking tools | 1 set |
| 8 | Other fire equipment | |
Questions
Questions About The 4WD ISUZU Pickup Mini Water Mist Fire Truck for Sale Philippines
What chassis is the 4WD ISUZU Pickup Mini Water Mist Fire Truck for Sale Philippines built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fire truck?
The factory table lists Load Quality 820kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Fire Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 4WD ISUZU Pickup Mini Water Mist Fire Truck for Sale Philippines
This build is listed as power 80W（LED） with load quality 820kg. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
