ISUZU Fire Truck

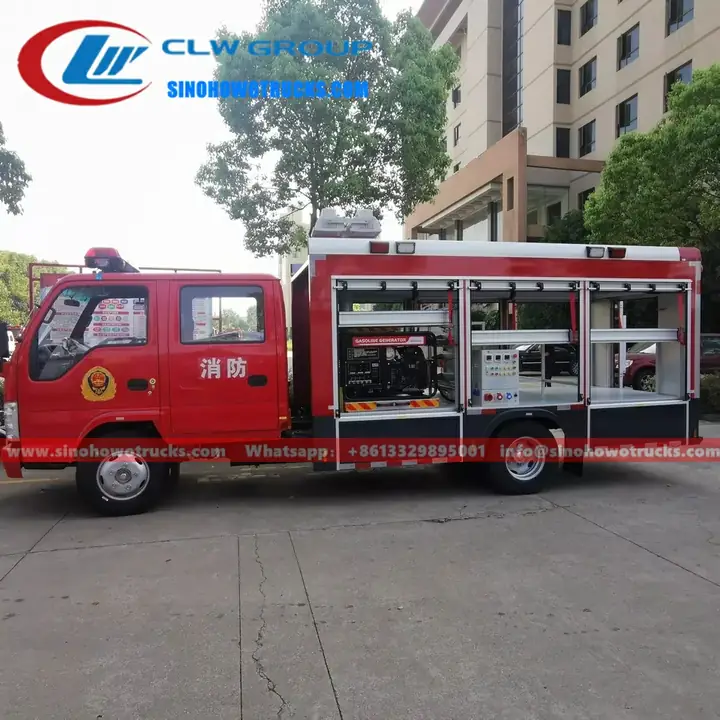

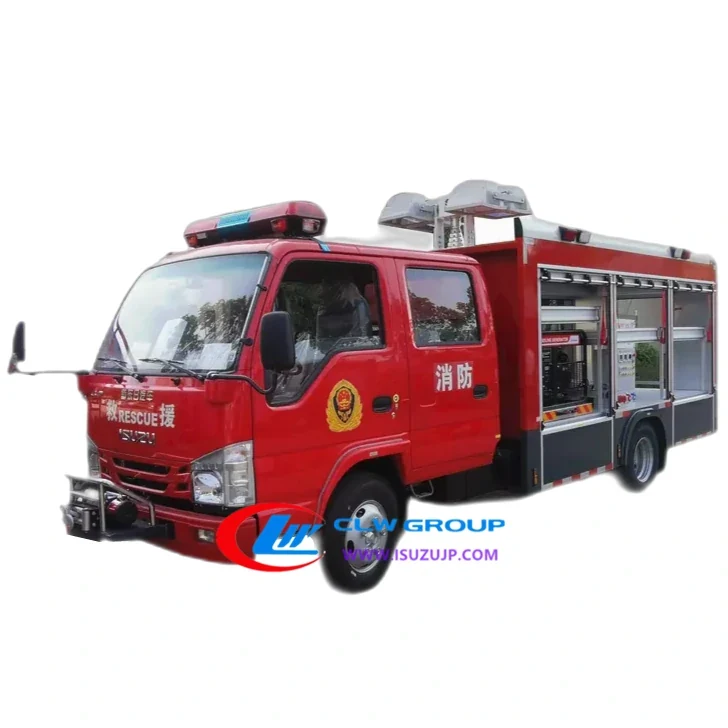

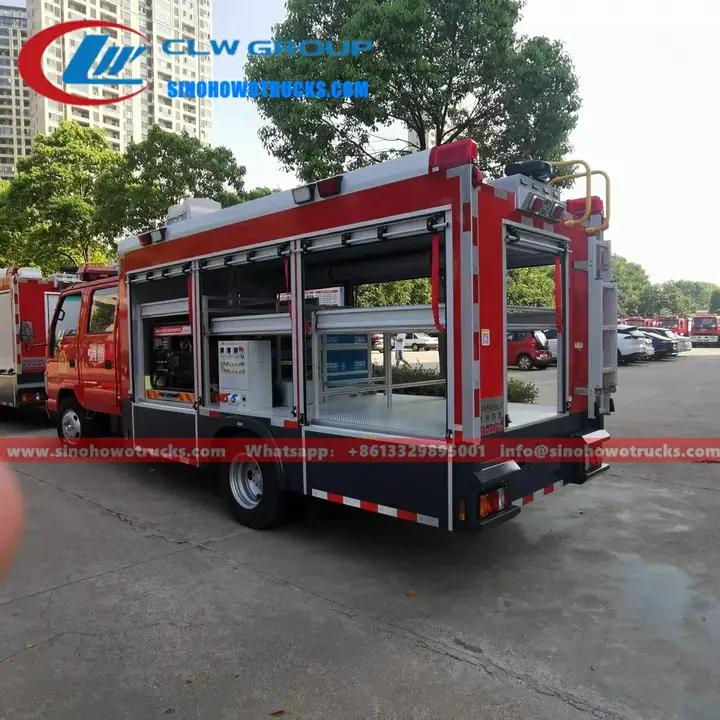

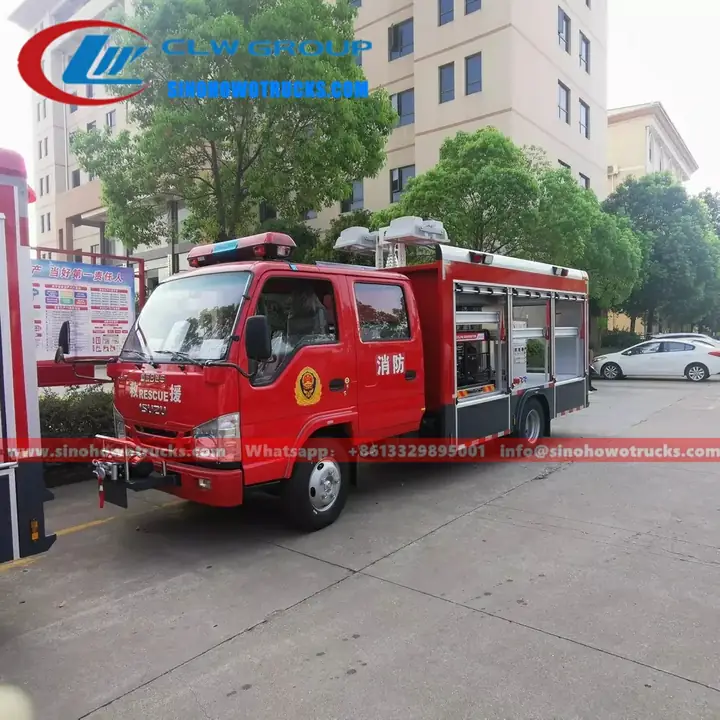

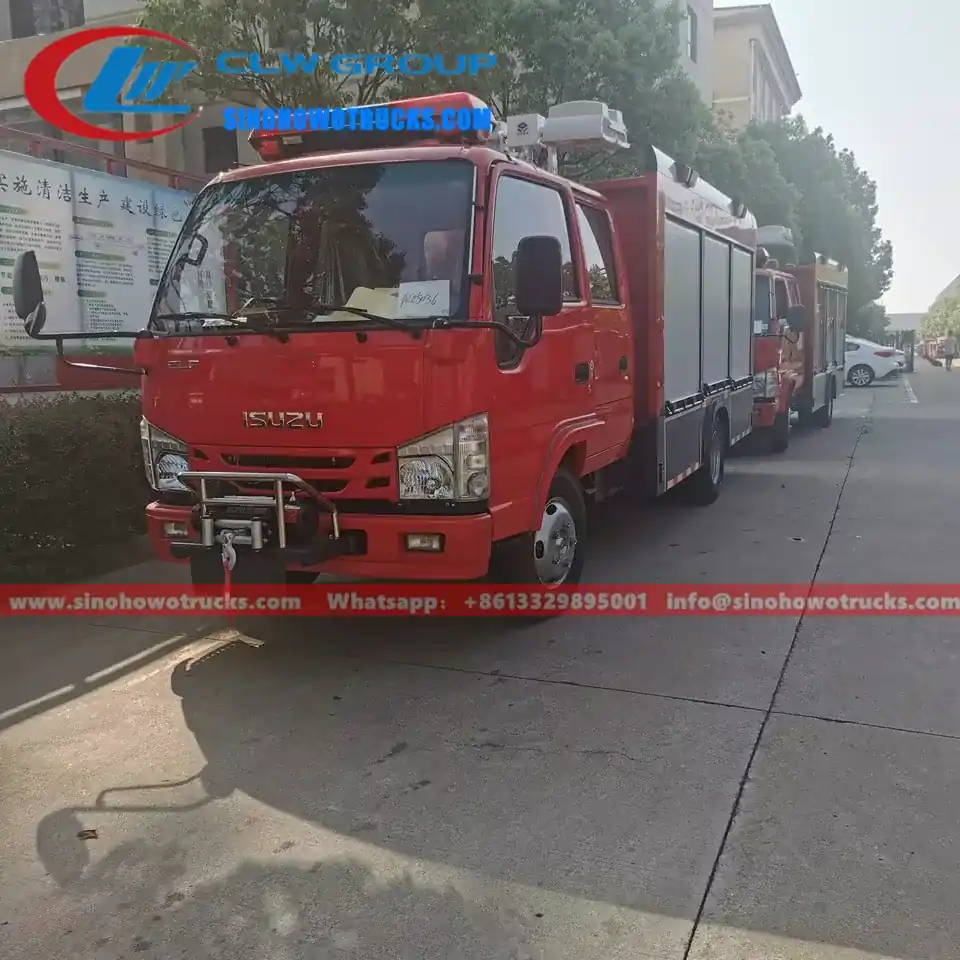

ISUZU Small Emergency Rescue Fire Vehicle with 3Tons Crane and Winch Cambodia
Isuzu ELF 100P firefighter truck, Left Hand Drive model 4×2 chassis, 5 shift manual gearbox, 98 HP diesel engine
- Drive Type
- 4*2
- Emission
- Euro 4/5
- Tank Capacity
- 3001 – 5000L
- Fire Pump
- CB10/40
- Hand Lift the Pump
- 1 station
Specification below is the factory table for this model, reproduced without edits. 50 rows.
ISUZU Small Emergency Rescue Fire Vehicle with 3Tons Crane and Winch Description
- ISUZU small Emergency Rescue Fire Vehicle with 3Tons Crane and Winch also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage
- 100% custom-made
- ISUZU ELF 100P heavy-duty Chassis, Durable & Performance.
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification
1. Lifting lighting system:
Generator: SHT11500
Power: 10.5kW
Frequency: 50HZ
Voltage: 220V/380V
Main lighting power: 1000W×6
Lifting rod: aluminum alloy
Type: Pneumatic
Maximum height from the ground: 8m
Air supply pressure: ≥0.3MPa
Lifting speed: ≤8 seconds
Lifting weight: 45kg
Installation position: at the front of the cabinet
PTZ: aluminum alloy
Overturn weight: 45kg
Pitch: ≥±90°
Left and right rotation: ±155°
Voltage: 220V/24V
Cable reels:
Voltage: 220/380V
Frequency: 50HZ
Distribution box: It is equipped with function control keys, instruments, and various operations are all concentrated on the control box, and can accurately and quickly control all operation actions, and is equipped with wireless buttons.
2. Traction winch system:
Model: N12000XF (DC24V)
Drive Type: Electric
Maximum pulling force: 50KN
Maximum traction speed: 3.57m/min
Wire rope diameter: 9.5mm
Wire rope length: 32m
Installation location: Located at the front of the car, provide 4 pieces of wheel skids.
3. Foldable vehicle-mounted crane system:
Manufacturer: Xuzhou Li Ford Truck-mounted Crane Co., Ltd.
Model: SQ3ZA2
Drive type: hydraulic
Maximum hoisting weight: 3000Kg
Maximum amplitude: 7.5m
Rotation angle: -90°~+90°
Installation location: at the rear of the car
Four, additional electrical system:
1) There is a long row of red and blue warning lights on the top front of the cab.
2) There are two LED strobe lights on the top of each side of the vehicle, safety sign lights and side retro-reflectors (combined type) are installed on the bottom, front and rear position lights are equipped, and lighting is installed in the passenger compartment and equipment box Lights, and comply with the provisions of GB4785.
3) The power of the siren is 100W; the circuits of the siren, warning light and flashing light are independent additional circuits, and the control devices are installed in the cab.
ISUZU Small Emergency Rescue Fire Vehicle with 3Tons Crane and Winch Cambodia Specification
| item | ISUZU small Emergency Rescue Fire Vehicle with 3Tons Crane and Winch Cambodia |
|---|---|
| Drive Wheel | 4X2 |
| Type | Pumper |
| Transmission Type | Manual |
| Condition | New |
| Horsepower | 150 – 250hp |
| Tank Capacity | 3001 – 5000L |
| Emission Standard | Euro 4/5 |
| Fuel Type | Diesel |
| Max. Work Height | 60m |
| Size | 6000X2200X3150(mm) |
| Place of Origin | CHINA |
| Product Name | Rescue Vehicle |
| Tire | 8.25R20 |
| Fire pump | CB10/40 |
| Fuel Type | diesel |
| Certificate | ISO9001 CCC |
| WheelBase | 3815mm |
| Curb Weight | 4340kg |
| Material | Aluminum Alloy |
| Drive type | 4*2 |
| Cab | Double Row |
Fire Equipment Table
ISUZU Small Emergency Rescue Fire Vehicle with 3Tons Crane and Winch Cambodia Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | straw | 125×4 meters 2 root Threaded |
| 2 | Water filter | FLF125 1 Piece Threaded |
| 3 | Trap | FII80/65×3-1.6 1 Piece Internal button |
| 4 | Water trap | JII125/65×2-1.0 1 Piece Internal button |
| 5 | Hose | 13-65-20 6 plate Low pressure; |
| 6 | Hose | 13-80-20 6 plate Low pressure; |
| 7 | Reducing interface | KJ65/80 2 Piece Internal button |
| 8 | Water-retaining cloth | DT-SB 4 Piece Internal button |
| 9 | Hose hook | 4 Piece |
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 1 Piece |
| 11 | Underground hydrant wrench | Long 860 1 Piece |
| 12 | Suction pipe wrench | FS100 2 Piece |
| 13 | DC switch water gun | QZG3.5/7.5; 65 1 support Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 1 support Low pressure; |
| 15 | Fire extinguisher | 3KG 1 With |
| 16 | Fire waist axe | Length 390; GF-285 1 Piece |
| 17 | Rubber hammer | 1 Piece |
| 18 | Rechargeable portable lighting | 1 Piece |
Optional Fire Equipment
ISUZU Small Emergency Rescue Fire Vehicle with 3Tons Crane and Winch Cambodia Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | Automatic charging device | 12V 1 set |
| 2 | Air backrest | 3 set |
| 3 | Air breathing apparatus | Number of members set |
| 4 | Hose bridge | rubber 2 vice |
| 5 | Telescopic ladder | 1 vice |
| 6 | Hand lift the pump | 1 station |
| 7 | Breaking tools | 1 set |
| 8 | Other fire equipment | |
Questions
Questions About The ISUZU Small Emergency Rescue Fire Vehicle with 3Tons Crane and Winch Cambodia
What chassis is the ISUZU Small Emergency Rescue Fire Vehicle with 3Tons Crane and Winch Cambodia built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fire truck?
The factory table lists Tank Capacity 3001 – 5000L. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Fire Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU Small Emergency Rescue Fire Vehicle with 3Tons Crane and Winch Cambodia
This build is listed as drive type 4*2 with emission Euro 4/5. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
