- 6×4 ISUZU GIGA 52meters Cement Pump Truck for Sale
Main photo
Isuzu Concrete Pump Truck
6×4 ISUZU GIGA 52meters Cement Pump Truck for Sale

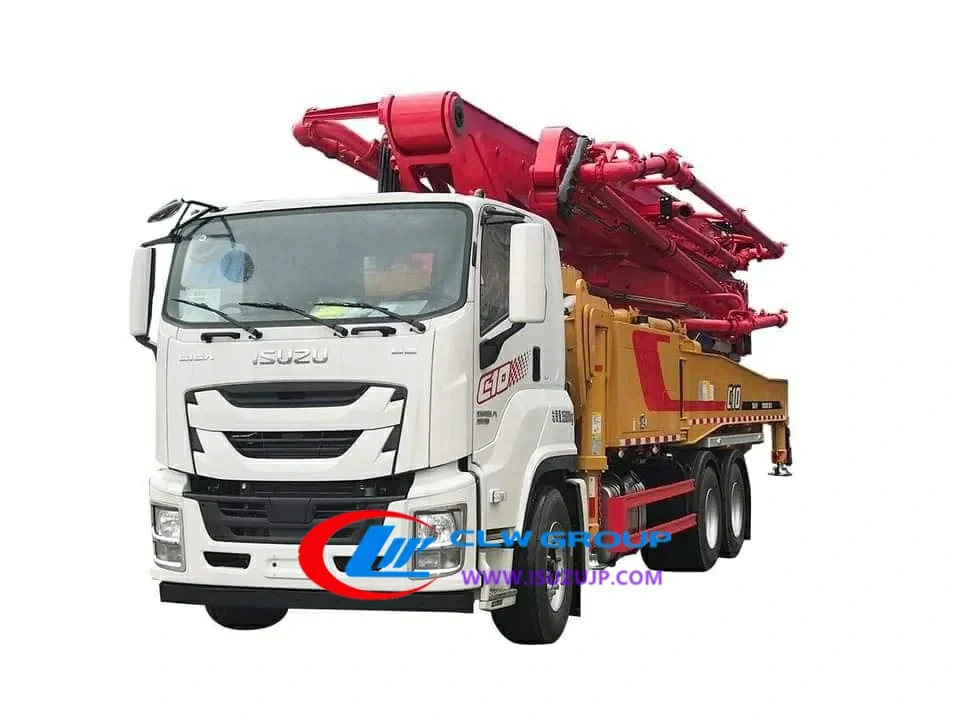

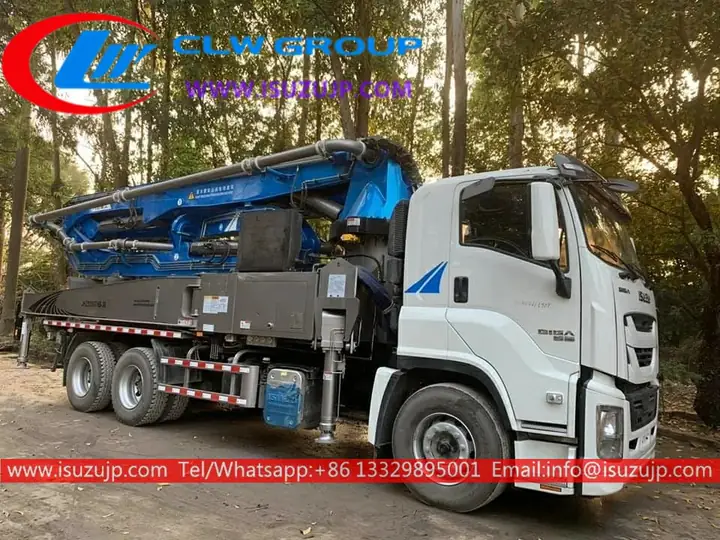

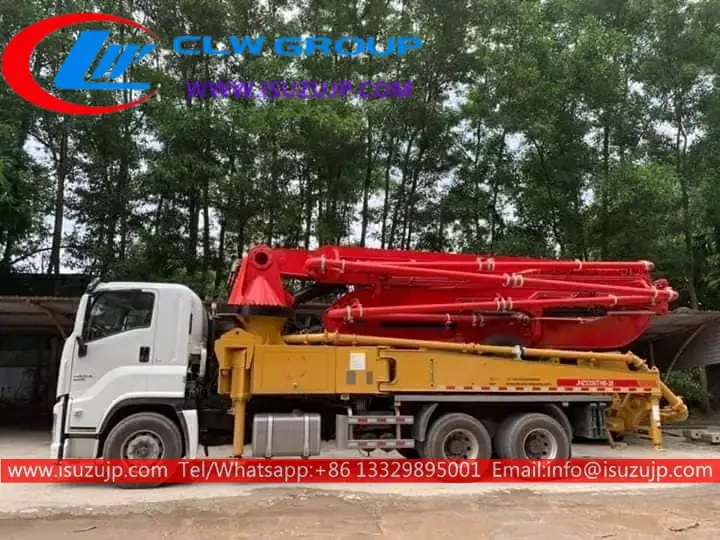

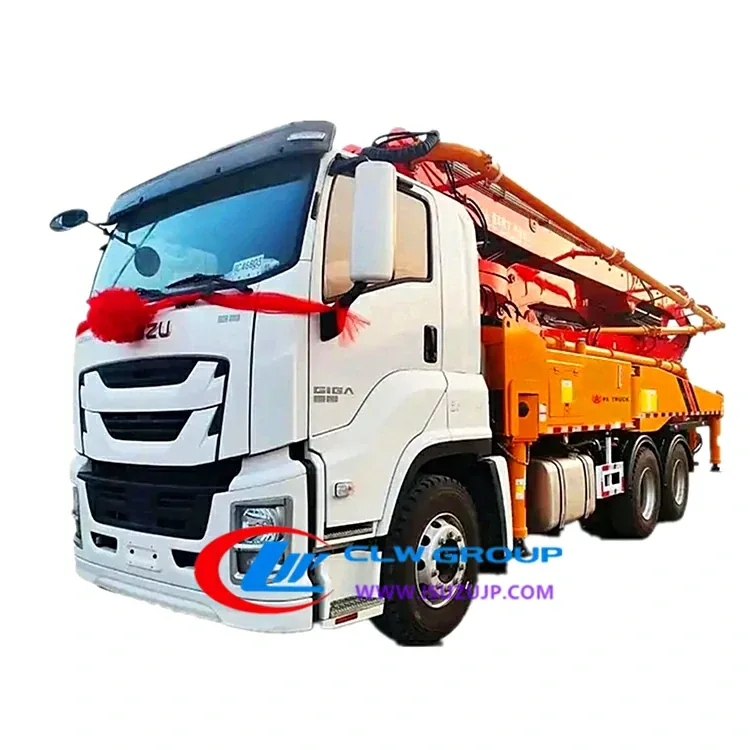

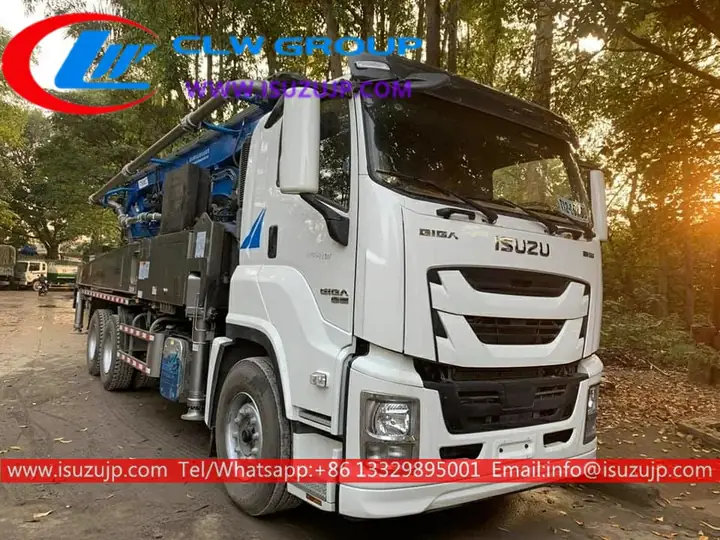

Hot sale 6×4 Isuzu GIGA 52meters cement pump truck, ISUZU 420HP diesel engine, ZF 12-shift manual gearbox
- Product Origin
- China
- Body Size
- 12000x2500x4000 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 0 rows.
6×4 Isuzu GIGA 52meters Cement Pump Truck Description
ISUZU GIGA 62meters concrete pump truck also called cement pump truck, cement pumper, concrete pumper, concrete boom pump,pumpcrete truck, truck mounted concrete pump, concrete boom truck, boom pump truck, automatic loading pump truck is used to complete the transportation and fabric operation of the on-site concrete.
Advantage
- 6×4 ISUZU GIGA heavy-duty, perfect performance
- 6UZ1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Mixer drum capacity from 3cbm to 18cbm.
- Easy operation and easy maintenance.
- Various types of Hydraulic main parts are available.
- Hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;
- Pneumatic Water Supply System. The pressure is provided by the air tank on the truck with pressure protection devices. The Water inlet connector fits both normal water pipes and fire fittings.
- New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;
- Equipped with the large diameter hopper, it can realize quickly feed, not plugging and spilling, and it is easy to clean;
- The optimized design of the mixing drum ensures the concrete residue ratio is less than 1%;
- Colors can be customized.
Specification
6×4 Isuzu GIGA 52meters cement pump truck for sale 1. CHASSIS chassis 10-wheel Isuzu GIGA Emission Standards Euro V engine 6UZ1-TC50 engine power/speed 324KW/1900rpm wheelbase 4600+1400 Maximum travel speed (Km/h) 101 Vehicle approach/away angle (°) 17/10 Tire specifications 385/65R22.5/315/80R22.5 18PR, 385/65R22.5/12.00R20 18PR 2. Boom system BOOM SYSTEM The maximum vertical height of boom (M) 51.3 Boom horizontal cloth radius (M) 47.5 Fabric depth (M) 36.8 The rotation angle of each arm (°) 90/180/180/234/220/110 Boom control mode Electricity ratio Number of booms 6 Boom folding method RZ type Turret rotation angle (°) ±240 Front outrigger span distance (MM) 9650 Rear outrigger span distance (MM) 10310 The longitudinal distance between the front and rear outriggers (MM) 9785 Outrigger opening method X-R End hose length (MM) 3000 Concrete delivery pipe diameter (MM) 125 3. ELECTRONIC CONTROL SYSTEM Control Power (V) 24 control module Germany ifm ( Germany IFM) Operating Voltage 24 Intermediate appliances Siemens, Germany wireless remote HBC 4. HYDRAULIC TRANSMISSION SYSTEM Type of hydraulic system open System working pressure (Mpa) 35 Main hydraulic oil pump Push Main oil pump model Double 190 Main oil pump displacement 380 Suction and return oil filter dawn Boom multi-way valve Norma Boom balance valve Hawe Outrigger multi-way valve Jon Cylinder Hydraulic Seals American Parker Hydraulic tank volume (L) 600 Hydraulic oil cooling method air cooling transfer case Jie Brand Hose Fittings Eaton 5. Cleaning system CLEANING SYSTEM Hydraulic cleaning Shanghai Fanbei 6. Dimensions & Weight DIMENSIONS & WEIGHT The total length of the vehicle is about (MM) 12500 Overall vehicle width (MM) 2500 Total vehicle height (MM) 4000 Vehicle mass about (T) 35 Concrete distribution valve form S valve 7. Pumping system PUMPING SYSTEM Maximum theoretical delivery volume (M³) 180 Maximum concrete outlet pressure high/low pressure (Mpa) 9.3 Distribution valve reversing times 28 Conveying cylinder inner diameter/stroke 260*1900 Maximum feeding height (MM) 1500 Hopper volume (M³) 0.7 Pumpable concrete slump 160-220 Maximum allowable aggregate size (MM) 40 Lubrication method Centralized lubrication
Cement mixer truck Structure:
Questions
Questions About The 6×4 ISUZU GIGA 52meters Cement Pump Truck for Sale
What chassis is the 6×4 ISUZU GIGA 52meters Cement Pump Truck for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu concrete pump truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Concrete Pump Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 6×4 ISUZU GIGA 52meters Cement Pump Truck for Sale
This build is listed as product origin China with body size 12000x2500x4000 mm. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
