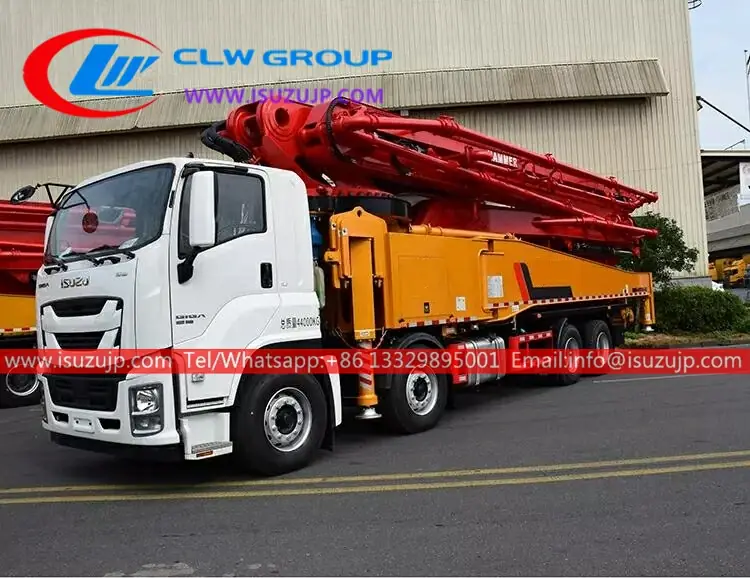

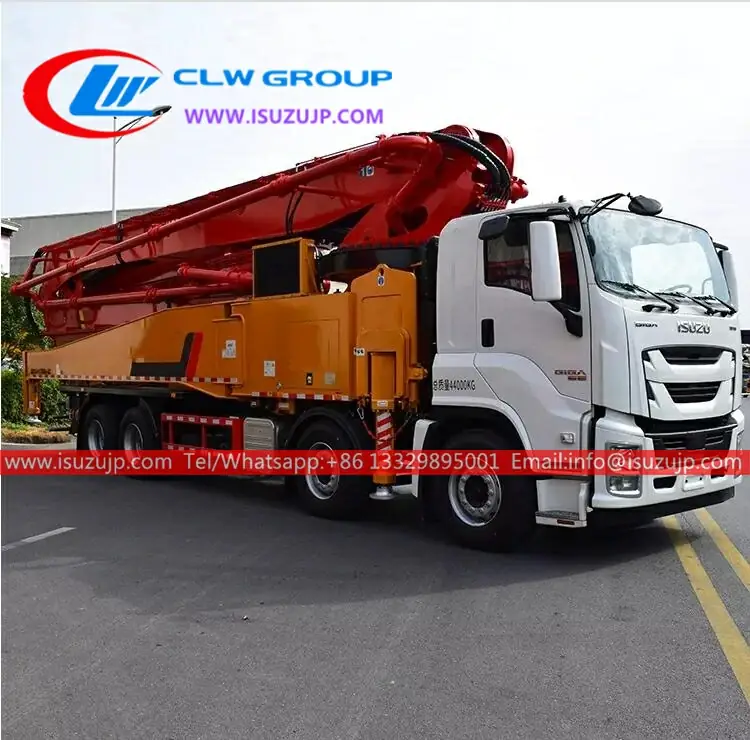

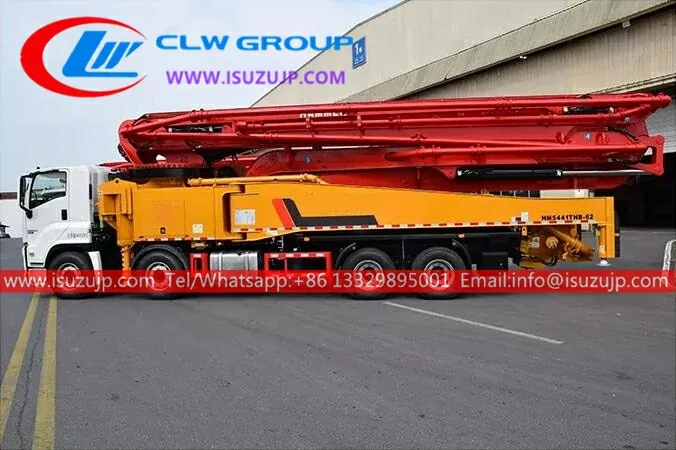

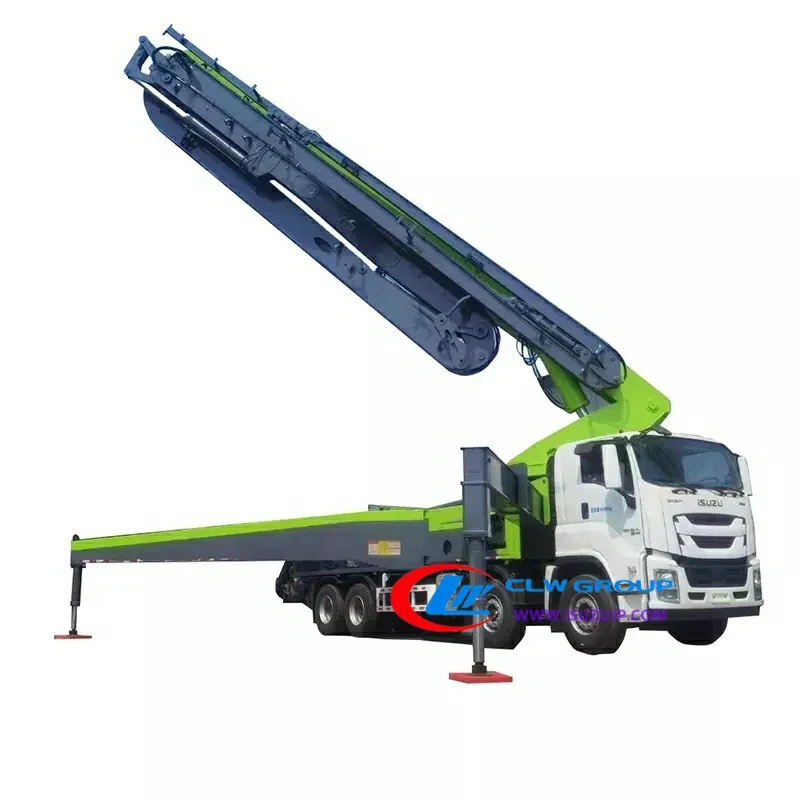

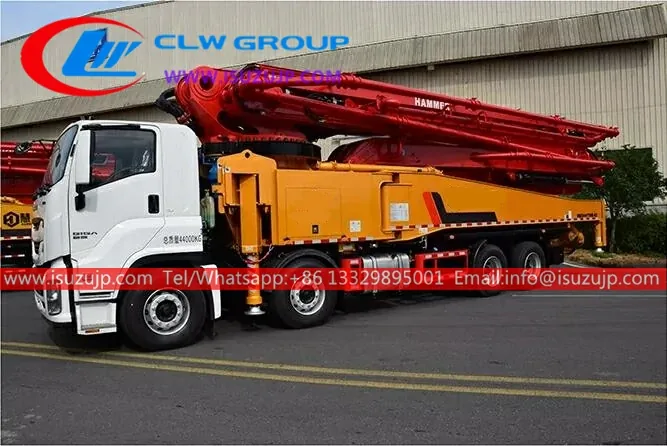

8×4 ISUZU GIGA 62meters Concrete Pump Truck for Sale

8×4 Isuzu GIGA 62meters Concrete Pump Truck Description

ISUZU GIGA 62meters concrete pump truck also called cement pump truck, cement pumper, concrete pumper, concrete boom pump,pumpcrete truck,truck mounted concrete pump,concrete boom truck,boom pump truck,automatic loading pump truck is used to complete the transportation and fabric operation of the on -site concrete.

Advantage

• 8×4 ISUZU GIGA heavy-duty chassis, perfect performance
• 6UZ1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
• Mixer drum capacity from 3cbm to 18cbm.
• Easy operation and easy maintenance.
• Various types of Hydraulic main parts are available.
• Hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;
• Pneumatic Water Supply System. The pressure is provided by the air tank on the chassis with pressure protection devices. The Water inlet connector fits both normal water pipes and fire fittings.
• New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;
• Equipped with the large diameter hopper, it can realize quickly feed, not plugging and spilling, and it is easy to clean;
• The optimized design of the mixing drum ensures the concrete residue ratio is less than 1%;
• Colors can be customized.

Specification

8×4 Isuzu GIGA 62meters concrete pump truck for sale

Unit 37m 44 m 47 m 52m 58m Total vehicle parameter Length m 9.8 10.9 11.8 12.8 13.8 Width m 2.5 2500 2.55 2.5 2.55 Height m 3.53 3.8 3.9 4 4 Total weight T twenty three 31 34 38 44 Boom leg parameter Vertical height m 36.5 43.1 46.5 51.1 57.2 Horizontal length m 30.9 36.3 39.6 44.1 52 Vertical depth m 25.1 29.8 32.1 35.1 41 Width of the forth leg m 7.2 7.9 8.2 10.1 10.6 Width of the back leg m 7.3 8 8.6 10.6 12.8 Mixing system (optional) Concrete mixer — JS750 — Mixer capacity m3/h 35 — Pumping system parameter Output in theory（L/H） m3/h 120/80 140/100 140/100 160/110 180/120 Theoretical pumping pressure（L/H） Mpa 8/14 7.8/11 conveying cylinder mm 230×1650 260×1650 260×1900 260×2100 System Oil pressure Mpa 32 Oil tank volume L 650 750 Electric control system — NUMBER Main hydraulic oil pump — Push/Rexroth Balance valve — Rexroth/HBS Gear pump — Parker Chassis Parameter Chassis model — Dongfeng/Shacman/Sinotruck/ISUZU Engine Power HP 270 300 350 420 460 Wheel base mm 4700 4500+1300 4750+1350 1950+4500+1400
