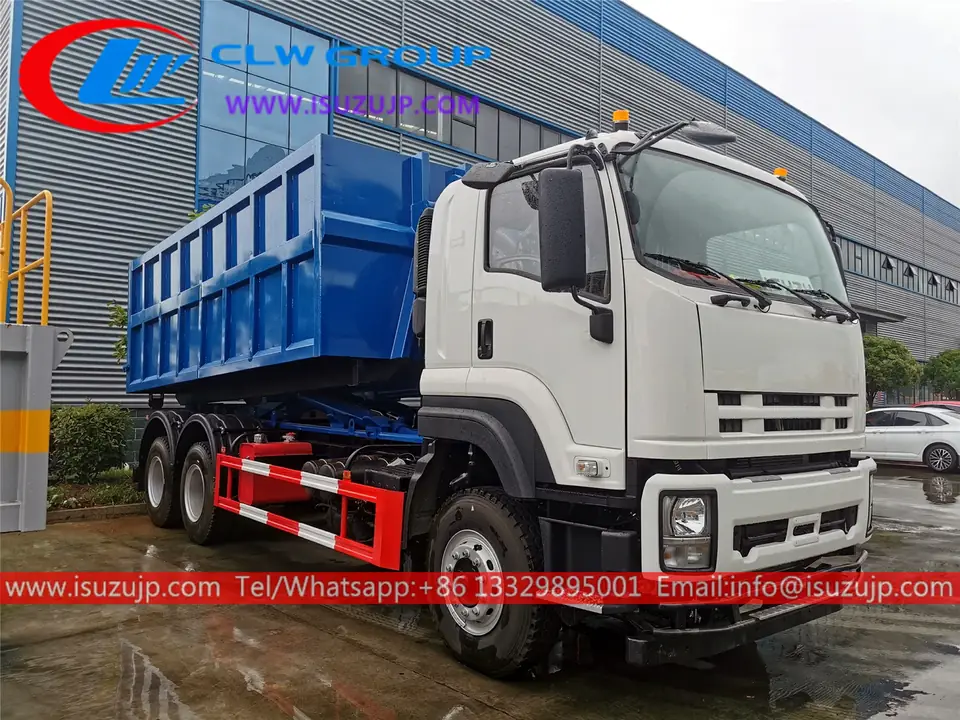

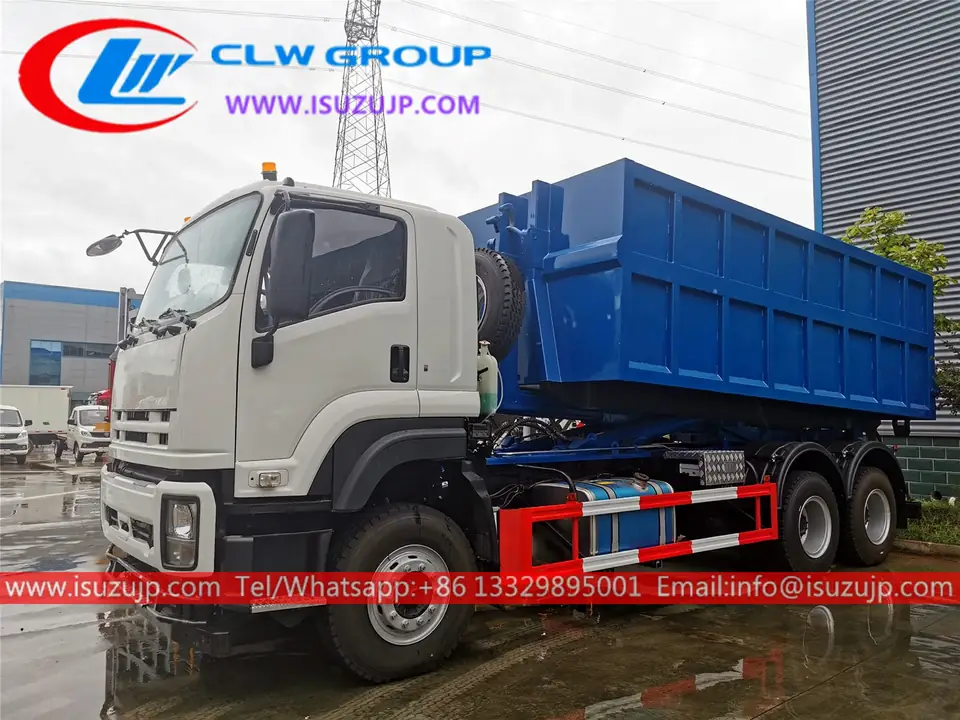

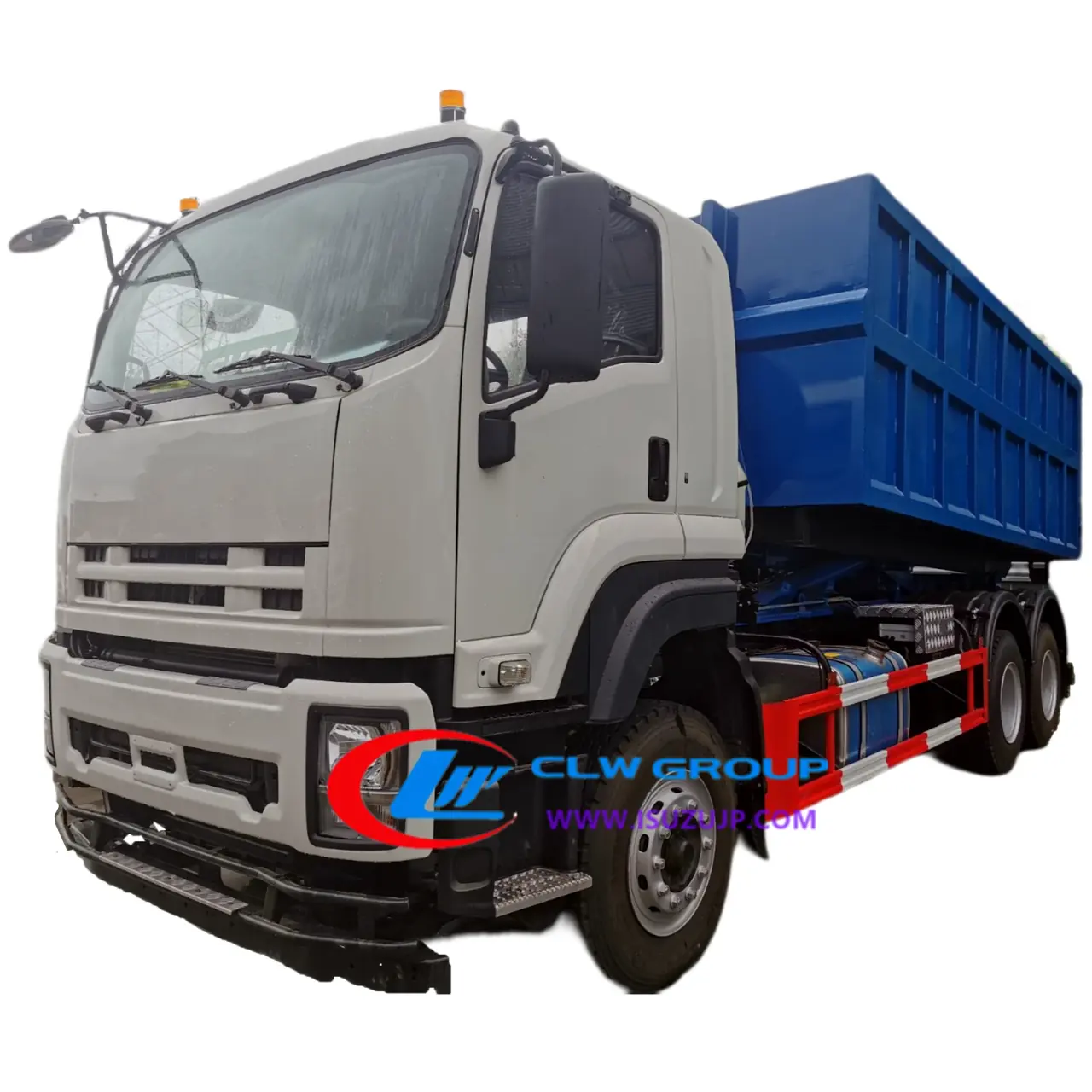

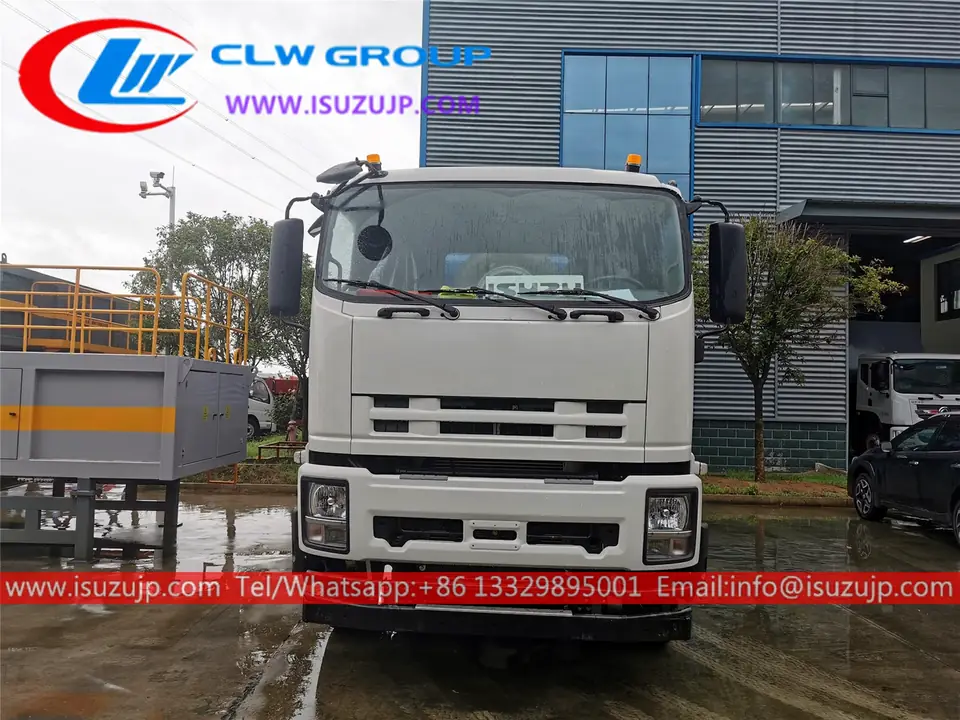

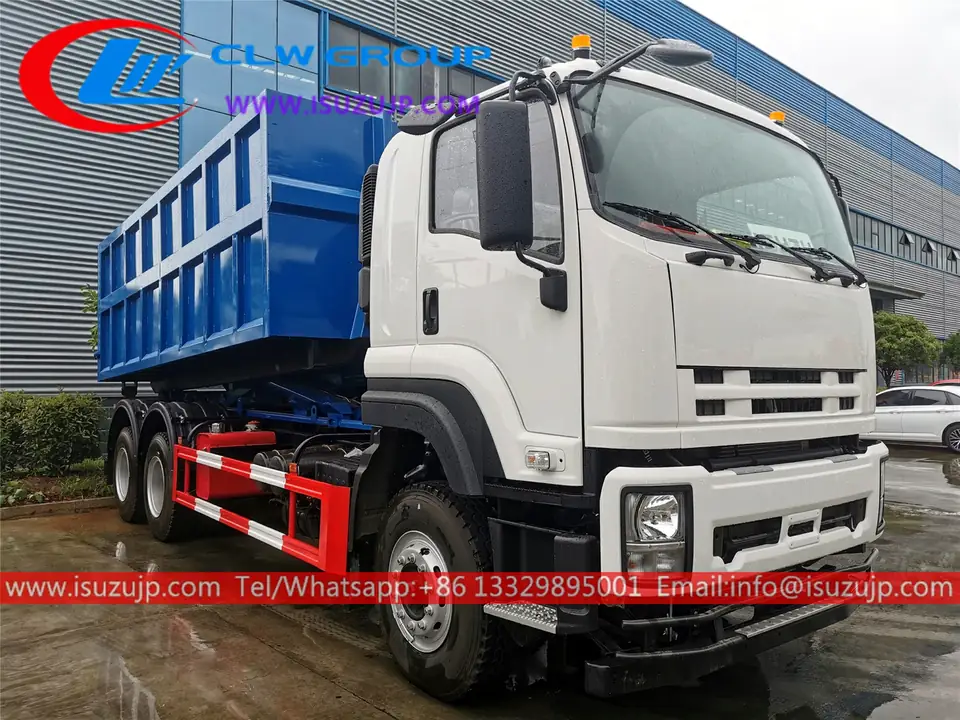

6×4 ISUZU VC61 20tons Hook Lift Dumpster for Sale
6×4 ISUZU VC61 chassis, FAST 12-shift manual gearbox, 350HP diesel engine, high strength hook loader system, with all kinds of garbage container optional
- Power
- 350 HP
- Drive Type
- 6×4,left hand drive
- Emission
- Euro V
- Cab Capacity
- 3 persons’ seat
- Capacity
- 18
- Uploading Cycling Time
- <60s
- Loading Cycling Time
- ≤30s
- Lifting Capacity
- ≤18000KG
Specification below is the factory table for this model, reproduced without edits. 28 rows.
6×4 ISUZU VC61 20tons Hook Lift Dumpster Description
- Isuzu VC61 18m3 hook lift dumpster is designed to collect and transport municipal solid waste, widely used in residence communities, hospitals, municipal environmental section, garbage collection and transportation stations, etc.
- loading capacity can range from 1ton to 22tons, etc.
Advantage
- ISUZU VC61 10 wheel chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve, and locking structure of container by hydraulic;
- A rear support device is available.
- Hook loader garbage container body capacity from 1 to 22 Cubic meters.
- Rational design of hook and locking structure, and truck more reliable.
- Optional Electrical Control in the cabin, easy operation, and easy maintenance.
- Various types of refuse container lifters are available.
Specification
6×4 ISUZU VC61 20tons hook lift dumpster for sale
| General | Descriptions | Specifications and types |
|---|---|---|
| Truck Brand | ISUZU VC61 | |
| Approx. Dimension | 9600X2550X4000 mm | |
| GVW./Kerb Wt. | 26000 / 15000 (Kg) | |
| Cab | Cab Capacity | 3 persons’ seat |
| Air Conditioner | With Air Conditioner | |
| Chassis | Drive Type | 6×4,left hand drive |
| Fuel Type | Diesel | |
| Engine Make & Model | ISUZU Engine 6UZ1 | |
| Power | 350 HP | |
| Displacement | 9890 ml | |
| Emission Standard | Euro V | |
| Wheelbase/No.of axle | 4350+1350 mm | |
| Tyre Specfication | 11.00-20 18PR,11.00R20 18PR | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Automative metallic paint | |
| Tops Parts | Capacity | 18 |
| Material | Q235carbon steel | |
| Thickness | 5mm | |
| Uploading cycling time | <60s | |
| Loading cycling time | ≤30s | |
| Lifting capacity | ≤18000KG | |
| Operation control system | Electrically hydraulic control | |
| Equipment | Equipped with hydraulic system and operating system |
Working Parameter
6×4 ISUZU VC61 20tons Hook Lift Dumpster for Sale Specification
| Box time | Less than 15 seconds | Roller material Cast iron or forged steel |
|---|---|---|
| Unboxing time | Less than 15 seconds | Control method Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position Cab + car side |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The 6×4 ISUZU VC61 20tons Hook Lift Dumpster for Sale
What chassis is the 6×4 ISUZU VC61 20tons Hook Lift Dumpster for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu hook loader truck?
The factory table lists Cab Capacity 3 persons’ seat. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Hook Loader Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 6×4 ISUZU VC61 20tons Hook Lift Dumpster for Sale
This build is listed as power 350 HP with drive type 6×4,left hand drive. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
