Main photo
ISUZU Hook Loader Truck

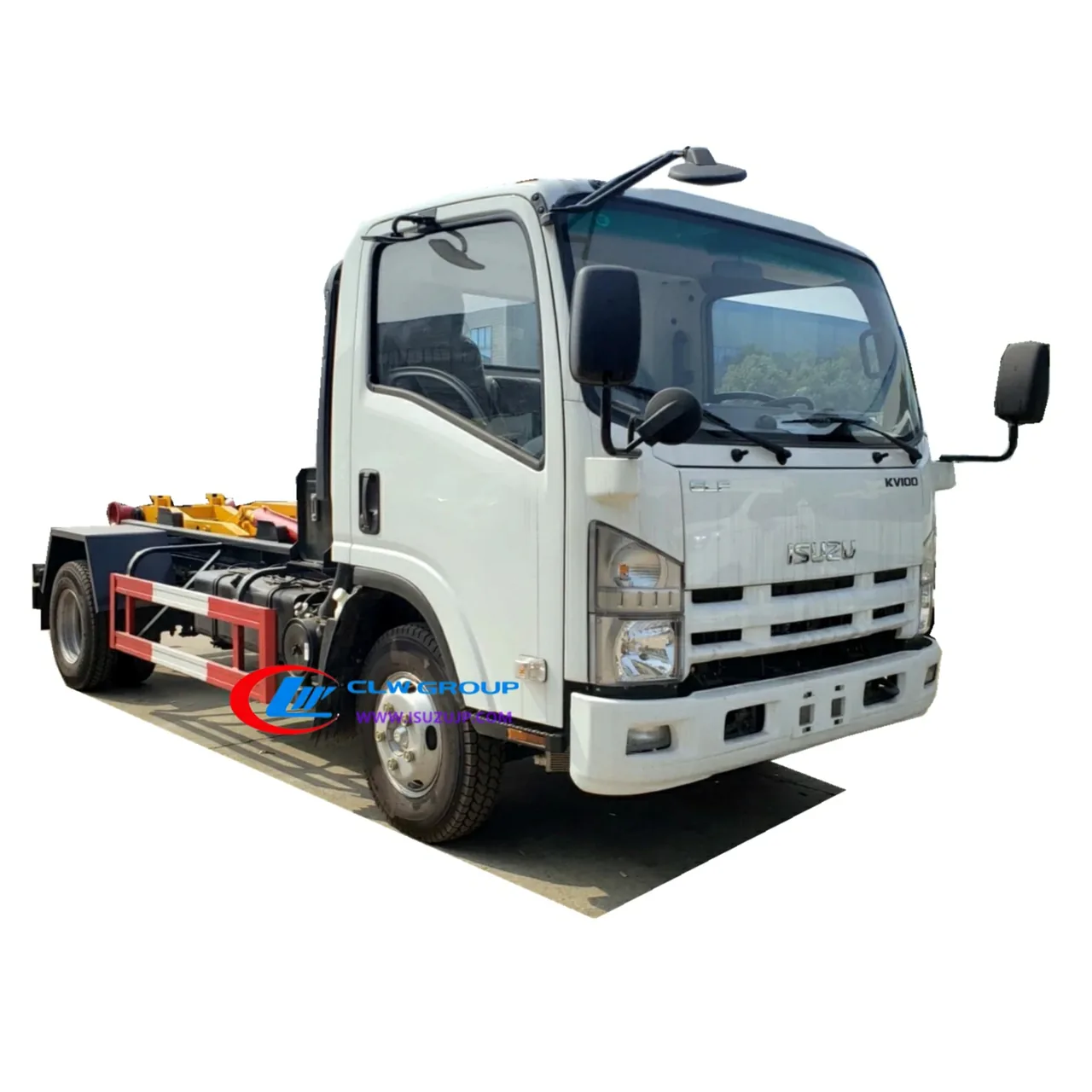

ISUZU KV100 5m3 Roll Off Garbage Truck
4×2 ISUZU KV100 chassis, MSB 5-shift manual gearbox, 98HP diesel engine, high strength hook loader system, with all kinds of garbage container optional
- Drive Type
- 4*2, New condition, LHD ISUZU KV100 5m3 roll off garbage truck
- Emission
- Euro IV
- F/R Axle-Load
- 1335/1340kg,
- Garbage Box Volume
- 3cbm
Specification below is the factory table for this model, reproduced without edits. 23 rows.
ISUZU KV100 5m3 Roll Off Garbage Truck Description
- Isuzu KV100 5m3 roll off garbage truck is designed to collect and transport municipal solid waste, widely used in residence communities, hospitals, municipal environmental section, garbage collection and transportation stations, etc.
- loading capacity can range from 1ton to 22tons, etc.
Advantage
- ISUZU ELF 100P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve, and locking structure of container by hydraulic;
- A rear support device is available.
- Hook loader garbage container body capacity from 1 to 22 Cubic meters.
- Rational design of hook and locking structure, and truck more reliable.
- Optional Electrical Control in the cabin, easy operation, and easy maintenance.
- Various types of refuse container lifters are available.
Specification
ISUZU KV100 5m3 Roll Off Garbage Truck Specification
| Drive type | 4*2, New condition, LHD ISUZU KV100 5m3 roll off garbage truck | |
|---|---|---|
| Vehicle Main Dimensions | (L x W x H)mm | 4835*1870*2120 |
| Wheelbase (mm) | 2800 | |
| F/R Axle-Load | 1335/1340kg, | |
| Curb weight | 2390 kg | |
| GVW | 4015 kg | |
| Max. driving speed(km/h) | 90 | |
| Engine | Horse Power(HP) | 68 |
| Emission standard | Euro IV | |
| Gearbox | 5 forwards& 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Tire | 6.00R16, 7 pc including 1 spare tire | |
| Steering Gear | power steering, hydraulic steering with power assistance | |
| Garbage Compactor Standard configuration | ||
| Garbage Box Material | Carbon Steel Q235 | |
| Thickness of box | 4mm | |
| Garbage Box Volume | 3cbm | |
| Container Roll on time(s) | 50-60 | |
| Container Roll off time(s) | 40-50 | |
| Hydraulic System | Consists of an oil pump, oil cylinder, front valve, rear valve, pressure gauge, oil box, filter, and pipelines. The front valve controls the push panel and strike-off board. | |
Working Parameter
ISUZU KV100 5m3 Roll Off Garbage Truck Specification
| Box time | Less than 15 seconds | Roller material Cast iron or forged steel |
|---|---|---|
| Unboxing time | Less than 15 seconds | Control method Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position Cab + car side |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU KV100 5m3 Roll Off Garbage Truck
What chassis is the ISUZU KV100 5m3 Roll Off Garbage Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu hook loader truck?
The factory table lists F/R Axle-Load 1335/1340kg,. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Hook Loader Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU KV100 5m3 Roll Off Garbage Truck
This build is listed as drive type 4*2, New condition, LHD ISUZU KV100 5m3 roll off garbage truck with emission Euro IV. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
