- ISUZU 10000L Stainless Steel Vacuum Sewage Truck
Main photo
Isuzu Sewage Suction Truck

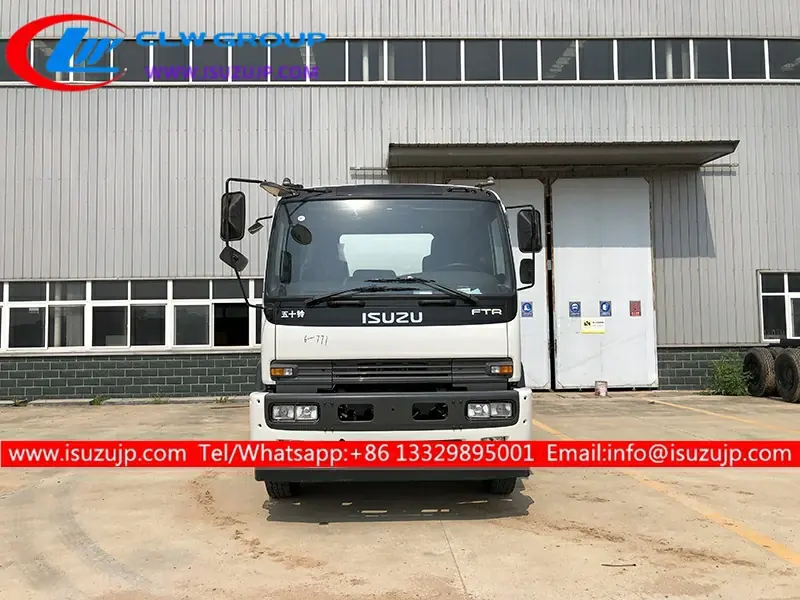

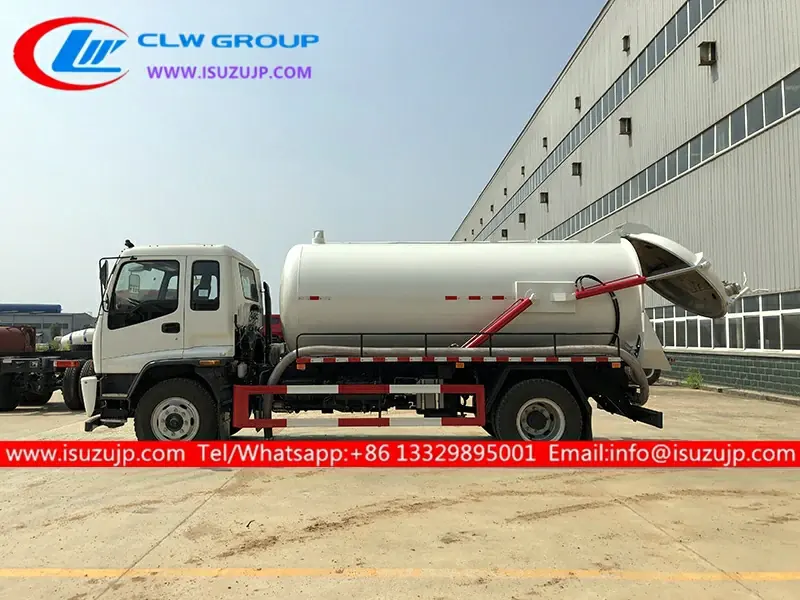

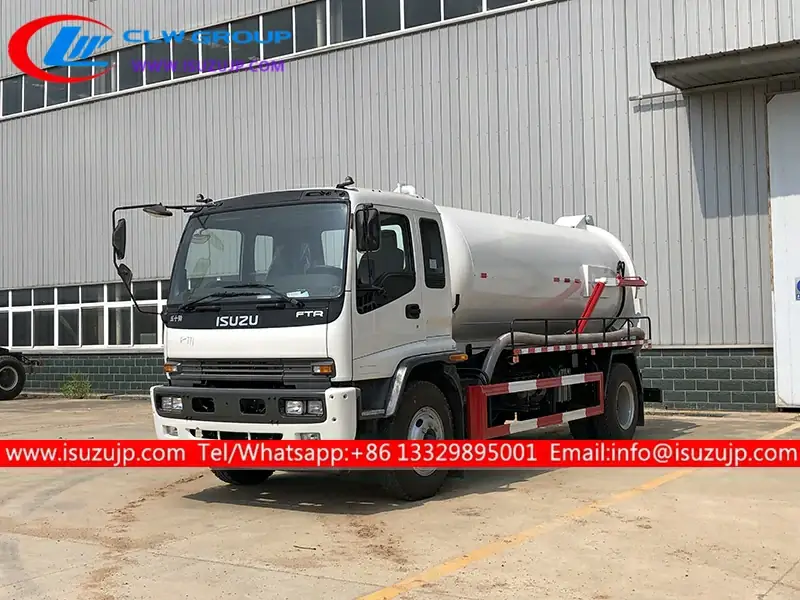

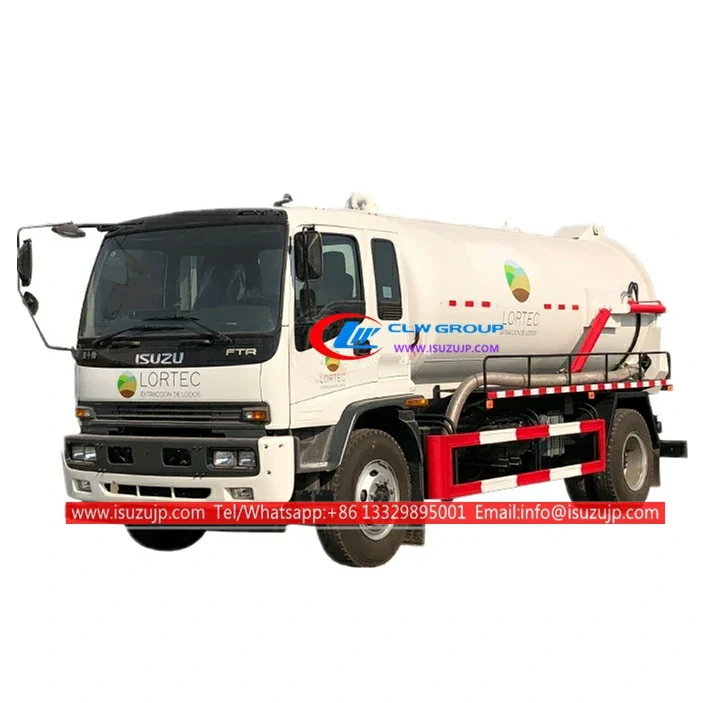

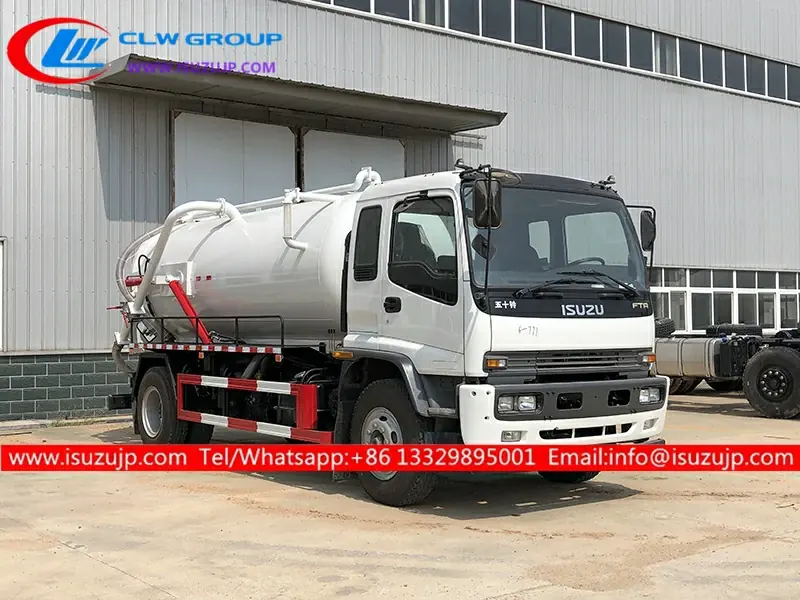

ISUZU 10000L Stainless Steel Vacuum Sewage Truck
Best 10000liters sewage suction truck, ISUZU FTR Left Hand Drive model 4×2 chassis, MLD 6-shift manual gearbox, ISUZU 6HK1 205 HP diesel engine
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 190 Ps (139 KW)
- Overall Dimension
- 7850X2470X3200 mm
- GVW / Kerb Weight
- 16,000 kg / 8,048 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- ISUZU gear box, no overhaul within 500,000km
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 35 rows.
ISUZU 10000L Stainless Steel Vacuum Sewage Truck Description
- ISUZU Stainless steel vacuum sewage truck also called suction vacuum truck, vacuum vehicle, sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks,sewer tanker trucks.
- Vacuum sewage suction truck is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Advantage
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU FTR chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
Specification
ISUZU 10000L Stainless steel vacuum sewage truck （10m3）
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 7850X2470X3200 mm | |
| GVW / Kerb Weight | 16,000 kg / 8,048 kg | |
| Cab | Cab Capacity | 2 persons seats with 1 spleeper |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 190 Ps (139 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 10,000 Litres |
| Tank Material | Stainless steel | |
| Suction Head | 7m | |
| Vacuum Pump | Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. | |
| Hose | High quality, wire strengthened hose | |
| Rear door can be hydraulic opened for complete discharge of solid stuff. | ||
| All standard accessories: inlet, discharge, antifill valve | ||
| Optional | Tank material could be carbon steel, stainless steel Vacuum pump could be imported brand | |
Working Parameter
ISUZU 10000L Stainless Steel Vacuum Sewage Truck Specification
| Suction speed | Fill up in 10 minutes | Tank material Carbon steel Q345, stainless steel 304 |
|---|---|---|
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | |
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | |
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | |
Sewage Tanker Truck Part,tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 10000L Stainless Steel Vacuum Sewage Truck
What chassis is the ISUZU 10000L Stainless Steel Vacuum Sewage Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu sewage suction truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Sewage Suction Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU 10000L Stainless Steel Vacuum Sewage Truck
This build is listed as chassis ISUZU with engine ISUZU engine. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
