ISUZU Combined Vacuum Jetting Vehicle

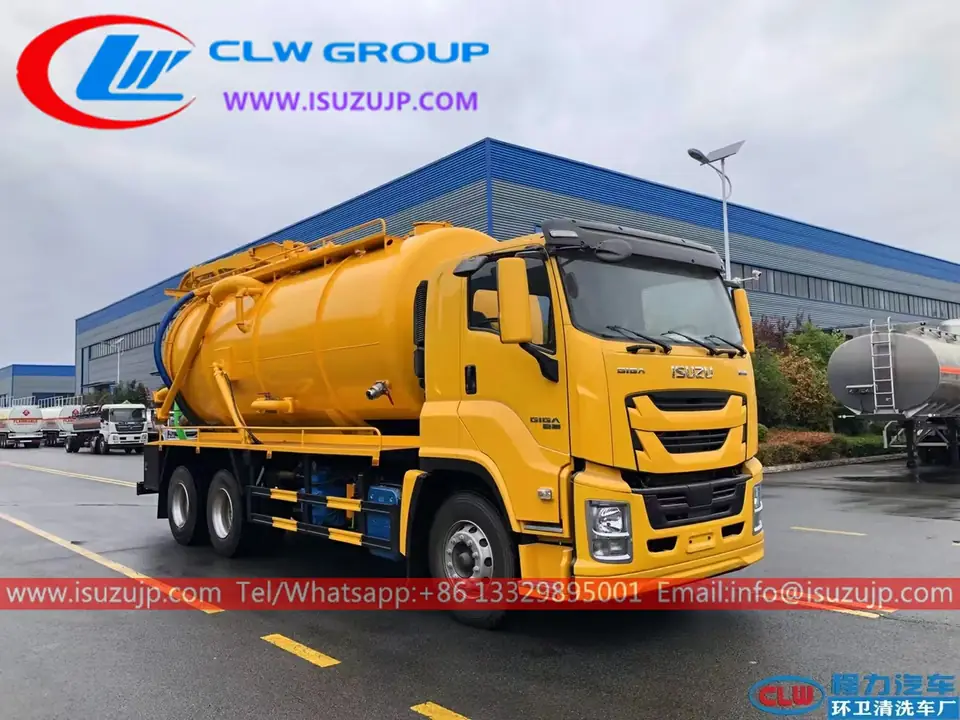

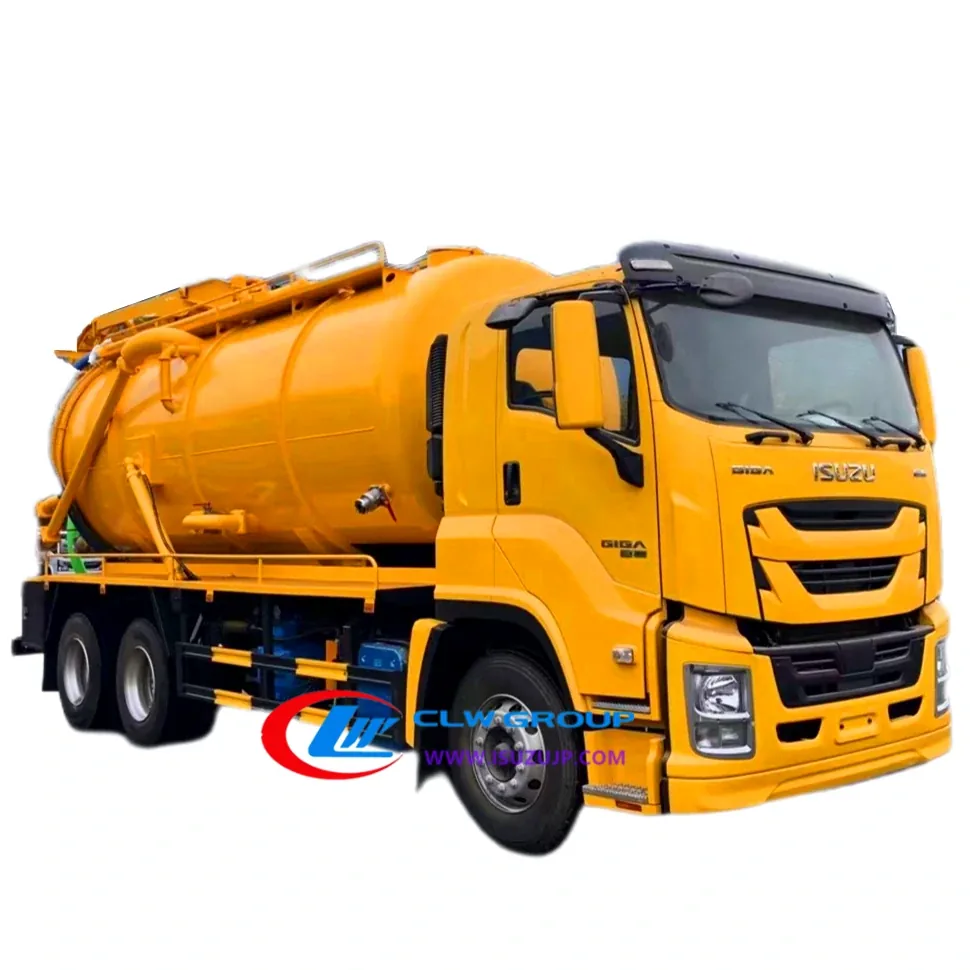

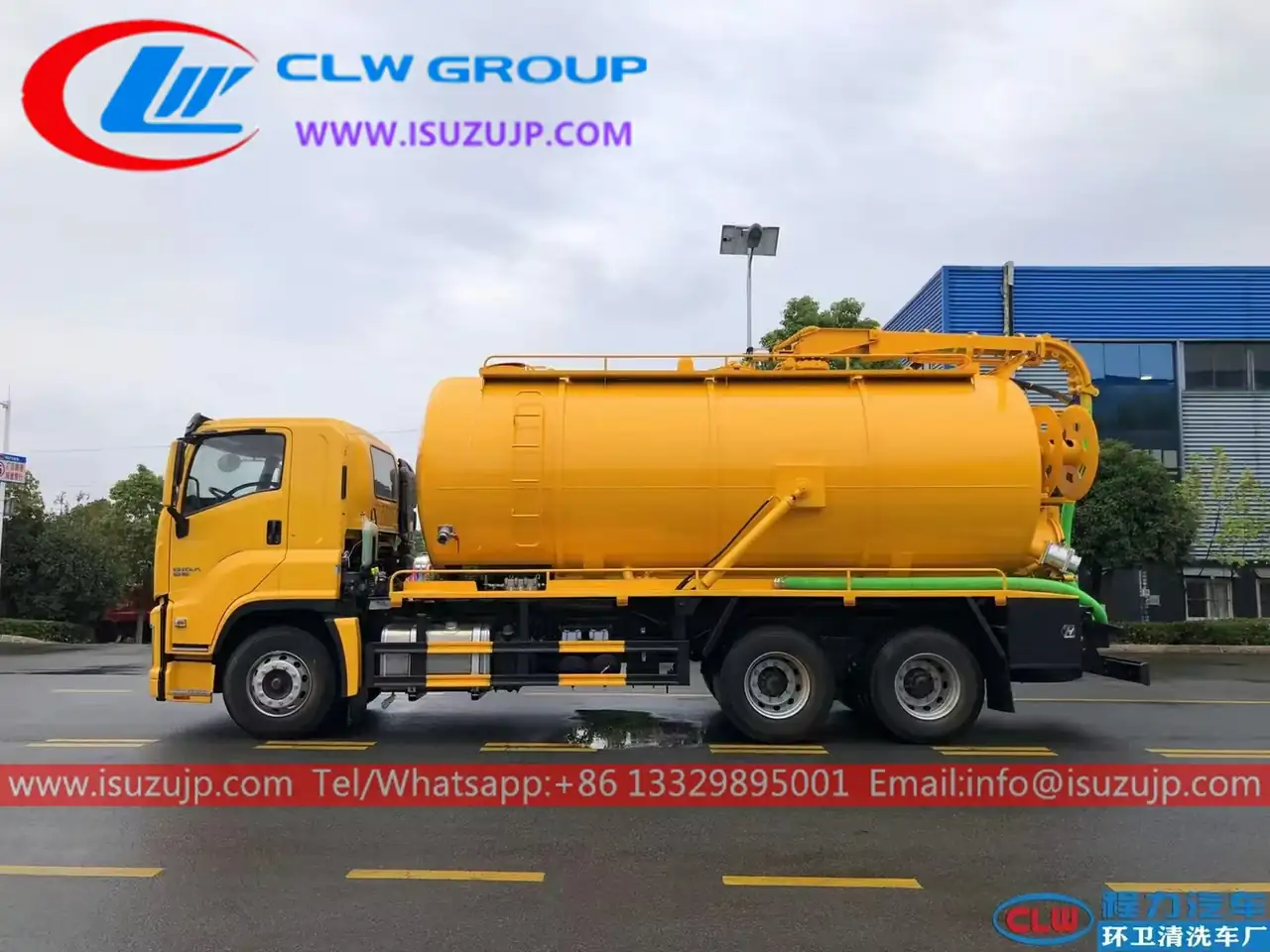

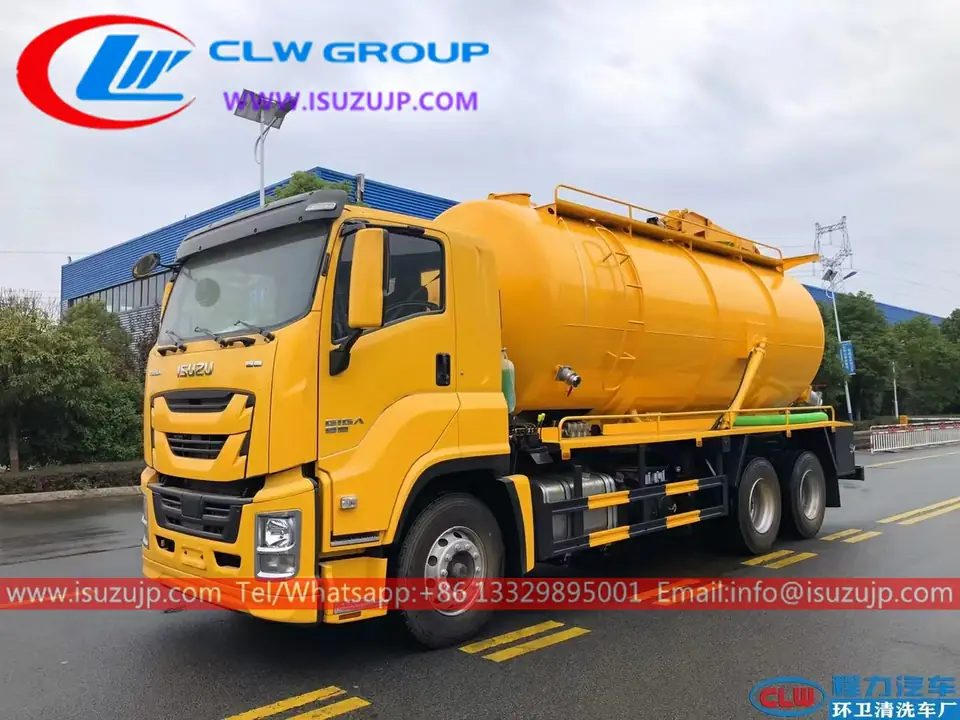

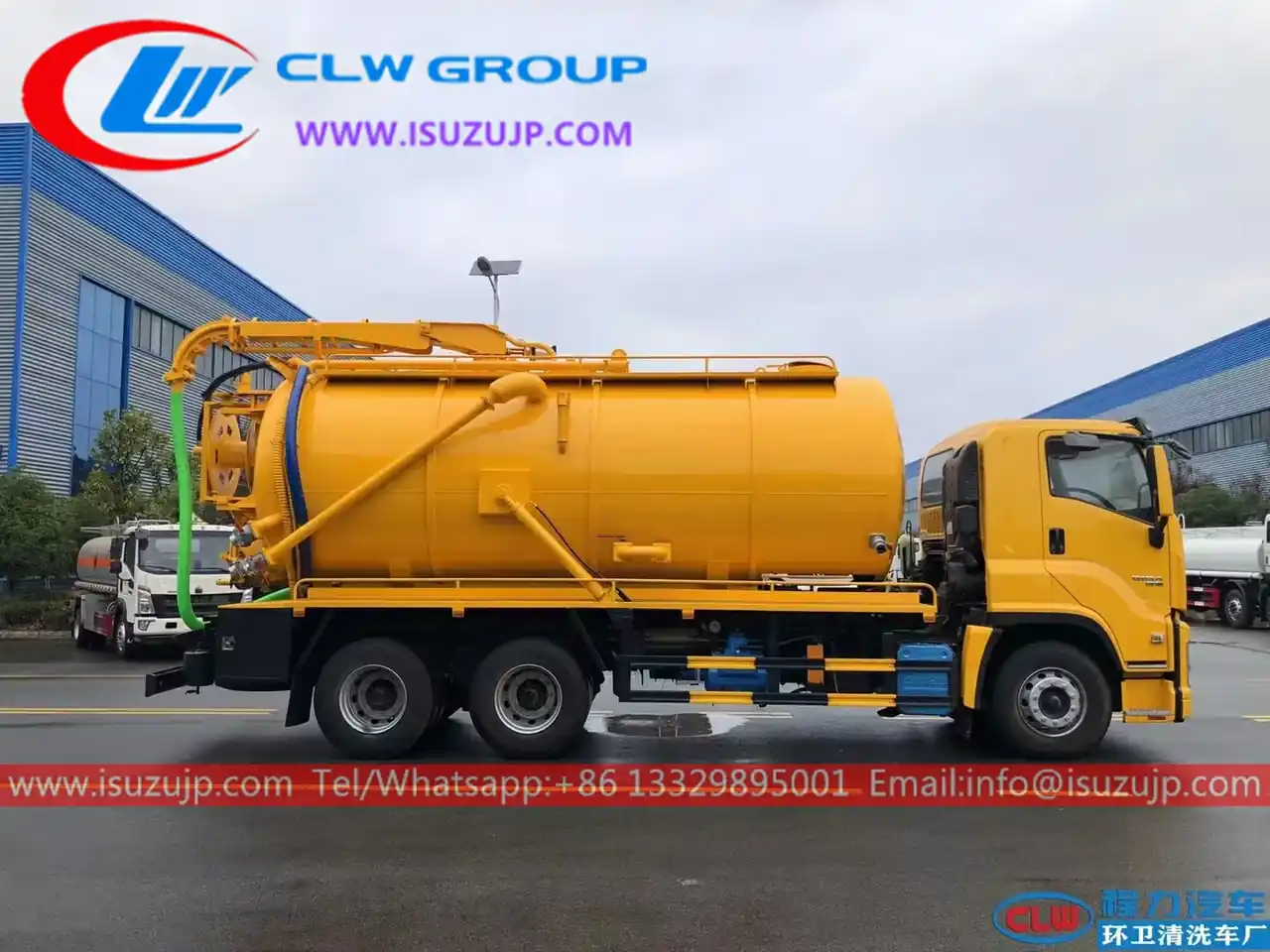

ISUZU 20000liters Jet Vac Tanker for Sale Philippines
ISUZU GIGA Left Hand Drive chassis, FAST 12-shift manual gearbox, ISUZU 350 HP diesel engine, Germany PINFL brand High-pressure pump, loading capacity:20000liters
- Hanging Water Tank on Both Sides, a Front Tank of Sub-bin
- The thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm
- Product Origin
- China Cheng
- Body Size
- 10700x2500x3800mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 11 rows.
Isuzu 20000liters Jet Vac Tanker Description
- ISUZU 20000liters jet vac tanker also called Combined jet vacuum truck, suction jetting truck, combination sewer cleaner, combined jet suction truck, jetting and vacuum truck, vacuum and jet vehicle, combine jetting / sucker truck
- The fecal suction truck is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipelines under high pressure, and clear sewer drain lines by means of powerful vacuum suction to suck all water plus mud from the sewer hole. This truck is widely used for environmental protection.
- ISUZU combined vacuum jetting truck carries a high-pressure pump, a water tank, high-pressure hoses, and nozzles; also a vacuum, vacuum tanker, and suction pipeline. and can be mounted on chassis 4×4, 4×2, 6×4, 6×6, etc
Advantage
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- 6×4 ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super-powerful, no overhaul within 500,000 km.
- Optional Italy imported high-pressure pump, super powerful, efficient pump in and out
- Famous Chinese brand vacuum pump, effective and dur
- High-pressure cleaning hose with automatic reel
- The strong, durable, perfect performance
Specification
Shape Cylindrical-shaped tank with external reinforcement rings. Material Mild steel. Capacity. 15,000Lilters sludge tank. 5,000Liters water tank. Shell thickness 6mm. Dish end thickness 6mm. Working pressure -0.9bar pressure. Tank inner filter Separate the sucked wastewater and solid, which protects key parts like the pump, valve, and hose. Tipping cylinder Italy PENTA brand front tipping and single-acting cylinder. Front tank bottom mounted with safety support for protection Liquid level indicator Mounted at the rear of the tank. Overpressure safety The overpressure relief valve on the tank top. The full-opening rear lid Hydraulically opening and locking Outlet Valve One 150mm ball valve, manual operation. Anti over-flow SS float ball prevents overfilling of the sludge tank. When the tank’s full, the ultrasonic level indicator is activated and the vacuum pumpis closed automatically, allowing no need to shut down from the Cab. Reverse discharge The pressure switch system changes positive pressure to negative, which allows the tank inside wastewater to be reversed and discharged via a suction boom. This improves working efficiency. Vacuum Unit Vacuum pump The liquid ring vacuum pump is driven from the PTO on the gearbox, and provides high airflows along with high vacuum levelsfor removing materials above or below liquid surfaces. Engaged and disengaged from the driver’s cab. Brand Isuzu 20000liters jet vac tanker for sale Philippines Max vacuum level -0.92Bar Air flow rate 2800m3/h. Power requirement 90kW. Rotate speed Max 800r/min. Pump cooling Cooling Water tank in mild steel 1,500L mounted behind cab Pump protection 1)stainless steel ball valve in the tanker;2)filter;3)auto vacuum check valve. Telescopic suction boom Stainless steel material. 270°horizontal rotation and 1350mm extension, 6m working radius. Vertical lift up to 6m from the ground
Working Parameter
ISUZU 20000liters Jet Vac Tanker for Sale Philippines Specification
| Dredge function | Sewage suction function | |
|---|---|---|
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method A power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow 6-35 cubic meters |
| High-pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length Standard one 8 meters, can add 4 |
| High-pressure nozzle | Standard 10 nozzles with different functions | Blowdown method Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor-saving + tube self-cleaning | Tank material Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, a front tank of sub-bin | The thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic twist |
Vacuum Fecal Trucks Part, Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 20000liters Jet Vac Tanker for Sale Philippines
What chassis is the ISUZU 20000liters Jet Vac Tanker for Sale Philippines built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu combined vacuum jetting vehicle?
The factory table lists Hanging Water Tank on Both Sides, a Front Tank of Sub-bin The thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Combined Vacuum Jetting Vehicle Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU 20000liters Jet Vac Tanker for Sale Philippines
This build is listed as hanging water tank on both sides, a front tank of sub-bin The thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm with product origin China Cheng. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
