Main photo

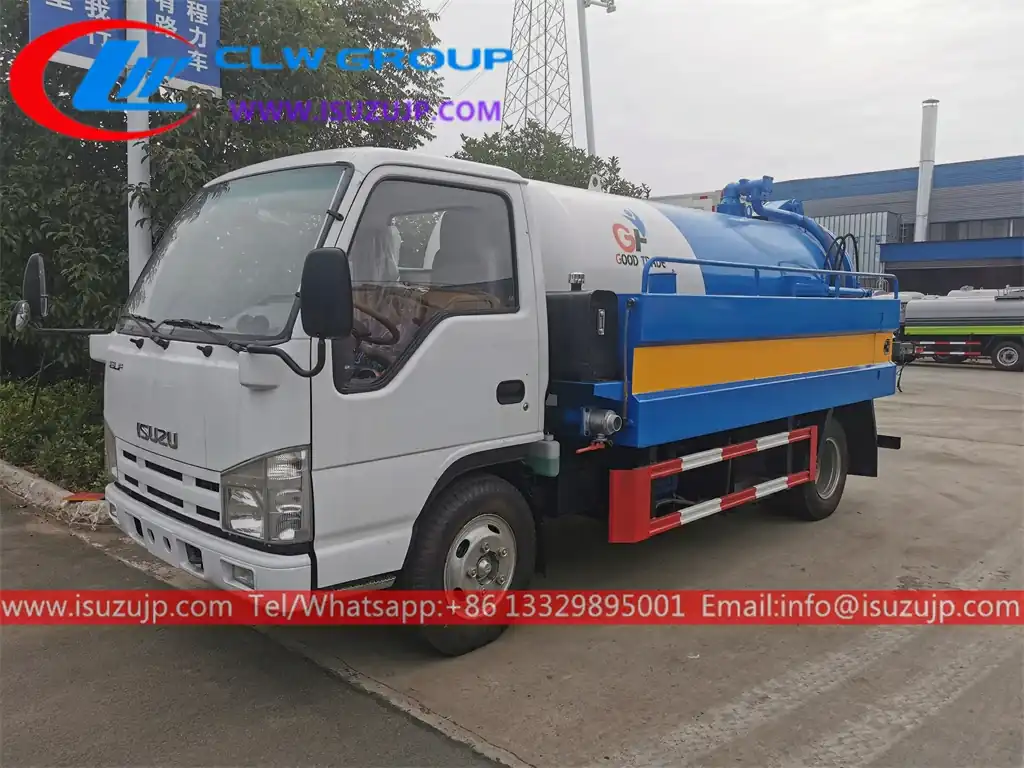

ISUZU Combined Vacuum Jetting Vehicle

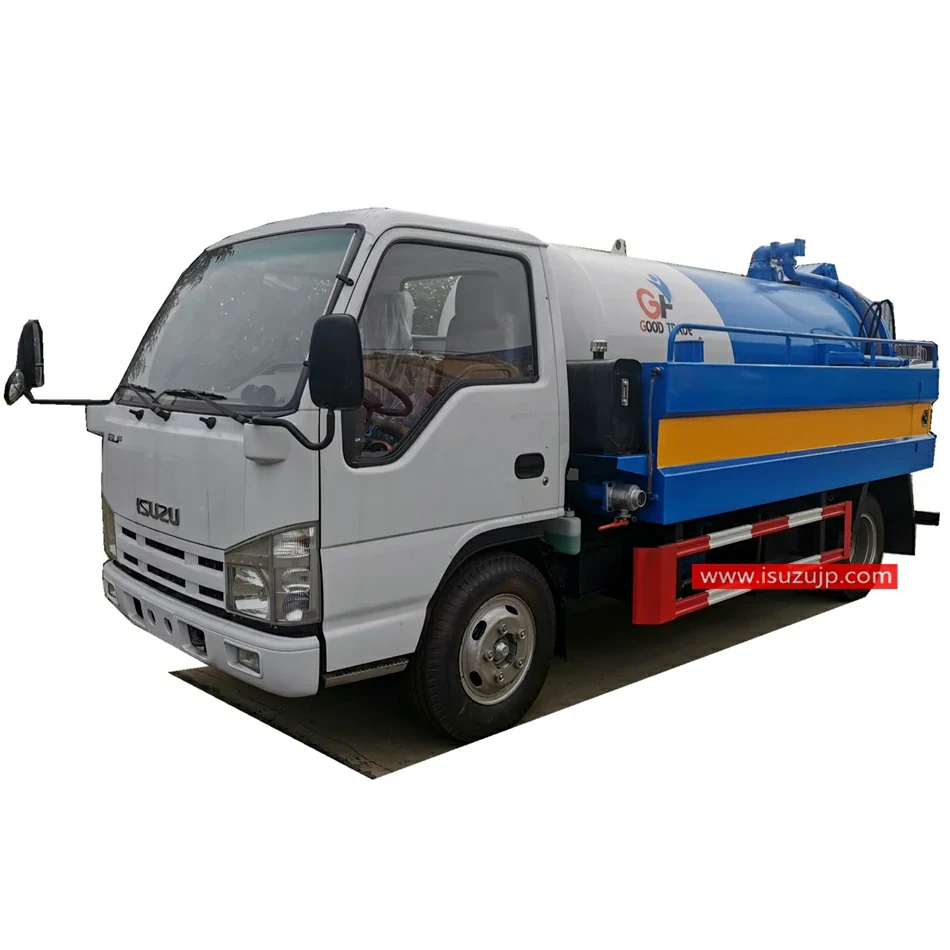

ISUZU NJR 4 Ton Sewer Jet Truck for Sale Peru
ISUZU 4×2 Left Hand Drive chassis, MSB 5-shift manual gearbox, ISUZU 98 HP diesel engine, Germany PINFL brand High-pressure pump, loading capacity:5500L
- Chassis
- ISUZU 100P
- Tanker Capacity
- 5.5cbm
- Tanker Material
- Carbon steel
- Hanging Water Tank on Both Sides, Front Tank of Sub-bin
- Thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm
Specification below is the factory table for this model, reproduced without edits. 26 rows.
ISUZU NJR 4 Ton Sewer Jet Truck Description
- ISUZU sewer jet truck also called Combined jet vacuum truck, suction jetting truck, combination sewer cleaner, combined jet suction truck, jetting and vacuum truck, vacuum and jet vehicle, combine jetting / sucker truck
- The fecal suction truck is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipelines under high pressure, and clear sewer drain lines by means of powerful vacuum suction to suck all water plus mud from the sewer hole. This truck is widely used for environmental protection.
- ISUZU combined vacuum jetting truck carries a high-pressure pump, a water tank, high-pressure hoses and nozzles; also vacuum, vacuum tanker, suction pipeline. and can be mounted on chassis 4×4, 4×2, 6×4, 6×6, etc
Advantage
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU ELF 100P chassis, perfect performance
- ISUZU technology engine option, super-powerful, no overhaul within 500,000 km.
- Optional Italy imported high-pressure pump, super powerful, efficient pump in and out
- Famous Chinese brand vacuum pump, effective and dur
- High-pressure cleaning hose with automatic reel
- The strong, durable, perfect performance
Specification
ISUZU NJR 4 Ton Sewer Jet Truck for Sale Peru Specification
| ISUZU NJR 4 ton sewer jet truck Vehicle Description | |
| Overall dimensions | 5995X2300X2600mm |
|---|---|
| GVW | 7300kg |
| Mass in working order | 4000kg |
| Chassis brand | ISUZU 100P |
| Type of traction | 4X2 |
ISUZU NJR 4 Ton Sewer Jet Truck for Sale Peru Specification
| T Anker Description | ||
| Water tanker | Tanker capacity | 5.5cbm |
|---|---|---|
| Tanker material | Carbon steel | |
| Thickness | 4mm | |
| Pump | Type | Germany brand PF36 |
| Speed of flow | 122-153L | |
| Pressurization | 13-16Mpa | |
| Standard configuration | Equip with 60m of high-pressure tubing and 10 units of high-pressure nozzle. Fitted with sandwich PTO. | |
| Optional | 1. Italy high-pressure pump 2. Auxiliary engine 3. Low-pressure water pump system 4. Water sprinkling device 5. Washing machine for pre-pose | |
Working Parameter
ISUZU NJR 4 Ton Sewer Jet Truck for Sale Peru Specification
| Dredge function | Sewage suction function | |
|---|---|---|
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method Power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow 6-35 cubic meters |
| High pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length Standard one 8 meters, can add 4 |
| High pressure nozzle | Standard 10 nozzles with different functions | Blowdown method Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor saving + tube self-cleaning | Tank material Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, front tank of sub-bin | Thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in tank, solid-liquid separation filter cartridge + hydraulic twist |
Vacuum Fecal Trucks Part, Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NJR 4 Ton Sewer Jet Truck for Sale Peru
What chassis is the ISUZU NJR 4 Ton Sewer Jet Truck for Sale Peru built on?
It is built on ISUZU 100P. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu combined vacuum jetting vehicle?
The factory table lists Tanker Capacity 5.5cbm. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Combined Vacuum Jetting Vehicle Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NJR 4 Ton Sewer Jet Truck for Sale Peru
This build is listed as chassis ISUZU 100P with tanker capacity 5.5cbm. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
