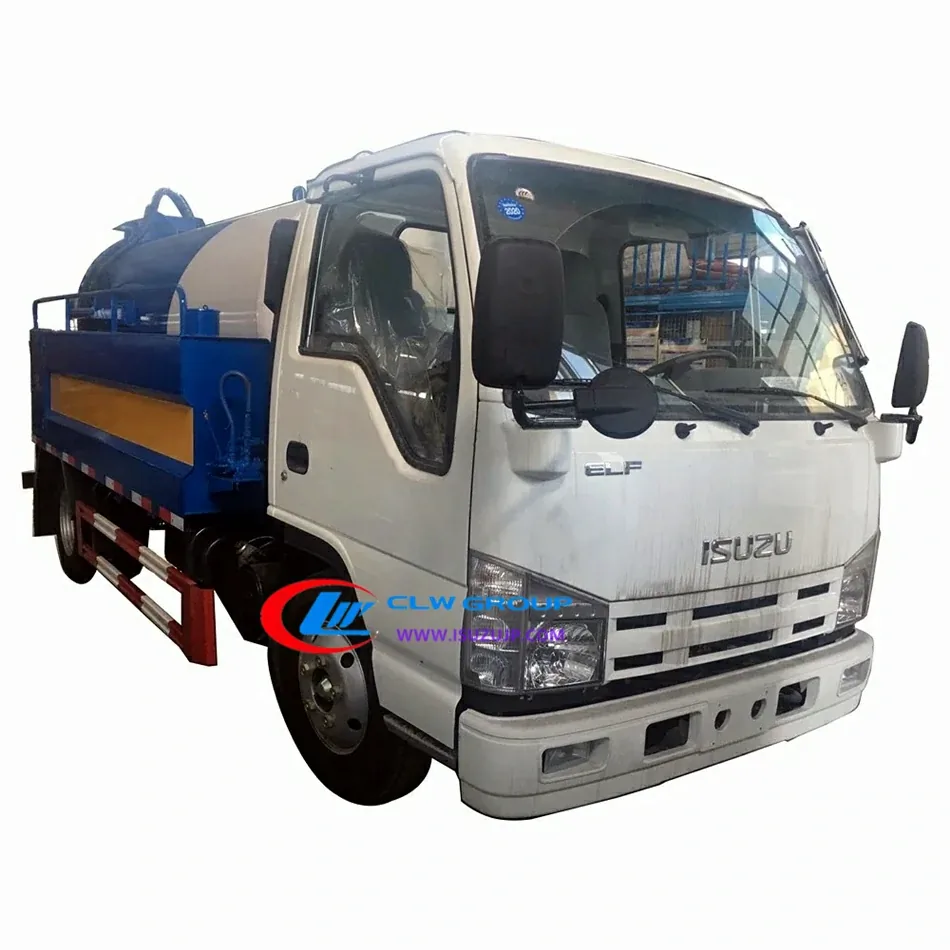

ISUZU Combined Vacuum Jetting Vehicle
ISUZU 5000liters Jetting and Vacuum Truck
ISUZU 4×2 Left Hand Drive chassis, MSB 5-shift manual gearbox, ISUZU 98 HP diesel engine, Germany PINFL brand High pressure pump, loading capacity:5000L
- Chassis
- ISUZU ELF
- Engine
- ISUZU
- Power
- 98 HP (72 KW)
- Overall Dimension
- 5900X2200X2600 mm
- GVW / Kerb Weight
- 7,300kg / 3,200kg
- Drive Type
- 4X2, (left hand drive)
- Transmission
- Manual MSB 6 speed levers with 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 43 rows.
ISUZU 5000liters Jetting and Vacuum Truck Description
- ISUZU jetting and vacuum truck also called Combined jet vacuum truck, suction jetting truck, combination sewer cleaner, combined jet suction truck, jetting and vacuum truck, vacuum and jet vehicle, combine jetting / sucker truck
- Fecal suction truck is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipeline under high pressure, and clear sewer drain lines by means of a powerful vacuum suction to suck all water plus mud from sewer hole. This truck is widely used for environmental protection.
- ISUZU combined vacuum jetting truck carry a high pressure pump, a water tank, high-pressure hoses and nozzles; also vacuum, vacuum tanker, suction pipeline. and can be mounted on chassis 4×4, 4×2, 6×4, 6×6, etc
Advantage
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU ELF 100P chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
- Optional Italy imported high pressure pump, super powerful, efficient pump in and out
- Famous Chinese brand vacuum pump, effective and dur
- High pressure cleaning hose with automatic reel
- Strong, durable, perfect performance
Specification
ISUZU 5000liters jetting and vacuum truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU ELF | |
| Overall Dimension | 5900X2200X2600 mm | |
| GVW / Kerb Weight | 7,300kg / 3,200kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 98 HP (72 KW) | |
| Displacement | 2199 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | Manual MSB 6 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tire Specification | 700-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tanker System | Tank capacity 1,500 Liters |
| Tank material | Carbon steel | |
| High pressure pump | Germany PINFL VX36 model | |
| Flow speed | 120L/min | |
| High pressure hose | High pressure hose 60m long | |
| Auto reel | Auto hose reel | |
| Suction head | 6m | |
| Nozzles | A cluster of nozzles included | |
| Sewer Tanker System | Tank capacity 3,000 Liters | |
| Tank material | Carbon steel | |
| Vacuum pump | Italy JUROP pump PN106D, High efficient, vacuum rate over 93%, quick suction and discharge, suction lift 6m | |
| Rear door can be hydraulic open / close for complete discharge of solid stuff | ||
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual | ||
| Optional | Tank material could be stainless steel. High pressure hose length could be customized. | |
Working Parameter
ISUZU 5000liters Jetting and Vacuum Truck Specification
| Dredge function | Sewage suction function | |
|---|---|---|
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method Power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow 6-35 cubic meters |
| High pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length Standard one 8 meters, can add 4 |
| High pressure nozzle | Standard 10 nozzles with different functions | Blowdown method Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor saving + tube self-cleaning | Tank material Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, front tank of sub-bin | Thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in tank, solid-liquid separation filter cartridge + hydraulic twist |
Vacuum Fecal Trucks Part, Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 5000liters Jetting and Vacuum Truck
What chassis is the ISUZU 5000liters Jetting and Vacuum Truck built on?
It is built on ISUZU ELF. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu combined vacuum jetting vehicle?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
