Main photo
Isuzu Fuel Truck

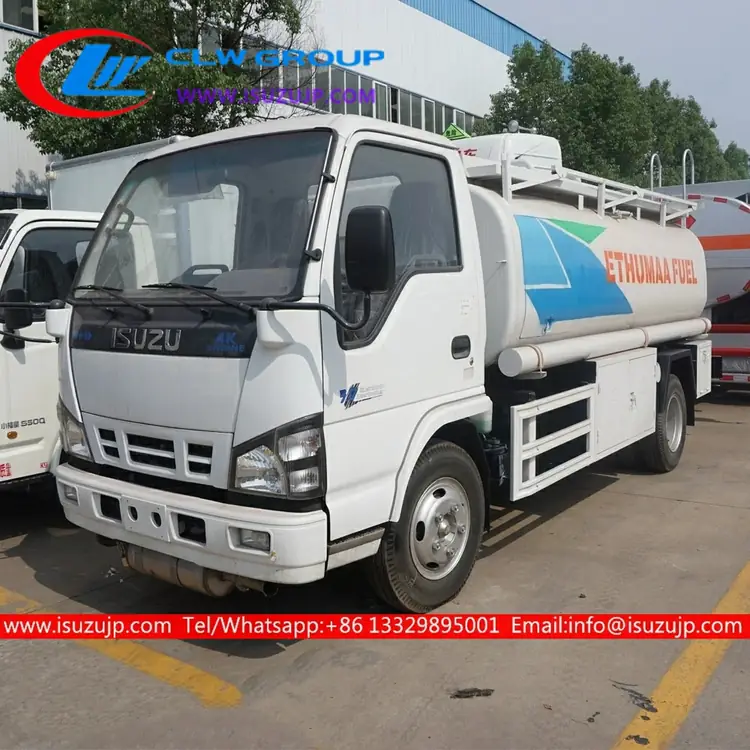

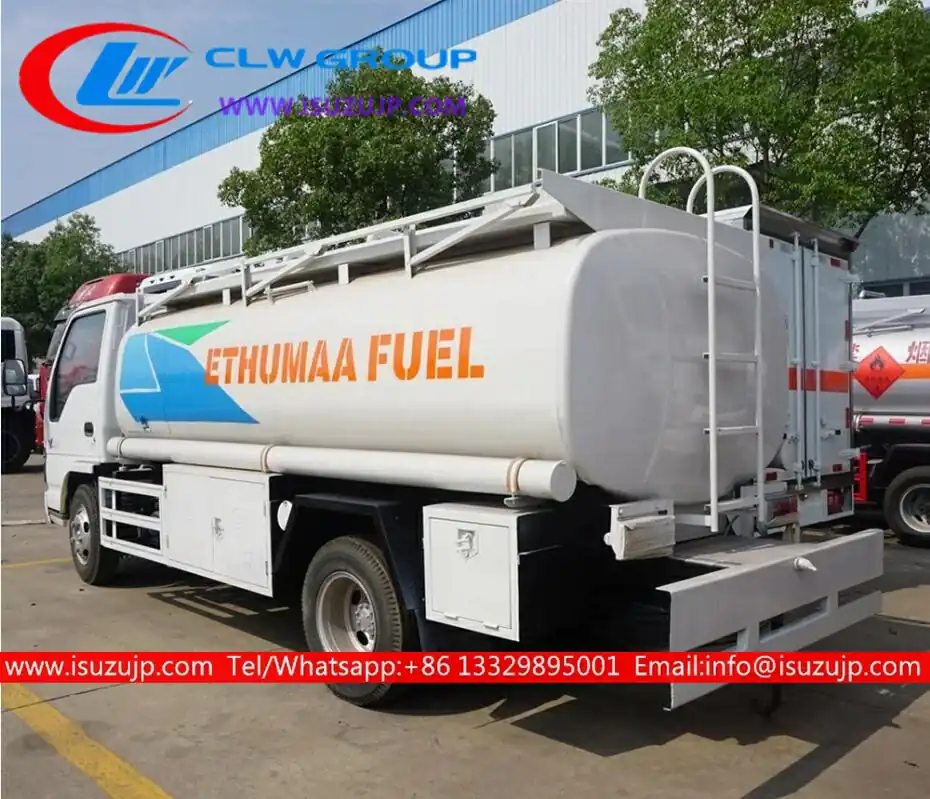

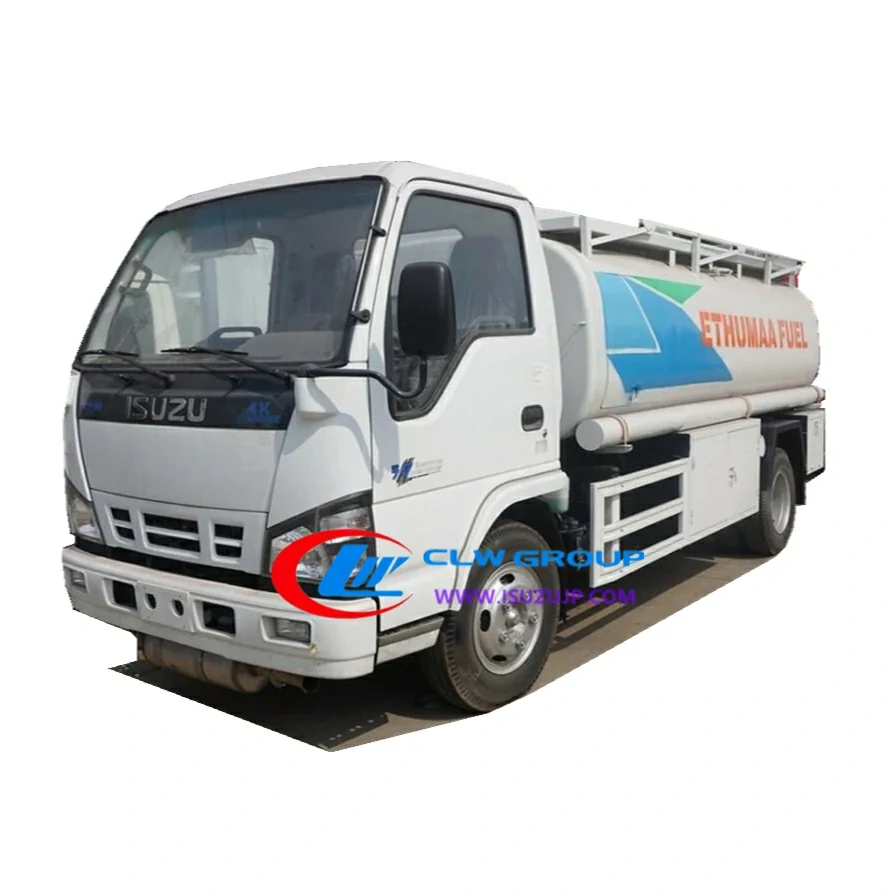

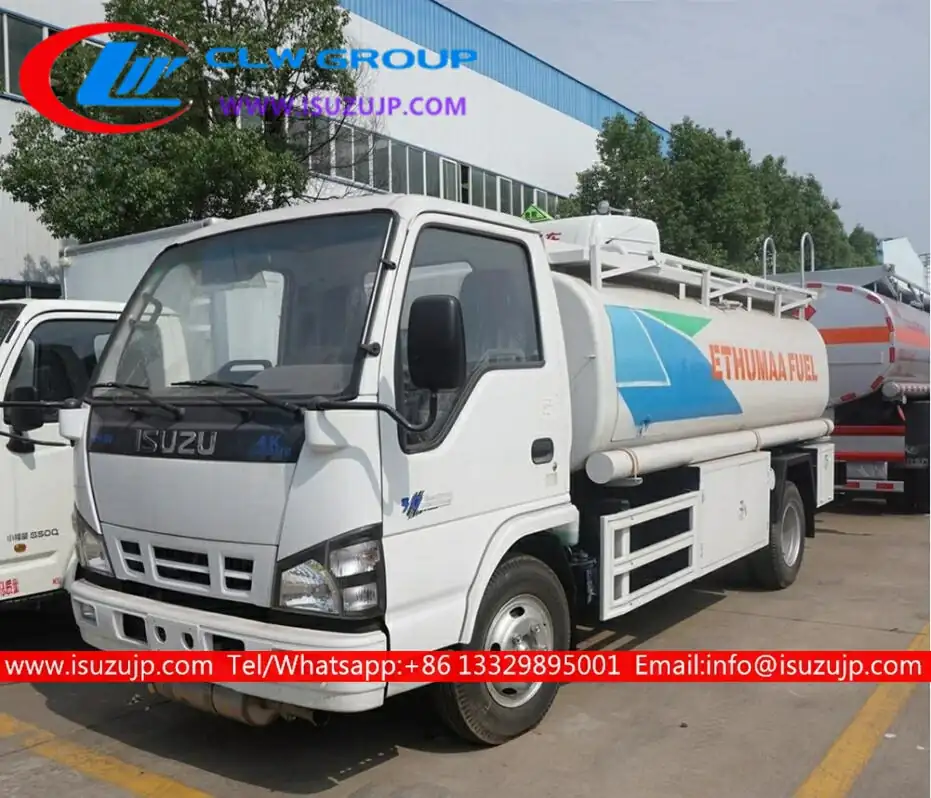

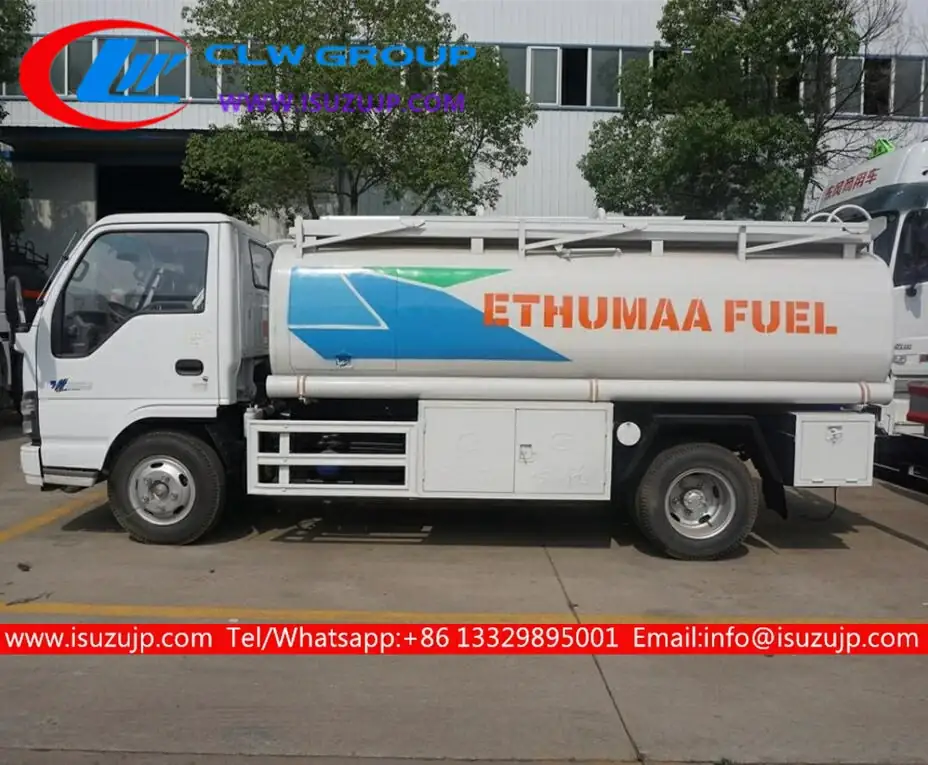

ISUZU 5cbm Small Oil Bowser Truck
ISUZU 4K-ENGINE chassis, 5-shift manual gearbox, ISUZU 120HP diesel engine,
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 120 HP (88 KW)
- Overall Dimension
- 5900X2100X2500 mm
- GVW / Kerb Weight
- 7,300kg / 3,370kg
- Drive Type
- 4X2 (left hand drive)
- Transmission
- ISUZU 5 speed levers with 1 reverse
- Emission
- Euro IV/V
Specification below is the factory table for this model, reproduced without edits. 27 rows.
Introduction
ISUZU 5cbm Small oil bowser truck (also called fuel oil bowser, diesel gasoline tanker bowser, fuel oil dispenser truck, petrol tanker truck, refuel bowser vehicle) is used to transport oil, diesel, gasoline, kerosene， etc.
ChengLi company Production fuel bowser can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol…
ISUZU fuel truck can be equipped with oil pump and refueling machine, flow meters all for easy operation.
Advantage
- ISUZU 4K-ENGINE chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cublic Meter.
- Easy operation and easy maintenance.
- Euro V ,Euro VI engine meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two year warranty, after the warranty period, we only charge the cost price.
Specifications
ISUZU 5cbm Small oil bowser truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 5900X2100X2500 mm | |
| GVW / Kerb Weight | 7,300kg / 3,370kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 120 HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro IV/V | |
| Chassis | Drive Type | 4X2 (left hand drive) |
| Transmission | ISUZU 5 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tire Specification | 7.00-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 5,000 Litres(1300 gallon) |
| Tanker Material | Carbon Steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| Refueling Machine | Equipped based on customer requirement | |
| Control panel | English or Your language | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers… | ||
| Optional | Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker). It can be divided into many compartments. Imported American pump as optional. Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc Heat preservation & heating system could be added. Bottom loading system can be equipped. | |
Oil Tanker Bowser Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 5cbm Small Oil Bowser Truck
What chassis is the ISUZU 5cbm Small Oil Bowser Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fuel truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Fuel Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU 5cbm Small Oil Bowser Truck
This build is listed as chassis ISUZU with engine ISUZU. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
