Main photo
Lift Platform Truck

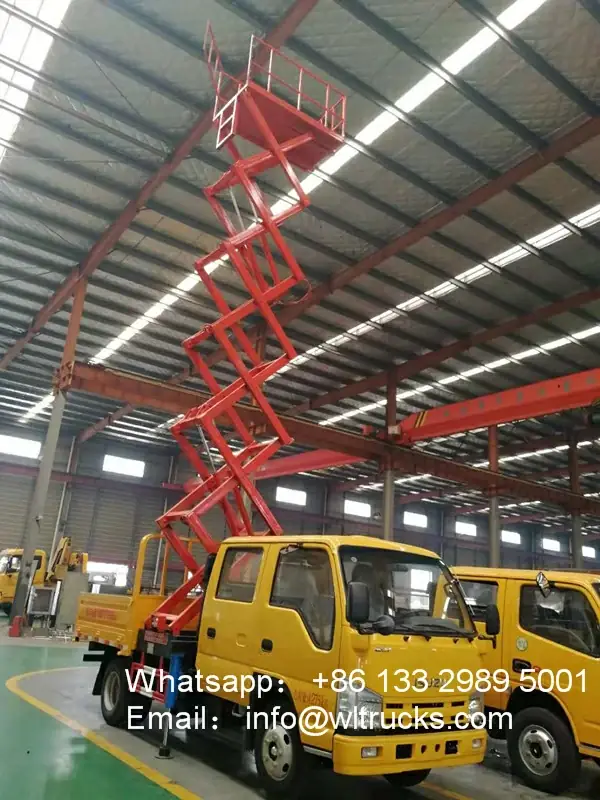

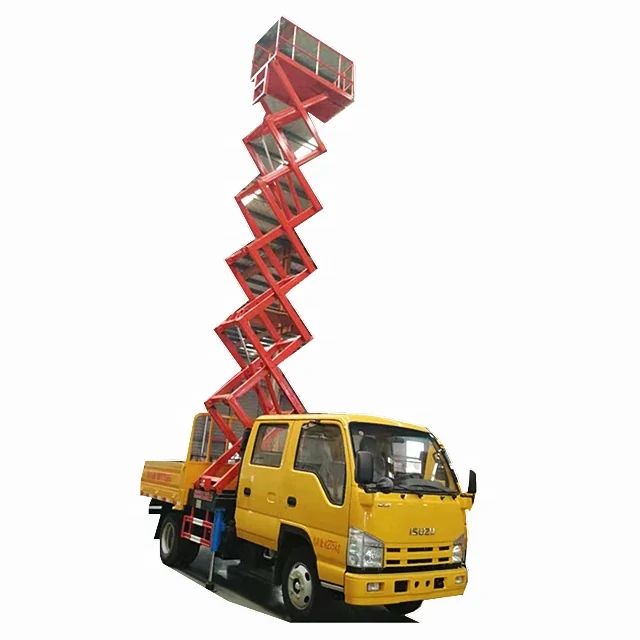

ISUZU ELF 10m Scissor Aerial Platform Truck
4×2 ISUZU ELF 100P chassis, MSB 5-shift manual gearbox, 98HP diesel engine, Three operating modes: wireless + wired + handle
- Chassis
- ISUZU
- Engine
- ISUZU engine, 4KH1-TCG40
- Power
- 120HP (88KW)
- Overall Dimension
- 5990 x 2200 x 2600 mm
- GVW / Kerb Weight
- 6,800 kg / 3,990 kg
- Drive Type
- 4X2, left-hand drive
- Transmission
- ISUZU MSB transmission, 5-forward gears & 1 reverse
- Emission
- Euro IV
Specification below is the factory table for this model, reproduced without edits. 36 rows.
ISUZU ELF 10m Scissor Aerial Platform Truck Description
- Isuzu scissor aerial platform truck also called scissor aerial platform truck, working platform vehicle,is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works. available of 8m-12m.
Advantage
- 100% custom-made
- 8m 10m 12m available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
Specification
ISUZU ELF 10m scissor aerial platform truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 5990 x 2200 x 2600 mm | |
| GVW / Kerb Weight | 6,800 kg / 3,990 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4KH1-TCG40 | |
| Power | 120HP (88KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left-hand drive |
| Transmission | ISUZU MSB transmission, 5-forward gears & 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cage Rated Capacity | 500 kg |
| Working Height | 5.5 m | |
| Control | Controlled by batteries | |
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand-operated emergency hydraulic pump | |
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground Working height is 8m-12m, with a hydraulic lifting platform with two hydraulic legs, the hanging blue rated load is less than or equal to 500KG, working pressure 14MPA, platform size: 1700*970*790, with cylinder locking function. 8 meters, 10 meters lifting platform car special performance: equipment structure is simple, sturdy and durable, easy to operate and reliable. The unique hydraulic control system design makes the staff work more smoothly, and can safely send the staff to the 8m, 10m high-altitude operation for maintenance, installation, cleaning, photography, shipbuilding, chemical, electric power, pruning, replacement of street lamps. And other engineering repairs. | |
| Optional | Insulated cage; Wireless remote control system |
Scissor Lift Truck Working Parameter
ISUZU ELF 10m Scissor Aerial Platform Truck Specification
| Working height | Maximum working height: 8m 10m 12m | |
|---|---|---|
| Outrigger form | Outrigger type | H-shaped outrigger |
| Outrigger span | Vertical (mm): 2710; horizontal (mm): 1720 | |
| Working platform | Rated load | ≤500Kg |
| size | Length X width X height (mm): 1585/1805x955x1100 | |
| Safety belt | A pair | |
| Hydraulic system | Gear pump displacement | 25ml/r Cylinder With cylinder lock function |
| Working pressure | 14MPa Hydraulic valve Manual | |
| car | Built-in chassis | |
| Hand washing water tank | 20L | |
| Operation form | Outrigger | Each leg can be controlled independently |
| Interlocking | Have |
ISUZU Aerial Platform Truck Features
- The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
- Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
- The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
- Fully telescopic working arm, high operating efficiency, wide operating range
- Octagonal cross section of working arm, good love, made of high strength material, good reliability
- There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
- Remote control system of engine speed, easy to operate and high efficiency
- The support legs can be operated on both sides of the cab, which is convenient and efficient.
- The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
- 360-degree turntable rotation, wide operating range, improve efficiency.
Questions
Questions About The ISUZU ELF 10m Scissor Aerial Platform Truck
What chassis is the ISUZU ELF 10m Scissor Aerial Platform Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this lift platform truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Lift Platform Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU ELF 10m Scissor Aerial Platform Truck
This build is listed as chassis ISUZU with engine ISUZU engine, 4KH1-TCG40. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
