Isuzu Truck Mounted Crane

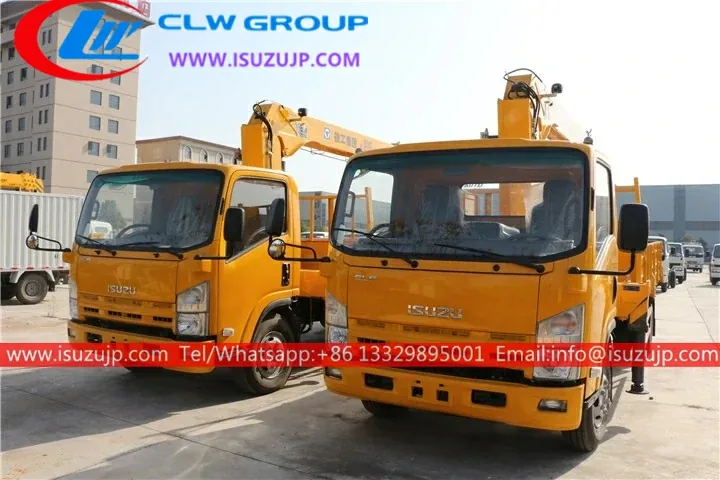

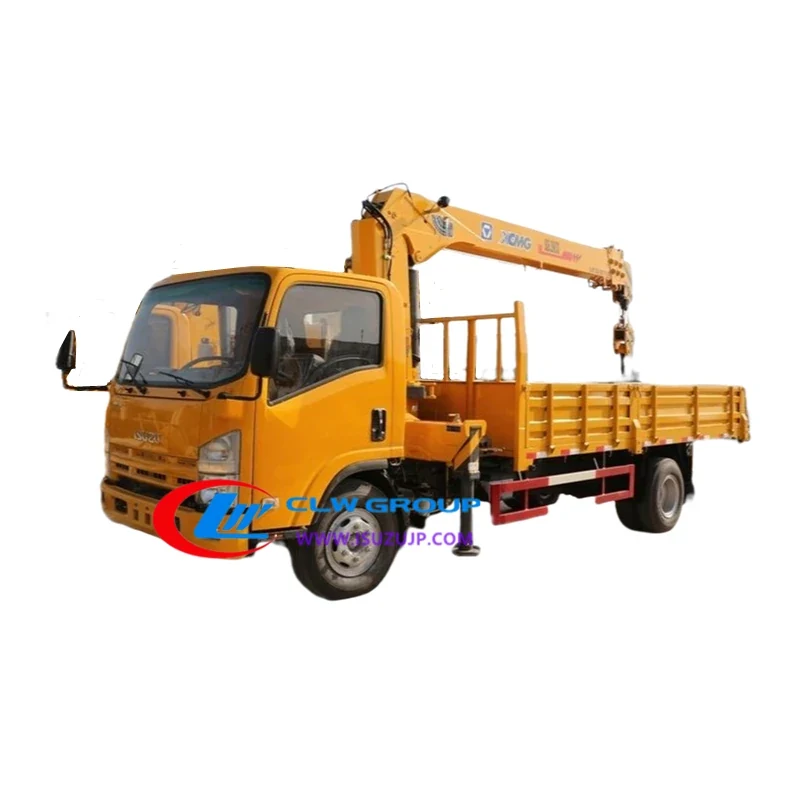

ISUZU ELF 5 Ton Truck Crane
Product Origin: China ChengLi tank color and Logo : Free Truck Size: 8000 x 2400 x 3500mm Shipping Port: China Main Port Lead Time: 20 Days Payment: T/T Delivery Time : Based on the mode of shipping chosen
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 190 Ps (139 KW)
- Overall Dimension
- 8000 x 2400 x 3500 mm
- GVW / Kerb Weight
- 10,000 kg / 4,800 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- 6 forward gears and 1 reverse
- Emission
- Euro V/ Euro VI
Specification below is the factory table for this model, reproduced without edits. 24 rows.
Isuzu Elf 5 Ton Truck Crane Description
- Japan ISUZU 5 ton truck crane （also called as construction crane trucks, Isuzu truck loder vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane) is a type of machine can carry heavy weights and transport them.
- ISUZU Truck with crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage
- ISUZU chassis ensures perfect performance on driving
- ISUZU technology engine, super powerful, no overhaul within 500,000 km.
- High strength cargo body, nice shape and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG or Chengli (China top brand),etc.
Crane Features
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means make sure that the design is very reliable.
- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
- Compact hinge point design take up smaller space
- The work is more safety after fitted over-winds alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
- Anti-slewing impulse equipment that make vehicle running safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckled boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)
Specification

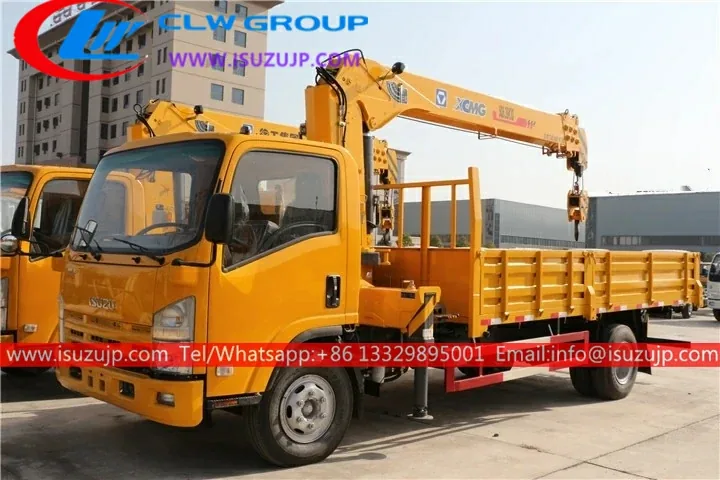

Isuzu 5 tons Telescopic Boom Crane truck
| General | Vehicle Brand | Chengli |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 8000 x 2400 x 3500 mm | |
| GVW / Kerb Weight | 10,000 kg / 4,800 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Equipped Air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190 Ps (139 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V/ Euro VI | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6 forward gears and 1 reverse | |
| No. of axle | 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cargo Box Dimension | 5000 X 2000 X 450 mm |
| Crane Type | Telescopic boom crane | |
| Max Lifting Capacity | 5,000 kg | |
| Slewing Angle | 360°all rotation | |
| All other standard accessories: Tool kit, English manual | ||
| Optional | 1. Knuckle boom crane. 2. Hydraulic tipper box. 3. Box thickness according to requirement. 4. Box height could be nominated. | |
Questions
Questions About The ISUZU ELF 5 Ton Truck Crane
What chassis is the ISUZU ELF 5 Ton Truck Crane built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu truck mounted crane?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
