- ISUZU ELF 5000L Water Bowser Truck
Main photo
Isuzu Water Truck

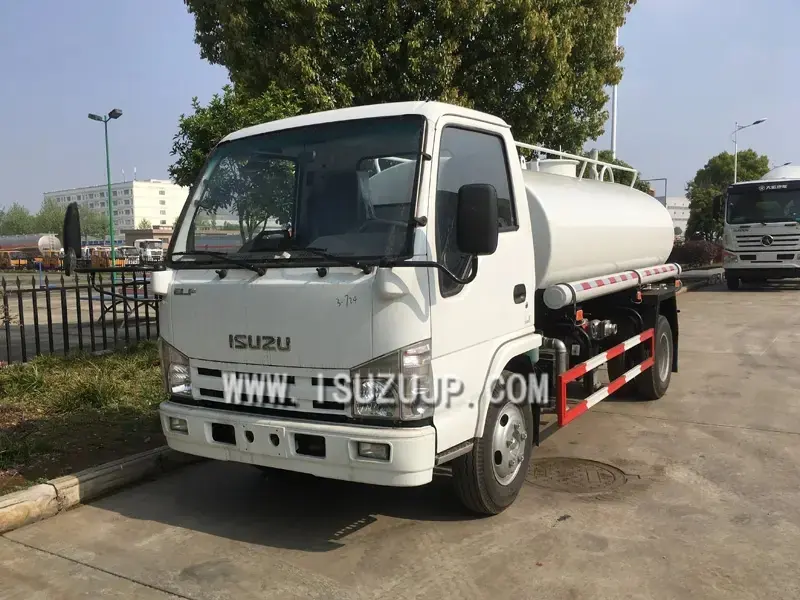

ISUZU ELF 5000L Water Bowser Truck
Product Origin: China ChengLi tank color and Logo : Free Truck Size: 5995x2100x2600mm Shipping Port: China Main Port Lead Time: 20 Days Payment: T/T Delivery Time : Based on the mode of shipping chosen
- Chassis
- ISUZU
- Engine
- ISUZU engine, 4KH1
- Power
- Euro V 98 HP(72 KW) Euro VI 120HP(88 KW)
- Overall Dimension
- 5995 x 2100 x 2600 mm
- GVW / Kerb Weight
- 7,300 kg / 3,420kg
- Drive Type
- 4X2, left hand drive
- Transmission
- ISUZU gear box, no overhaul within 500,000km
- Emission
- Euro V Euro VI
Specification below is the factory table for this model, reproduced without edits. 32 rows.
Water Bowser Truck Application
- Isuzu water bowser (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for drinkable water tanker, water tanker for truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, aqua potable, safe to human body.
- Water tanker can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray to sprinkle and clean the roads, streets for environmental sanitation and protection, called as water sprinkler, water spray truck.
- With rear working platform and high cannon, the water lorry can also be used to water the plants, eve high trees in virescence, called as watering truck.
- Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Advantage
- ISUZU chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- Strong, durable, perfect performance
- Prolonged service life
Specification
ISUZU 5000 liters Water bowser
| General | Vehicle Brand | CLW |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 5995 x 2100 x 2600 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,420kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4KH1 | |
| Power | Euro V 98 HP(72 KW) Euro VI 120HP(88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V Euro VI | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 98 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000 Litres ( About 1,250 gallons) |
| Tank Material | Carbon steel | |
| Flow Speed | 1000 litres / min | |
| Delivery Head | 45 m | |
| Suction Head | 6 m | |
| Hose | High quality PVC hose, anti-aging | |
| All other standard accessories: manhole, ladder, inlet, discharge……. | ||
| Optional | ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body. | |
Working Parameter
ISUZU ELF 5000L Water Bowser Truck Specification
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material Carbon steel Q345/stainless steel 304 |
|---|---|---|
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device |
Water Bowser Tanker Truck Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU ELF 5000L Water Bowser Truck
What chassis is the ISUZU ELF 5000L Water Bowser Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu water truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Water Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
ISUZU 600P 6tons Delivery Water Tanker
25 spec rowsView Details
ISUZU 20cbm Tri Axle Water Hauler Truck
29 spec rowsView Details
Quote The ISUZU ELF 5000L Water Bowser Truck
This build is listed as chassis ISUZU with engine ISUZU engine, 4KH1. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
