ISUZU FTR 10000liters fire water tanker Nigeria

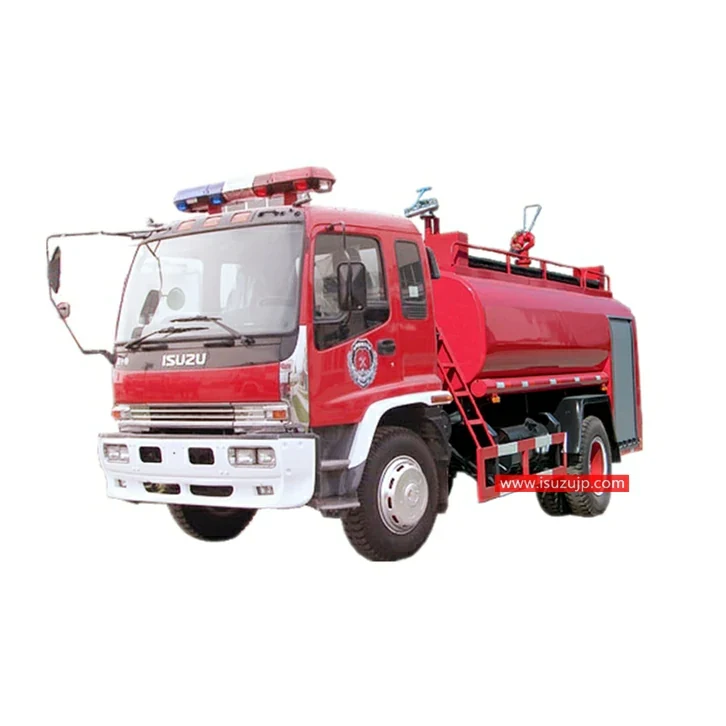

Main photo

ISUZU Fire Water Tanker

ISUZU FTR 10000liters Fire Water Tanker

Isuzu FTR firefighter truck, Left Hand Drive model 4X2 chassis, 6 shift manual gearbox, 205 HP diesel engine

Chassis: ISUZU
Engine: ISUZU engine
Power: 205HP (155 KW)
Overall Dimension: 8700X2500X3600 mm
GVW / Kerb Weight: 18,000 kg / 8,300 kg
Drive Type: 4X2, left hand drive
Transmission: 6-speed forward, 1 reverse
Emission: Euro V

Specification below is the factory table for this model, reproduced without edits. 53 rows.

ISUZU FTR 10000liters Fire Water Tanker Description

ISUZU fire water tanker also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.

Advantage

100% custom-made
ISUZU GIGA heavy-duty Chassis, Durable & Performance.
ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
High-performance fire pump and fire cannon
Water tank and Foam tank capacity can be optional.
Tanker material: Carbon steel or Stainless steel
With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
Easy operation and easy maintenance.
FREE training in our factory if you need it.

Specification

ISUZU FTR 10000liters fire water tanker

General	Vehicle Brand	CHENG LI
	Chassis Brand	ISUZU
	Overall Dimension	8700X2500X3600 mm
	GVW / Kerb Weight	18,000 kg / 8,300 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Air conditioner is optional
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	205HP (155 KW)
	Displacement	5999 ml
	Emission Standard	Euro V
Chassis	Drive Type	4X2, left hand drive
	Transmission	6-speed forward, 1 reverse
	No. of axle	2
	Tyre Specification	235/75R17.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Water Capacity	10,000 Liters (About 2,640 gallons)
	Tank Material	Carbon steel
	Fire Pump	60 L/s
	Fire Cannon	50 L/s
	Shot	≥ 65 m
	Suction Head	6 m
	Hose	High quality, wire strengthened hose, with cooper wire, anti-static

Fire Equipment Table

ISUZU FTR 10000liters Fire Water Tanker Specification

Serial number	name	specification Quantity unit Remarks
1	straw	125×4 meters 2 root Threaded
2	Water filter	FLF125 1 Piece Threaded
3	Trap	FII80/65×3-1.6 1 Piece Internal button
4	Water trap	JII125/65×2-1.0 1 Piece Internal button
5	Hose	13-65-20 6 plate Low pressure;
6	Hose	13-80-20 6 plate Low pressure;
7	Reducing interface	KJ65/80 2 Piece Internal button
8	Water-retaining cloth	DT-SB 4 Piece Internal button
9	Hose hook	4 Piece
10	Ground fire hydrant wrench	QT-DS1; length 400 1 Piece
11	Underground hydrant wrench	Long 860 1 Piece
12	Suction pipe wrench	FS100 2 Piece
13	DC switch water gun	QZG3.5/7.5; 65 1 support Low pressure;
14	DC Flowering Water Gun	QZK3.5/7.5; 65 1 support Low pressure;
15	Fire extinguisher	3KG 1 With
16	Fire waist axe	Length 390; GF-285 1 Piece
17	Rubber hammer	1 Piece
18	Rechargeable portable lighting	1 Piece

Optional Fire Equipment

ISUZU FTR 10000liters Fire Water Tanker Specification

Serial number	name	specification Quantity unit Remarks
1	Automatic charging device	12V 1 set
2	Air backrest	3 set
3	Air breathing apparatus	Number of members set
4	Hose bridge	rubber 2 vice
5	Telescopic ladder	1 vice
6	Hand lift the pump	1 station
7	Breaking tools	1 set
8	Other fire equipment

Questions

Questions About The ISUZU FTR 10000liters Fire Water Tanker

What chassis is the ISUZU FTR 10000liters Fire Water Tanker built on?

It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.

What is the capacity of this isuzu fire water tanker?

Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.

Can it be built to our own specification?

Yes, we can produce according to the customer's technical drawings and specifications.

How long before it is ready to ship?

Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

How do we pay and what do we see before the balance?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.

Is the truck tested before delivery?

Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.

What support is available after it arrives?

Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
