- ISUZU FTR 8 Ton Hydraulic Telescopic Truck Crane
Main photo
Isuzu Truck Mounted Crane

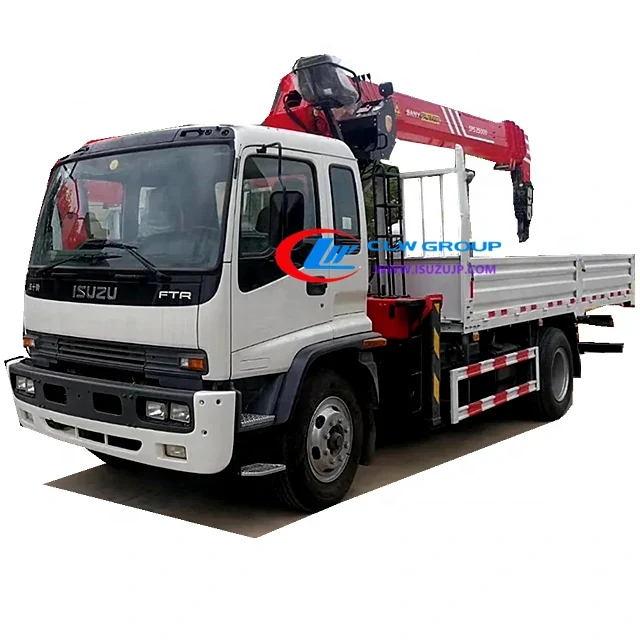

ISUZU FTR 8 Ton Hydraulic Telescopic Truck Crane
ISUZU FTR Left Hand Drive model 4×2 chassis, MLD 6-shift manual gearbox, 205HP diesel engine, painting and logos depend on requirement. cargo box
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 240 HP (177 KW)
- Overall Dimension
- 8990X2510X3550 mm
- GVW / Kerb Weight
- 18,000kg / 10,550kg
- Drive Type
- 4X2
- Transmission
- MLD 6 speed levers with 1 reverse
- Emission
- Euro 5
Specification below is the factory table for this model, reproduced without edits. 36 rows.
ISUZU FTR 8 Ton Hydraulic Telescopic Truck Crane Description
- ISUZU 8 ton truck crane also called as construction crane trucks, Isuzu truck loder vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage
- ISUZU FTR chassis ensures perfect performance on driving
- ISUZU technology engine, super powerful, no overhaul within 500,000 km.
- High strength cargo body, nice shape and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG or Chengli (China top brand),etc.
Crane Features
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means make sure that the design is very reliable.
- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
- Compact hinge point design take up smaller space
- The work is more safety after fitted over-winds alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
- Anti-slewing impulse equipment that make vehicle running safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckled boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)
Specification
ISUZU FTR Hydraulic telescopic 8 ton truck crane
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 8990X2510X3550 mm | |
| GVW / Kerb Weight | 18,000kg / 10,550kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 240 HP (177 KW) | |
| Displacement | 7790 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 4X2 |
| Transmission | MLD 6 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tire Specification | 10.00R20 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Rated lifting moment | 25mt |
| Rated lifting capacity | 8000kg(2.5m) | |
| Max.outreach | 17.7m | |
| Max.lines of hook | 6 | |
| Slewing angle(continuous) | continuous | |
| Boom raising angle | 0~75° | |
| Max.lifting height(the measurement from the ground after the outriggers fully extended) | 20.1m | |
| Length of the basic boom | 5.3m | |
| Length of fully extended boom | 18.1m | |
| Boom sections | 5 | |
| Outrigger span (fully extended) | 5.6m | |
| Recommended volum for the system | 70L/min | |
| Operating pressure | 27/34Mpa | |
| Oil tank capacity | 200L | |
| Crane moment (dynamic) | 433.7kNm (44.2mt) | |
| Torsional moment (dynamic) | 26.3kNm (2.7mt) | |
| All standard accessories: Basic tool kit, English manual…… | ||
| Optional | Knuckle boom crane. Hydraulic tipper box. Box thickness according to requirement. Box height could be nominated Remote Control Box optional | |
Questions
Questions About The ISUZU FTR 8 Ton Hydraulic Telescopic Truck Crane
What chassis is the ISUZU FTR 8 Ton Hydraulic Telescopic Truck Crane built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu truck mounted crane?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
