- ISUZU FVR 15000litres Fuel Delivery Truck
Main photo
Isuzu Fuel Truck

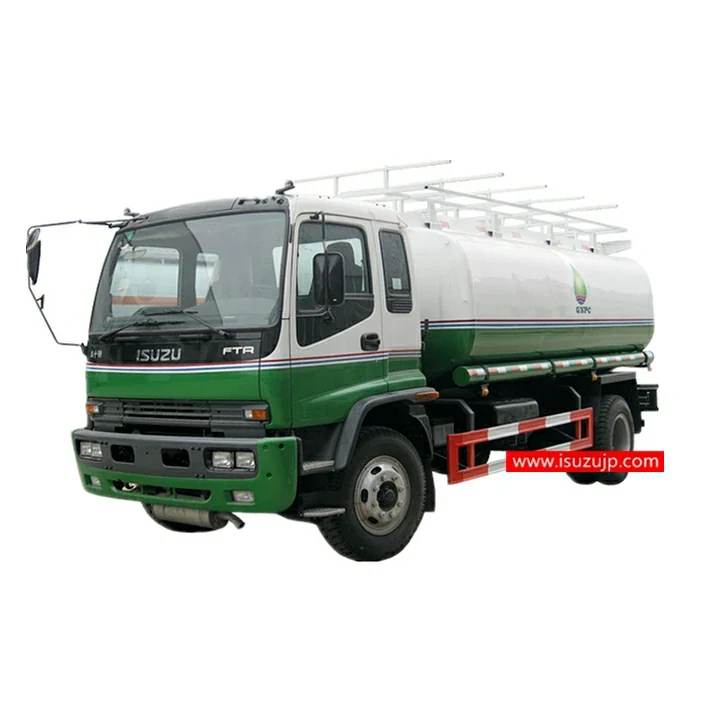

ISUZU FVR 15000litres Fuel Delivery Truck
Available Colors: Customization Logo: Customization
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 240 (176 KW)
- Overall Dimension
- 8200X2500X3000 mm
- GVW / Kerb Weight
- 16,050 kg / 6,850 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- ISUZU gear box, no overhaul within 500,000km
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 25 rows.
Introduction
ISUZU FVR 15000litres fuel delivery truck (also called fuel oil bowser, diesel gasoline tanker bowser, fuel oil dispenser truck, petrol tanker truck, refuel bowser vehicle) is used to transport oil, diesel, gasoline, kerosene, etc.

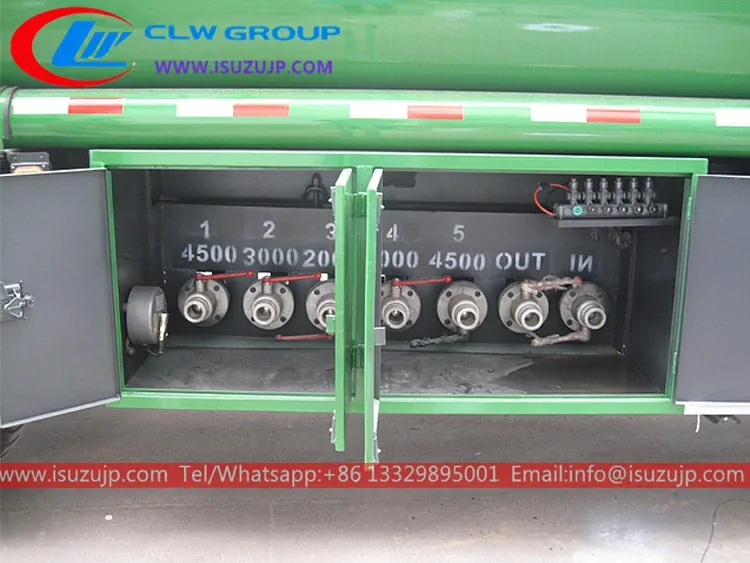

ChengLi company Production fuel bowser can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol…
ISUZU fuel truck can be equipped with oil pump and refueling machine, flow meters all for easy operation.
Advantage
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cubic Meter.
- Easy operation and easy maintenance.
- Euro V, Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Specifications
ISUZU FVR 15000litres fuel delivery truck
| General | Vehicle Brand | CHENG LI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 8200X2500X3000 mm | |
| GVW / Kerb Weight | 16,050 kg / 6,850 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 240 (176 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 15,000 Litres (About 3,960 gallons) |
| Tank Material | Carbon steel | |
| Pump | Equipped for overhead delivery, 1000 litres / min | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… It can be divided into many compartments. Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge…… Heat preservation & heating system could be added. Bottom loading system can be equipped. | |
Fuel Tanker Truck Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU FVR 15000litres Fuel Delivery Truck
What chassis is the ISUZU FVR 15000litres Fuel Delivery Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fuel truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
