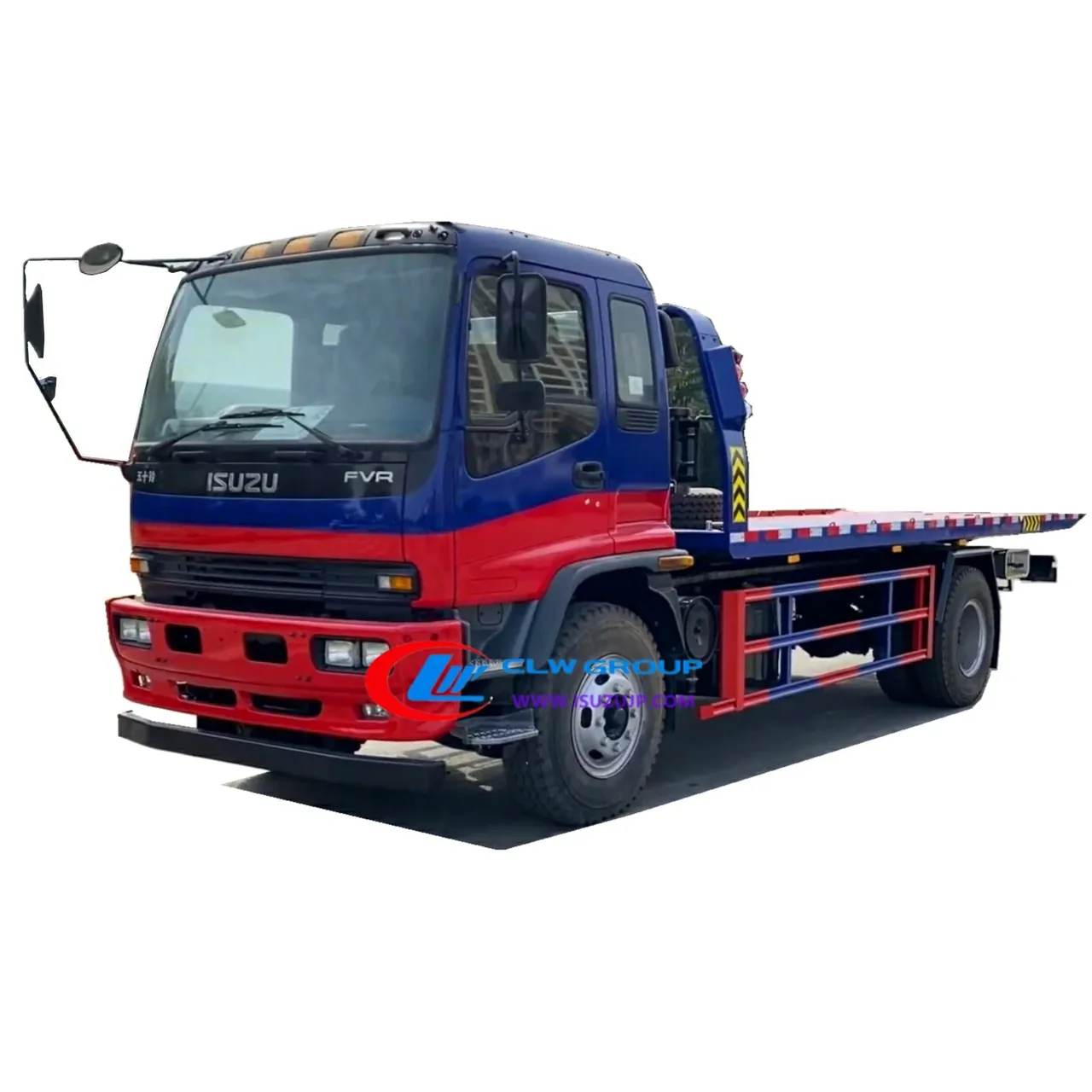

Main photo
ISUZU Wrecker Tow Truck
ISUZU FVR 8t-10 Ton Road Emergency Flatbed Tow Wrecker Rescue Vehicle
ISUZU 8-10 ton flatbed wrecker tow truck, Left Hand Drive model 4×2 chassis, MLD 6-shift manual gearbox, ISUZU 240 HP diesel engine, long platform with hydraulic cylinder working
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 240HP (177KW)
- Overall Dimension
- 8900 x 2550 x 2850 mm
- GVW / Kerb Weight
- 16,000 kg / 8,500 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- Manual transmission, 6-forward gears & 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 26 rows.
ISUZU FVR 8t-10 Ton Road Emergency Flatbed Tow Wrecker Rescue Vehicle Description
- ISUZU flatbed tow wrecker rescue vehicle also called multi-function towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker
- is used to transport motor vehicles or the vehicles that are broken down.
- can supply recovery trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30ton,40ton,50tons.Towing capacity is optional.
Advantage
- 100% custom-made
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- 3 Ton to 50 Tons available
- Short delivery time 7~30 days
- Telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.
- Easy operation & Easy maintenance
Specification
ISUZU FVR 8t-10 ton road emergency flatbed tow wrecker rescue vehicle
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 8900 x 2550 x 2850 mm | |
| GVW / Kerb Weight | 16,000 kg / 8,500 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 240HP (177KW) | |
| Displacement | 7790 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | Manual transmission, 6-forward gears & 1 reverse | |
| Wheelbase/No. of axle | 5550 mm / 2 | |
| Tyre Specification | 295/80R22.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Flatbed Dimensions | 6500x2500mm |
| Load Capacity | 8 Tons or 10 Tons | |
| Towing Capacity | 8 Tons or 10 Tons | |
| Gradient of flat board | 10 degree | |
| Control | Control panel on both side | |
| Wire rope | 21 m | |
| Max towing speed | 40 km/h | |
| Equipment | 2 units of towing wheel, 1 unit of 4 ton winch, 1 unit of steel wire tope, 1 unit of spare tire, 1unit of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm lamp |
ISUZU Flatbed Tow Truck Flatbed Recovery Vehicle Advantage
- Loading surface of the platform is formed by stamping die once.
- Endurance is strong and the shape is not deformed.
- Plate surface is smoother, the structure is more professional and the strength is higher.
- Hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
- It integrates multiple functions such as lifting, carrying, dragging, pulling and so on.
- Hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
Questions
Questions About The ISUZU FVR 8t-10 Ton Road Emergency Flatbed Tow Wrecker Rescue Vehicle
What chassis is the ISUZU FVR 8t-10 Ton Road Emergency Flatbed Tow Wrecker Rescue Vehicle built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu wrecker tow truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
