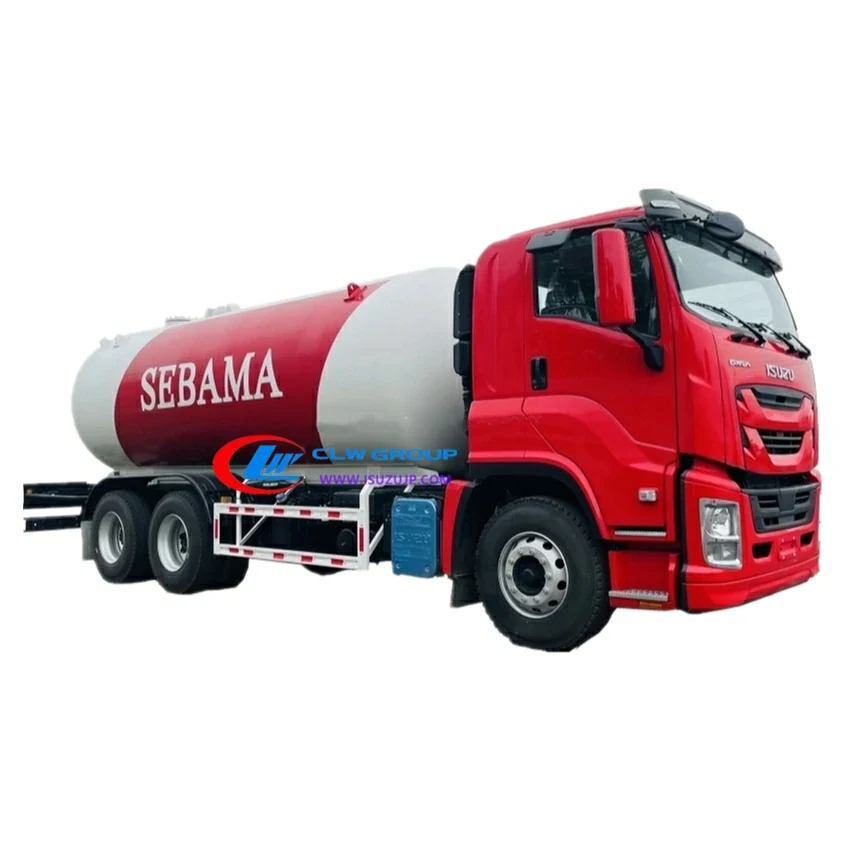

- ISUZU GIGA 25000liters LPG Gas Tanker for Sale
Main photo
ISUZU Lpg Tanker Truck
ISUZU GIGA 25000liters LPG Gas Tanker for Sale
Available Colors: Customization Logo: Customization
- Chassis
- Isuzu
- Power
- 350hp
- Overall Dimension
- 9400*2500*3600 (mm)
- Emission
- Euro II
- Loading Weight
- 10000 kg
- Front and Rear Axle Load
- 7T/13-26T
- Tank Capacity
- 20 CBM
- Tank Dimension(inner Diameter*thickness*length)
- 2050*10*7644 mm
Specification below is the factory table for this model, reproduced without edits. 26 rows.
Introduction
- Is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutane, etc.
- Also can be used as a mobile gas station after being equipped with a gas dispenser, LPG gas pump.
- Material uses a specialized steel for high-pressure tanker, which is anti-corrosive and keeps good stability at low or high temperatures.
- GAS tanker trucks are basically equipped with a safety valve, emergency shut-off valve, thermometer, pressure gauge for safety use.
ISUZU GIGA 25000liters lpg gas tanker also called LPG tanker, GAS delivery vehicle, propane tanker, etc
Advantage
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- LPG Tanker capacity from 3 to 30 Cubic meters.
- Easy operation and easy maintenance.
- Euro V, and Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Lpg Truck Specifications
ISUZU GIGA 25000liters lpg gas tanker General Technical Parameters
| Overall Dimension | 9400*2500*3600 (mm) | |
|---|---|---|
| Gross Vehicle Weight | 21735 kg | |
| Curb Weight | 7240 kg | |
| Loading Weight | 10000 kg | |
| Chassis Specification | ||
| Chassis Brand | Isuzu | |
| Cabin | Row and half, 3 passengers allowed, Left-hand drive | |
| Engine | Model | 6UZ1-TCG51, 6 Cylinders |
| Power | 350hp | |
| Emission standard | Euro II | |
| Displacement | 9.839L | |
| Fuel type | Diesel | |
| Gearbox | Manual, 6 Forward & 1 Reverse Gear | |
| Front and Rear Axle load | 7T/13-26T | |
| Wheelbase | 3985+1370(mm) | |
| Brake System | Air brake system | |
| Steering Gear | Power Assistant | |
| Tire | 315/80R22.5, 10 Pieces with 1 Spare Tire | |
| Maximum speed | 90(km/h) | |
| Superstructure | ||
| Tank Capacity | 20 CBM | |
| Filling Content | Liquefied Petroleum Gas (Propane) | |
| Tank Dimension(inner diameter*thickness*length) | 2050*10*7644 mm | |
| Tank Material | Q345R high tension steel | |
| Tank Specification | Designed Pressure: 1.61Mpa Filling Ratio: 420kg/m3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm | |
| Main Accessories | Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, Valve Boxes | |
Questions
Questions About The ISUZU GIGA 25000liters LPG Gas Tanker for Sale
What chassis is the ISUZU GIGA 25000liters LPG Gas Tanker for Sale built on?
It is built on Isuzu. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu lpg tanker truck?
The factory table lists Loading Weight 10000 kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Lpg Tanker Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU GIGA 25000liters LPG Gas Tanker for Sale
This build is listed as chassis Isuzu with power 350hp. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
