Main photo
ISUZU Lpg Tanker Truck

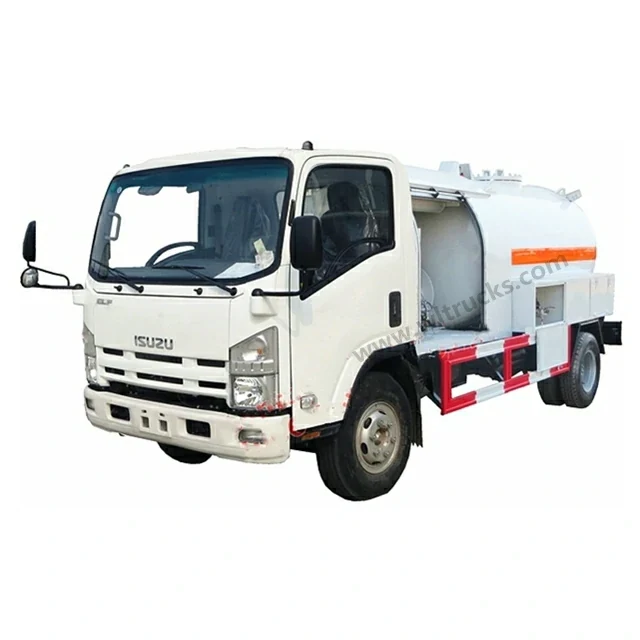

ISUZU NPR 5000liters Propane Tanker Truck
Available Colors: Customization Logo: Customization
- Overall Dimension
- 7360*2200*2700mm
- Emission
- Euro 4
- Loading Weight
- 6000kg
- Body Size
- 6900x2400x2600mm
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 24 rows.
Introduction
- Is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutane, etc.
- Also can be used as a mobile gas station after being equipped with a gas dispenser, LPG gas pump.
- Material uses a specialized steel for high-pressure tanker, which is anti-corrosive and keeps good stability at low or high temperatures.
- GAS tanker trucks are basically equipped with a safety valve, emergency shut-off valve, thermometer, pressure gauge for safety use.
ISUZU NPR 5000liters propane tanker truck also called LPG tanker, LPG delivery vehicle, GAS tanker, etc
Advantage
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- LPG Tanker capacity from 3 to 30 Cubic Meter.
- Easy operation and easy maintenance.
- Euro V, Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Lpg Truck Specifications
ISUZU NPR 5000liters propane tanker truck
| Chassis Model /Manufacturer | QL1090 | |
|---|---|---|
| Overall Dimension | 7360*2200*2700mm | |
| Total Mass | 12350Kg | |
| Loading weight | 6000kg | |
| Kerb Weight | 6200Kg | |
| front overhang/rear overhang | 1110/2235 | |
| Engine | Model/Rated Power | 4HK1-TCG40 / 140kw 190Hp |
| Emission Standard | Euro 4 | |
| Displacement | 5193L | |
| manufacturer | ISUZU Motor Co., Ltd. | |
| driving type | 4*2 | |
| Steering Type | Powering steering | |
| Type & Size of Tyre | 8.25-16 | |
| Tread( front/rear) | 1680/1650 | |
| Front axle | 4T front axle | |
| Rear-axle | 7T rear axle | |
| Wheel Base | 3815mm | |
| Number of leaf spring of the suspension | 8/10+6 | |
| Max Speed | 120Km/h | |
| Other | Capacity:5,000Litres to 6000Liters | |
| With LPG Pump, LPG Dispenser, LPG Filling Nozzle | ||
| Other | ISUZU MSB Five forwards the transmission | |
| Power steering. air condition | ||
| Oil brake with vacuum booster pump | ||
Questions
Questions About The ISUZU NPR 5000liters Propane Tanker Truck
What chassis is the ISUZU NPR 5000liters Propane Tanker Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu lpg tanker truck?
The factory table lists Loading Weight 6000kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Lpg Tanker Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NPR 5000liters Propane Tanker Truck
This build is listed as overall dimension 7360*2200*2700mm with emission Euro 4. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
