ISUZU Lpg Tanker Truck
ISUZU NP Forward 2000 Gallons Mobile LPG Gas Bobtail Truck
Available Colors: Customization Logo: Customization
- Power
- 190HP
- Tank Capacity
- 8,000L
- Tank Material
- 10mm high strength carbon steel, Q345R material, with inside and outside antirust treatment
- LPG Pump
- Top Chinese brand
- Tank Shape
- Round as standard
Specification below is the factory table for this model, reproduced without edits. 35 rows.
Introduction
- Is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutane, etc.
- Also can be used as a mobile gas station after being equipped with a gas dispenser, LPG gas pump.
- Material uses a specialized steel for high-pressure tanker, which is anti-corrosive and keeps good stability at low or high temperatures.
- GAS tanker trucks are basically equipped with a safety valve, emergency shut-off valve, thermometer, pressure gauge for safety use.

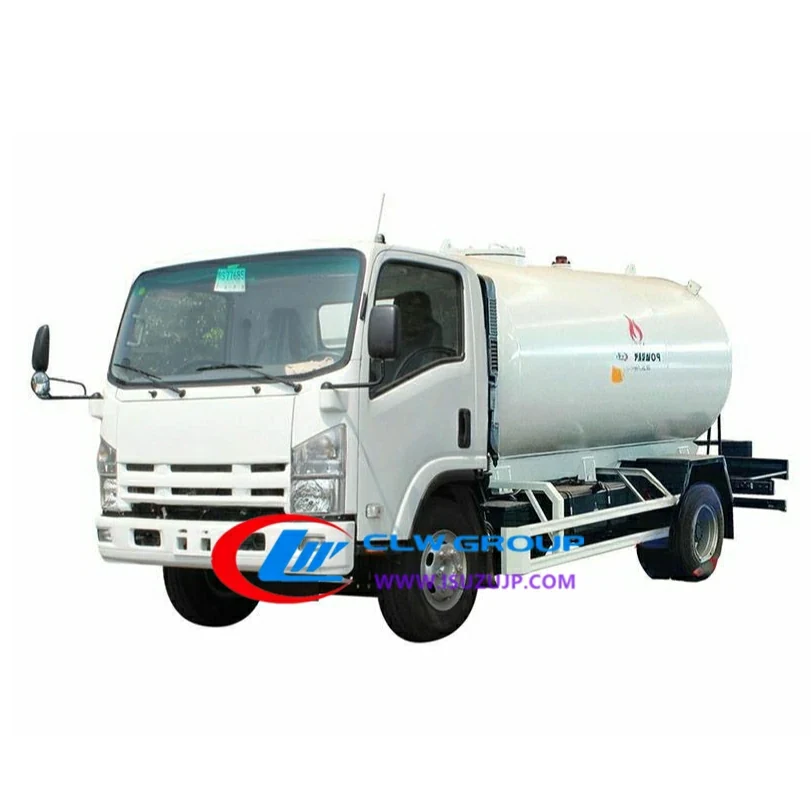

ISUZU NP Forward 2000 gallons mobile Lpg gas bobtail truck also called LPG tanker, LPG delivery vehicle, GAS tanker, etc
Advantage
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- LPG Tanker capacity from 3 to 30 Cubic Meter.
- Easy operation and easy maintenance.
- Euro V, Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Lpg Truck Specifications
ISUZU NP Forward 2000 Gallons Mobile LPG Gas Bobtail Truck Specification
| Manufacturer | CHENGLI Trucks | |
|---|---|---|
| Item | ISUZU NP Forward 2000 gallons mobile Lpg bobtail truck | |
| Brand | ISUZU NP Forward | |
| Model | PT08JQ | |
| Production Time | 25 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 6600*2200*2850 mm |
| Gross weight | 10,000 kg | |
| Kerb weight | 4,800 kg | |
| Wheelbase | 3,815 mm | |
| Driving type | 4*2 | |
| Chassis model | QINGLING NPR Light-duty | |
| Tire size | 235/75R17.5 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 4HK1-TC51 |
| Type of fuel | Diesel | |
| Power | 190HP | |
| Gearbox | MLD 6-shift gearbox | |
| Upper Structure | ||
| Fuel Tanker performance | Tank Capacity | 8,000L |
| Tank Material | 10mm high strength carbon steel, Q345R material, with inside and outside antirust treatment | |
| LPG Pump | Top Chinese brand | |
| Import brand optional | ||
| Radiator | 1 pc, which to avoid high temperature of hydraulic oil during operation | |
| Tank Shape | Round as standard | |
| Hydraulic Motor | Standard 1 pc | |
| LPG Dispenser | English remarks with printer for receipt | |
| LPG Flow Meter | MA-50-XC-10 model, durable | |
| Control Panel | English | |
| Level Gauge | 1 pc, which installed at rear of the tank | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, LPG Dispenser 3, Electricity controlled model | |
Questions
Questions About The ISUZU NP Forward 2000 Gallons Mobile LPG Gas Bobtail Truck
What chassis is the ISUZU NP Forward 2000 Gallons Mobile LPG Gas Bobtail Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu lpg tanker truck?
The factory table lists Tank Capacity 8,000L. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Lpg Tanker Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NP Forward 2000 Gallons Mobile LPG Gas Bobtail Truck
This build is listed as power 190HP with tank capacity 8,000L. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
