Isuzu Sewage Suction Truck

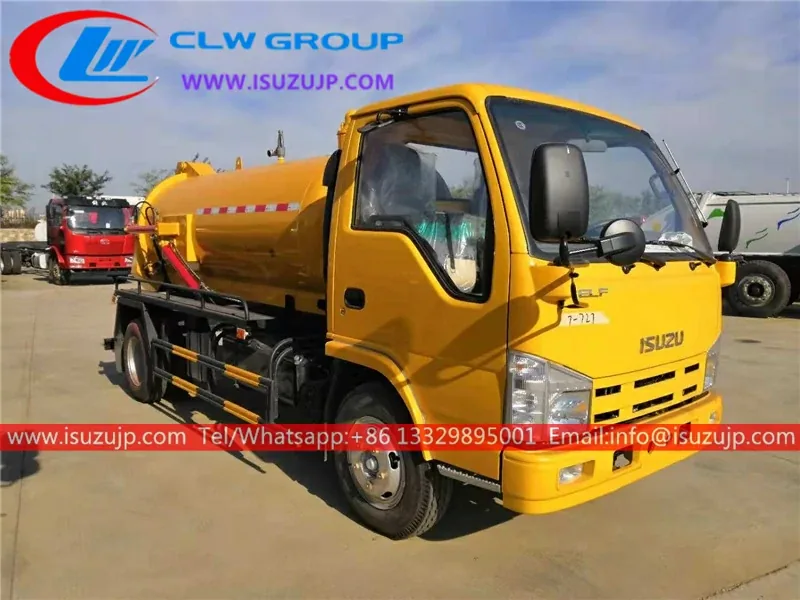

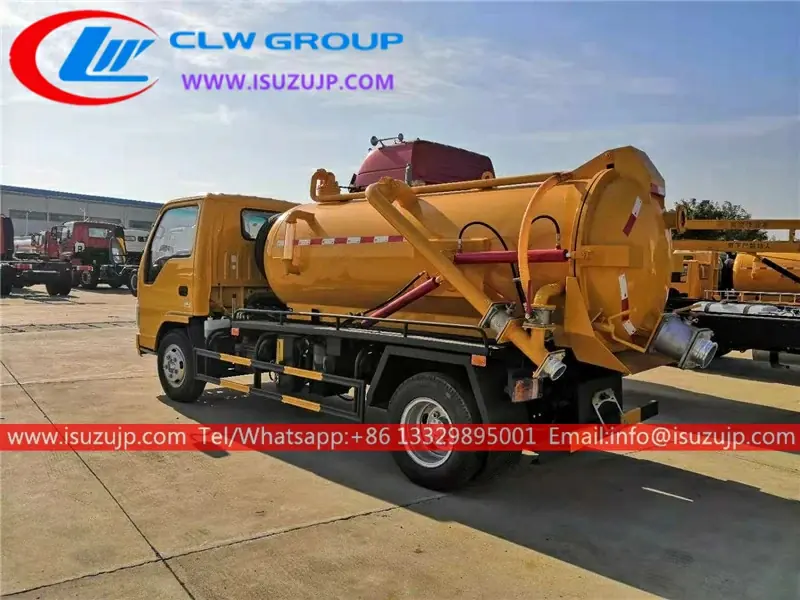

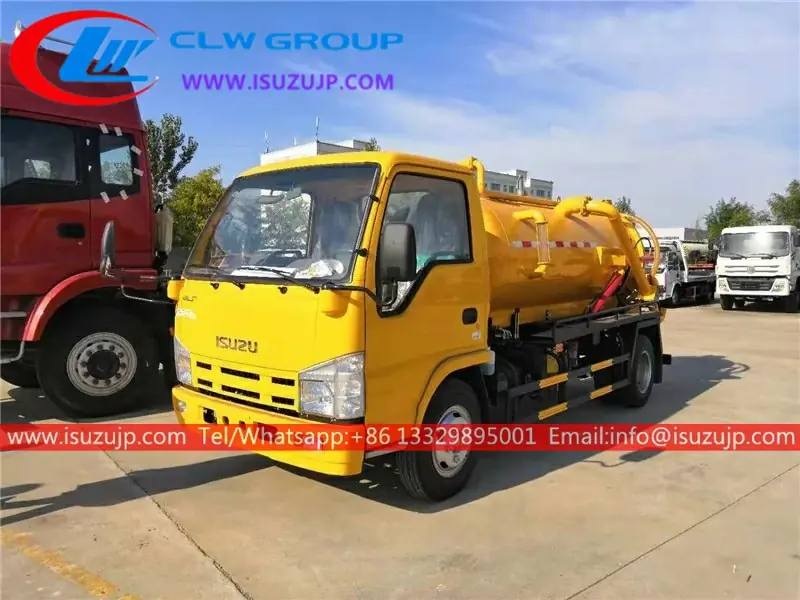

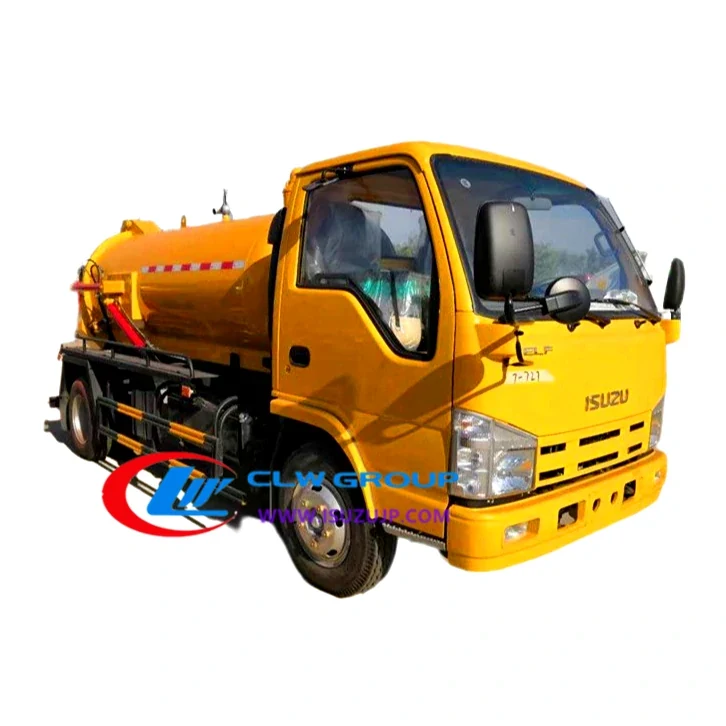

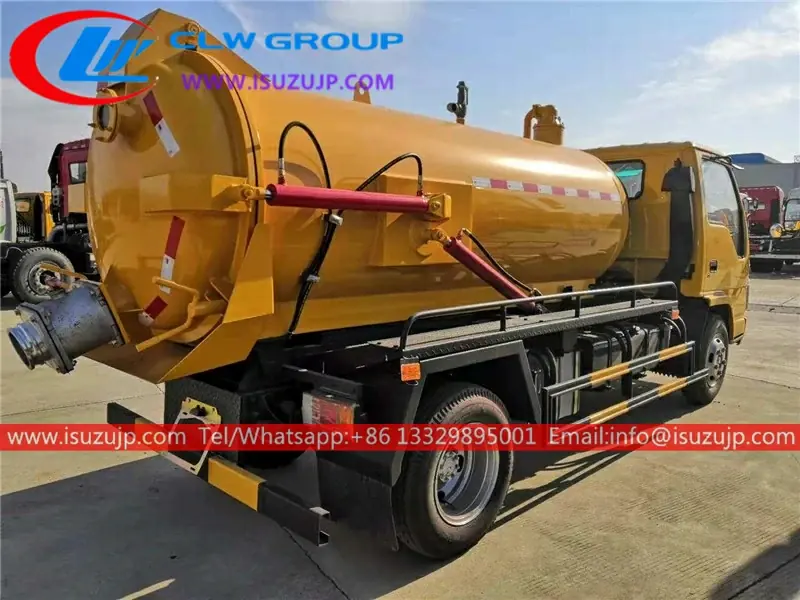

ISUZU NHR 3000L Sewage Truck for Sale
Best 3cbm sewage suction truck, ISUZU Left Hand Drive model 4×2 chassis, MSB 5-shift manual gearbox, ISUZU 4JB1CN 98 HP diesel engine
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 98 HP (72 KW)
- Overall Dimension
- 5400x2000x2400 mm
- GVW / Kerb Weight
- 5,400kg / 2,500kg
- Drive Type
- 4X2 (left hand drive)
- Transmission
- MSB 5-shift speed levers with 1 reverse
- Emission
- Euro 5
Specification below is the factory table for this model, reproduced without edits. 36 rows.
ISUZU NHR 3000L Sewage Suction Trucks Description
- Isuzu sewage truck also called suction vacuum truck, vacuum vehicle, sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks,sewer tanker trucks.
- Vacuum sewage suction truck is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Advantage
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU ELF 100P chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
Specification
ISUZU NHR 3000L sewage truck for sale(3cbm)
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 5400x2000x2400 mm | |
| GVW / Kerb Weight | 5,400kg / 2,500kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 98 HP (72 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 4X2 (left hand drive) |
| Transmission | MSB 5-shift speed levers with 1 reverse | |
| Wheelbase/No. of axle | 2750 mm / 2 | |
| Tire Specification | 650R15 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 3,000 Litres |
| Tanker Material | Carbon Steel | |
| Suction Head pipeline | 7 m | |
| Vacuum Pump brand | WEILONG / Italy BP / Domestic Pump | |
| Vacuum Pump advantage | High efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m | |
| Hose | High quality, wire strengthened hose | |
| Control panel | English or Your language | |
| All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual…… | ||
| Optional | Back alarm and Camera can be equipped. Standard carbon steel, stainless steel optional. Standard WEILONG vacuum pump, Italy vacuum pump optional | |
Working Parameter
ISUZU NHR 3000L Sewage Truck for Sale Specification
| Suction speed | Fill up in 10 minutes | Tank material Carbon steel Q345, stainless steel 304 |
|---|---|---|
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | |
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | |
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | |
Sewage Tanker Truck Part,tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NHR 3000L Sewage Truck for Sale
What chassis is the ISUZU NHR 3000L Sewage Truck for Sale built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu sewage suction truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Sewage Suction Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NHR 3000L Sewage Truck for Sale
This build is listed as chassis ISUZU with engine ISUZU. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
