Main photo
ISUZU Wrecker Tow Truck

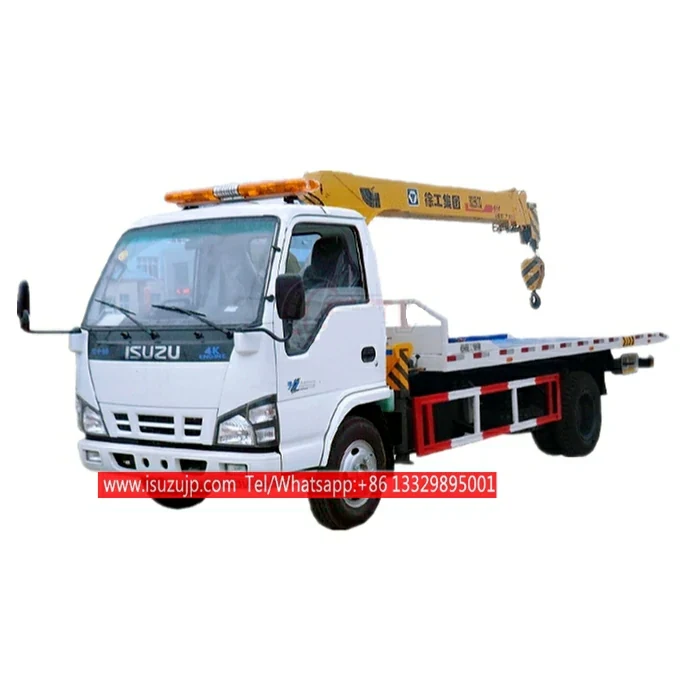

ISUZU NKR 3 Ton Flatbed Wrecker Truck with Crane
ISUZU 3 tons flatbed wrecker tow truck with crane, Left Hand Drive model 4×2 chassis, MSB 5-shift manual gearbox, ISUZU 120 HP diesel engine, long platform with hydraulic cylinder working
- Chassis
- ISUZU
- Engine
- ISUZU engine, 4HK1
- Power
- 120 Hp (88 KW)
- Overall Dimension
- 7450X2330X2520 mm
- GVW / Kerb Weight
- 7,300 kg / 4,165 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- ISUZU gear box, no overhaul within 500,000km
- Emission
- Euro IV
Specification below is the factory table for this model, reproduced without edits. 28 rows.
ISUZU NKR 3 Ton Flatbed Wrecker Truck with Crane Description
- ISUZU flatbed wrecker truck with crane also called multi-function towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker
- is used to transport motor vehicles or the vehicles that are broken down.
- Based on the type or size of vehicle to be towed, wreckers are usually designed into two types. One is slide bed tow truck with wheel-lift function; another one is wheel-lift units that offer a combination boom with sling.
Advantage
- 100% custom-made
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- 3 Ton to 50 Tons available
- Short delivery time 7~30 days
- Telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.
- Easy operation & Easy maintenance
Specification
ISUZU NKR 3 ton flatbed wrecker truck with crane
| General | Vehicle Brand | CHENGHLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 7450X2330X2520 mm | |
| GVW / Kerb Weight | 7,300 kg / 4,165 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1 | |
| Power | 120 Hp (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Towing Type | Slidebed with wheel-lift |
| Flatbed Payload Capacity | 3 Ton | |
| Flatbed Length | 4.2 M | |
| Towing capacity | 3 Ton | |

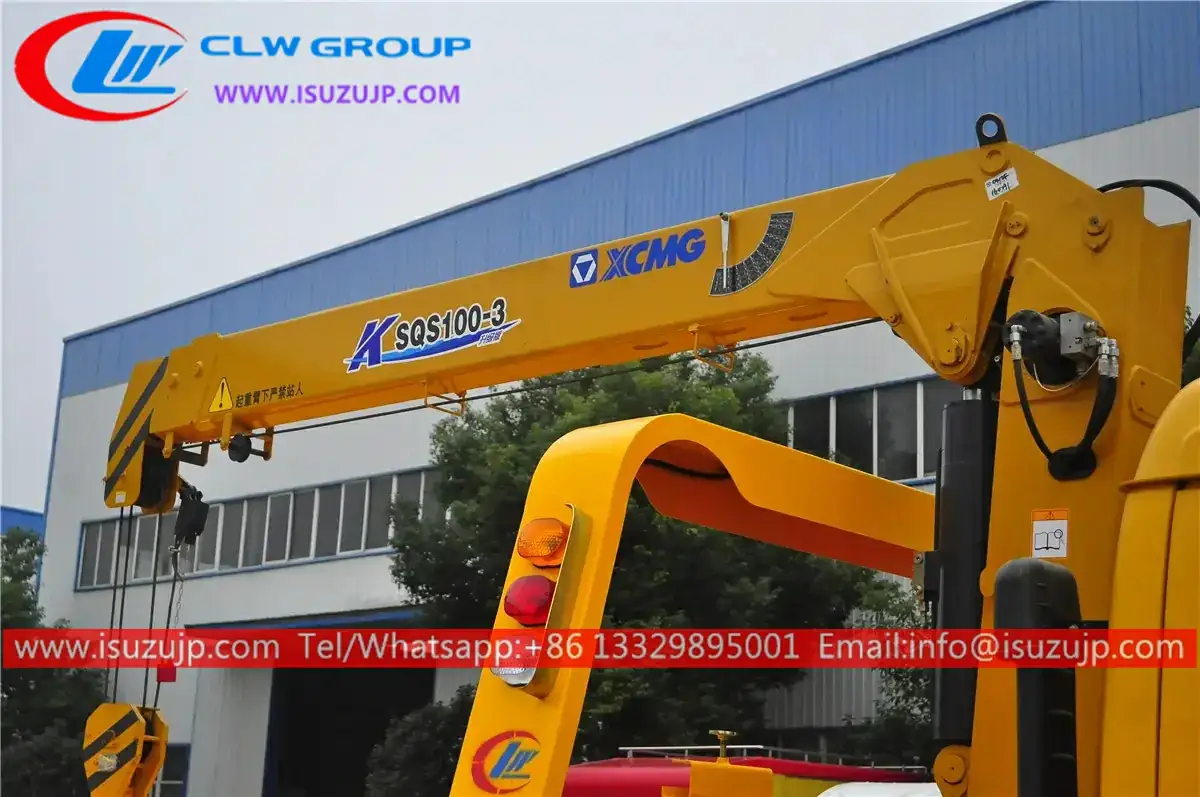

| Crane Type | Telescopic boom crane | |
| Max. Lifting Capacity | 2 Ton | |
| Max. Lifting Height | 9 m | |
| Crane Capacity | 2000 kg @ 2.1 m 1000 kg @ 3 m 400 kg @ 5.4 m 255 kg @ 7.73 m | |
| All other standard accessories: Binding belt, auxiliary sliding board, spinning cylinder, L-type fork, tyre cover…… | ||
| Optional | LED alarm lamp is optional. Crane could be installed on flatbed wrecker. | |
ISUZU Flatbed Tow Truck Flatbed Recovery Vehicle Advantage
- Loading surface of the platform is formed by stamping die once.
- Endurance is strong and the shape is not deformed.
- Plate surface is smoother, the structure is more professional and the strength is higher.
- Hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
- It integrates multiple functions such as lifting, carrying, dragging, pulling and so on.
- Hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
Questions
Questions About The ISUZU NKR 3 Ton Flatbed Wrecker Truck with Crane
What chassis is the ISUZU NKR 3 Ton Flatbed Wrecker Truck with Crane built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu wrecker tow truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Wrecker Tow Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NKR 3 Ton Flatbed Wrecker Truck with Crane
This build is listed as chassis ISUZU with engine ISUZU engine, 4HK1. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
