Main photo
Guardrail Cleaning Truck

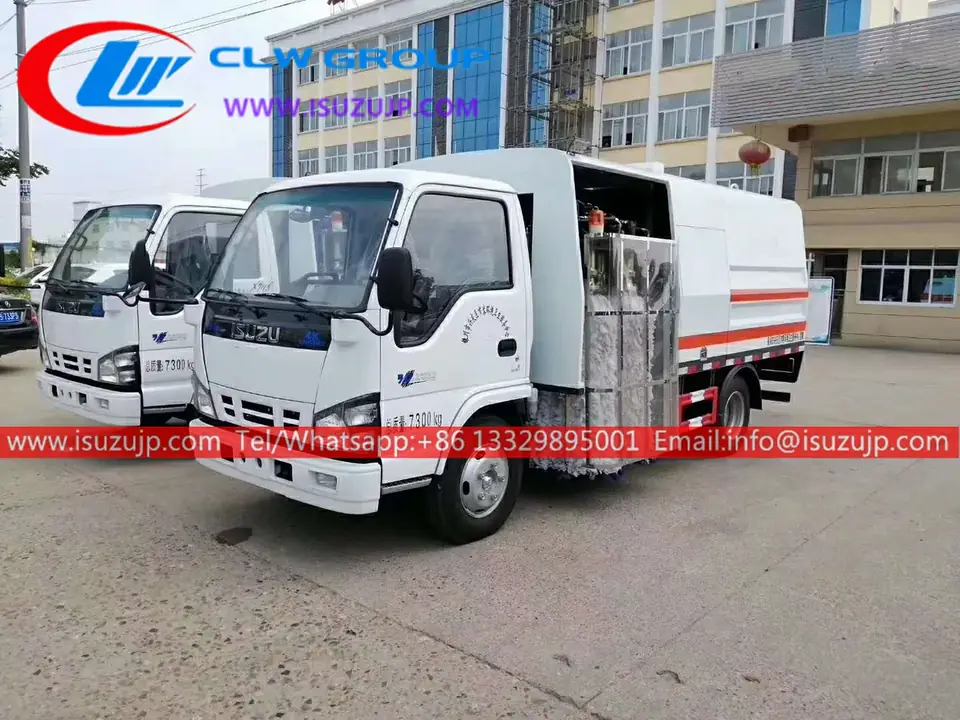

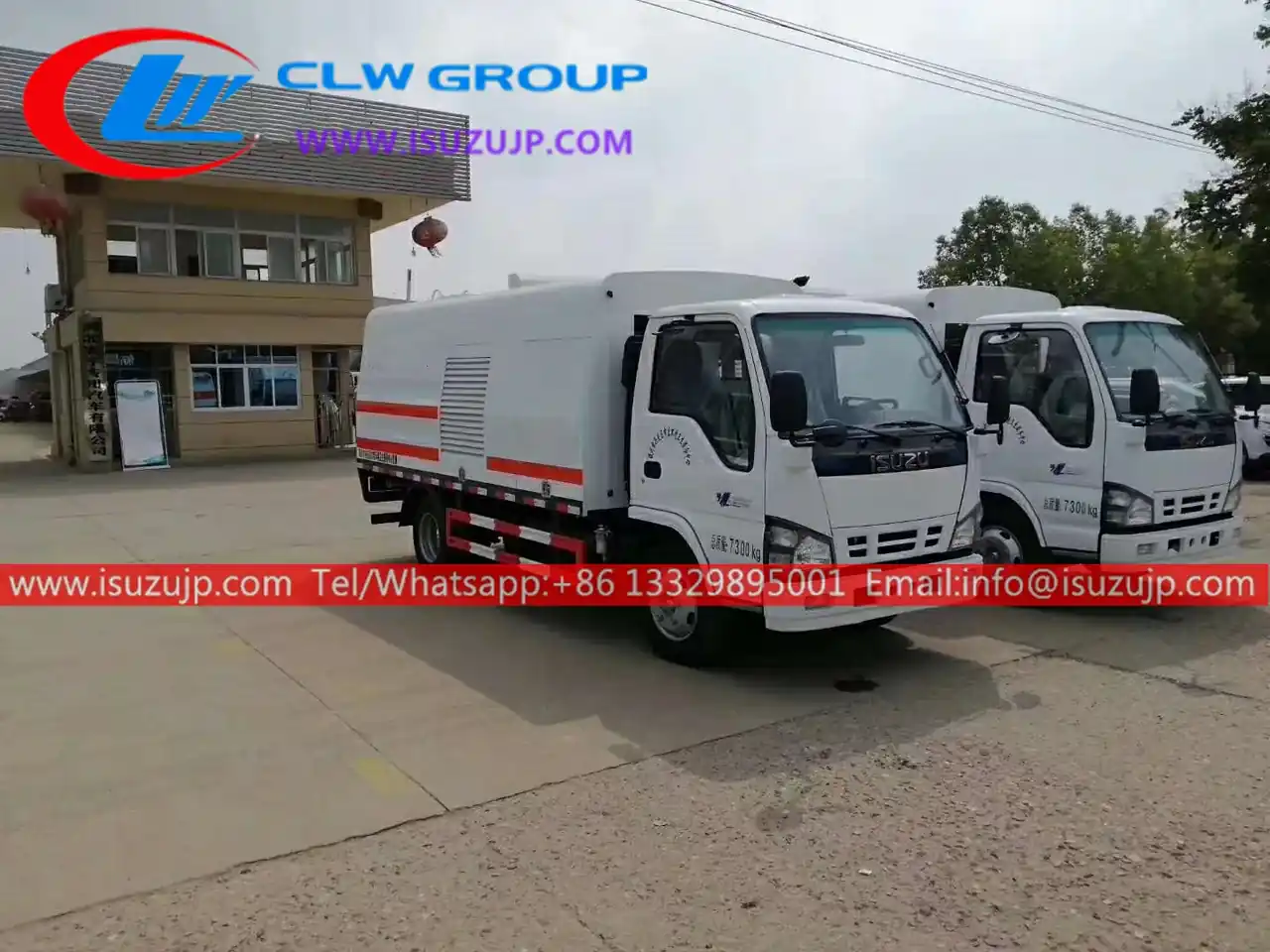

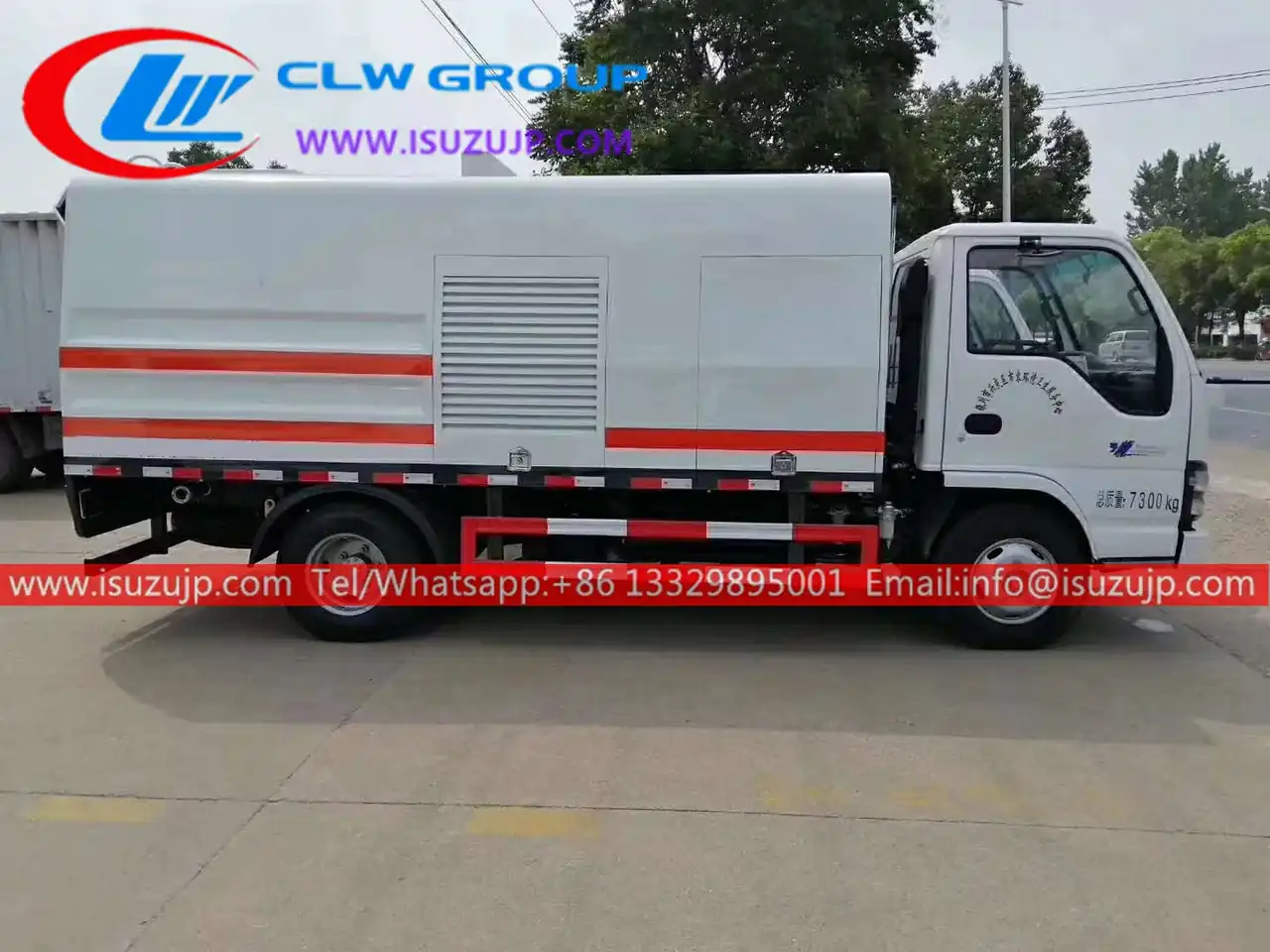

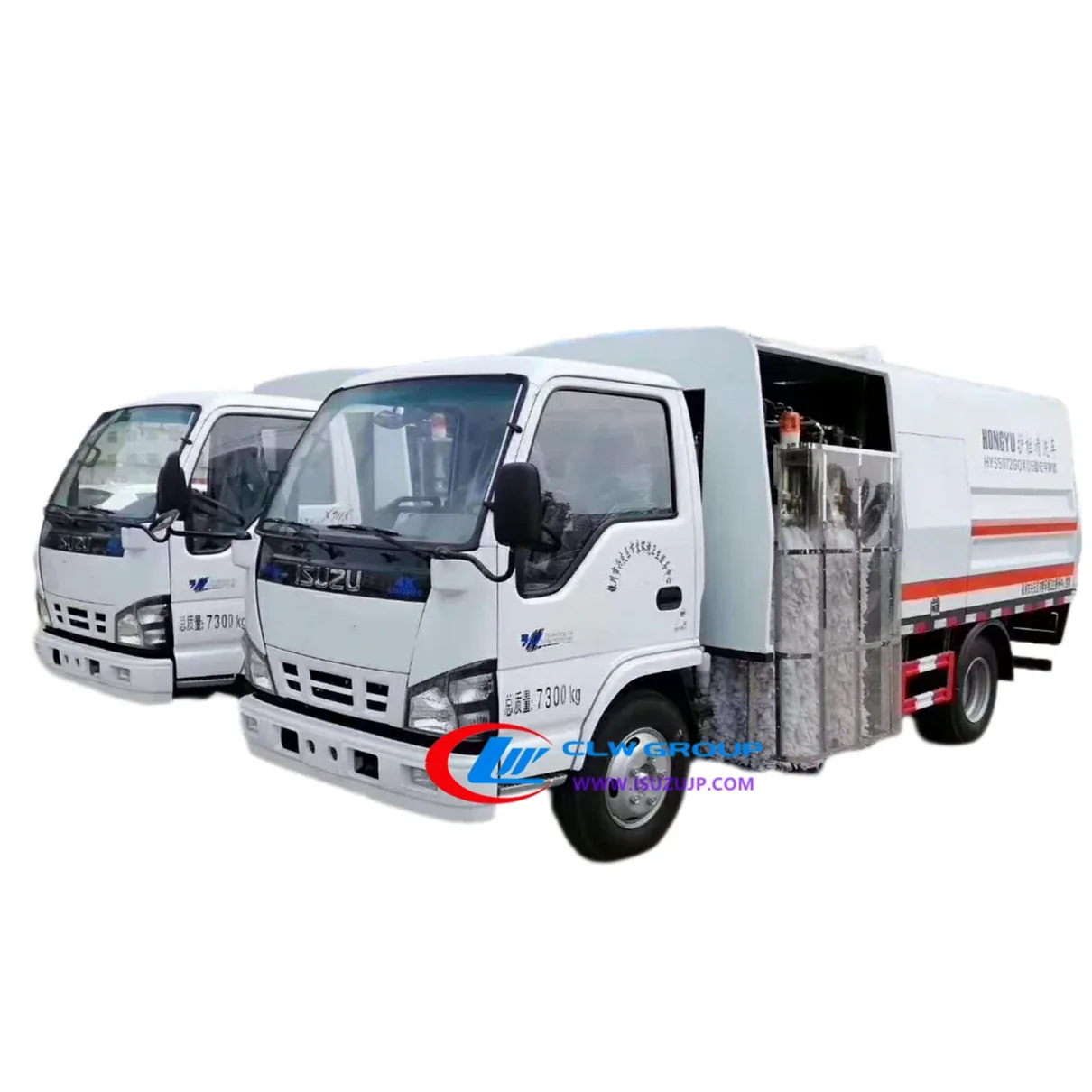

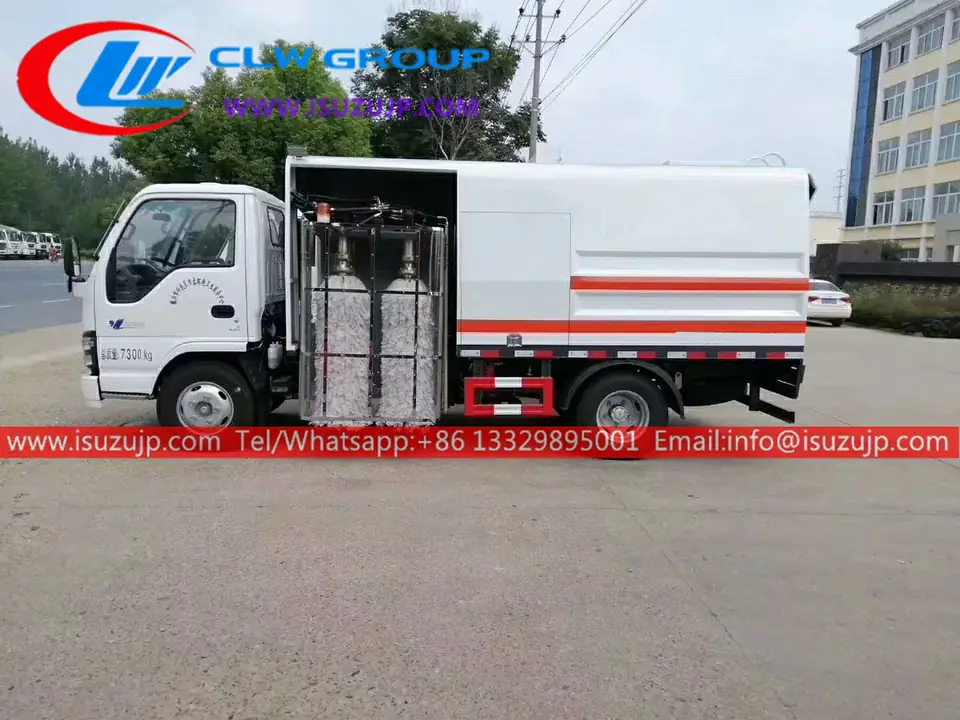

ISUZU NKR 4000liters Guardrail Cleaning Truck
ISUZU NKR Left Hand Drive chassis, MSB 5-shift manual gearbox, ISUZU 120 HP diesel engine, Germany PINFL brand High pressure pump, loading capacity:4000Lliters
- Drive Type
- 4×2 rear axle drive
- Body Size
- 5900X2200X2600mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 34 rows.
ISUZU NKR 4000liters Guardrail Cleaning Truck Performance Characteristics
- The cleaning operation of the same-direction double-side guardrail and the brushing operation of the changing direction can be completed in three minutes, and the specialty of the expressway (one-way driving) is satisfied.
- Double roller brush operation, high cleaning efficiency, and fast operation speed, 3-10km/h.
- Hydraulic protection device, double-sided protection of the roller brush, keep a constant distance between the roller brush and the guardrail, and the cleaning quality is stable
- With high-pressure water flow cleaning, high efficiency, and water saving, each ton of water can wash the guardrail 6-10km.
- Multi-edge flexible brush wire, high-pressure scrubbing: cleaning without leaving dead corners and damaging the paint surface.
- High-strength metal structure: stable and reliable.
- All hydraulic drives have stable performance and reliable quality.
- In the original special water circulation water-cooled hydraulic oil tank, the hydraulic oil and hydraulic pipes will not heat up during operation, which can well protect the normal operation of the equipment.
- The roller brush mechanism is located in front of the cab, and the operator can operate it directly and clearly
- Adopt an independent power source to ensure stable operation of the washing machine and save energy at the same time
- Advanced technology, reasonable design, safe use, energy saving, and environmental protection, stable and reliable work
- Start, stop, lift, deflect, and work, all in the cab.
Advantage
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- 6X4 ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
- Optional Italy imported a high-pressure pump, a super powerful, efficient pump in and out
- High-pressure cleaning hose with automatic reel
- The strong, durable, perfect performance
Specification
ISUZU NKR 4000liters Guardrail Cleaning Truck Specification
| Vehicle name | ISUZU NKR 4000liters guardrail cleaning truck | Dimensions (mm) 5990×2200×2600 |
|---|---|---|
| Tank material | Carbon steel | Tank thickness (mm) 4 |
| High-pressure pump brand | Tianjin Tongjie / Italy Import | Pressure (Mpa) 16-19 |
| Washing water flow rate (L/min) | 120 | Spray flow rate (L/min) 120 |
| Cleaning width (m) | ≥ 16 | Washing water flow rate (L/min) 500-800 |
| Flow rate (m3/h) | 8 | Water gun range (m) 38 |
| Total mass (kg) | 4495 | Rated mass (kg) 300 |
| Curing quality (kg) | 4065 | Maximum speed (km/h) 99 |
| Fuel type | Diesel | Emission Standards euro 5 |
| Wheelbase (mm) | 3308, 2800 | Tire specifications 7.00-16, 7.00R16 |
| Chassis brand/model | Dongfeng / EQ1070SJ3BDF | Engine brand/model Dongfeng Chaoyang Chaochai / CY4BK551 |
| Power / horsepower (kW / ps) | 75/98 | Displacement (mL) 3707 |
| Top loading configuration parameters | ||
| The standard configuration | Install the sandwich power take-off, drive shaft, high-pressure cleaning pump, rated pressure 16Mpa, hydraulic reel, water level gauge, washing pipe, operation valve at the rear of the tank, equipped with a 60m 19mm high-pressure pipe, 10 high-pressure flushing heads. | |
| Optional configuration | Sprinklers, green sprinklers, front and rear sprinklers, side sprays, snow shovels, hydraulic lifting platforms, and guardrail cleaning brushes can be added to meet the needs of different users. | |
Working Parameter
Special performance parameters for guardrail cleaning vehicle
| project | unit | parameter |
|---|---|---|
| Fresh water tank volume | m3 | 4 |
| cleaning width | mm | 0-260 |
| Brush speed | rpm | 150-300 |
| cleaning work area | m/h | 2400-12000 |
| cleaning speed | km/h | 2-10 |
| Maximum cleaning guardrail height | mm | 1700 |
| work noise | db | <88 Comply with GB7258 |
| Guardrail cleaning truck hydraulic system | Type | Open type, electric control centralized control |
| System pressure | mpa | 10-12 |
| Fuel tank capacity | L | ≥70 |
| Chassis system voltage | IN | 12 |
| Work Equipment System Voltage | IN | 12 |
| Guardrail cleaning vehicle driving performance parameters | drive type | 4×2 rear axle drive |
| top speed | km/h | 100 |
| Minimum turning radius | m | 6.8 |
| engine fuel consumption | Driving (L/100km) Work (L/h) Operation (L/10000m2) | ≤9 ≤5 ≤2 |
| Guardrail washing vehicle water spray system | water spray form | high-pressure water spray |
| High-pressure water pump and displacement | (l/min) | PINFL13HP/15 |
Part, Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NKR 4000liters Guardrail Cleaning Truck
What chassis is the ISUZU NKR 4000liters Guardrail Cleaning Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this guardrail cleaning truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
