Main photo
Isuzu Fuel Truck

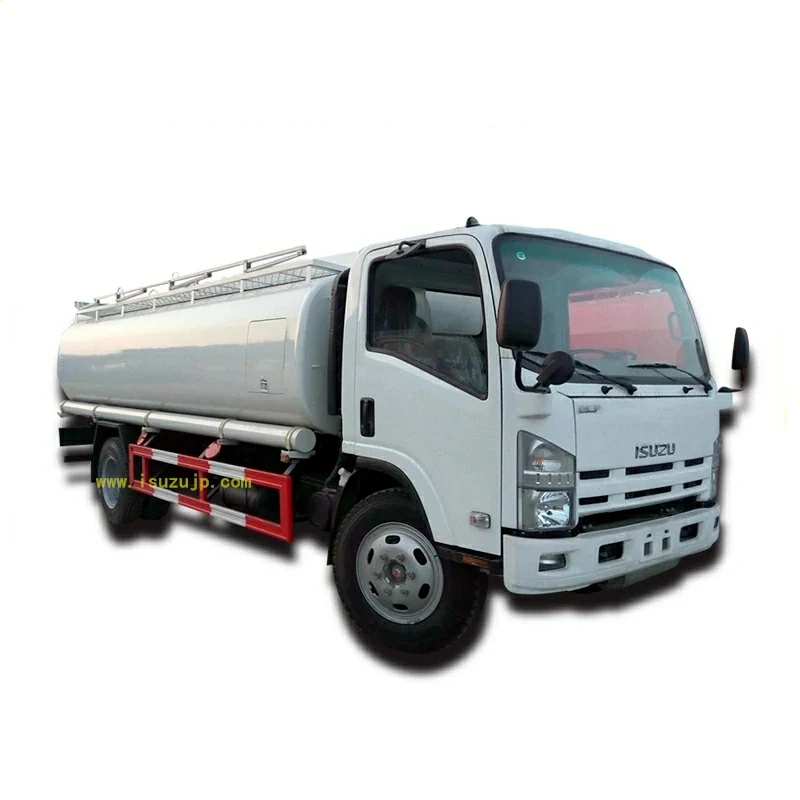

ISUZU NMR 8 Ton Jet Fuel Truck
Available Colors: Customization Logo: Customization
- Axle Loads:
- Double Axles
- Capacity(m3)
- 6
- Tank Size(mm)
- 4350x1700x1100
- Pump
- The pump on the left is pumped in and out, with a flow meter, and a 2.5-inch main pipeline, on the right, the Wen Enjia fuel dispenser and a 10-meter fuel reel.
Specification below is the factory table for this model, reproduced without edits. 30 rows.
Introduction
ISUZU NMR 8 ton jet fuel truck (also called fuel oil bowser, diesel gasoline tanker bowser, fuel oil dispenser truck, petrol tanker truck, refuel bowser vehicle) is used to transport oil, diesel, gasoline, kerosene, etc.
ChengLi company Production fuel bowser can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol…
ISUZU fuel truck can be equipped with oil pump and refueling machine, flow meters all for easy operation.
Advantage
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cubic meters.
- Easy operation and easy maintenance.
- Euro V, Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Specifications
ISUZU NMR 8 Ton Jet Fuel Truck Specification
| Vehicle Parameters | Name: | ISUZU NMR 8 ton jet fuel truck |
|---|---|---|
| Overall Dimension(L x W x H) | 7300x2400x2800mm | |
| Curb Weight: | 3180Kg | |
| GVW: | 10000Kg | |
| Wheelbase: | 3815mm | |
| Drive Type: | 4×2 | |
| Engine | Engine Model: | 4HK1-TC51 |
| Engine Power: | 141(kW) | |
| Displacement: | 5193(ml) | |
| Horsepower: | 189PS | |
| Transmission | Transmission: | Isuzu MLD-6Q |
| Forward Gear: | 6 Speed Gear | |
| Backward Gear: | 1 Speed Gear | |
| Seats | Front Seat: | 3 |
| Chassis | Front Wheel Distance: | 1680mm |
| Rear Wheel Distance: | 1650mm | |
| Axle Loads: | Double Axles | |
| Rear Axle Ratio: | 4.1 | |
| Tires: | 7 | |
| Tire Model: | 235/75R17.5 14PR | |
| Configuration | 1 | Power Steering |
| 2 | AC | |
| 3 | Retro-reflective Marking | |
| 4 | ABS | |
| 5 | Free Maintenance Battery | |
| 6 | Cab tilting mechanism | |
| Tank Body Parameter | Capacity(m3) | 6 |
| Tank Size(mm) | 4350x1700x1100 | |
| Material | Stainless steel 304-t4.0. The remaining accessories are carbon steel. The hose box is a stainless steel hose box with a 2.5-inch oil discharge hose. | |
| Pump | The pump on the left is pumped in and out, with a flow meter, and a 2.5-inch main pipeline, on the right, the Wen Enjia fuel dispenser and a 10-meter fuel reel. |
Fuel Tanker Truck Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NMR 8 Ton Jet Fuel Truck
What chassis is the ISUZU NMR 8 Ton Jet Fuel Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fuel truck?
The factory table lists Axle Loads: Double Axles. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Fuel Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NMR 8 Ton Jet Fuel Truck
This build is listed as axle loads: Double Axles with capacity(m3) 6. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
