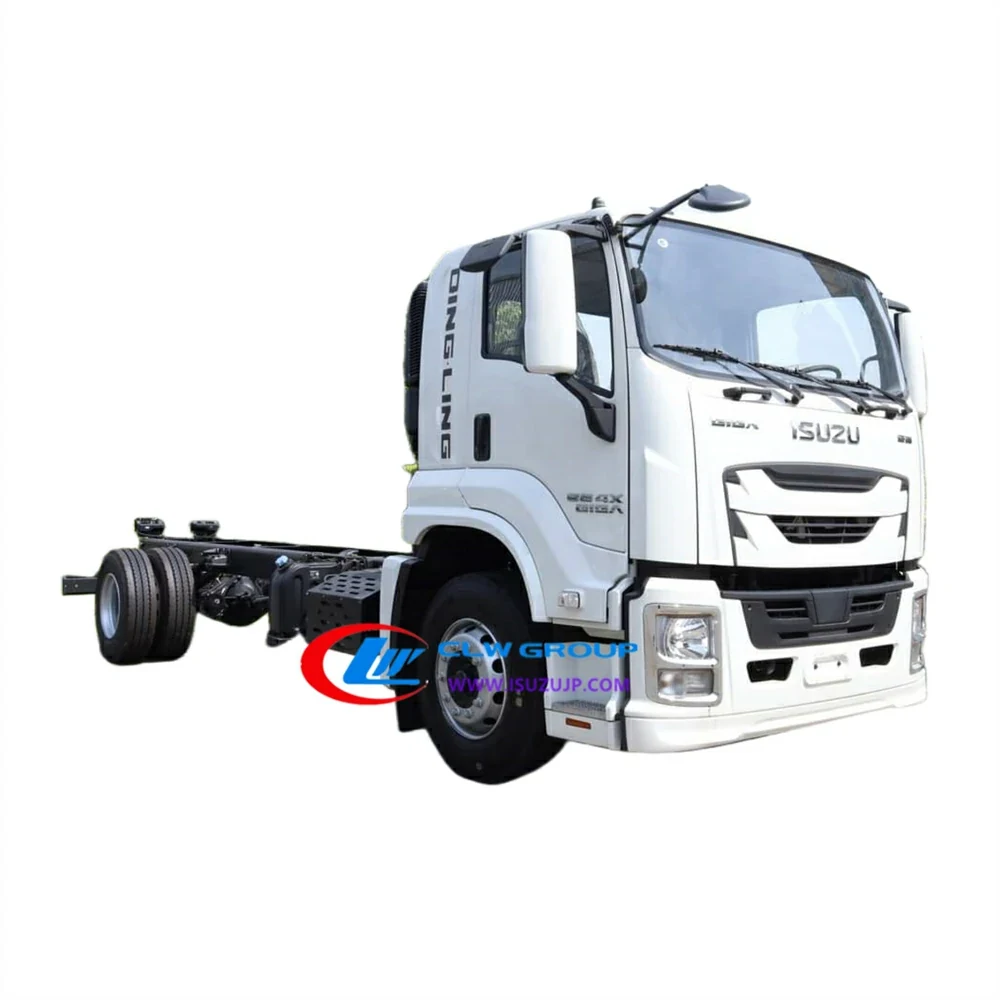

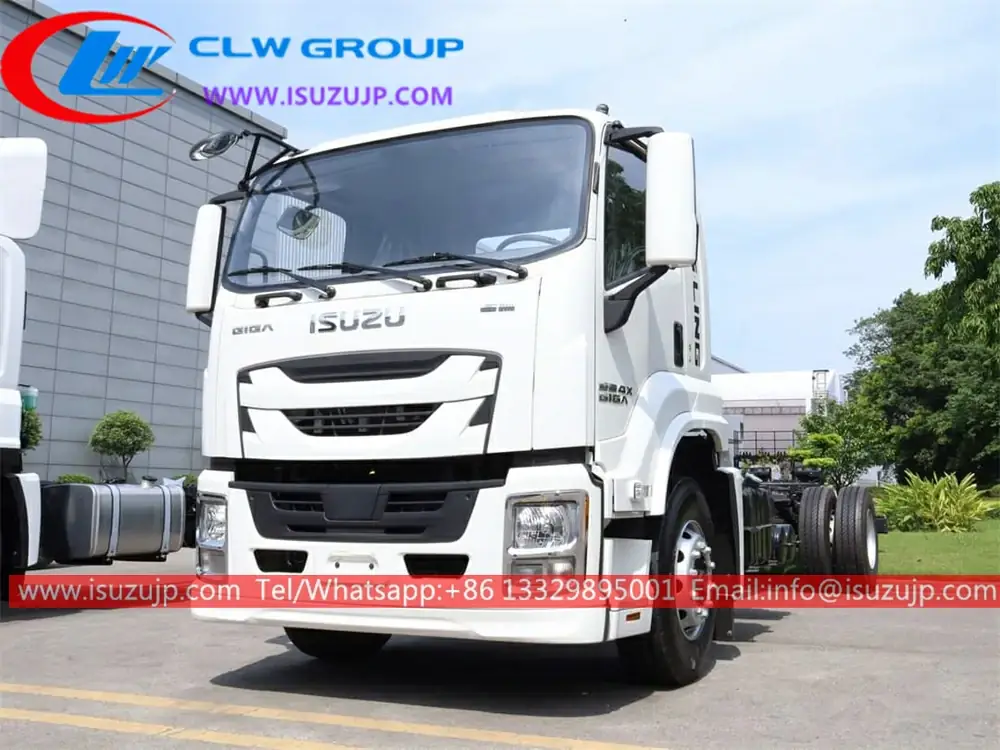

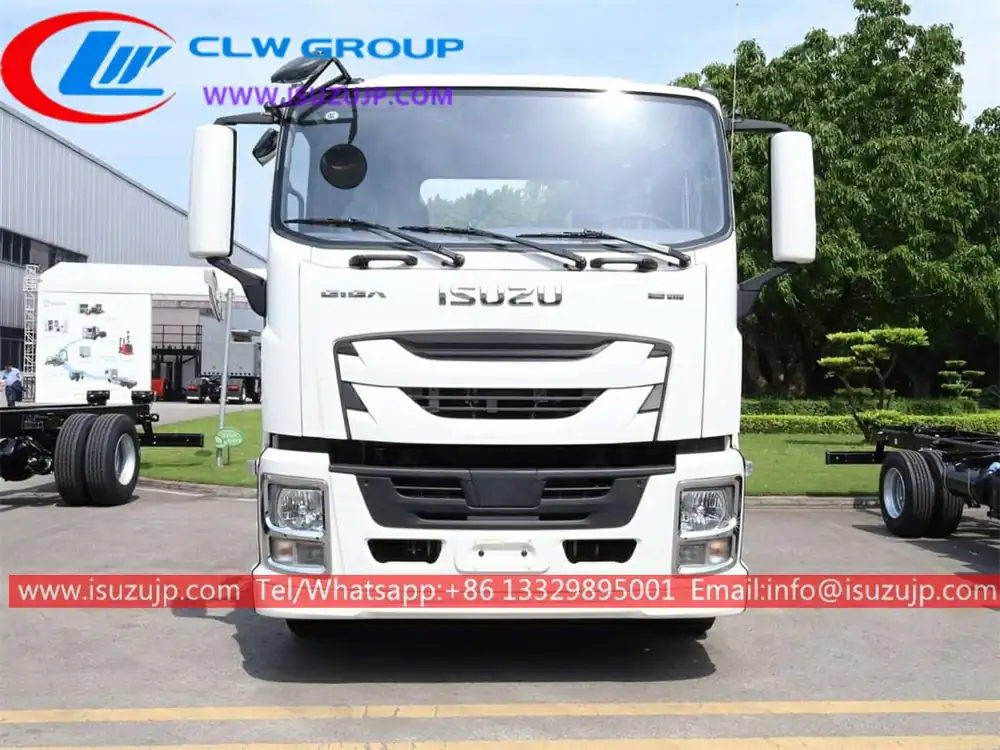

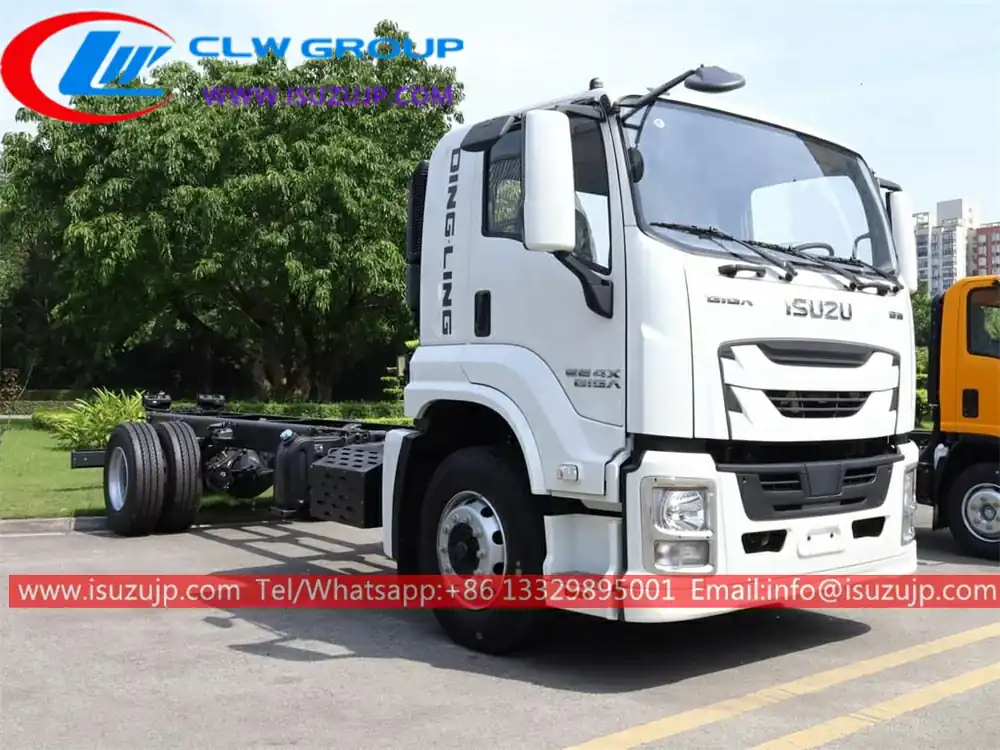

QINGLING ISUZU GIGA 205HP 4×2 10-15tons Medium Duty Truck Chassis
QINGLING ISUZU GIGA 205HP 4×2 10-15tons medium duty truck chassis adopts ISUZU 205HP diesel engine, Manual MLD 6-shift gearbox
- Emission
- Euro Vi
- Axle Loading:
- 7000/13000Kg
- Product Origin
- China
- Body Size
- 8000x2200x2400 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 39 rows.
QINGLING ISUZU GIGA 205HP 4×2 10-15tons Medium Duty Truck Chassis Description

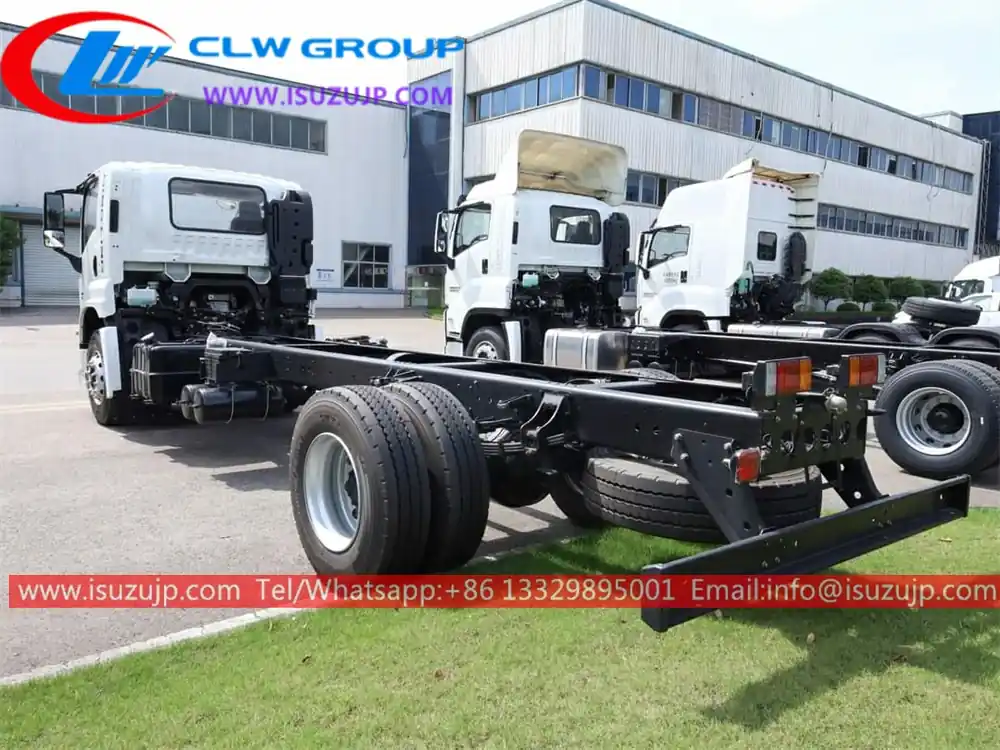

QINGLING ISUZU GIGA 205HP 4×2 10-15tons medium duty truck chassis will provide you with more wheelbase options such as 3900 and 7300. The size of the short axle FTR vehicle (length x width x height) is 6835x2540x2810mm, and the wheelbase is only 3.9 meters. Such a short chassis is mainly used for the modification of special vehicles, not for ordinary logistics purposes. It is convenient for customers to choose more suitable trucks according to their own needs under the same horsepower and load capacity.
Advantage
- 100% custom-made
- ISUZU GIGA truck chassis, perfect performance
- ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Noise reduction van body.
- Massive, durable, long service life.
- 10-15Tons available
- Short delivery time 7~30 days
- Easy operation and easy maintenance
- 15 years of spare parts and technical support
- The new FTR model is based on Isuzu’s original world-leading quality 4HK1-TC50 with Japanese technology and has developed a Euro VI emission 4HK1-TCG60 engine.
- The in-line four-cylinder diesel engine has a maximum output of 205 horsepower and a maximum torque of 650 Nm. MLD-6Q six-speed manual gearbox adopts Isuzu technology, high-pressure common rail, precision electronic control, multi-stage injection, optimized combustion, exhaust gas recirculation, and two-stage fuel filtration to achieve high power, high torque, low fuel consumption, low emissions, and noise.
Specification
QINGLING ISUZU GIGA 205HP 4×2 10-15tons Medium Duty Truck Chassis Specification
| Truck Brand | QINGLING ISUZU GIGA 205HP 4×2 10-15tons medium duty truck chassis |
|---|---|
| Driving Type | Left Hand Drive |
| Overall Dimension（L*W*H） | 6980-9000*2500*2800mm |
| GVW | 16000-18000Kg |
| Curb Weight | 5200Kg |
| Axle loading: | 7000/13000Kg |
| Wheelbase | 3900 4500 5000 5550 6200 7000mm |
| F/R Track | 1680/1650mm |
| Approaching Angle/Departure Angle(o) | 22/19 |
| Tire No. | 7(Including Spare Tire) |
| Tire | 295/80R22.5 |
| Color: | Optional |
| Max Speed（Km/h） | 105Km/h |
| Engine | |
| Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Emission Route | DPF |
| Model | 4HK1-TCG60 |
| Fuel Type | Diesel Engine |
| Max output | 150Kw |
| Horsepower： | 250HP |
| Max Torque | 790N.m/2000rpm |
| Emission Standard | Euro Vi |
| Displacement: | 5193ml |
| Transmission: | |
| Model: | MLD-6Q |
| Type | Manual |
| Forward/Reverse | 6F/1R |
| Brake System: | |
| Service Brake | Dual Circuit Compressed Air Brake |
| Parking Brake | Spring Energy, Compressed Air Operating on Rear Wheels |
| Auxiliary System | Engine Exhaust Brake |
| Electrical System | |
| Battery | 2*12-70Ah |
| Alternator | 28V-70Ah |
| Starter | 24V/7.5Kw |
| Cabin | |
| Single Cabin with Air Conditioner | |
| Other Equipment: | |
| Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking | |
ISUZU TRUCK CHASSIS Advantage
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Factory Advantage:
Questions
Questions About The QINGLING ISUZU GIGA 205HP 4×2 10-15tons Medium Duty Truck Chassis
What chassis is the QINGLING ISUZU GIGA 205HP 4×2 10-15tons Medium Duty Truck Chassis built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this giga series medium heavy duty trucks?
The factory table lists Axle Loading: 7000/13000Kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
