- 6×4 ISUZU GIGA 20-25tons Refrigerated Van for Sale Philippines
Main photo
Isuzu Refrigerated Truck

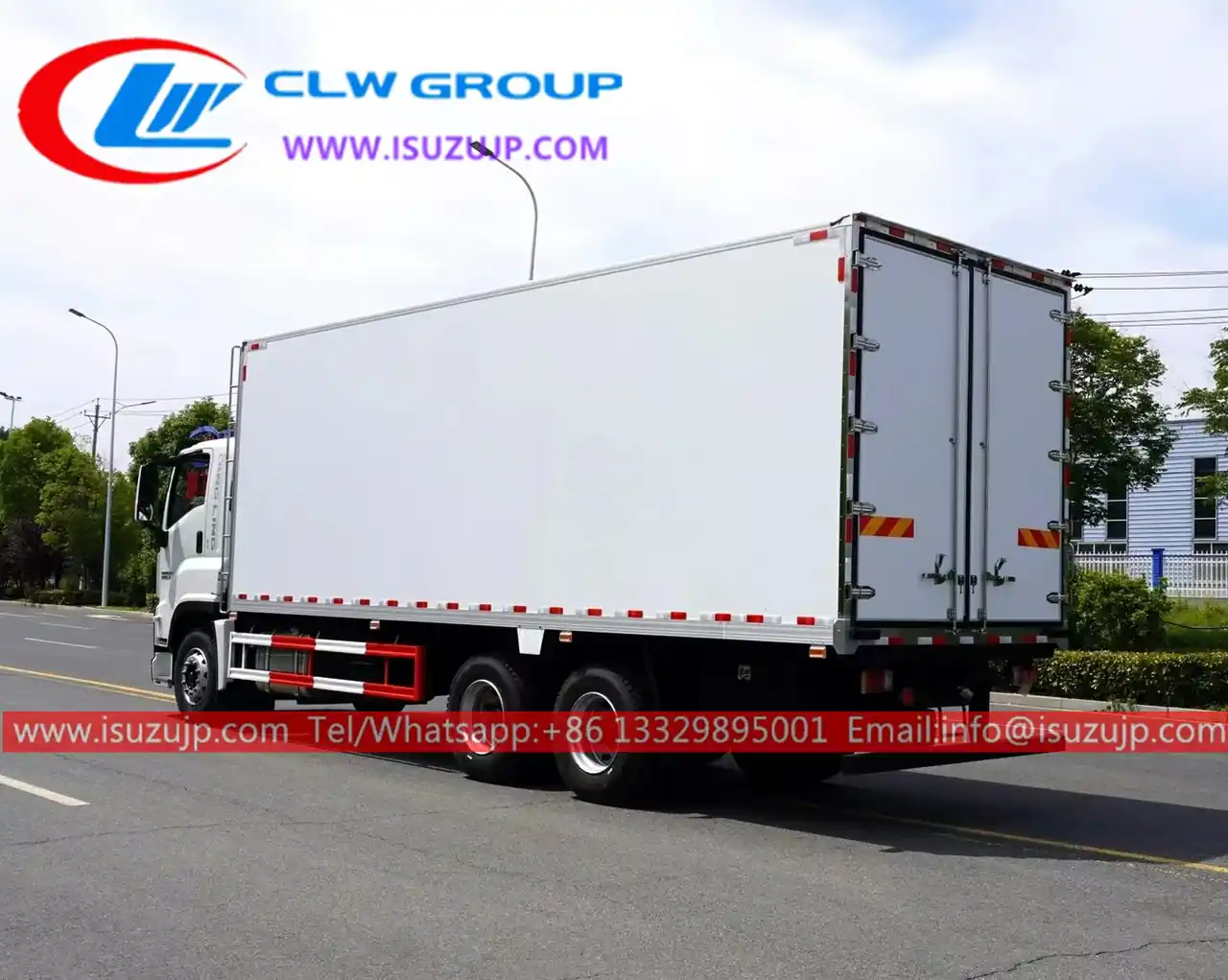

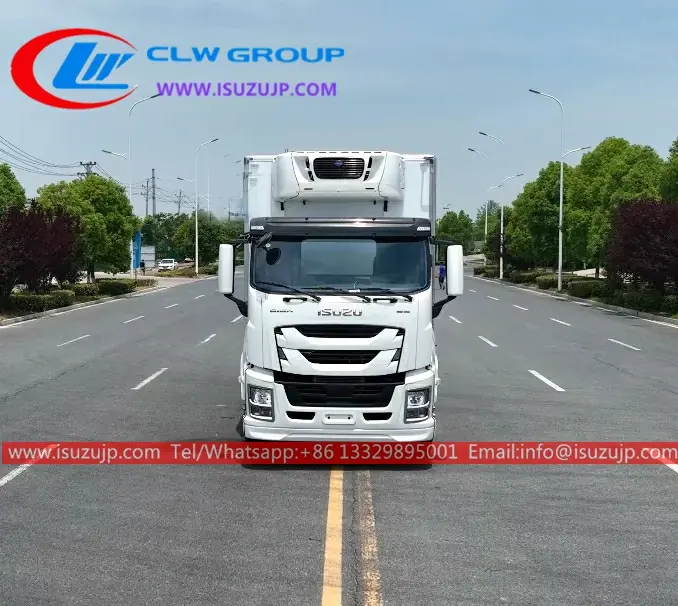

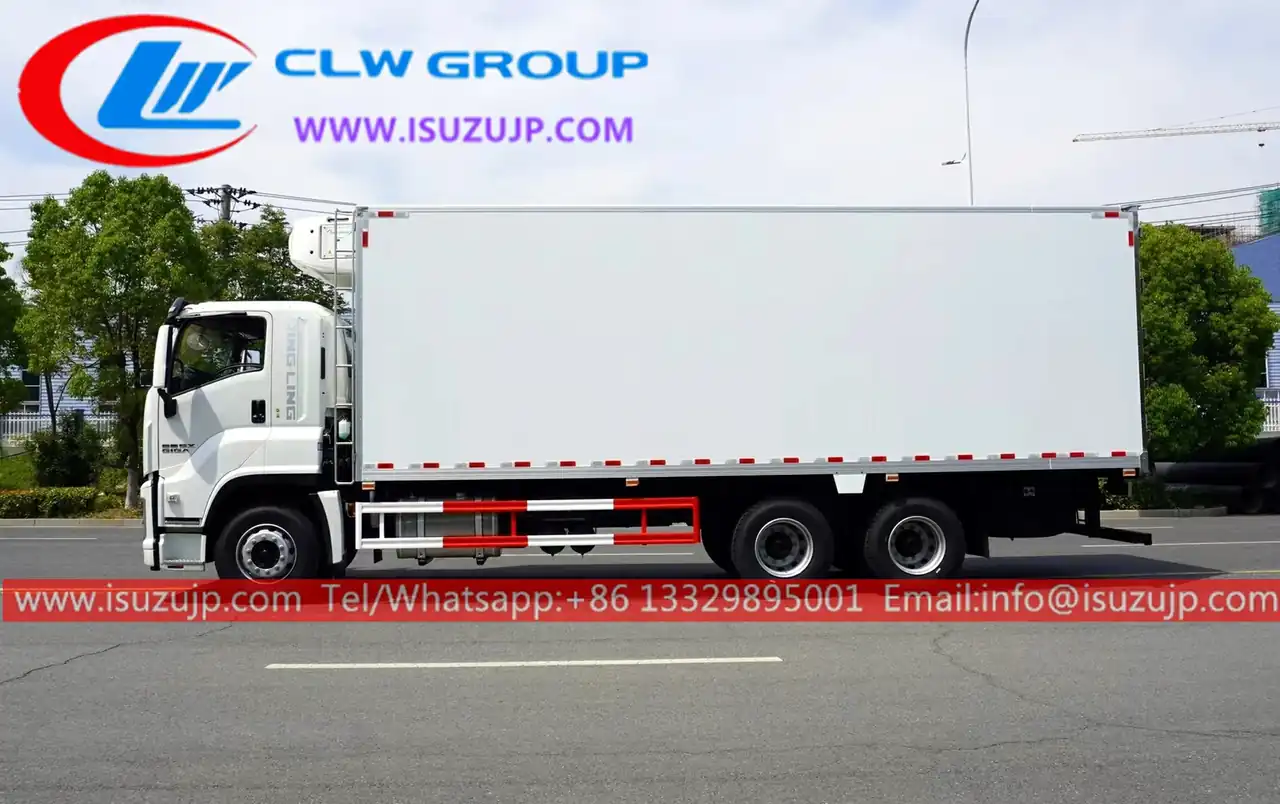

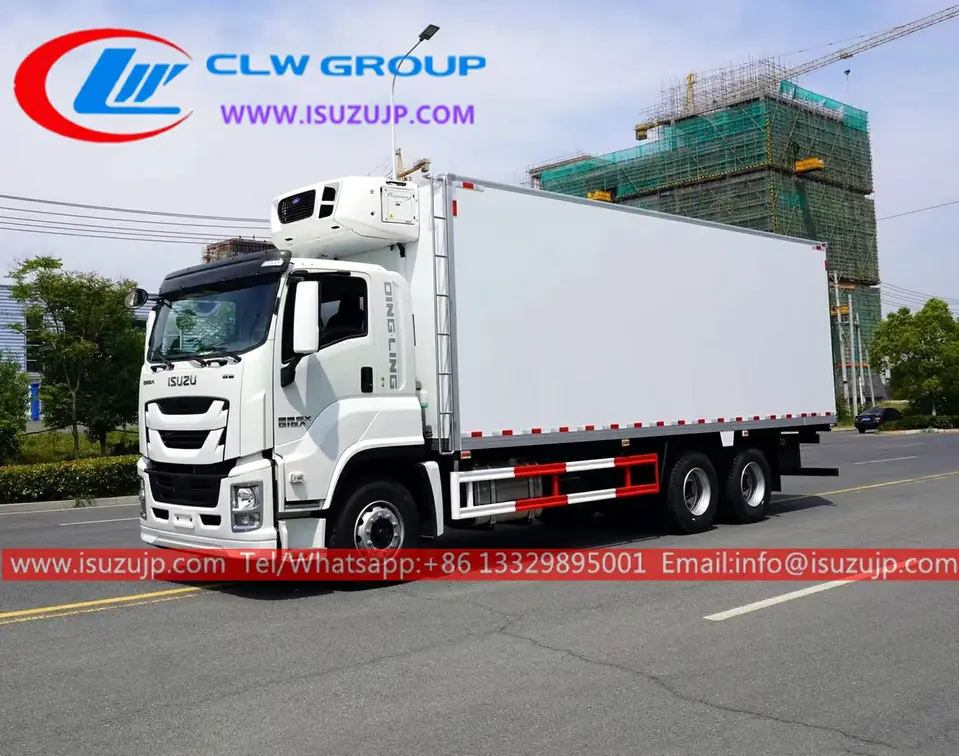

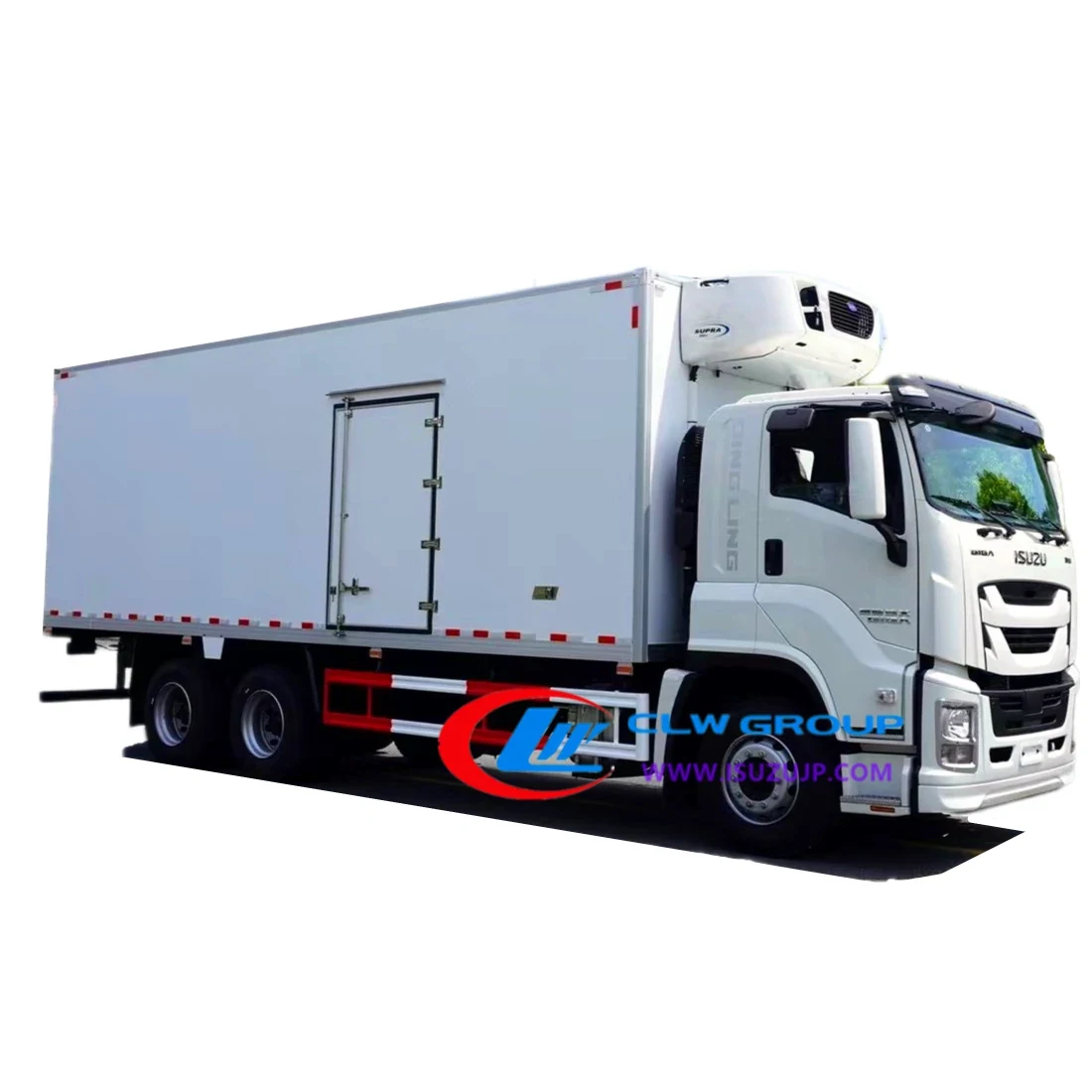

6×4 ISUZU GIGA 20-25tons Refrigerated Van for Sale Philippines
ISUZU GIGA 7.8meters reefer and frozen truck, ISUZU left-hand drive model 6X4 chassis, FAST 9-shift manual gearbox, ISUZU 300HP engine. Equipped with famous cooling units
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 300 Hp (221 KW)
- Overall Dimension
- 10350X2600X3890 mm
- GVW / Kerb Weight
- 25,000 kg / 12,200 kg
- Drive Type
- 6X4, left-hand drive
- Transmission
- FAST 9-speed forward, 1 reverse
- Emission
- Euro VI
Specification below is the factory table for this model, reproduced without edits. 29 rows.
6×4 ISUZU GIGA 20-25tons Refrigerated Van Description
- 6×4 ISUZU GIGA 20-25tons refrigerated van also called Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a cooling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- The refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification
6×4 ISUZU GIGA 20-25tons refrigerated van for sale philippines
| General | Vehicle Brand | CHENG LI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 10350X2600X3890 mm | |
| GVW / Kerb Weight | 25,000 kg / 12,200 kg | |
| Cab | Cab Capacity | 2 persons are allowed with 1 sleeper |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 300 Hp (221 KW) | |
| Displacement | 7790 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 6X4, left-hand drive |
| Transmission | FAST 9-speed forward, 1 reverse | |
| No. of axle | 4 | |
| Tyre Specification | 295/80R22.5 | |
| Tyre Number | 10 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Box Capacity | 20-25 Ton |
| Box Material | Fiberglass | |
| Cooling system | King | |
| Lowest temperature | -5° or -20° | |
| Box size：7850x2420x2400mm | ||
| Optional | Box material could be aluminum or stainless steel. The cooling system could be an imported brand. Temperature data logger, temperature alarm. Extra side door. Slide rail and meat hook for special use. | |
Working Parameter
6×4 ISUZU GIGA 20-25tons Refrigerated Van for Sale Philippines Specification
| Insulation thickness | 80mm ester urethane | Inside and outside materials 2.2mm FRP / Stainless steel plate Unit brand Domestic, imported / independent, non-independent |
|---|---|---|
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location Front, skirt, top Bottom ventilation slot Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain Optional Control position Cab |
| Meat hook | Optional | Insulation effect 24 hours temperature rise 5 degrees External power supply Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit Optional Temperature and humidity printer Optional |
Questions
Questions About The 6×4 ISUZU GIGA 20-25tons Refrigerated Van for Sale Philippines
What chassis is the 6×4 ISUZU GIGA 20-25tons Refrigerated Van for Sale Philippines built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu refrigerated truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
