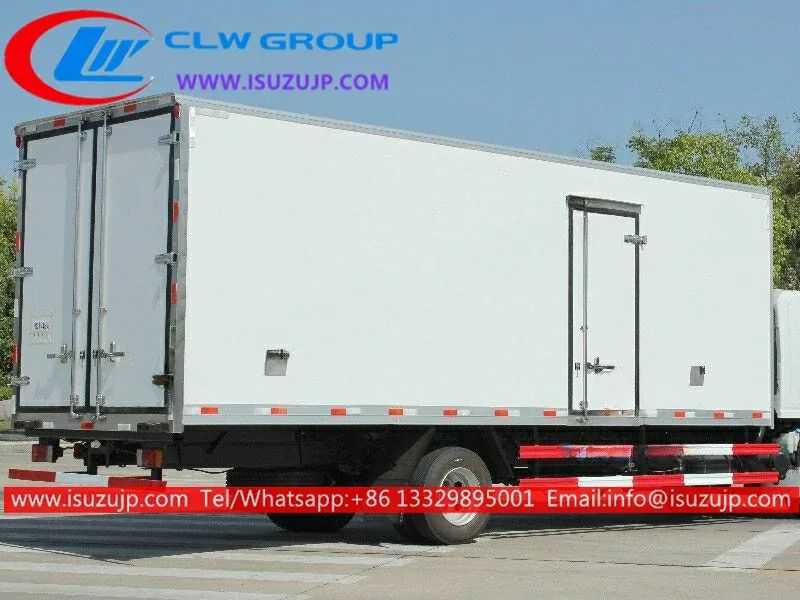

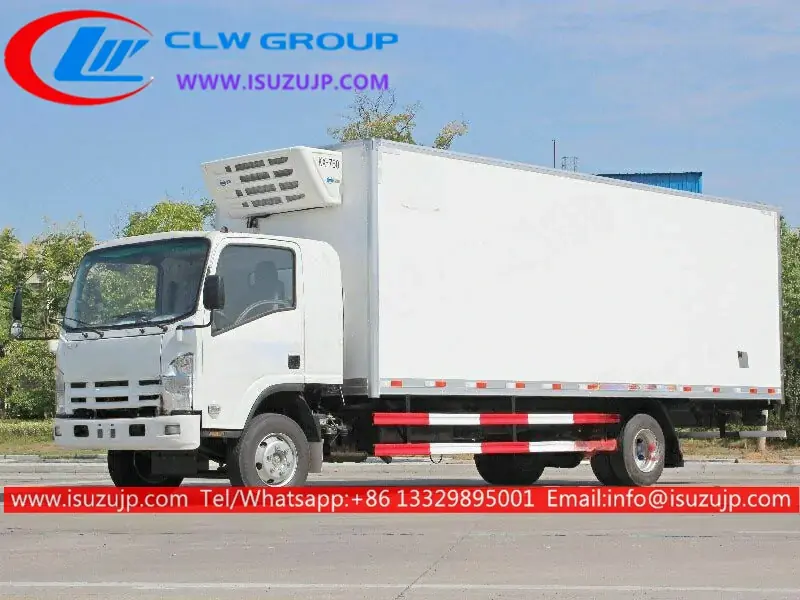

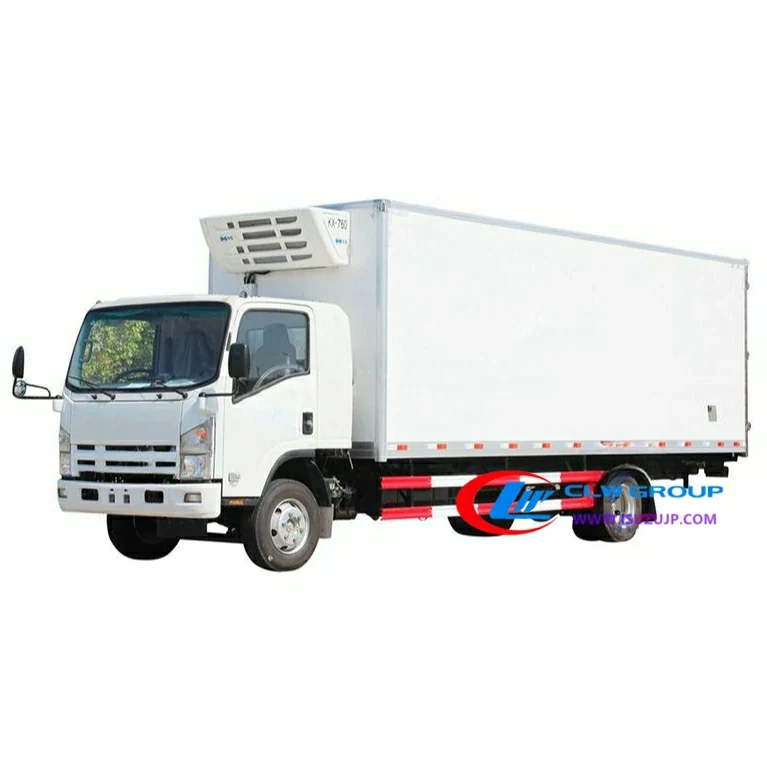

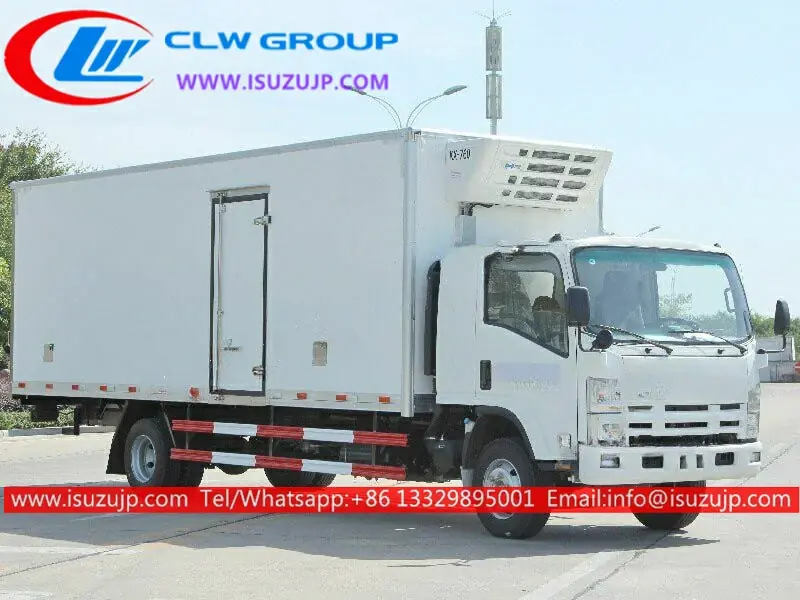

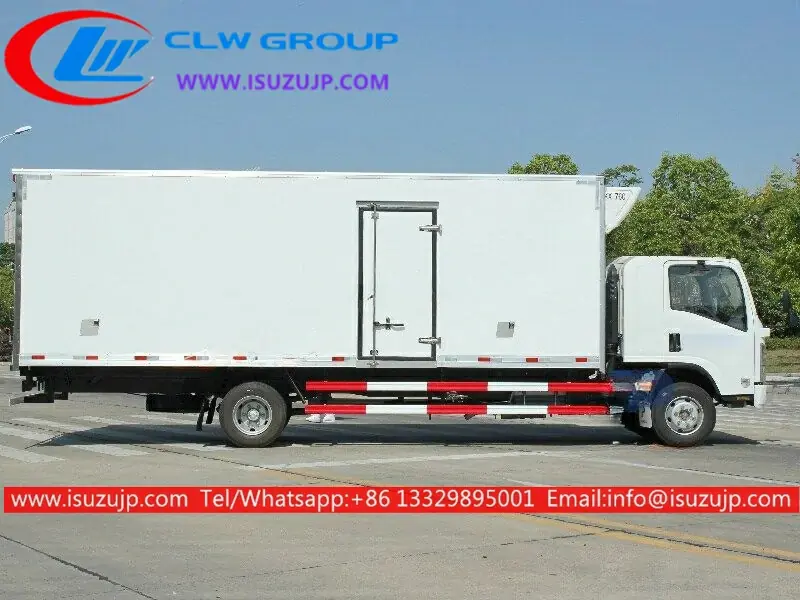

ISUZU ELF 7tons Fish Freezer Truck with Sleeping Cabin
ISUZU NPR 7tons fish freezer truck, ISUZU left-hand drive model 4×2 chassis, MLD 6-shift manual gearbox, ISUZU 190HP engine. Equipped with famous cooling units
- Power
- 190 HP
- Body Capacity
- 6Tons
- Product Origin
- China
- Body Size
- 9000x2500x3400 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 40 rows.
Isuzu ELF 7tons Fish Freezer Truck with Sleeping Cabin Description
- Isuzu ELF 7tons fish freezer truck with Sleeping cabin also called Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a colling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification
ISUZU ELF 7tons Fish Freezer Truck with Sleeping Cabin Specification
| Manufacturer | CHENGLI | |
|---|---|---|
| Item | Isuzu ELF 7tons fish freezer truck with Sleeping cabin | |
| Brand | ISUZU | |
| Model | CLW5090TSSL6 | |
| Production Time | 30 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 8500*2500*3360 mm |
| Gross weight | 10,000 kg | |
| Kerb weight | 4,500 kg | |
| Wheelbase | 4,475 mm | |
| Driving type | 4*2 | |
| Chassis model | QINGLING ELF Medium-duty | |
| Tire size | 235/75R17.5 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 4HK1-TCG50 |
| Type of fuel | Diesel | |
| Power | 190 HP | |
| Gearbox | MLD 6-shift gearbox | |
| Upper Structure | ||
| Freezer Body performance | Refrigerator Unit | Chinese Brand KAIXUE KX-760 |
| Body Space Temperature | -15 degree~ +20 degree | |
| Body Capacity | 6Tons | |
| Body Size | 7000x2200x2000 mm | |
| Panel Material | FRP + PU Foam + FRP 105mm | |
| Panel Structure | All Closed Sandwich | |
| Side Door Type | Single door, on right side wall | |
| Rear Door Type | Full size double opening rear doors | |
| Flooring | Antiskid and abrasion resistant, customized wheel roller for easy operation | |
| Marker Light | 2 sets White and 2 sets Red | |
| Celling Light | 2 sets of 12/24V LED | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Other Refrigeration Brand: CARRIER, THERMOKING, DAIKIN (Any options) 2, Working camera can be equipped 3, Optional rear lifting platform | |
Working Parameter
ISUZU ELF 7tons Fish Freezer Truck with Sleeping Cabin Specification
| Insulation thickness | 80mm ester urethane | Inside and outside materials 2.2mm FRP / Stainless steel plate Unit brand Domestic, imported / independent, non-independent |
|---|---|---|
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location Front, skirt, top Bottom ventilation slot Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain Optional Control position Cab |
| Meat hook | Optional | Insulation effect 24 hours temperature rise 5 degrees External power supply Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit Optional Temperature and humidity printer Optional |
Questions
Questions About The ISUZU ELF 7tons Fish Freezer Truck with Sleeping Cabin
What chassis is the ISUZU ELF 7tons Fish Freezer Truck with Sleeping Cabin built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu refrigerated truck?
The factory table lists Body Capacity 6Tons. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
