Main photo
Isuzu Refrigerated Truck

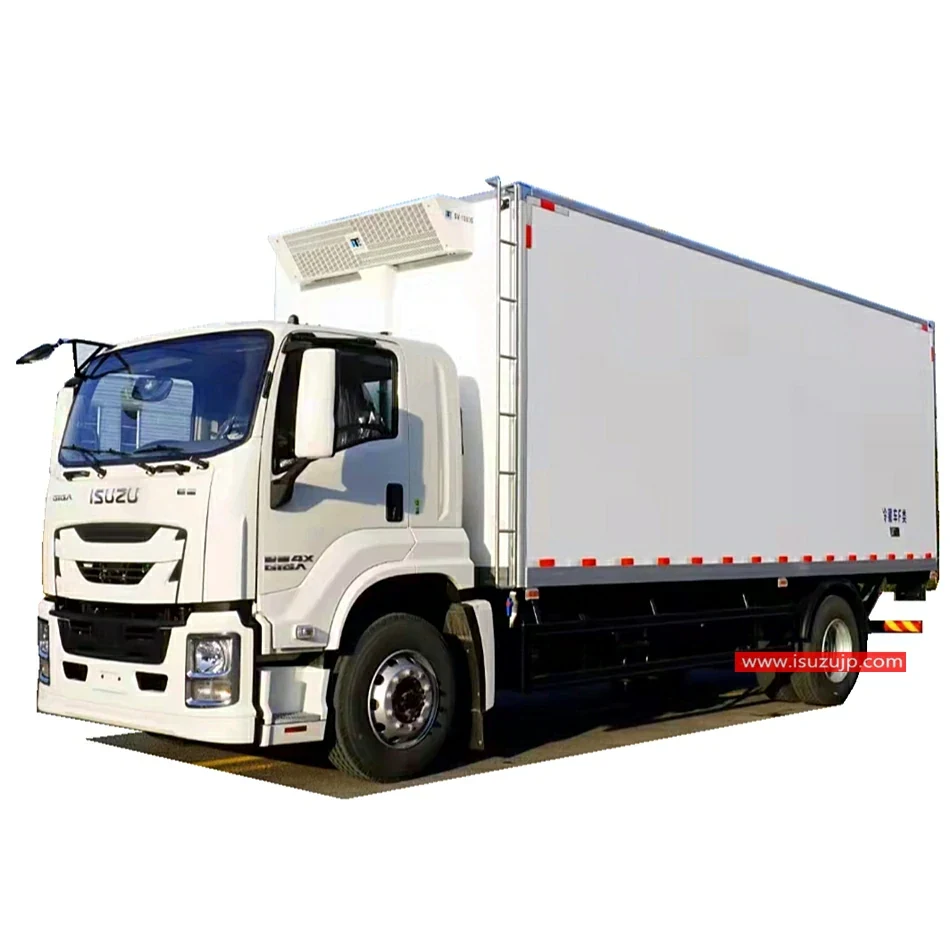

ISUZU GIGA 15T Freezer Lorry for Sale

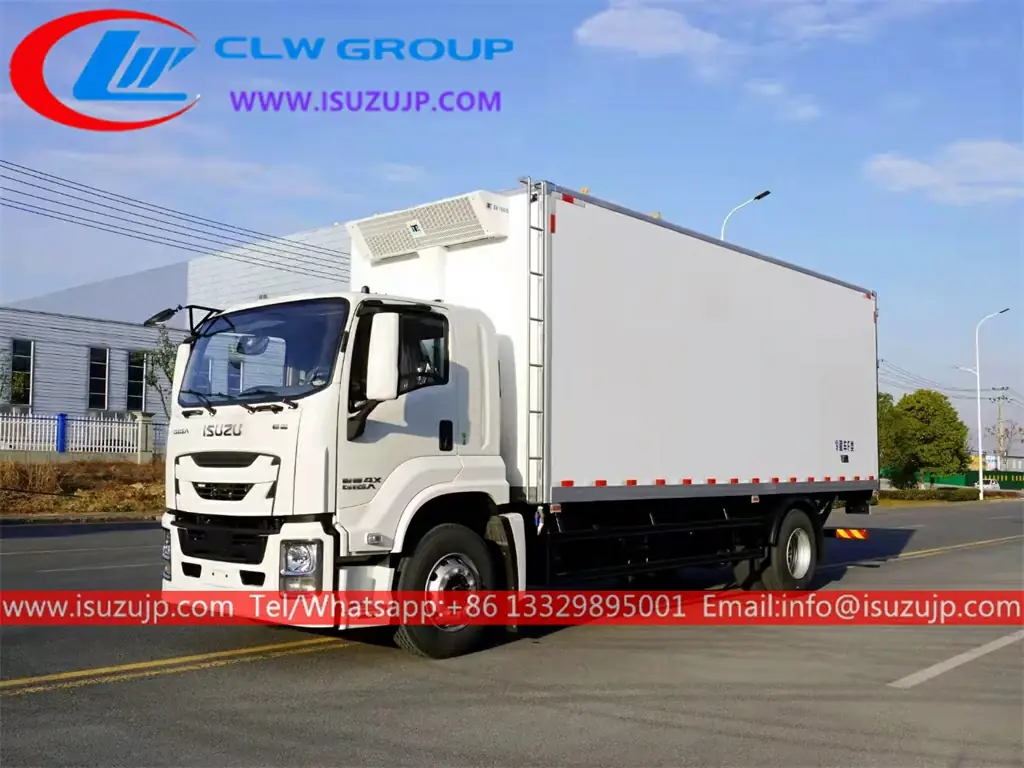

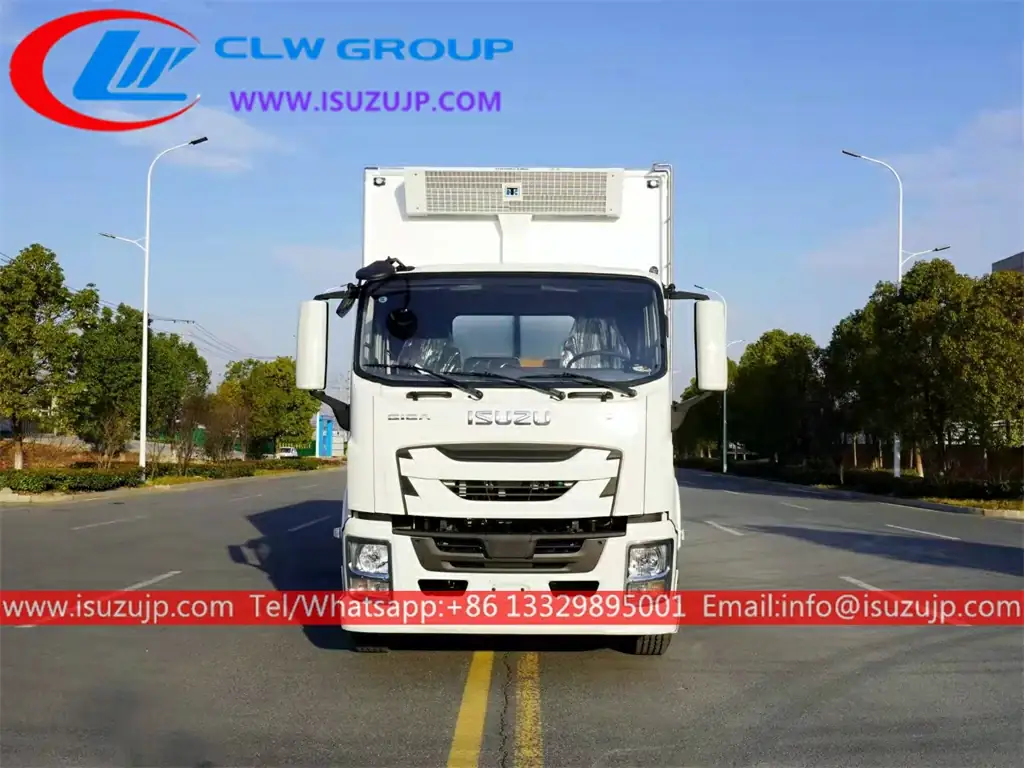

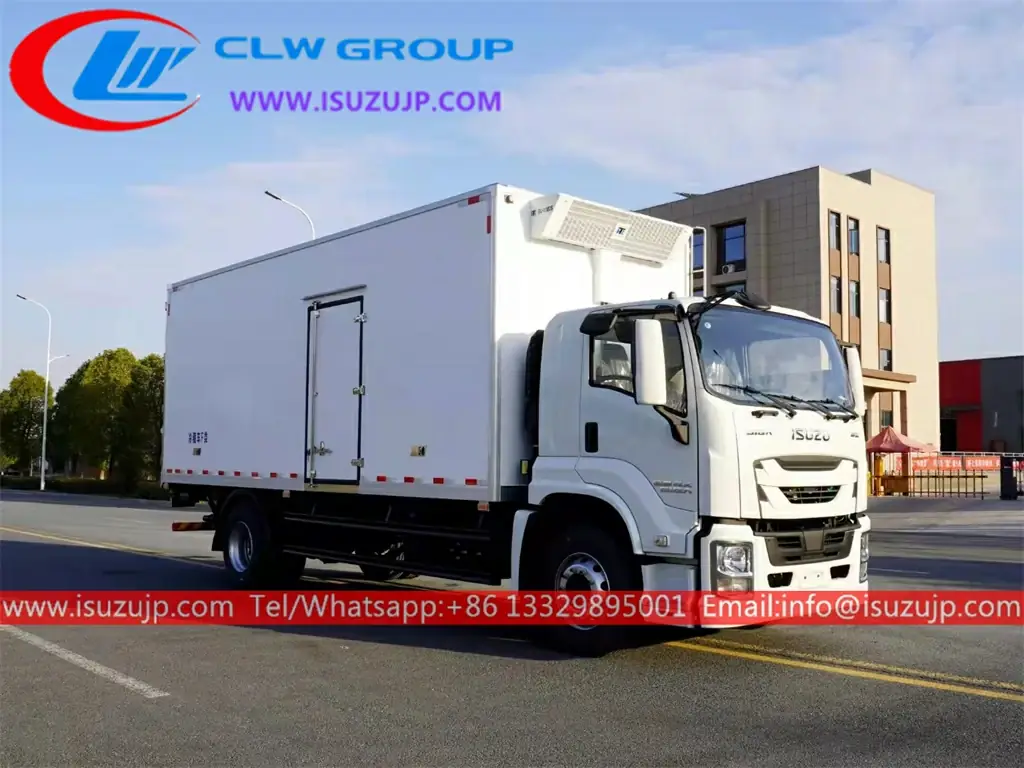

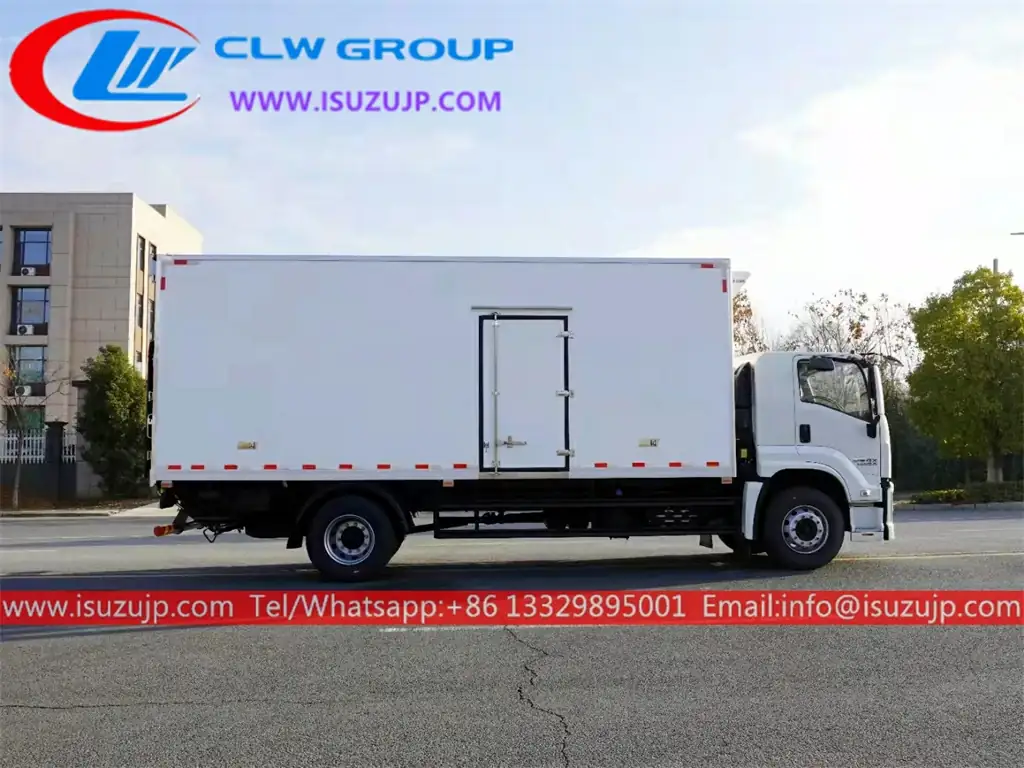

ISUZU GIGA 6.8meters reefer and frozen truck, ISUZU left-hand drive model 4×2 chassis, FAST 9-shift manual gearbox, ISUZU 240HP engine. Equipped with famous cooling units
- Power
- 240HP
- Emission
- EURO V
- Product Origin
- China
- Body Size
- 8900x2550x3800 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 41 rows.
ISUZU GIGA 15T Freezer Lorry Description
- Isuzu freezer lorry also called Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a colling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification
ISUZU GIGA 15T Freezer Lorry for Sale Specification
| Manufacturer | Chengli Special Automobile Co., Ltd | |
|---|---|---|
| Product Name | ISUZU GIGA 15T freezer lorry for sale | |
| Vehicle Brand Series | ISUZU | |
| Vehicle Model | CLW5163GSSD5 | |
| Production Time | 25 days | |
| Chassis parameters | Overall dimensions | mm 8900X2550X3800 |
| Gross weight | kg 18,000 | |
| Kerb weight | 7,500 | |
| Wheelbase | mm 5,600 | |
| Driving type | 4X2 | |
| Chassis model | ISUZU GIGA | |
| Tire size | 1000R20 | |
| Number of Tires | 6+1 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 6HK1-TCG40 |
| Type of fuel | Diesel | |
| Power | 240HP | |
| Max speed | Km/h 95 | |
| Emission standard | EURO V | |
| Cooling performance | Cargo Body Size | 6800X2400X2400 mm |
| Panel Material | FRP + PU Foam + FRP 105mm | |
| Panel Structure | All Closed Sandwich | |
| Side Door Type | On the Right sidewall | |
| Single Opening | ||
| Rear Door Type | Full-Size Double Opening Rear Door | |
| Flooring | Antiskid and abrasion-resistant | |
| Refrigeration Unit | Carrier SUPRA 750 | |
| Body Space Temp | -15 degree~ +20 degree | |
| Marker Light | 2 sets white on the front, 2 sets Red on rear | |
| Ceiling Light | 2 sets of 12/24V LED | |
| Control Panel | English | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Safety protection, Rotating Lamp, Working Lamp, Handholds, Mudguards and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Refrigeration brand: Carrier, Thermoking, DAIKIN (with any brand) 2, Rear vision camera 3, Aluminium flooring, Hanging system 4, Optional Dual temperature, multi-compartment | |
Working Parameter
ISUZU GIGA 15T Freezer Lorry for Sale Specification
| Insulation thickness | 80mm ester urethane | Inside and outside materials 2.2mm FRP / Stainless steel plate Unit brand Domestic, imported / independent, non-independent |
|---|---|---|
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location Front, skirt, top Bottom ventilation slot Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain Optional Control position Cab |
| Meat hook | Optional | Insulation effect 24 hours temperature rise 5 degrees External power supply Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit Optional Temperature and humidity printer Optional |
Questions
Questions About The ISUZU GIGA 15T Freezer Lorry for Sale
What chassis is the ISUZU GIGA 15T Freezer Lorry for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu refrigerated truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
