- ISUZU 4.2m Stainless Steel Reefer Box Truck for Sale Bolivia
Main photo
Isuzu Refrigerated Truck

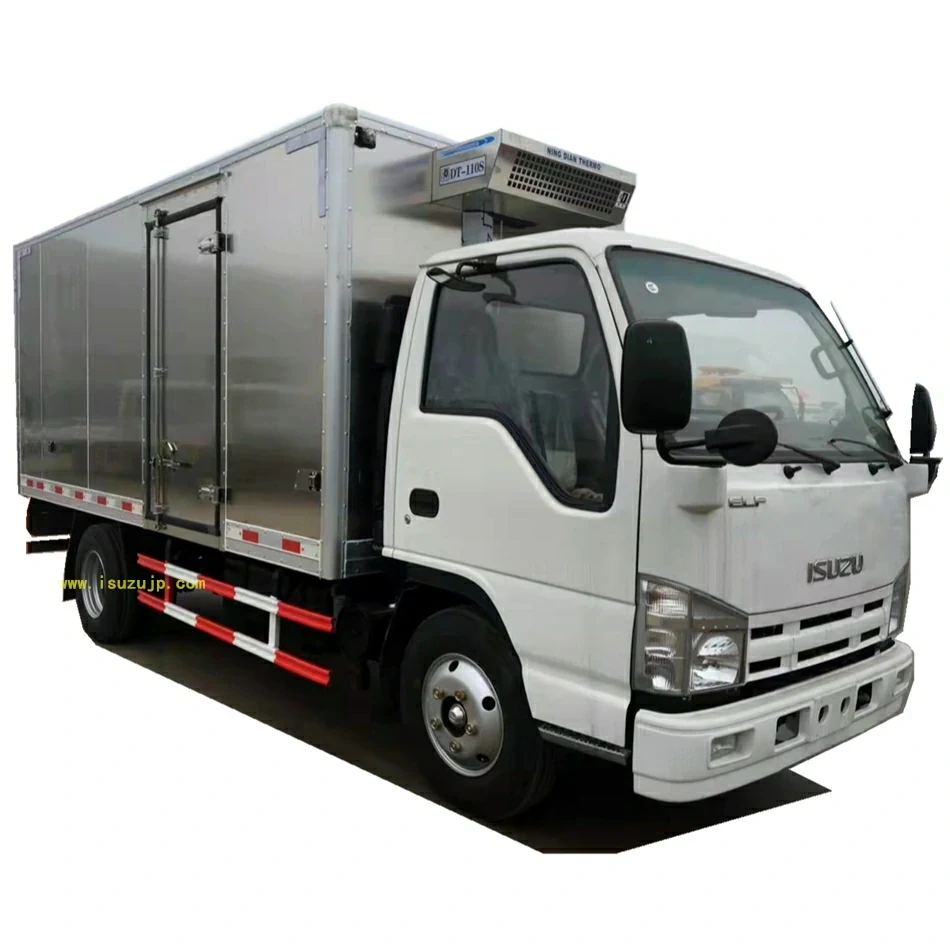

ISUZU 4.2m Stainless Steel Reefer Box Truck for Sale Bolivia
ISUZU NHR 12m3 reefer and cold chain truck, ISUZU left-hand drive model 4×2 chassis, MSB 5-shift manual gearbox, ISUZU 98HP engine. Equipped with famous cooling units
- Product Origin
- China
- Body Size
- 6000x2100x3020 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 25 rows.
Isuzu 4.2m Stainless Steel Reefer Box Truck Description
- Isuzu stainless steel reefer box truck also called Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a colling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification
Isuzu 4.2m stainless steel reefer box truck for sale Bolivia
| Item | Specification | Item Specification |
|---|---|---|
| General | ||
| Truck Name | Frozen Food Refrigerator Truck | Overall Dimension (mm) 5995X1910X2790 |
| Box Dimension (mm) | 4100X1740X1750 | Gross / Curb Weight (kg) 4495 / 3210 |
| Truck Model | QL1070A6HAY | Approach / Departure Angle (°) 24 / 16 |
| Max. Speed (km/h) | 110 | Front / Rear Overhang (mm) 1110 / 1525 |
| Chassis | ||
| Chassis Brand | ISUZU | Chassis Model QL1070A6HAY |
| Wheel Base (mm) | 3360 | Leaf Spring 3/3+2 |
| Traction System | 4 x 2 | Quantity of Axles 2 |
| Cab Capacity | 1+1 | Front / Rear Axle Load (kg) 1750 / 2745 |
| Transmission | manual | Front / Rear Wheel Tread (mm) 1685 / 1525 |
| Tyre Model | 7.00R16 8PR | Quantity of Tyre 6+1 |
| Engine (Motor) | ||
| Brand | ISUZU | Type of Fuel Diesel |
| Model | 4KH1CN5LS | Displacement (ml) 2999 |
| Max. Power | 98hp | Emission Standard Euro 5 |
| Equipments | ||
| Reefer-Temperature Required | -5/-15 | Tank Material 8mm Polyurethane in middle,covered by 2.5mm fiber glass inside and outside |
| NOTE: 1. Any part can be customized depending on customers’ demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. 4. MOQ: 1 unit | ||
Working Parameter
ISUZU 4.2m Stainless Steel Reefer Box Truck for Sale Bolivia Specification
| Insulation thickness | 80mm ester urethane | Inside and outside materials 2.2mm FRP / Stainless steel plate Unit brand Domestic, imported / independent, non-independent |
|---|---|---|
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location Front, skirt, top Bottom ventilation slot Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain Optional Control position Cab |
| Meat hook | Optional | Insulation effect 24 hours temperature rise 5 degrees External power supply Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit Optional Temperature and humidity printer Optional |
Questions
Questions About The ISUZU 4.2m Stainless Steel Reefer Box Truck for Sale Bolivia
What chassis is the ISUZU 4.2m Stainless Steel Reefer Box Truck for Sale Bolivia built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu refrigerated truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Refrigerated Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
ISUZU M600 6000kg Reefer Van for Sale
35 spec rowsView Details
ISUZU GIGA 15T Freezer Lorry for Sale
41 spec rowsView Details
Quote The ISUZU 4.2m Stainless Steel Reefer Box Truck for Sale Bolivia
This build is listed as product origin China with body size 6000x2100x3020 mm. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
