ISUZU Fire Truck

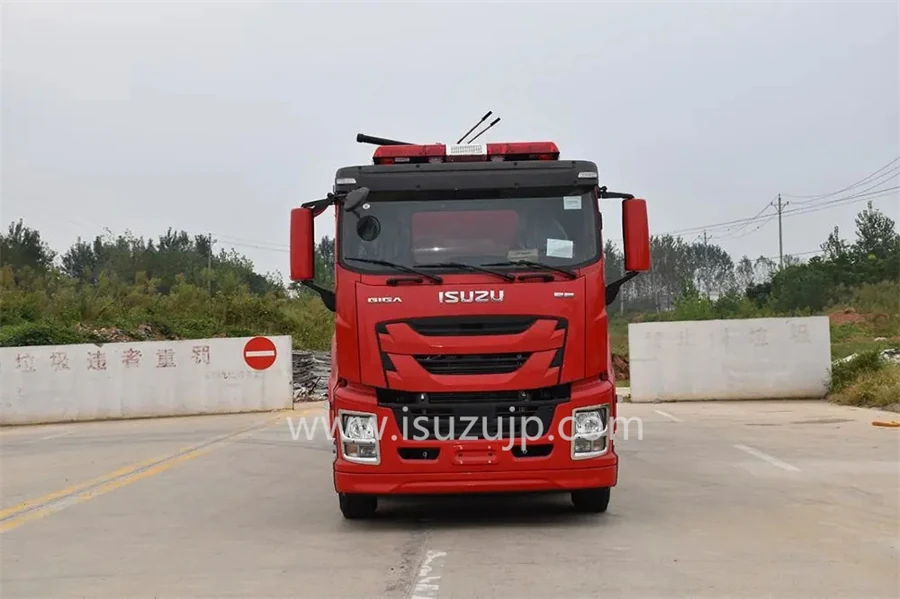

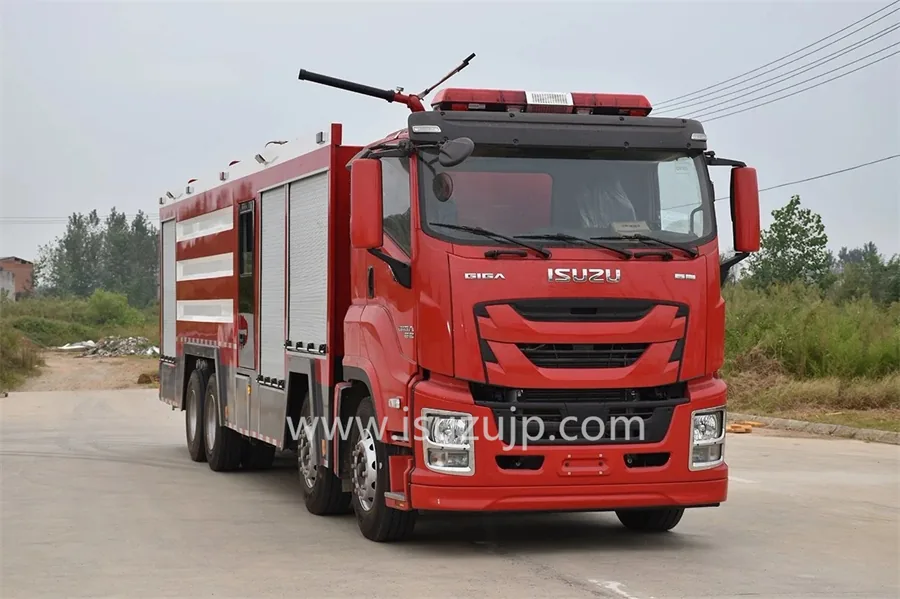

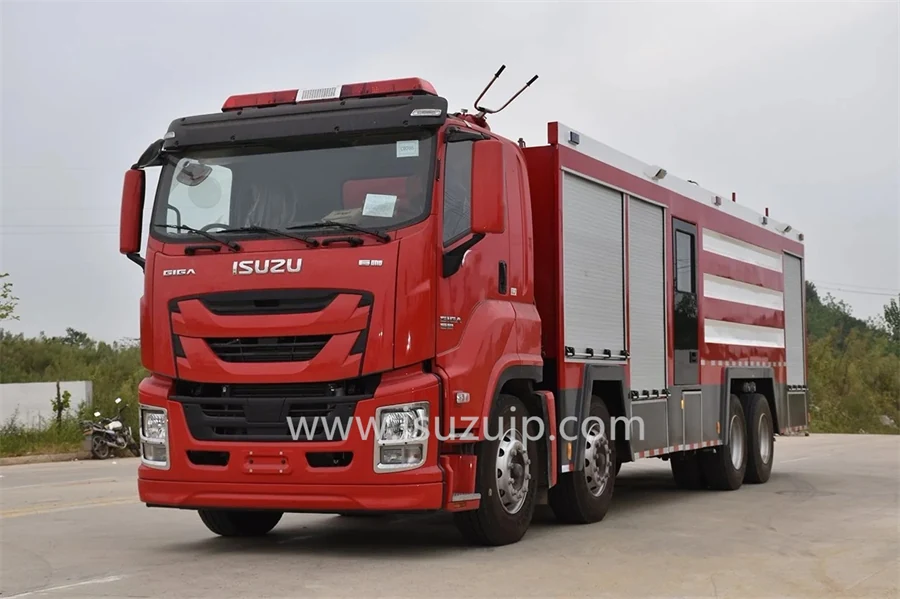

8×4 ISUZU GIGA 25 Ton Fire Fighting Truck
Isuzu GIGA water fire truck, Left Hand Drive model 8×4 chassis, 12 shift manual gearbox, 450 HP diesel engine
- Chassis
- ISUZU
- Engine
- ISUZU engine, 6WG1-TCG51
- Power
- 460 Ps (338 KW)
- Overall Dimension
- 12600 * 2670 * 3890 mm
- GVW / Kerb Weight
- 42,000 kg / 17,820 kg
- Drive Type
- 8X4, left hand drive
- Transmission
- 12-speed forward, 2 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 60 rows.
8×4 ISUZU GIGA 25 Ton Fire Fighting Truck Description
- ISUZU Fire fighting truck also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, Foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other dapartments.
Advantage
- 100% custom-made
- ISUZU GIGA heavy duty Chassis, Durable & Performance.
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- High performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- A complete set of fire fighting Accessories & Equipment, your can put work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need.
Specification
ISUZU GIGA 25 ton Fire fighting truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 12600 * 2670 * 3890 mm | |
| GVW / Kerb Weight | 42,000 kg / 17,820 kg | |
| Cab | Cab Capacity | 2+4 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 6WG1-TCG51 | |
| Power | 460 Ps (338 KW) | |
| Displacement | 15681 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 8X4, left hand drive |
| Transmission | 12-speed forward, 2 reverse | |
| Wheelbase/No. of axle | 1850+4575+1370 mm / 4 | |
| Tyre Specification | 315/80R22.5 | |
| Tyre Number | 12 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank Capacity | 12,000 Litres ( About 3,200 gallons) |
| Foam Tank Capacity | 3,000 litres( About 800 gallons) | |
| Dry Powder Tank Capacity | 2,000 Litres (About 500 gallons) | |
| Tank Material | water tank: Carbon steel foam tank: stainless steel dry powder tank: carbon steel | |
| Nitrogen Gas Bottle | 70 Litres x 6 pcs | |
| Fire Pump | Flow speed 100 L/s | |
| Pressure | 1.0M Pa | |
| Fire Cannon | Flow speed 48 L/s | |
| Shot | Water ≥ 60 m | |
| foam | ≥ 55 m | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include shovel, pike poles, axes and cutting equipment, halligan bars.… | ||
| Optional | Ladders, floodlights… | |
Fire Equipment Table
8×4 ISUZU GIGA 25 Ton Fire Fighting Truck Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | straw | 125×4 meters 2 root Threaded |
| 2 | Water filter | FLF125 1 Piece Threaded |
| 3 | Trap | FII80/65×3-1.6 1 Piece Internal button |
| 4 | Water trap | JII125/65×2-1.0 1 Piece Internal button |
| 5 | Hose | 13-65-20 6 plate Low pressure; |
| 6 | Hose | 13-80-20 6 plate Low pressure; |
| 7 | Reducing interface | KJ65/80 2 Piece Internal button |
| 8 | Water-retaining cloth | DT-SB 4 Piece Internal button |
| 9 | Hose hook | 4 Piece |
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 1 Piece |
| 11 | Underground hydrant wrench | Long 860 1 Piece |
| 12 | Suction pipe wrench | FS100 2 Piece |
| 13 | DC switch water gun | QZG3.5/7.5; 65 1 support Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 1 support Low pressure; |
| 15 | Fire extinguisher | 3KG 1 With |
| 16 | Fire waist axe | Length 390; GF-285 1 Piece |
| 17 | Rubber hammer | 1 Piece |
| 18 | Rechargeable portable lighting | 1 Piece |
Optional Fire Equipment
8×4 ISUZU GIGA 25 Ton Fire Fighting Truck Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | Automatic charging device | 12V 1 set |
| 2 | Air backrest | 3 set |
| 3 | Air breathing apparatus | Number of members set |
| 4 | Hose bridge | rubber 2 vice |
| 5 | Telescopic ladder | 1 vice |
| 6 | Hand lift the pump | 1 station |
| 7 | Breaking tools | 1 set |
| 8 | Other fire equipment | |
Questions
Questions About The 8×4 ISUZU GIGA 25 Ton Fire Fighting Truck
What chassis is the 8×4 ISUZU GIGA 25 Ton Fire Fighting Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fire truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Fire Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 8×4 ISUZU GIGA 25 Ton Fire Fighting Truck
This build is listed as chassis ISUZU with engine ISUZU engine, 6WG1-TCG51. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
