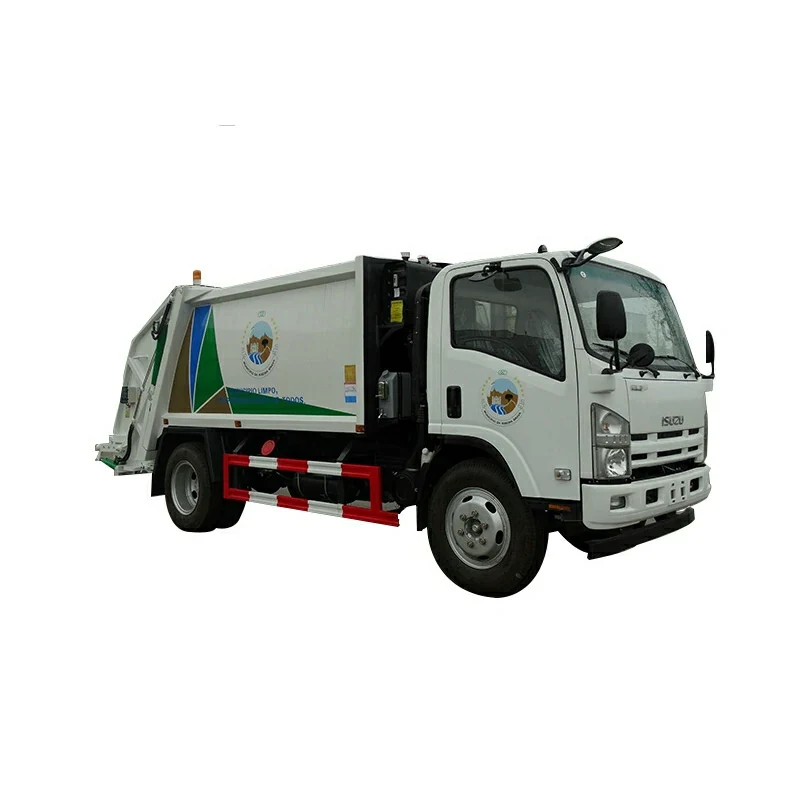

ISUZU ELF 8cbm Rubbish Compactor Truck
24 spec rowsView Details
- Home
- All Products
- Sanitation Truck
- ISUZU Garbage Truck
- Isuzu Garbage Compactor Truck
- ISUZU 8cbm Waste Management Compactor Trash Trucks
Main photo
Isuzu Garbage Compactor Truck
ISUZU 8cbm Waste Management Compactor Trash Trucks
4×2 ISUZU ELF 700P chassis, MSB 6-shift manual gearbox, 190HP diesel engine, high strength steel compactor body, Siemens PLC control device, with 6 ton loading capacity
- Chassis
- ISUZU
- Engine
- ISUZU engine, 4HK1
- Power
- 190 Hp (140 KW)
- Overall Dimension
- 7600X2450X2800 mm
- GVW / Kerb Weight
- 11,990 kg / 7,000 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- ISUZU gear box, no overhaul within 500,000 km
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 29 rows.
ISUZU 8cbm Waste Management Compactor Trash Trucks Description
- Isuzu 8m3 compactor trash trucks also called Truck mounted compactors, sanitation garbage compactor, compressing garbage trucks, waste compactors garbage truck, Hydraulic compressor garbage truck.
- compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airpot, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standard . which is safe and environmental-protective.
Advantage
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cublic Meter.
- Easy operation and easy maintenance.
- Virious types of refuse container lifter are available.
Specification
ISUZU 8cbm waste management compactor trash trucks (6 ton)
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 7600X2450X2800 mm | |
| GVW / Kerb Weight | 11,990 kg / 7,000 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1 | |
| Power | 190 Hp (140 KW) | |
| Displacement | 5199 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000 km | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 8.25R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Waste Box Capacity | 8 m³ |
| Waste Box Material | Carbon steel | |
| All other standard accessories: Tool kit, English manual…… | ||
| Optional | Various rear loading mechanism: container lifting; hopper flip; skip loader… Electronic operating system | |
Working Parameter
ISUZU 8cbm Waste Management Compactor Trash Trucks Specification
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material High strength T420 special steel plate |
|---|---|---|
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 8cbm Waste Management Compactor Trash Trucks
What chassis is the ISUZU 8cbm Waste Management Compactor Trash Trucks built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu garbage compactor truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Garbage Compactor Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU 8cbm Waste Management Compactor Trash Trucks
This build is listed as chassis ISUZU with engine ISUZU engine, 4HK1. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
