- ISUZU GIGA 12cbm Refuse Compactor Truck
Main photo
Isuzu Garbage Compactor Truck

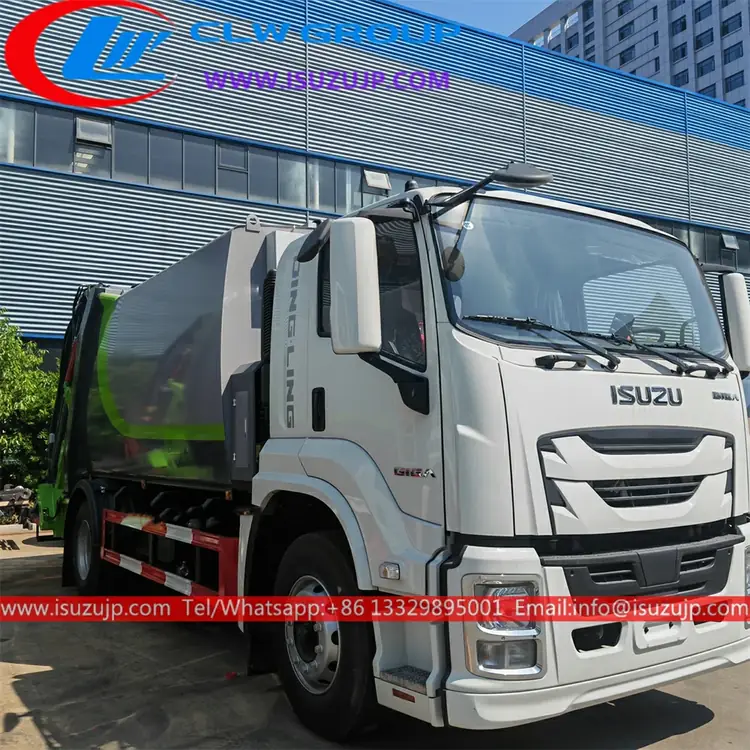

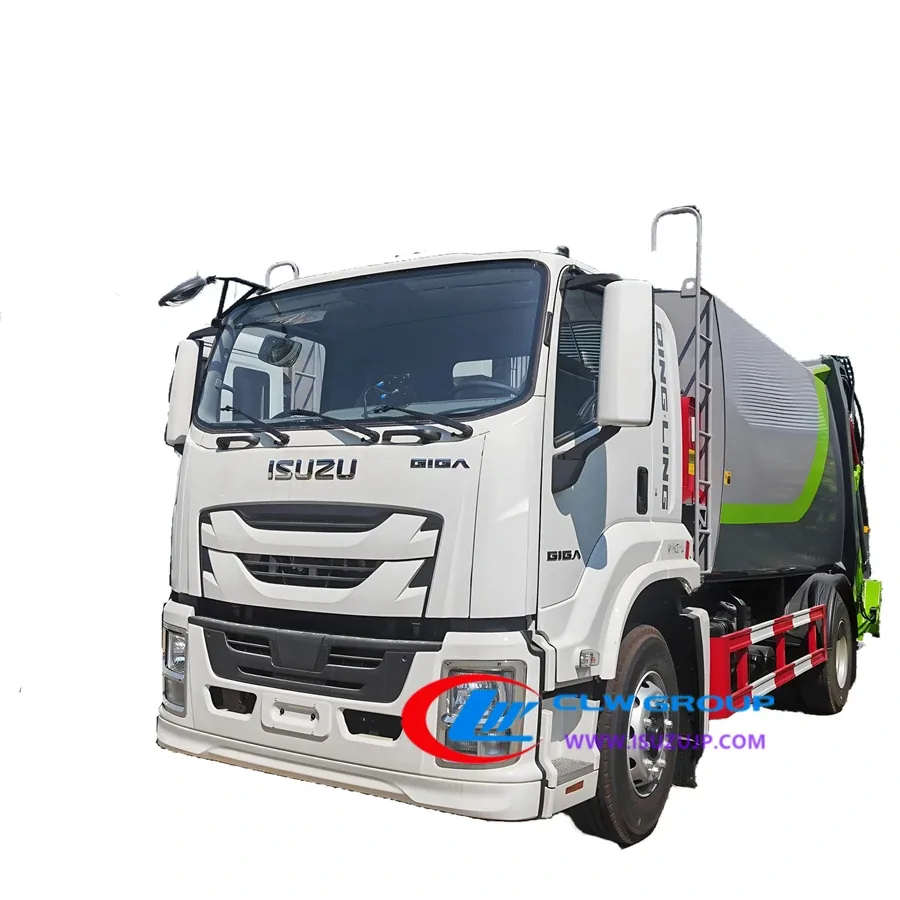

ISUZU GIGA 12cbm Refuse Compactor Truck
4×2 ISUZU GIGA chassis, MLD 6-shift manual gearbox, 190HP diesel engine, high strength steel compactor body, Siemens PLC control device, with 10 ton loading capacity
- Drive Type
- 4×2
- Emission
- Euro 4 5 6
- Capacity
- 12 M3 / 12,000Liters /12 CBM /12 CU.M
- Tank Material
- 5mm Q235 Carbon steel
Specification below is the factory table for this model, reproduced without edits. 24 rows.
Details
The Isuzu GIGA 12 cubic meter (cbm) refuse compactor truck is designed for efficient waste collection and compaction, suitable for urban and suburban environments. Combining the robust Isuzu GIGA chassis with a high-capacity compactor body, this truck offers durability, reliability, and high performance for waste management operations.
SPECIFICATION
| Truck Specification | ||
| Product Name | ISUZU GIGA 12 CU.M Refuse Garbage Compactor Truck | |
|---|---|---|
| Truck Manufacturer | CEHNGLI GROUP | |
| Overall dimensions (L×W×H) | About 8000*2500*3500mm | |
| Chassis Specification | ||
| Cabin | ISUZU GIGA,with A/C | |
| Drive type | 4×2 | |
| wheelbase | 4500 | |
| Fuel type of engine | Diesel | |
| Engine | Model | 4hk11-TCG61 |
| Maximum horse power | 205HP | |
| Number of cylinders | 4 | |
| Emission standard | Euro 4 5 6 | |
| Gear box | Type | Manual,12 forward & 2 rear |
| Tyres | Size | 295/80R22.5 |
| Quantity | 10+1 spare tire | |
| Upper body specification | ||
| Waste Tank | Capacity | 12 M3 / 12,000Liters /12 CBM /12 CU.M |
| Tank Material | 5mm Q235 Carbon steel | |
| Function | 1.Can choose 240L(single bin, double bins)and turnover device(plastic or steel garbage bin), can also choose ground hopper ,swing arm device or other kinds of loading device. | |
| 2.With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. With working device of emergency braking stop button. | ||
| 3.Garbage body use frame design, elegant, strong structure, large effective capacity. | ||
| 4.Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. | ||
| 5.Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.CAN electric automatic control. | ||

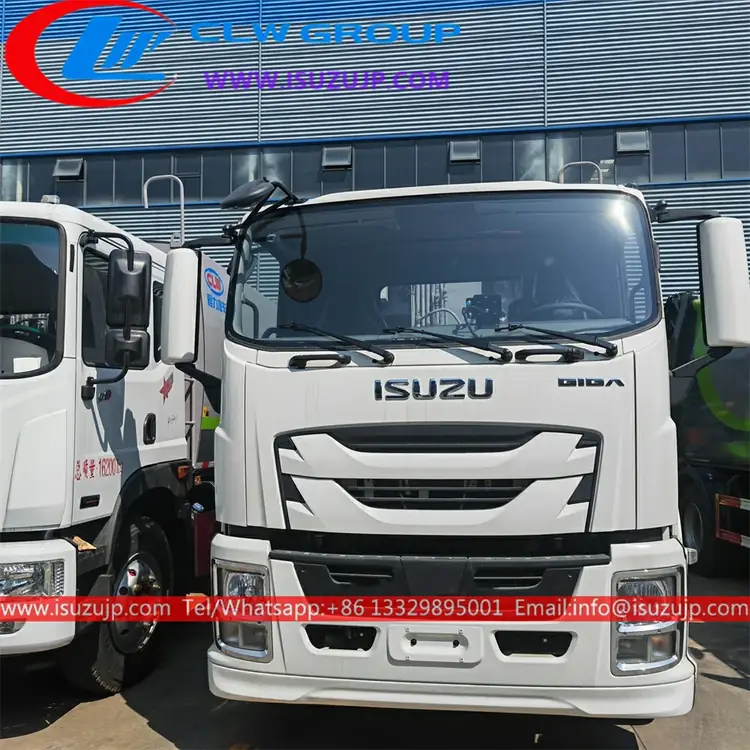

Isuzu GIGA Chassis
- Chassis : Model : Isuzu GIGA, a heavy-duty truck chassis known for its strength and reliability. Engine : Typically equipped with a powerful diesel engine, such as the 6UZ1-TCG40, known for its high torque and fuel efficiency. Transmission : Manual or automatic transmission options to suit various operational needs. Drive Configuration : Usually available in 4×2 or 6×4 configurations, depending on the specific model and requirements.
- Model : Isuzu GIGA, a heavy-duty truck chassis known for its strength and reliability.
- Engine : Typically equipped with a powerful diesel engine, such as the 6UZ1-TCG40, known for its high torque and fuel efficiency.
- Transmission : Manual or automatic transmission options to suit various operational needs.
- Drive Configuration : Usually available in 4×2 or 6×4 configurations, depending on the specific model and requirements.
- Dimensions : Length : Varies based on the specific model and configuration. Width : Standard width to navigate urban streets while maximizing payload capacity. Height : Designed to balance ground clearance and overall height for optimal performance.
- Length : Varies based on the specific model and configuration.
- Width : Standard width to navigate urban streets while maximizing payload capacity.
- Height : Designed to balance ground clearance and overall height for optimal performance.

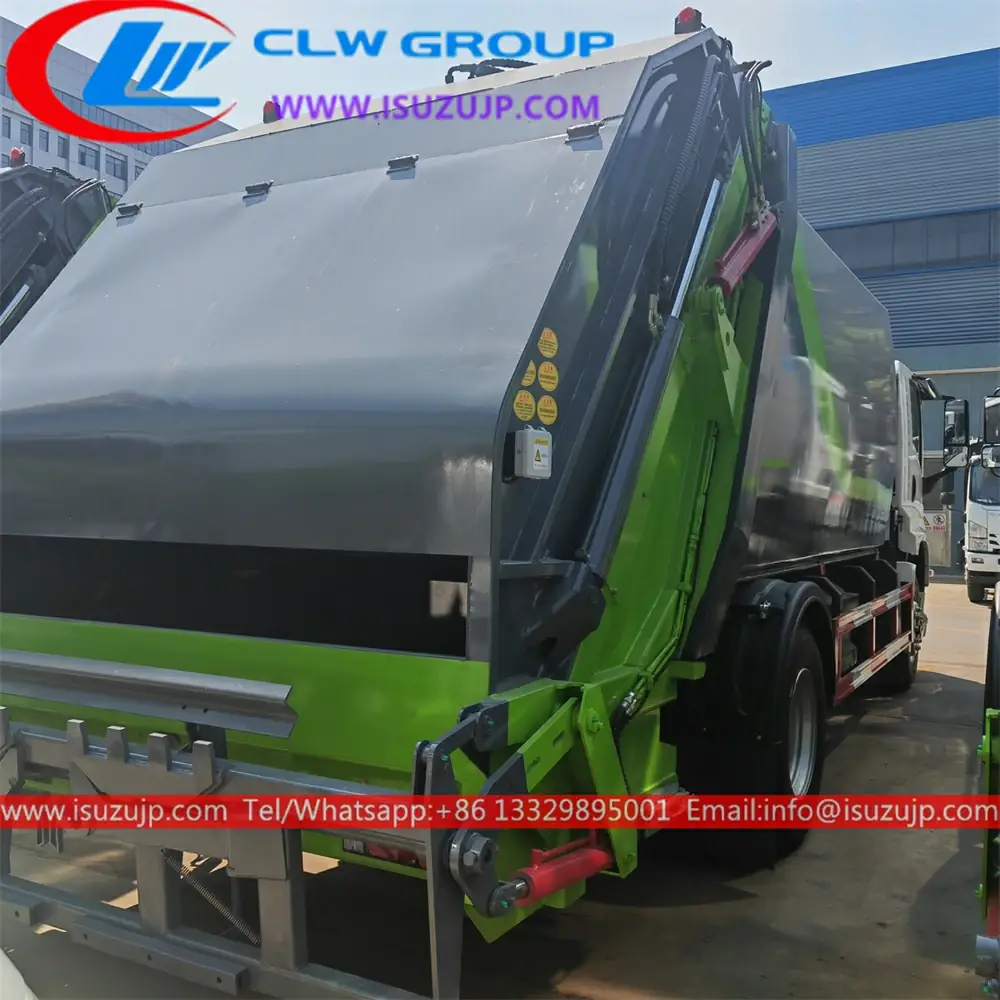

Refuse Compactor Body
- Capacity : Volume : 12 cubic meters, providing substantial capacity for waste collection before needing to offload. Compaction Ratio : Typically around 3:1 to 6:1, significantly reducing the volume of waste and increasing the efficiency of each trip.
- Volume : 12 cubic meters, providing substantial capacity for waste collection before needing to offload.
- Compaction Ratio : Typically around 3:1 to 6:1, significantly reducing the volume of waste and increasing the efficiency of each trip.
- Construction : Material : High-strength steel construction for durability and resistance to wear and tear. Hydraulic System : Advanced hydraulic system for efficient compaction and ejection of waste.
- Material : High-strength steel construction for durability and resistance to wear and tear.
- Hydraulic System : Advanced hydraulic system for efficient compaction and ejection of waste.
- Loading Mechanism : Rear Loader : Often equipped with a rear-loading mechanism for easy and efficient waste collection. Hopper : Large hopper at the rear to accommodate various types of waste containers.

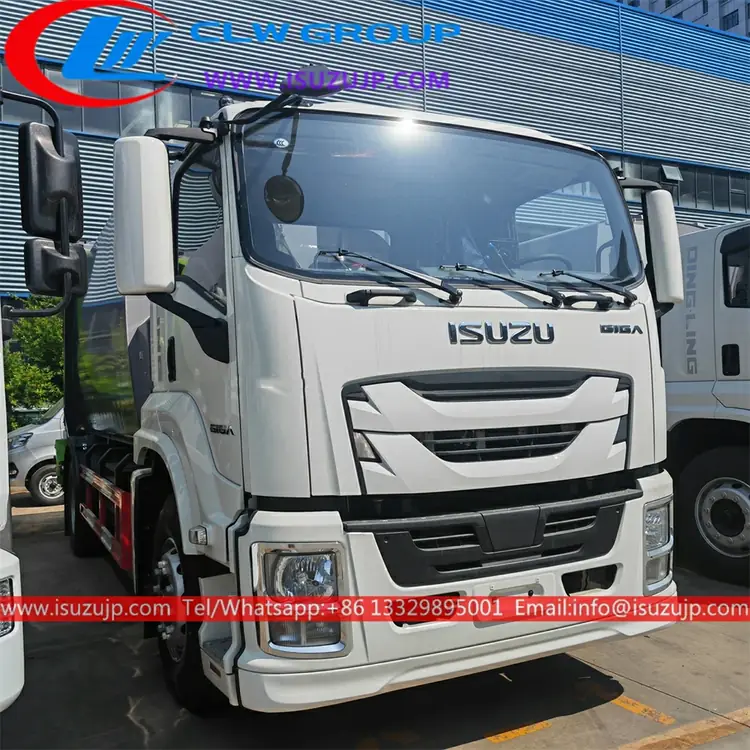

- Rear Loader : Often equipped with a rear-loading mechanism for easy and efficient waste collection.
- Hopper : Large hopper at the rear to accommodate various types of waste containers.
- Operation : Control System : User-friendly controls located in the cabin and at the rear of the truck. Automation : Options for semi-automated or fully automated loading and compaction processes. Safety Features : Includes safety interlocks, warning alarms, and emergency stop buttons to ensure safe operation.
- Control System : User-friendly controls located in the cabin and at the rear of the truck.
- Automation : Options for semi-automated or fully automated loading and compaction processes.
- Safety Features : Includes safety interlocks, warning alarms, and emergency stop buttons to ensure safe operation.
- Additional Features : Leachate Tank : To collect any liquid waste that may seep out during the compaction process. Cover : Hydraulic or manual covers to prevent spillage and control odors.
- Leachate Tank : To collect any liquid waste that may seep out during the compaction process.
- Cover : Hydraulic or manual covers to prevent spillage and control odors.
Applications
- Municipal Waste Collection : Regular residential and commercial waste collection routes. Suitable for urban and suburban waste management.
- Regular residential and commercial waste collection routes.
- Suitable for urban and suburban waste management.
- Industrial Waste Management : Collection and compaction of industrial waste. Can handle a variety of waste types, including bulky items.
- Collection and compaction of industrial waste.
- Can handle a variety of waste types, including bulky items.
- Recycling Operations : Collection of recyclable materials with optional sorting compartments.
- Collection of recyclable materials with optional sorting compartments.
Advantages
- High Capacity : 12 cbm capacity allows for significant waste collection before needing to offload, improving efficiency.
- Durability : Built on the reliable Isuzu GIGA chassis and constructed with high-strength materials for long-lasting performance.
- Efficiency : Advanced compaction system reduces the volume of waste, maximizing the use of space and reducing the number of trips required.
- Safety : Equipped with multiple safety features to protect operators and the public during waste collection operations.
Summary
The Isuzu GIGA 12cbm refuse compactor truck is a powerful and efficient solution for waste management. Its combination of a robust chassis, high-capacity compactor body, and advanced features makes it ideal for municipal and industrial waste collection operations. If you need more detailed specifications or additional information, feel free to ask!
Questions
Questions About The ISUZU GIGA 12cbm Refuse Compactor Truck
What chassis is the ISUZU GIGA 12cbm Refuse Compactor Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu garbage compactor truck?
The factory table lists Capacity 12 M3 / 12,000Liters /12 CBM /12 CU.M. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
