- ISUZU NP Foward 190HP 8 Cubic Meters Refuse Compactor Truck for Sale
Main photo
Isuzu Garbage Compactor Truck

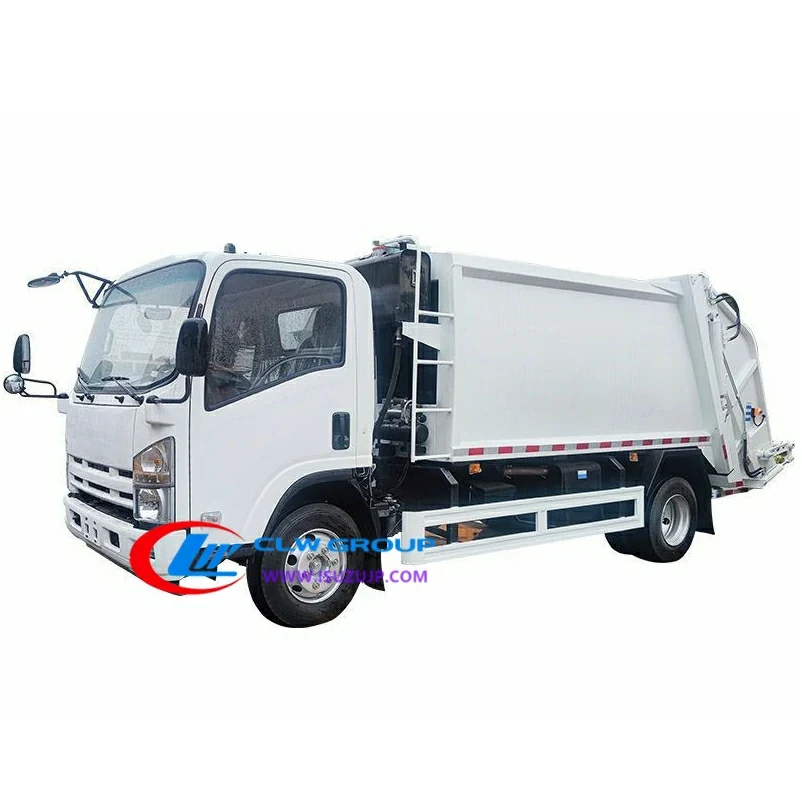

ISUZU NP Foward 190HP 8 Cubic Meters Refuse Compactor Truck for Sale
4×2 ISUZU NP FOWARD chassis, MLD 6-shift manual gearbox, 190HP diesel engine, high strength steel compactor body, Siemens PLC control device, with 6 ton loading capacity
- Power
- 190 HP
- Tank Capacity
- 8 CBM
- Tank Material
- 4mm high strength steel T420, with inside and outside antirust treatment
- Waste Water Tanker
- 100 + 200 Liters
- Long Source Large Flow 32-80 Pump, Optional Double Pump and Double Valve
- Body material High strength T420 special steel plate
Specification below is the factory table for this model, reproduced without edits. 42 rows.
Isuzu NP Foward 190HP 8 Cubic Meters Refuse Compactor Truck Description
- Isuzu NP Foward 190HP 8 cubic meters refuse compactor truck also called Truck mounted compactors, sanitation garbage compactors, compressing garbage trucks, waste compactors garbage trucks, and Hydraulic compressor garbage truck.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharfs, airports, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage
- ISUZU 700P chassis, perfect performance
- ISUZU engine is super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic Meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification
ISUZU NP Foward 190HP 8 Cubic Meters Refuse Compactor Truck for Sale Specification
| Manufacturer | CHENGLI Trucks | |
|---|---|---|
| Item | Isuzu NP Foward 190HP 8 cubic meters refuse compactor truck for sale | |
| Brand | ISUZU NP FOWARD | |
| Model | CLW5060GSSD6 | |
| Production Time | 35 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 7200*2000*2650 mm |
| Gross weight | 10,000 kg | |
| Kerb weight | 5,000 kg | |
| Wheelbase | 3,815 mm | |
| Driving type | 4*2 | |
| Chassis model | QINGLING 700P Light-duty | |
| Tire size | 235/75R17.5 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 4HK1-TC51 |
| Type of fuel | Diesel | |
| Power | 190 HP | |
| Gearbox | MLD 6-shift gearbox | |
| Upper Structure | ||
| Compactor Body performance | Tank Capacity | 8 CBM |
| Tank Material | 4mm high strength steel T420, with inside and outside antirust treatment | |
| Rear Hopper | 0.8-1.2 CBM | |
| Waste Water Tanker | 100 + 200 Liters | |
| Body Shape | Arc Shape as standard | |
| Control System | CAN-BUS electric control | |
| Hydraulic Valve control | ||
| Control Panel | English or Your language | |
| Discharge Model | Horizontal Ejection | |
| Tilting Device | Standard 240L * 2 | |
| Customized 360L, 660L, 770L, 1100L bins | ||
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Back Alarm and Camera can be equipped 2, Italy brand multi-way valve can be optional 3, 660L, 770L, 1100L bins lifting device can be optional 4. Front snowing sweeping device can be optional | |
Working Parameter
ISUZU NP Foward 190HP 8 Cubic Meters Refuse Compactor Truck for Sale Specification
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material High strength T420 special steel plate |
|---|---|---|
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NP Foward 190HP 8 Cubic Meters Refuse Compactor Truck for Sale
What chassis is the ISUZU NP Foward 190HP 8 Cubic Meters Refuse Compactor Truck for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu garbage compactor truck?
The factory table lists Tank Capacity 8 CBM. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Garbage Compactor Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NP Foward 190HP 8 Cubic Meters Refuse Compactor Truck for Sale
This build is listed as power 190 HP with tank capacity 8 CBM. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
