Main photo
Isuzu Garbage Compactor Truck

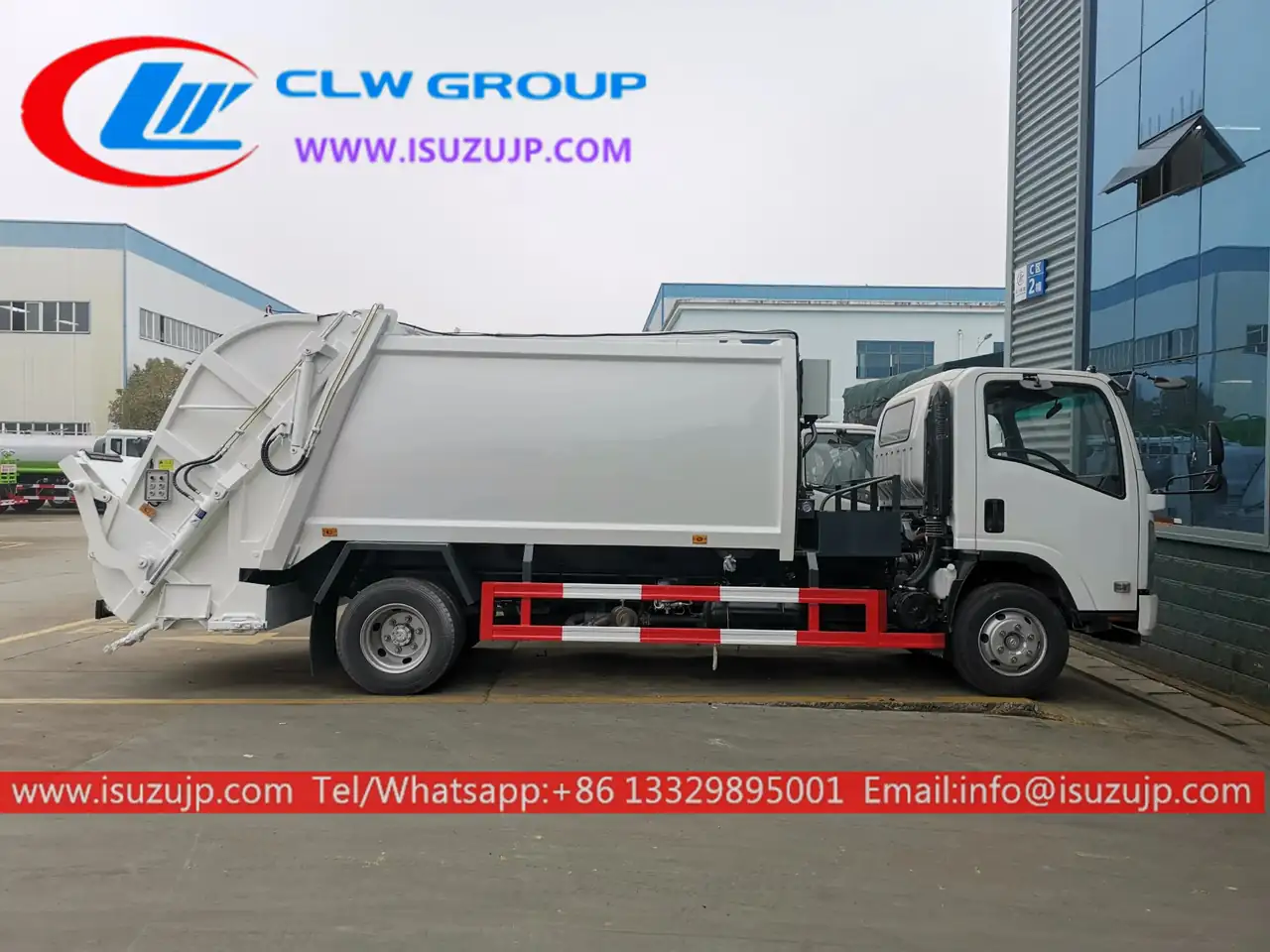

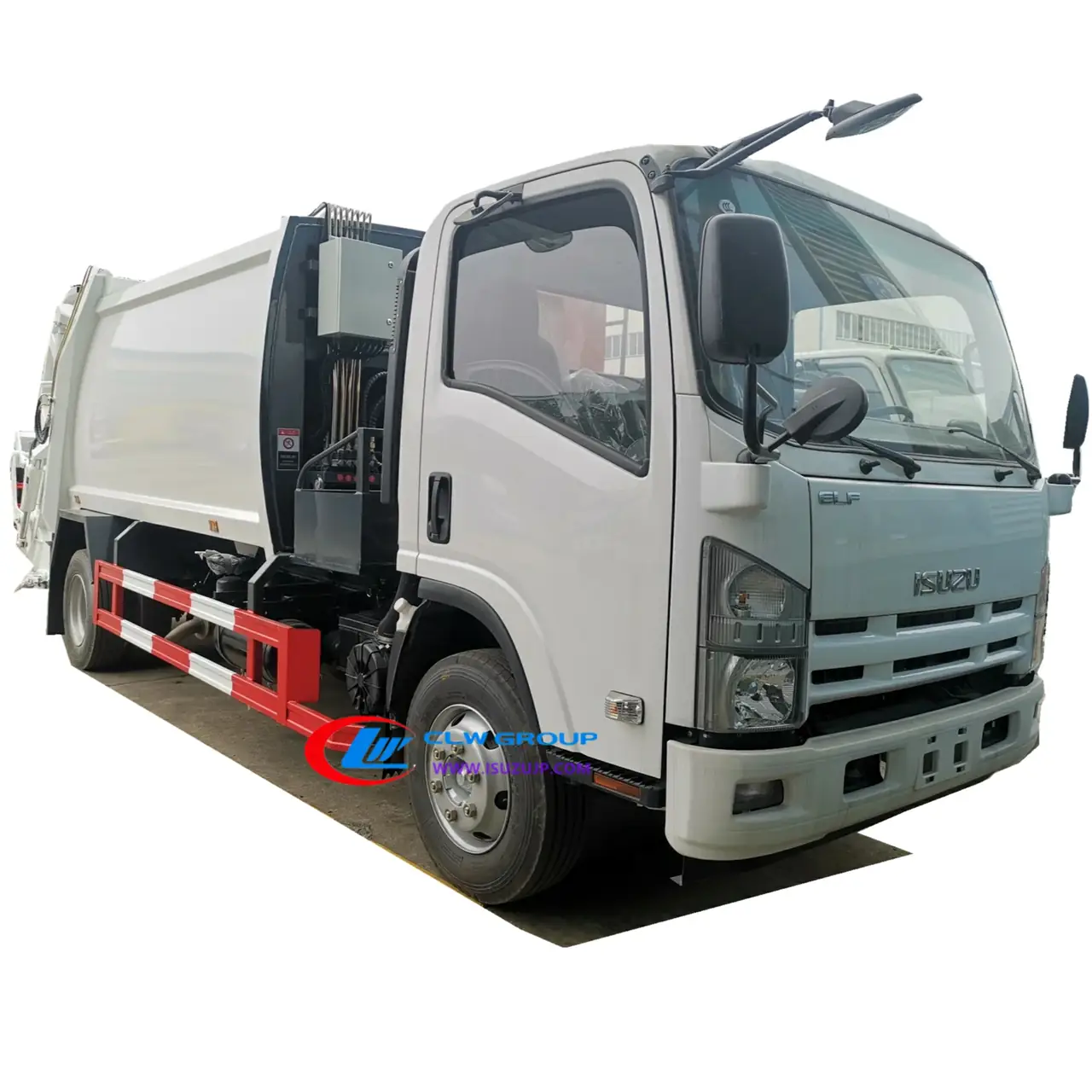

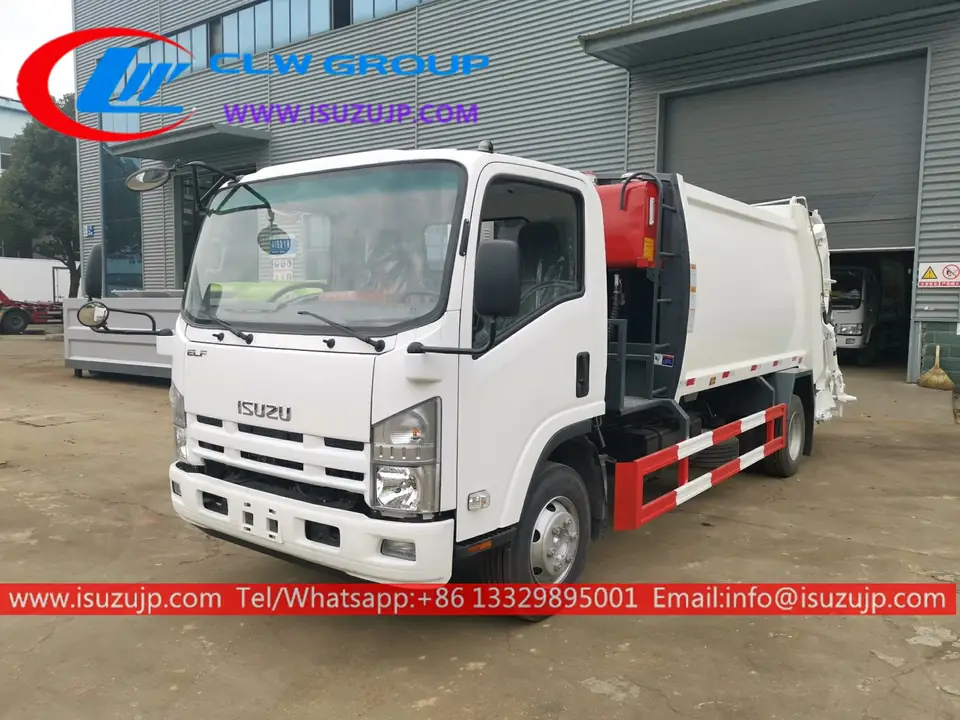

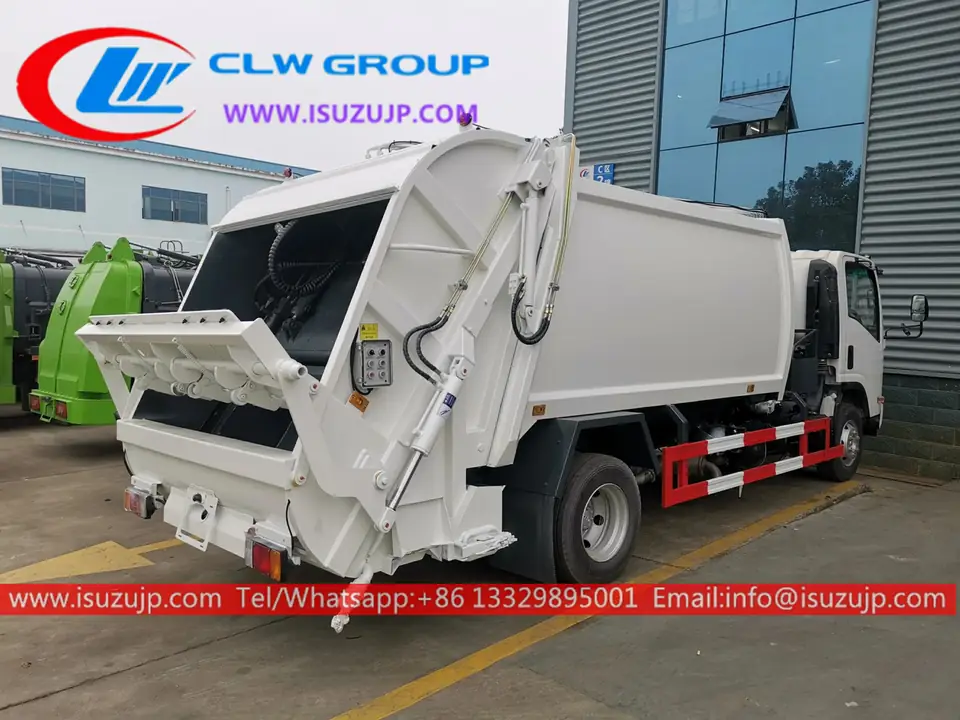

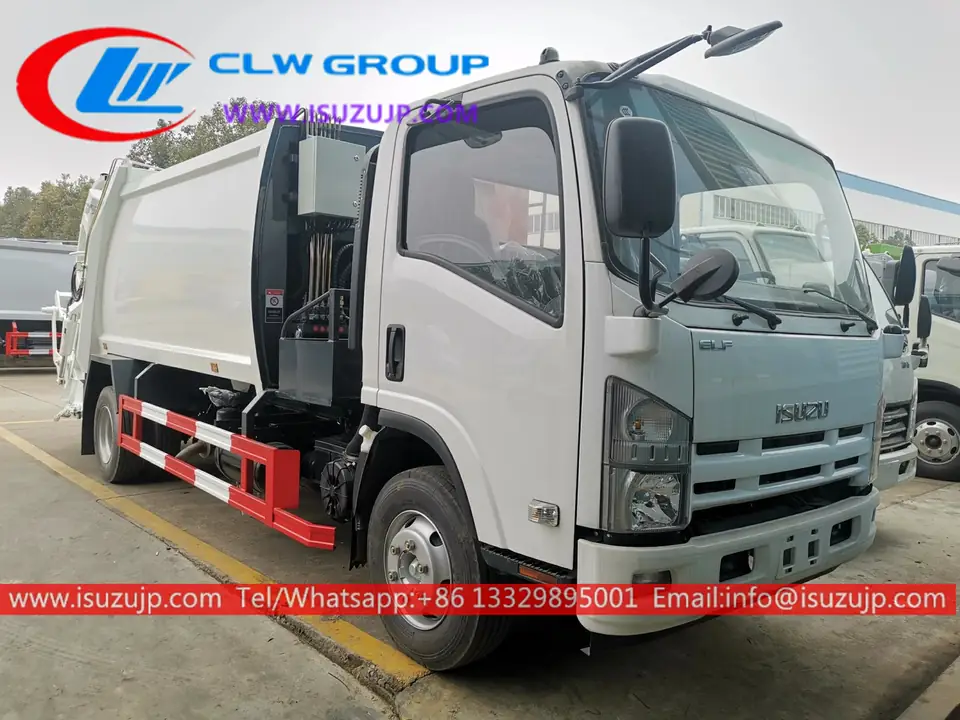

ISUZU ELF 5 Tons Waste Management Garbage Truck
4×2 ISUZU ELF chassis, MSB 5-shift manual gearbox, 120HP diesel engine, high strength steel compactor body, Siemens PLC control device, with 5 ton loading capacity
- Overall Dimension
- 6450 x 2050 x 2570mm
- Loading Weight
- 2000 kg
- Fuel Tank
- 100 Liter
- Capacity
- 5 CBM
- Ways of Loading
- Rear Loading with optional Bucket Lifting System
- Long Source Large Flow 32-80 Pump, Optional Double Pump, and Double Valve
- Body material High-strength T420 special steel plate
Specification below is the factory table for this model, reproduced without edits. 31 rows.
ISUZU ELF 5 Tons Waste Management Garbage Truck Description
- Isuzu ELF 5 tons waste management garbage truck also called Truck-mounted compactors, sanitation garbage compactor, compressing garbage trucks, waste compactors garbage truck, Hydraulic compressor garbage truck.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharfs, airport, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage
- ISUZU ELF Light chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification
ISUZU ELF 5 Tons Waste Management Garbage Truck Specification
| Item No. | ISUZU ELF 5 tons waste management garbage truck | |
|---|---|---|
| Overall Dimension | 6450 x 2050 x 2570mm | |
| Gross Vehicle Weight | 730 kg | |
| Loading Weight | 2000 kg | |
| Curb Weight | 5170 kg | |
| Wheel Base | 3360 mm | |
| Axles Quantity | 2 Axles | |
| Front / Rear Axle | 2500 kg / 4800kg | |
| Cabin | Left-Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio, with ABS | |
| Engine | Isuzu 4JB1CN, Four Stroke, 4 Cylinder in line, Mechanical Engine Pump. | |
| Engine horsepower | 98HP, EURO 4 | |
| Displacement | 2771 ml | |
| Max Driving Speed | 90 km/h | |
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | |
| Fuel Tank | 100 Liter | |
| Tire | 7.00-15 (6 pieces with one spare) | |
| Garbage Bin | Capacity | 5 CBM |
| Material | 4mm Carbon Steel for Garbage Bin Body | |
| Design | Whole unit with Leakage Proof Design | |
| Ways of Loading | Rear Loading with optional Bucket Lifting System | |
| Plat Form | 2 sides for 2 workers for foot transport | |
| Garbage Compact Ratio | 1/3 – 1/4 | |
| Control System | One control panel on the back, One Control system in the back of the Cabin | |
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system, and operating system. 2. Automatic loading, compressing, and discharging, all handled by 1 person 3. Sewage water collection tank to avoid any pollution during handling. 4. Large Pressure, Good Leakage Proof, Convenient Operation Dependable Security 5. Electrical Control Panel for compacting system. 6. Cycling time<14~18s |
Working Parameter
ISUZU ELF 5 Tons Waste Management Garbage Truck Specification
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump, and double valve | Body material High-strength T420 special steel plate |
|---|---|---|
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices Tail-lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU ELF 5 Tons Waste Management Garbage Truck
What chassis is the ISUZU ELF 5 Tons Waste Management Garbage Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu garbage compactor truck?
The factory table lists Loading Weight 2000 kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
